1. اھم حفاظتي ھدايتون
مھرباني ڪري ھن پراڊڪٽ کي استعمال ڪرڻ کان پھريان سڀ ھدايتون احتياط سان پڙھو. مستقبل جي حوالي لاءِ ھي دستوري رکو.
- Do not expose this appliance to rain, moisture, dripping or splashing.
- سامان تي مائع سان ڀريل شيون نه رکو، جهڙوڪ گلدان، سامان تي.
- ڪنهن به وينٽيليشن جي سوراخن کي بند نه ڪريو. ٺاهيندڙ جي هدايتن جي مطابق انسٽال ڪريو.
- ڪنهن به گرمي جي ذريعن جي ويجهو نصب نه ڪريو جهڙوڪ ريڊيٽرز، گرمي رجسٽر، اسٽو، يا ٻيو سامان (بشمول ampلائفائرز) جيڪي گرمي پيدا ڪن ٿا.
- بجليءَ جي تار کي هلڻ يا پنچ ٿيڻ کان بچايو، خاص طور تي پلگ، سهولتن جي رسيپٽيڪل ۽ ان نقطي تي جتي اهي سامان مان نڪرندا آهن.
- صرف ٺاھيندڙ طرفان بيان ڪيل منسلڪ / لوازمات استعمال ڪريو.
- بجليءَ جي طوفانن دوران يا ڊگھي عرصي لاءِ غير استعمال ٿيڻ دوران ھن ڊوائيس کي ان پلگ ڪريو.
- س servني خدمتن جو حوالو ڏيو قابل سروس اهلڪارن کي. خدمت گھربل آھي جڏھن سامان خراب ٿي ويو آھي ڪنھن به طريقي سان.
2. پيڪيج مواد
پڪ ڪريو ته سڀئي شيون پيڪيج ۾ موجود آهن:
- صوتي بار x1
- Wired Subwoofer x1
- پاور اڊاپٽر x1
- ريموٽ ڪنٽرول x1
- RCA to 3.5mm Stereo Audio Cable x1
- Digital Optical Cable x1
- تڪڙي شروعات گائيڊ x1
- Wall Mounting Brackets x1

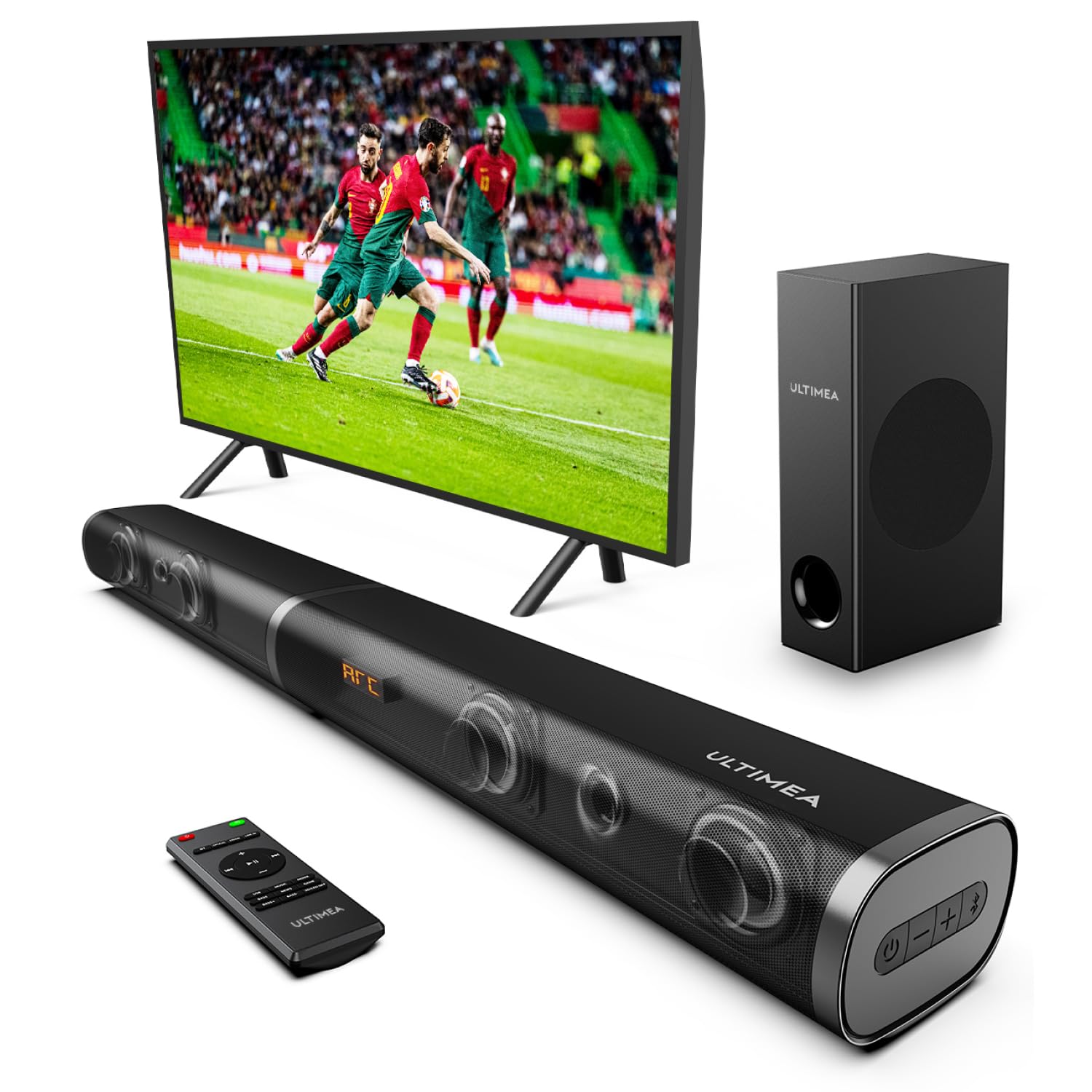

Image: ULTIMEA Tapio VII Soundbar and its wired subwoofer, displayed in a living room setting.
3. پراڊڪٽ ختمview
Image: A couple enjoying cinematic stereo surround sound at home, with the ULTIMEA soundbar and subwoofer enhancing their TV experience.
3.1 سائونڊ بار جون خاصيتون
The soundbar is equipped with four finely tuned full-range speakers and two bass reflex tubes to deliver clear and powerful audio, creating a realistic acoustic experience.
Image: Diagram illustrating the soundbar's internal components, including four full-range speakers and two bass reflex ports, designed for powerful sound output.
3.2 Subwoofer Features
The dedicated 5.25-inch wired subwoofer provides deep and rich bass, enhancing your audio experience with powerful, intense low frequencies.
Image: Close-up of the 5.25-inch wired subwoofer, highlighting its design for deeper bass.
3.3 ريموٽ ڪنٽرول
The included remote control allows for convenient operation of all soundbar functions, including power, input selection, volume, and EQ modes.
Image: The remote control for the soundbar, showing various buttons for function control.
4. سيٽ اپ
4.1 جڳهه جا آپشن
The soundbar can be placed on a TV stand or wall-mounted. Ensure the subwoofer is placed near the soundbar for optimal bass delivery.
- ڊيسڪ ٽاپ جي جڳھ: Position the soundbar directly in front of your TV on a flat surface.
- ڀت لڳائڻ: Use the provided wall mounting brackets to secure the soundbar to the wall below your TV.
Image: The soundbar wall-mounted beneath a television, demonstrating a common installation method.
4.2 سب ووفر کي ڳنڍڻ
Connect the wired subwoofer to the soundbar using the dedicated subwoofer cable. Ensure a secure connection.
4.3 آڊيو ڪنيڪشن
The soundbar supports multiple connection types. Choose the one that best suits your TV or audio source.
- HDMI آرڪ: Connect an HDMI cable from the soundbar's ARC port to your TV's HDMI ARC port. This allows for audio return channel functionality.
- بصري: Connect the digital optical cable from the soundbar's OPTICAL port to your TV's optical output. اهم: Remove protective caps from both ends of the optical cable before use. Ensure your TV's audio output is set to PCM (not Dolby or DTS) for optical connections.
- AUX: Use the RCA to 3.5mm stereo audio cable to connect to devices with a 3.5mm audio output.
- USB: Insert a USB drive for direct audio playback.
Image: The rear connection panel of the soundbar, displaying the various input ports including Optical, ARC, Bluetooth 5.0, AUX, and USB.
4.4 پاور ڪنيڪشن
Connect the power adapter to the soundbar's DC IN port and then plug it into a wall outlet.
5. آپريٽنگ هدايتون
5.1 پاور آن/آف
يونٽ کي آن يا آف ڪرڻ لاءِ سائونڊ بار يا ريموٽ ڪنٽرول تي پاور بٽڻ کي دٻايو.
5.2 ان پٽ چونڊ
Press the "Input" button on the remote control to cycle through available input sources: ARC, Optical, AUX, USB, and Bluetooth.
5.3 حجم ڪنٽرول
Use the Volume Up (+) and Volume Down (-) buttons on the remote control to adjust the sound level.
5.4 EQ موڊس
The soundbar features 6 equalizer (EQ) modes to optimize audio for different content types. Press the EQ button on the remote to switch between modes:
- فلم: سينيما جي آواز لاءِ بهتر ڪيل.
- موسيقي: ميوزڪ پلے بیک لاءِ بهتر ڪيل.
- خبر: Clearer dialogue for news and talk shows.
- راند: Immersive sound for gaming.
- 3D: Creates a wider, more enveloping soundstage.
- باس +/-: Adjust bass levels independently.
Image: Visual representation of the soundbar's EQ modes, including Game, Bass, News, Movie, Music, and 3D, to optimize audio for different content.
5.5 بلوٽوٽ جوڙي
بلوٽوت ڊوائيس کي ڳنڍڻ لاء:
- Press the "BT" button on the remote control to select Bluetooth input. The soundbar display will show "BT".
- On your device (smartphone, tablet), enable Bluetooth and search for "ULTIMEA Tapio VII".
- Select the soundbar from the list to pair. Once connected, the soundbar will indicate successful pairing.
Image: A smartphone screen showing a Bluetooth 5.0 connection to the soundbar, illustrating wireless audio streaming.
6. سار سنڀال
- Clean the soundbar and subwoofer with a soft, dry cloth. Do not use liquid cleaners or aerosols.
- Avoid placing heavy objects on the soundbar.
- Keep the product away from direct sunlight, heat sources, and excessive dust.
7. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| طاقت نه آهي | Power cable not connected or outlet not working. | پاور ڪيبل ڪنيڪشن چيڪ ڪريو. ڪو ٻيو آئوٽ ليٽ آزمايو. |
| آواز ڪونهي | غلط ان پٽ چونڊيو ويو آهي، حجم تمام گهٽ آهي، يا ڪيبل صحيح طرح سان ڳنڍيل نه آهن. | Select correct input source. Increase volume. Check all audio cable connections. Ensure TV audio output is set to PCM for optical connection. |
| بلوٽوٿ جوڙڻ ناڪام ٿيو | Soundbar not in pairing mode, device too far, or interference. | Ensure soundbar is in BT mode. Move device closer. Disconnect other Bluetooth devices. |
| بگڙيل آواز | Volume too high, incorrect EQ mode, or source audio quality. | Reduce volume. Try different EQ modes. Check source audio quality. |
8. وضاحتون
- ماڊل نالو: ٽيپيو VII
- ماڊل نمبر: U3100
- ڪل ٻاڦ پاور: 190 واٽ
- Subwoofer سائيز: 5.25 انچ
- چوڌاري آواز جي ترتيب: 2.1 چينل
- رابطي ٽيڪنالاجي: بلوٽوٿ، HDMI (ARC)، آپٽيڪل، AUX، USB
- وائرليس ڪميونيڪيشن ٽيڪنالاجي: بلوٽوٿ
- تعدد جواب: 50 هز - 20 ڪلو هرٽز
- ڪنٽرول جو طريقو: ريموٽ ڪنٽرول
- پيداوار جي ماپ: Soundbar: 84cm (width); Subwoofer: 22D x 42W x 12H centimeters
- رنگ: ڪارو
- مطابقت رکندڙ ڊوائيسز: Home cinema, Desktop computer, Laptop, Projector, Television, Smartphone, Tablet
9. وارنٽي ۽ سپورٽ
This product comes with a manufacturer's warranty of 2 years. For warranty claims or technical support, please contact ULTIMEA customer service through their official webسائيٽ يا پرچون ڪندڙ جتي پراڊڪٽ خريد ڪئي وئي هئي.
