تعارف
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Gdrasuya10 Wave Round Dimmable LED Ceiling Light, Model S94. Please read this manual thoroughly before installation and retain it for future reference.
Image: The Gdrasuya10 Wave Round Dimmable LED Ceiling Light, Model S94, installed in a bedroom setting.
پيڪيج مواد
انسٽاليشن سان اڳتي وڌڻ کان اڳ پڪ ڪريو ته سڀئي جزا موجود آهن ۽ انهن کي ڪو نقصان نه پهتو آهي.
- 1 x Gdrasuya10 Wave Round Dimmable LED Ceiling Light
- 1 x هدايت نامو (هي دستاويز)
- 1 x Hardware Bag (containing mounting screws, wire connectors, etc.)
- 1 x ريموٽ ڪنٽرول
اهم حفاظتي ڄاڻ
- برقي حفاظت: For safe and secure installation, ensure that the electrical box to which this fixture will be mounted is properly attached to a structural member of the building. Always turn off power at the circuit breaker before installation or maintenance.
- وائرنگ: All wires are connected. When unpacking, be careful not to pull on wires as a bad connection may result. Do not connect electricity until your fixture is fully assembled.
- پيشه ورانه تنصيب: جيڪڏهن توهان کي بجلي جي وائرنگ بابت پڪ ناهي، ته هڪ قابل اليڪٽريشن سان صلاح ڪريو.
- سنڀالڻ: Handle the light fixture with care to avoid damage to components, especially the acrylic lampshade and LED light sources.
سيٽ اپ ۽ تنصيب
This fixture is designed for flush mount installation. Ensure the power is OFF at the circuit breaker before beginning installation.
- چڙهڻ واري مٿاڇري کي تيار ڪريو: Ensure the electrical box is securely mounted to a structural support in the ceiling.
- انپيڪ اجزاء: پيڪنگ مان سڀني حصن کي احتياط سان هٽايو. ڪنهن به نقصان جي چڪاس ڪريو.
- ماؤنٽنگ بریکٹ ڳنڍيو: Secure the mounting bracket (from the hardware bag) to the electrical box using the provided screws.
- وائر ڪنيڪشن: Connect the household electrical wires to the fixture's wires according to local electrical codes. Typically, connect live to live (black to black), neutral to neutral (white to white), and ground to ground (green or bare copper to green). Use the provided wire connectors.
- سامان کي محفوظ ڪريو: Carefully lift the light fixture and align it with the mounting bracket. Secure the fixture to the bracket using the screws provided. Ensure it is flush against the ceiling.
- پاور بحال ڪريو: هڪ دفعو فڪسچر محفوظ طور تي نصب ٿي وڃي ۽ سڀئي ڪنيڪشن ٿي وڃن، سرڪٽ بريڪر تي بجلي بحال ڪريو.

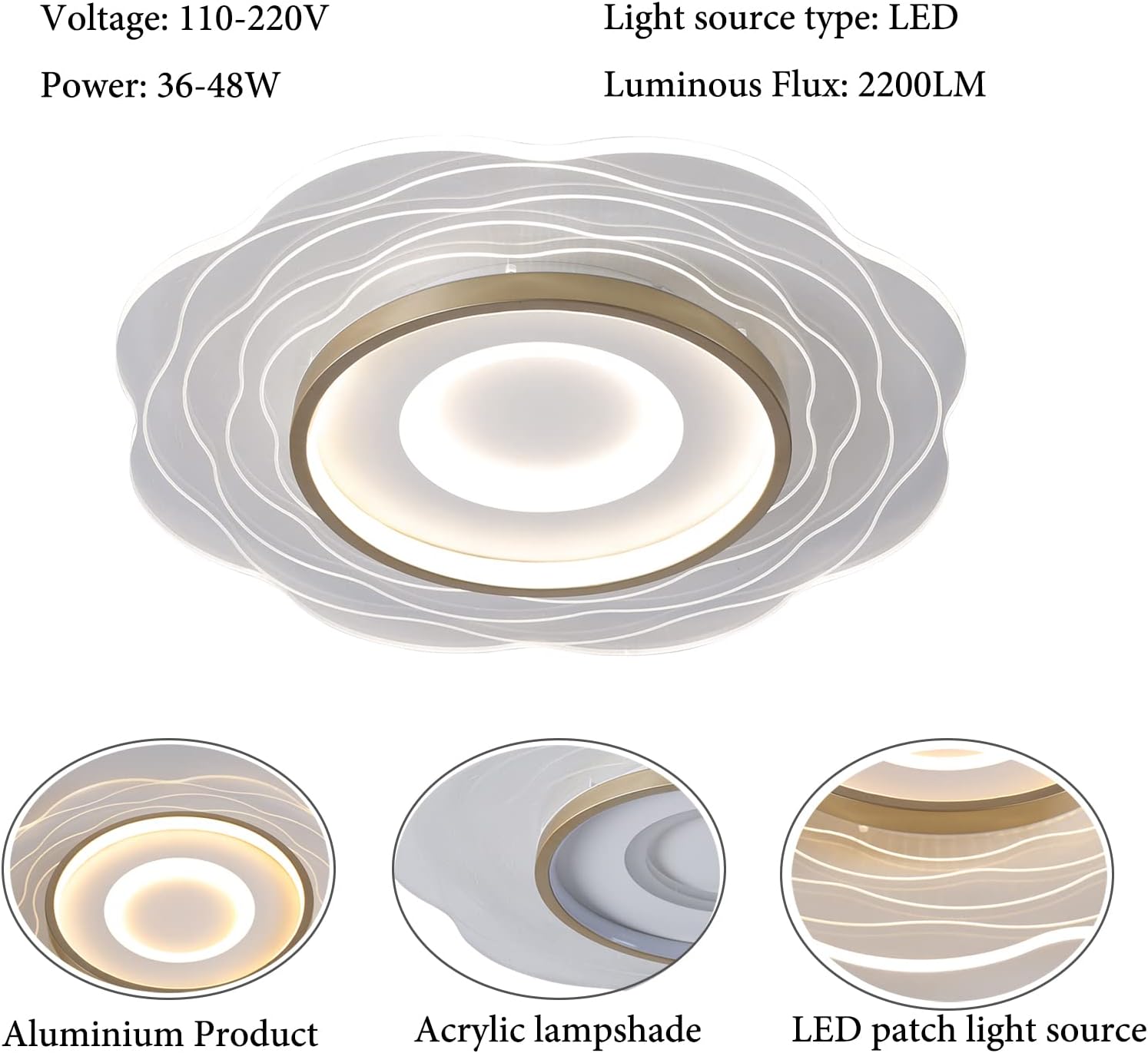

Image: Key components of the ceiling light, including the aluminum base, acrylic lampڇانو، ۽ LED روشني جو ذريعو.
آپريٽنگ هدايتون
Your Gdrasuya10 LED Ceiling Light is controlled by the included remote control, allowing for adjustment of brightness and color temperature.
ريموٽ ڪنٽرول افعال:
- پاور آن / آف: لائٽ آن يا آف ڪرڻ لاءِ پاور بٽڻ کي دٻايو.
- روشني جي ترتيب: Use the brightness up/down buttons to adjust the light intensity from 1% to 100%.
- رنگ جي درجه حرارت جي ترتيب: Use the color temperature buttons to cycle through or fine-tune the color temperature settings:
- گرم اڇو: Approximately 3000K
- غير جانبدار اڇو: Approximately 4500K
- ٿڌو اڇو: Approximately 6000K - 6500K
Image: The remote control and visual representation of the light fixture displaying warm, neutral, and cool white color temperatures.
Image: Illustration of the dimming range (10%-100%) and color temperature options (3000K-6500K).
سار سنڀال
The Gdrasuya10 LED Ceiling Light requires minimal maintenance.
- صفائي: Ensure the power is off before cleaning. Use a soft, dry cloth to wipe the fixture. For stubborn marks, a slightly damp cloth with mild soap may be used, followed by drying with a clean, dry cloth. Avoid abrasive cleaners or solvents.
- ايل اي ڊي جي ڊگهي عمر: مربوط ايل اي ڊي لائيٽ جو ذريعو ڊگهي مدت جي استعمال لاءِ ٺاهيو ويو آهي ۽ ان کي بلب جي متبادل جي ضرورت ناهي.
مشڪلاتون
If you encounter issues with your ceiling light, refer to the following common problems and solutions:
- روشني نه ايندي آهي:
- چيڪ ڪريو ته پاور سوئچ آن آھي.
- Verify that the circuit breaker is not tripped.
- پڪ ڪريو ته سڀئي تار ڪنيڪشن محفوظ آهن.
- Confirm the remote control has working batteries and is pointed at the fixture.
- روشني اوچتو ٽمٽار يا مدھم ٿي وڃي ٿي:
- لوز تار ڪنيڪشن لاء چيڪ ڪريو.
- حجم کي يقيني بڻايو وڃيtagاي سپلاءِ مستحڪم آهي ۽ مخصوص حد (110-220V) اندر آهي.
- If using a wall dimmer, ensure it is compatible with LED dimmable fixtures.
- ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي:
- ريموٽ ڪنٽرول ۾ بيٽرين کي تبديل ڪريو.
- پڪ ڪريو ته ريموٽ ۽ لائيٽ فڪسچر جي وچ ۾ ڪا به رڪاوٽ نه آهي.
جيڪڏهن انهن حلن جي ڪوشش ڪرڻ کان پوءِ به مسئلو برقرار رهي ته ڪسٽمر سپورٽ سان رابطو ڪريو.
وضاحتون
| ماڊل نمبر | S94 |
| برانڊ | Gdrasuya10 |
| قسم | Dimmable LED Ceiling Light, Flush Mount |
| شڪل | Wave Round |
| مواد | Acrylic, Aluminum, Iron, Metal |
| پيداوار جي ماپ (L x W x H) | 35.43" x 23.62" x 2.75" (90 سينٽي ميٽر x 60 سينٽي ميٽر x 7 سينٽي ميٽر) |
| طاقت جو ذريعو | تار ٿيل برقي |
| جلدtage | 110-220V |
| واتtage | 72W |
| روشني وارو وهڪرو | 5000 ايل ايم |
| روشني جو ذريعو قسم | مربوط LED |
| رنگ جي درجه حرارت | 3000K (Warm White) - 4500K (Neutral White) - 6500K (Cool White) |
| ڊمبل رينج | 1% - 100% (via remote control) |
| ڪنٽرول جو طريقو | ريموٽ ڪنٽرول |
| Suggested Room Area | 15-25㎡ (161-269 sq ft) |
| Applicable Room Types | بيڊ روم، ڊائننگ روم، هوم آفيس، باورچی خانه، رهائش جو ڪمرو |
Image: Detailed dimensions of the ceiling light fixture.
وارنٽي ۽ سپورٽ
Specific warranty details are not provided in this manual. For warranty information or technical support, please refer to your purchase documentation or contact the retailer where the product was purchased.
