تعارف
Thank you for choosing the Be Cool 121 cm Tower Fan. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and keep it for future reference.
تصوير: سامهون view of the Be Cool 121 cm Tower Fan in white, showcasing its sleek design and tall profile.
اهم حفاظتي ڄاڻ
- هميشه پڪ ڪريو ته پنکڙو هڪ مستحڪم، فليٽ مٿاڇري تي رکيل آهي ته جيئن ٽپڻ کان بچي سگهجي.
- Do not insert fingers or any objects into the fan grilles.
- صفائي ڪرڻ يا ڪا به سار سنڀال ڪرڻ کان اڳ فين کي پاور آئوٽليٽ مان ڪڍي ڇڏيو.
- Keep the fan away from water and high humidity environments.
- فين کي خراب ٿيل تار يا پلگ سان نه هلايو. مرمت لاءِ قابل سروس اهلڪارن سان رابطو ڪريو.
- هي اوزار صرف اندروني استعمال لاء آهي.
پيڪيج مواد
Please check the package contents upon opening to ensure all items are present and undamaged:
- Be Cool 121 cm Tower Fan Unit
- Base (two halves)
- ريموٽ ڪنٽرول (1 CR2430 بيٽري سان گڏ)
- استعمال ڪندڙ دستي
- Mounting Screws for Base
سيٽ اپ ۽ اسيمبلي
Follow these steps to assemble your Be Cool Tower Fan:
- Carefully remove all packaging materials from the fan unit and its components.
- Take the two halves of the base and align them. They should snap together or fit snugly.
- Place the main fan unit onto the assembled base, ensuring the alignment tabs or slots match.
- Secure the fan unit to the base using the provided screws. Typically, these are tightened from the underside of the base.
- گڏ ٿيل پنکڙي کي مضبوط، هموار مٿاڇري تي رکو.
- Insert the CR2430 battery into the remote control if not already pre-installed.
- Plug the power cord into a standard electrical outlet (220V).
تصوير: پاسي view of the Be Cool Tower Fan, illustrating its slim profile and stable circular base.
آپريٽنگ هدايتون
Your Be Cool Tower Fan can be operated using the touch control panel on top of the unit or the included remote control.
ڪنٽرول پينل ۽ LED ڊسپلي

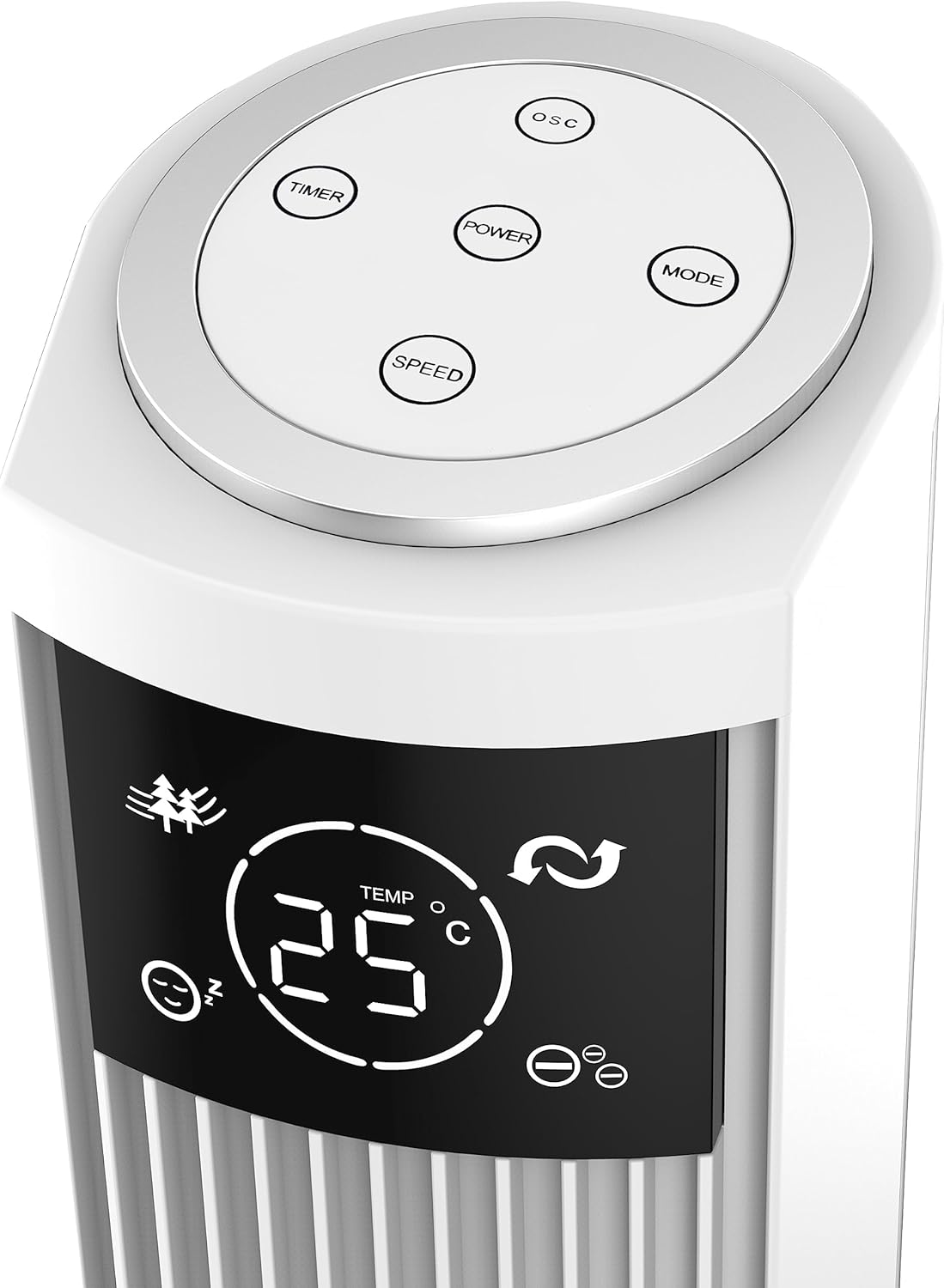

Image: Close-up of the fan's top control panel, showing the touch buttons for Power, Speed, Timer, Oscillation, and Mode.

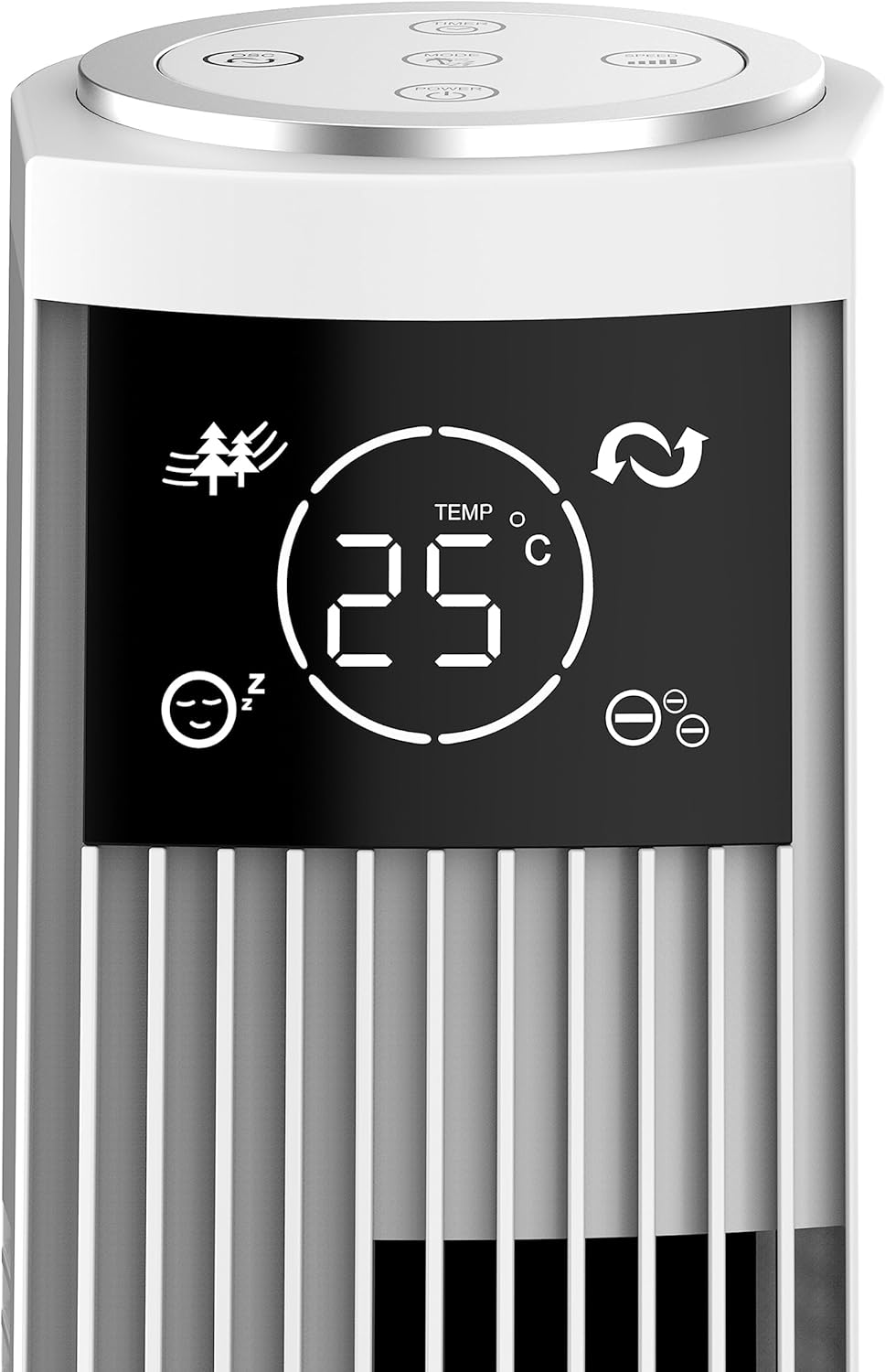

تصوير: تفصيلي view of the fan's LED display, showing temperature, mode icons (Nature, Sleep), and oscillation indicator.
The LED display shows the current room temperature and active settings. The touch-sensitive buttons allow for easy control of all functions.
ريموٽ ڪنٽرول
Image: The remote control for the Be Cool Tower Fan, featuring buttons for Power, Speed, Oscillation, Ionizer, Timer, and Mode.
The remote control provides convenient access to all fan functions from a distance.
- طاقت: پنکڙي کي آن يا آف ڪري ٿو.
- رفتار: پنکڙي جي رفتار ذريعي چڪر: گهٽ، وچولي، تيز.
- OSC (Oscillation): Activates or deactivates the oscillating function, allowing the fan to rotate from side to side to distribute air.
- ION (Ionizer): Turns the ionizer function On or Off. The ionizer helps to purify the air by releasing negative ions.
- ٽائمر: Sets the automatic shut-off timer. Press repeatedly to cycle through 1-hour increments, up to 12 hours.
- طرفن: Cycles through different wind modes:
- عام موڊ: چونڊيل رفتار تي مسلسل هوا جو وهڪرو.
- فطرت موڊ: پنکڙي جي رفتار کي مختلف ڪندي قدرتي هوا جي نقل ڪري ٿو.
- سمهڻ جو طريقو: Gradually decreases fan speed over time for quiet operation during sleep.
سار سنڀال
باقاعده سار سنڀال توهان جي پرستار جي بهترين ڪارڪردگي ۽ ڊگهي عمر کي يقيني بڻائي ٿي.
صفائي
- صاف ڪرڻ کان اڳ هميشه فين کي انپلگ ڪريو.
- نرم استعمال ڪريو، ڊيamp فين جي ٻاهرين سطحن کي صاف ڪرڻ لاءِ ڪپڙو. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو.
- Use a vacuum cleaner with a brush attachment to gently clean dust from the air inlet and outlet grilles.
- پنن کي پاڻي ۾ نه ٻوڙيو يا پاڻي کي موٽر هائوسنگ ۾ ٽپڻ جي اجازت نه ڏيو.
ذخيرو
جڏهن گهڻي عرصي تائين استعمال ۾ نه هجي، ته پنکڙي کي ٿڌي، سڪل جاءِ تي رکو، ترجيحي طور تي ان جي اصل پيڪنگنگ ۾، ته جيئن ان کي مٽي ۽ نقصان کان بچائي سگهجي.
مشڪلاتون
جيڪڏهن توهان کي پنهنجي پرستار سان مسئلا درپيش اچن ٿا، ته مهرباني ڪري هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| پنکڙو نه ٿو هلي. | No power supply; power cord not plugged in; power outlet faulty. | Ensure the fan is properly plugged into a working electrical outlet. Check the circuit breaker. |
| ڪمزور هوا جو وهڪرو. | Fan speed set too low; air inlets/outlets blocked by dust. | Increase the fan speed. Clean the air grilles as per maintenance instructions. |
| پنکڙو غير معمولي آواز ڪري ٿو. | Fan not on a stable surface; foreign object inside; internal component issue. | Place the fan on a stable, flat surface. Unplug and check for any obstructions. If noise persists, contact customer support. |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي. | Battery depleted or incorrectly inserted; remote out of range. | Replace the battery (CR2430). Ensure the remote is pointed towards the fan's receiver and within range. |
If the problem persists after trying these solutions, please contact Be Cool customer support for assistance.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | ٿڌي ٿي |
| ماڊل نمبر | BC121TU2201F |
| رنگ | اڇو |
| طول و عرض (پراڊڪٽ) | 31.5D x 31.5W x 121H سينٽي ميٽر |
| وزن | 3.5 ڪلوگرام |
| طاقت | 45 واٽ |
| جلدtage | 220V |
| مواد | پلاسٽڪ |
| رفتار جو تعداد | 3 (گهٽ، وچولي، اعلي) |
| خاص خاصيتون | Ionizer, LED Display, Oscillation, Timer (up to 12h), Remote Control |
| ڪنٽرولر جو قسم | ريموٽ ڪنٽرول، ٽچ پينل |
| طاقت جو ذريعو | مين پاور |
وارنٽي ۽ سپورٽ
Your Be Cool Tower Fan comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, spare parts, or any inquiries not covered in this manual, please contact Be Cool customer service through their official webسائيٽ يا توهان جي خريداري جي رسيد تي ڏنل رابطي جي معلومات.
