Aigo ICE 400 CPU Cooler User Manual

1. تعارف

Thank you for choosing the Aigo ICE 400 CPU Cooler. This active cooling system is designed to efficiently dissipate heat from your Central Processing Unit (CPU), ensuring stable performance and longevity for your computer or laptop. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to help you get the most out of your product.

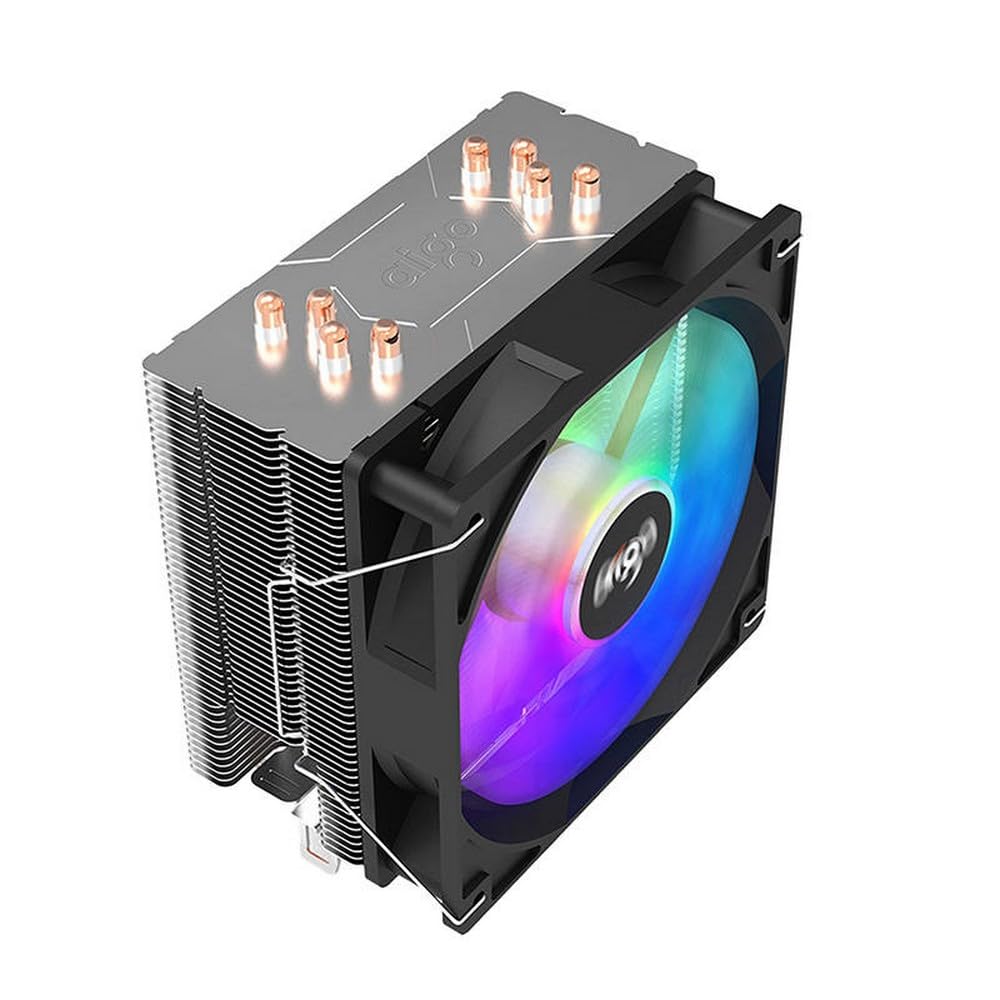

Image 1.1: The Aigo ICE 400 CPU Cooler, showing the heatsink and attached 120mm fan.

2. حفاظتي هدايتون

Please read and follow these safety instructions carefully before installing or operating the Aigo ICE 400 CPU Cooler:

• Ensure your computer is powered off and unplugged from the wall outlet before installation to prevent electric shock or damage to components.
• Handle the cooler and other components with care to avoid physical damage.
• پيداوار کي پاڻي، نمي ۽ انتهائي گرمي کان پري رکو.
• Do not attempt to modify or disassemble the cooler. This may void your warranty and pose a safety risk.
• ٻارن جي پهچ کان پري رکو.

3. پيڪيج مواد

پڪ ڪريو ته سڀئي شيون پيڪيج ۾ موجود آهن:

• Aigo ICE 400 CPU Heatsink
• 120mm کولنگ فين
• Mounting Brackets (for various CPU sockets)
• ٿرمل پيسٽ (اڳ ۾ لاڳو ٿيل يا ٽيوب ۾)
• انسٽاليشن اسڪرو ۽ لوازمات
• استعمال ڪندڙ جو دستياب (ھي دستاويز)

4. سيٽ اپ ۽ تنصيب

Follow these steps to properly install your Aigo ICE 400 CPU Cooler. Refer to your motherboard's manual for specific CPU socket details if needed.

4.1. تياري

1. بجلي بند: پنهنجي ڪمپيوٽر کي مڪمل طور تي بند ڪريو ۽ وال آئوٽليٽ مان پاور ڪيبل ڪڍي ڇڏيو.
2. کليل ڪيس: Open your computer case to access the motherboard and CPU area.
3. Remove Old Cooler: If replacing an existing cooler, carefully remove it. Clean any old thermal paste from the CPU's Integrated Heat Spreader (IHS) using isopropyl alcohol and a lint-free cloth.
4. Identify Socket: Determine your CPU socket type (e.g., Intel LGA 1700/1200/115X, AMD AM5/AM4) and select the appropriate mounting brackets from the package.

Image 4.1: Illustration showing the CPU socket and the process of cleaning old thermal paste.

4.2. چڙهڻ واري بریکٹ جي انسٽاليشن

1. پٺاڻ: For most Intel sockets and some AMD sockets, install the provided backplate behind the motherboard, aligning the holes with the CPU socket mounting holes.
2. Stand-offs: Secure the stand-offs (spacers) onto the backplate or directly into the motherboard's mounting holes, depending on your socket type.
3. چڙهندڙ هٿيار: Attach the appropriate mounting arms to the stand-offs using the provided screws.

Image 4.2: Diagram illustrating the installation of the backplate and stand-offs for a typical CPU socket.

4.3. Thermal Paste Application

If thermal paste is not pre-applied to the cooler's base:

• Apply a small, pea-sized dot of thermal paste to the center of the CPU's IHS.
• Do not spread the paste manually. The pressure from the heatsink will spread it evenly.

Image 4.3: Visual guide for applying a pea-sized amount of thermal paste to the CPU.

4.4. Heatsink and Fan Installation

1. هيٽ سنڪ جي پوزيشن: Carefully place the heatsink onto the CPU, aligning the mounting holes on the heatsink with the mounting arms/screws.
2. محفوظ هيٽ سنڪ: Tighten the screws in a diagonal pattern (e.g., top-left, bottom-right, top-right, bottom-left) until snug. Do not overtighten.
3. پنکڙو لڳايو: If the fan is not pre-attached, use the provided fan clips or screws to secure the 120mm fan to the heatsink. Ensure the fan is oriented to blow air through the heatsink fins towards the rear or top of the case.
4. فين ڪيبل ڳنڍيو: Plug the fan's 3-pin power connector into the "CPU_FAN" header on your motherboard. Refer to your motherboard manual for the exact location.

Image 4.4: Step-by-step visual of placing the heatsink, securing it, and attaching the fan to the heatsink.

4.5. فائنل چيڪ

• Ensure the cooler is firmly seated and does not wobble.
• Verify that the fan cable is securely connected to the CPU_FAN header.
• Check for any obstructions that might prevent the fan from spinning freely.
• پنهنجو ڪمپيوٽر ڪيس بند ڪيو.

5. آپريٽنگ هدايتون

The Aigo ICE 400 CPU Cooler operates automatically once installed correctly. Its primary function is to maintain optimal CPU temperatures by dissipating heat.

• پاور آن: Plug in your computer's power cable and power on the system.
• فين آپريشن: The 120mm fan will start spinning as soon as the system powers on. Its speed will typically be controlled by the motherboard's BIOS/UEFI settings based on CPU temperature.
• درجه حرارت جي نگراني: It is recommended to monitor your CPU temperatures using motherboard monitoring software or third-party utilities (e.g., HWMonitor, Core Temp) to ensure the cooler is functioning effectively. Ideal CPU temperatures vary but generally should remain below 80°C under load.

6. سار سنڀال

Regular maintenance helps ensure the longevity and optimal performance of your Aigo ICE 400 CPU Cooler.

• Dust Cleaning (Every 3-6 Months):
  • پاور آف ڪريو ۽ پنھنجي ڪمپيوٽر کي ان پلگ ڪريو.
  • ڪمپيوٽر جي ڪيس کي کوليو.
  • Use compressed air to blow dust out of the heatsink fins and fan blades. Hold the fan blades gently to prevent over-spinning while cleaning.
  • Alternatively, use a soft brush or microfiber cloth to carefully remove dust.
• Thermal Paste Replacement (Every 2-3 Years or if temperatures rise):
  • If CPU temperatures significantly increase over time, the thermal paste may have dried out.
  • Carefully remove the heatsink from the CPU.
  • Clean off all old thermal paste from both the CPU IHS and the cooler's base using isopropyl alcohol and a lint-free cloth.
  • Apply new thermal paste as described in Section 4.3 and re-install the cooler.

Image 6.1: Visual guide on using compressed air to clean dust from the heatsink and fan.

7. مسئلا حل ڪرڻ

If you encounter issues with your Aigo ICE 400 CPU Cooler, refer to the following common problems and solutions:

7.1. اعليٰ سي پي يو گرمي پد

• Check Fan Connection: Ensure the fan is securely plugged into the "CPU_FAN" header on the motherboard.
• Verify Fan Spin: Confirm that the fan is spinning when the computer is on. If not, check the connection or consider a faulty fan.
• Heatsink Contact: Ensure the heatsink is making firm, even contact with the CPU. Re-tighten mounting screws in a diagonal pattern if necessary.
• حرارتي پيسٽ: Insufficient or improperly applied thermal paste can cause high temperatures. Reapply thermal paste if needed (refer to Section 4.3).
• مٽي جي اڏاوت: Clean any dust from the heatsink fins and fan blades (refer to Section 6).
• ڪيس ايئر فلو: Ensure your computer case has adequate airflow with proper intake and exhaust fans.

7.2. Fan Not Spinning

• پاور ڪنيڪشن: Double-check that the fan's 3-pin connector is fully inserted into the motherboard's "CPU_FAN" header.
• BIOS سيٽنگون: Enter your motherboard's BIOS/UEFI settings and ensure the CPU fan control is enabled and not set to a "silent" or "off" mode at low temperatures.
• رڪاوٽ: Check for any cables or debris obstructing the fan blades.
• Faulty Fan: If all else fails, the fan itself might be faulty and require replacement.

7.3. Excessive Fan Noise

• مٽي جي اڏاوت: Clean the fan blades and heatsink thoroughly. Dust can cause imbalance and noise.
• لوز لڳائڻ: Ensure the fan is securely attached to the heatsink and the heatsink is securely mounted to the motherboard. Vibrations from loose components can cause noise.
• فين جي رفتار: Adjust fan speed settings in your motherboard's BIOS/UEFI. A higher fan speed will naturally produce more noise.
• بيئرنگ شور: If the noise is a grinding or rattling sound, the fan bearings may be failing. Consider replacing the fan.

8. وضاحتون

9. وارنٽي ڄاڻ

Aigo products are manufactured to the highest quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by improper installation, accident, abuse, misuse, natural disaster, or unauthorized modification.

For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Aigo webسائيٽ.

10. ڪسٽمر سپورٽ

If you have any questions, require technical assistance, or need to report an issue that is not covered in this manual, please contact Aigo customer support:

• Webسائيٽ: Visit the official Aigo webاڪثر پڇيا ويندڙ سوالن، ڊرائيورن، ۽ سپورٽ وسيلن لاءِ سائيٽ.
• اي ميل: پراڊڪٽ پيڪنگنگ يا سرڪاري حوالي ڪريو webڪسٽمر سپورٽ اي ميل پتي لاءِ سائيٽ.
• فون: Check the official Aigo webعلائقائي ڪسٽمر سروس فون نمبرن لاءِ سائيٽ.

When contacting support, please have your product model (Aigo ICE 400) and proof of purchase ready.
