1. تعارف
The UBITracer ZT-28E is a state-of-the-art multi-sensor GPS device designed for comprehensive asset tracking and environmental monitoring. It combines precise location capabilities with medical-grade temperature sensing, making it an ideal solution for a wide range of applications, from logistics and cold chain management to personal asset security.
اهم خاصيتون شامل آهن:
- Extraordinary Battery Life: Up to 5 years in low-frequency reporting mode.
- Award-Winning Technology: Recognized at the IoT World Forum & Mobile World Congress.
- ورسٽائل ايپليڪيشنون: Suitable for enterprises, contractors, cold chain, and personal use.
- گلوبل سروس: Worldwide cellular data in 180+ countries.
- Enhanced Location Accuracy: Wi-Fi-assisted tracking for improved urban and indoor accuracy.
- اعليٰ نگراني: Rugged, water-resistant, temper-proof design.
Figure 1.1: UBITracer ZT-28E device and mobile application interface.
2. دٻي ۾ ڇا آهي
Upon opening your UBITracer ZT-28E package, please verify that all the following components are included:
- UBITracer ZT-28E Device
- ZT-28E Quick Starter Guide & Application User Manual
- چارج ڪيبل
- ويلڪرو ٽيپ
Figure 2.1: Package contents of the UBITracer ZT-28E.
3. سيٽ اپ
To begin using your UBITracer ZT-28E, follow these steps:
- ڊوائيس چارج ڪريو: Connect the provided charging cable to the device's charging port and a USB power source. Ensure the device is fully charged before first use.
- پنھنجي ڊيوائس کي رجسٽر ڪريو: Download the UBITracer mobile application from your device's app store. Follow the in-app instructions to register your ZT-28E device. This typically involves scanning a QR code or entering the serial number (SN) and activation code (CODE) found on the device. For detailed instructions, refer to the included Quick Starter Guide.
- Select a Service Plan: A subscription is required for the device to function. The UBITracer app will guide you through selecting a suitable service plan. Plans start from $9.99/month for annual billing.
- لڳائڻ: Position the device in a location that allows for optimal GPS signal reception. For best results, avoid placing it in enclosed metal containers or areas with significant signal obstruction.
For a comprehensive installation guide, please refer to the official انسٽاليشن مينوئل (PDF).
4. ڊوائيس کي هلائڻ
The UBITracer ZT-28E operates by collecting and transmitting location and temperature data to the UBITracer platform, accessible via the mobile app or web پورٽل.
4.1. جڳھ جي ٽريڪنگ
The device utilizes GPS and Wi-Fi-assisted positioning for accurate location tracking. In urban and indoor settings, Wi-Fi assistance improves accuracy, typically resulting in a variance of less than 60 feet.
شڪل 4.1: مثالample of location tracking history in the UBITracer app.
4.2. درجه حرارت جي نگراني
The ZT-28E is equipped with a medical-grade temperature sensor, providing precise temperature data. You can set customizable alerts within the app to be notified if temperatures exceed or fall below predefined thresholds.
Figure 4.2: Temperature monitoring and alert settings.
4.3. Battery Life and Reporting Frequency
The device offers exceptional battery longevity, which varies based on the reporting frequency:
- Low-Frequency Mode (twice a day): Approximately 4-5 years.
- هر 4 ڪلاڪ لڳ ڀڳ 1.5 سال.
- Every hour: Approximately 4 months.
- هر 10 منٽن ۾: Approximately 4 weeks.
You can adjust the reporting frequency via the UBITracer mobile application to optimize battery life according to your tracking needs.
4.4. ورسٽائل ايپليڪيشنون
The UBITracer ZT-28E is designed for a multitude of uses:
- انٽرپرائز: Equipment, trailer, container, reefer, pallet tracking.
- ٺيڪيدار: Toolbox, truck monitoring.
- Cold Chain Management: Fridges, cooler boxes, medical samples, vaccines.
- ذاتي استعمال: Car, second home, pet, luggage, backpack, storage box, valuables.
Figure 4.3: Diverse applications of the UBITracer ZT-28E.
5. سار سنڀال
The UBITracer ZT-28E is built for durability and requires minimal maintenance. Follow these guidelines to ensure optimal performance:
- صفائي: ڊوائيس کي نرم سان مسح ڪريو، ڊيamp ڪپڙو. سخت ڪيميائي استعمال ڪرڻ کان پاسو ڪريو يا صاف ڪندڙ صاف ڪندڙ.
- پاڻي جي مزاحمت: The device is IP67 water-resistant, suitable for cold chain operations and exposure to splashes. However, it is not designed for prolonged submersion. Ensure the charging port cover is securely closed when not charging.
- درجه حرارت جي حد: Operate the device within its specified temperature range (refer to Specifications section).
- چارج ڪرڻ: Recharge the device when the battery low alert is received. Use only the provided charging cable or a compatible USB charger.
- اسٽوريج: If storing the device for an extended period, ensure it is partially charged (around 50%) and stored in a cool, dry place.

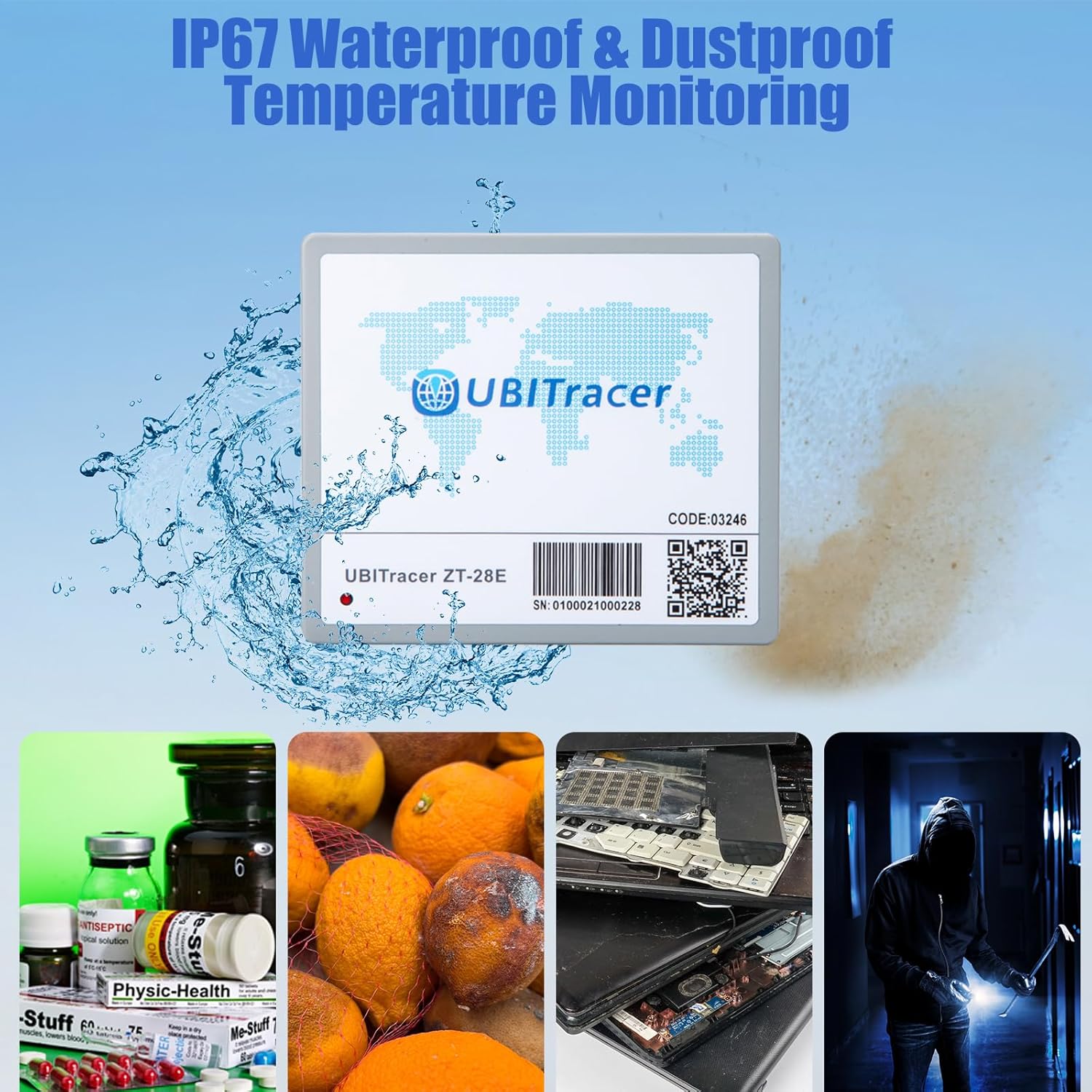

Figure 5.1: IP67 water and dust resistance for enhanced durability.
6. مسئلا حل ڪرڻ
If you encounter issues with your UBITracer ZT-28E, refer to the following common problems and solutions:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Device not reporting location. | No cellular signal; device in an obstructed area (e.g., deep inside a metal container); battery depleted; subscription inactive. | Move the device to an area with better cellular reception. Ensure it is not completely enclosed by metal. Charge the device. Verify your subscription status in the UBITracer app. |
| Location accuracy is poor. | Weak GPS signal; device in a remote area; interference. | پڪ ڪريو ته ڊوائيس صاف آهي view of the sky for optimal GPS. In remote areas, accuracy may naturally decrease. Wi-Fi positioning assists in urban/indoor settings. |
| App not showing most recent location immediately. | App display delay; data refresh rate. | Navigate to the reports or timeline section within the app to view the most recently recorded data points. The map view may not always update instantly. |
| Battery life shorter than expected. | High reporting frequency; frequent movement; extreme temperatures. | Adjust the reporting frequency to a less frequent interval in the app settings. Operating in extreme hot or cold conditions can affect battery performance. |
If you continue to experience issues, please contact UBITracer customer support for assistance.
7. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | ZT-28E |
| طول و عرض | 4.25 x 3.7 x 1.5 انچ |
| شيءِ جو وزن | 3.7 اونس |
| بيٽريون | 1 ليتيم ڌاتو جي بيٽري (شامل) |
| رابطي | Wireless (Cellular Data) |
| خاص خاصيتون | Alert Notification, Rechargeable, Geo-Fence, Location History, Real Time Tracking |
| رنگ | ڀورو |
| ٺاهيندڙ | ZillionSource Technologies |
| اصل جو ملڪ | چين |
| سپورٽ ٿيل ايپليڪيشن | الارم |
| مخصوص استعمال | Cold Chain Monitoring, Industrial Asset Tracking |
8. وارنٽي ۽ سپورٽ
For information regarding product warranty, please refer to the terms and conditions provided at the time of purchase or contact UBITracer customer support directly.
8.1. Subscription Plans
The UBITracer ZT-28E requires an active subscription for full functionality. Highly competitive subscription plans are available, starting from $9.99/month for annual billing. Details on various plans and pricing can be found within the UBITracer mobile application or on the official UBITracer webسائيٽ.
Figure 8.1: UBITracer subscription plan overview.
8.2. ڪسٽمر سپورٽ
For technical assistance, troubleshooting, or any inquiries regarding your UBITracer ZT-28E, please utilize the following resources:
- موبائل ايپليڪيشن: The UBITracer mobile app provides access to device settings, data, and support options.
- UBITracer Web پورٽل: Business users can access the powerful UBITracer web portal for enterprise-grade device management, rule configuration, and data interchange.
- سرڪاري دستاويز: ڏانهن رجوع ڪريو انسٽاليشن مينوئل (PDF) for detailed setup and usage instructions.
