پيور لائن ڪرسٽل پيور سالٽ سسٽم مين پي سي بورڊ هدايت نامو

تعارف

This manual provides essential information for the installation, operation, and maintenance of the Pureline Crystal Pure Salt System Main PC Board. Please read thoroughly before proceeding to ensure safe and correct usage.

حفاظت جي ڄاڻ

Adhering to safety precautions is crucial when working with electrical components. Failure to do so may result in injury or damage to equipment.

• Always disconnect power to the salt system and associated pool equipment at the circuit breaker before attempting any installation, maintenance, or inspection.
• Electrical work should only be performed by qualified individuals or under strict supervision if you are experienced in electrical repairs.
• Protect the PC board from moisture, direct sunlight, and extreme temperatures. Store it in a dry, cool environment.
• Handle the board by its edges to avoid touching sensitive components or circuit traces, which could cause damage from static electricity or oils from your skin.

پيداوار ختمview

The Pureline Crystal Pure Salt System Main PC Board is a critical component for the proper functioning of your salt chlorination system. It serves as the central control unit, managing the electrolysis process that generates chlorine for pool sanitation.

This board is designed as a direct replacement for the original main PCB in Pureline Crystal Pure Salt Systems. Common reasons for replacing the original board include damage from electrical surges, lightning strikes, or brownouts.

شڪل 1: سامهون view of the Pureline Crystal Pure Salt System Main PC Board, showing various electronic components, connectors, and large capacitors.

وضاحتون

تنصيب

اوزار گهربل

• اسڪرو ڊرايور سيٽ (فلپس ۽ فليٽ هيڊ)
• Pliers (for disconnecting stubborn connectors)
• Digital camera or smartphone (for documenting connections)
• جلدtage tester (optional, for verifying power disconnection)

تنصيب جا مرحلا

1. پاور ڪنيڪشن: Locate the circuit breaker that supplies power to your Pureline Crystal Pure Salt System and turn it OFF. Verify that power is completely disconnected using a voltage tester if available.
2. ڪنٽرول پينل تائين رسائي ڪريو: Open the control panel housing of your salt system. This typically involves removing screws or releasing latches.
3. دستاويز ڪنيڪشن: Before disconnecting any wires, take clear photos of all existing connections to the old PC board. Pay close attention to the position and color of each wire and connector. This documentation is crucial for correct reassembly.
4. پراڻو بورڊ ڊسڪنيڪٽ ڪريو: Carefully disconnect all wire harnesses and individual connectors from the old PC board. Once all wires are detached, unmount the old board from its standoffs or mounting points.

شڪل 2: مٿي کان هيٺ view of the PC board, highlighting various connection points and components. Use this as a reference for re-connecting wires.
5. نئون بورڊ انسٽال ڪريو: Gently place the new Pureline Crystal Pure Salt System Main PC Board into the control panel, aligning it with the mounting points. Secure it with the appropriate fasteners (screws or clips) that were removed from the old board.
6. تارون ٻيهر ڳنڍيو: Using your documented photos as a guide, carefully reconnect all wire harnesses and individual connectors to the corresponding terminals on the new PC board. Ensure all connections are secure and properly seated.

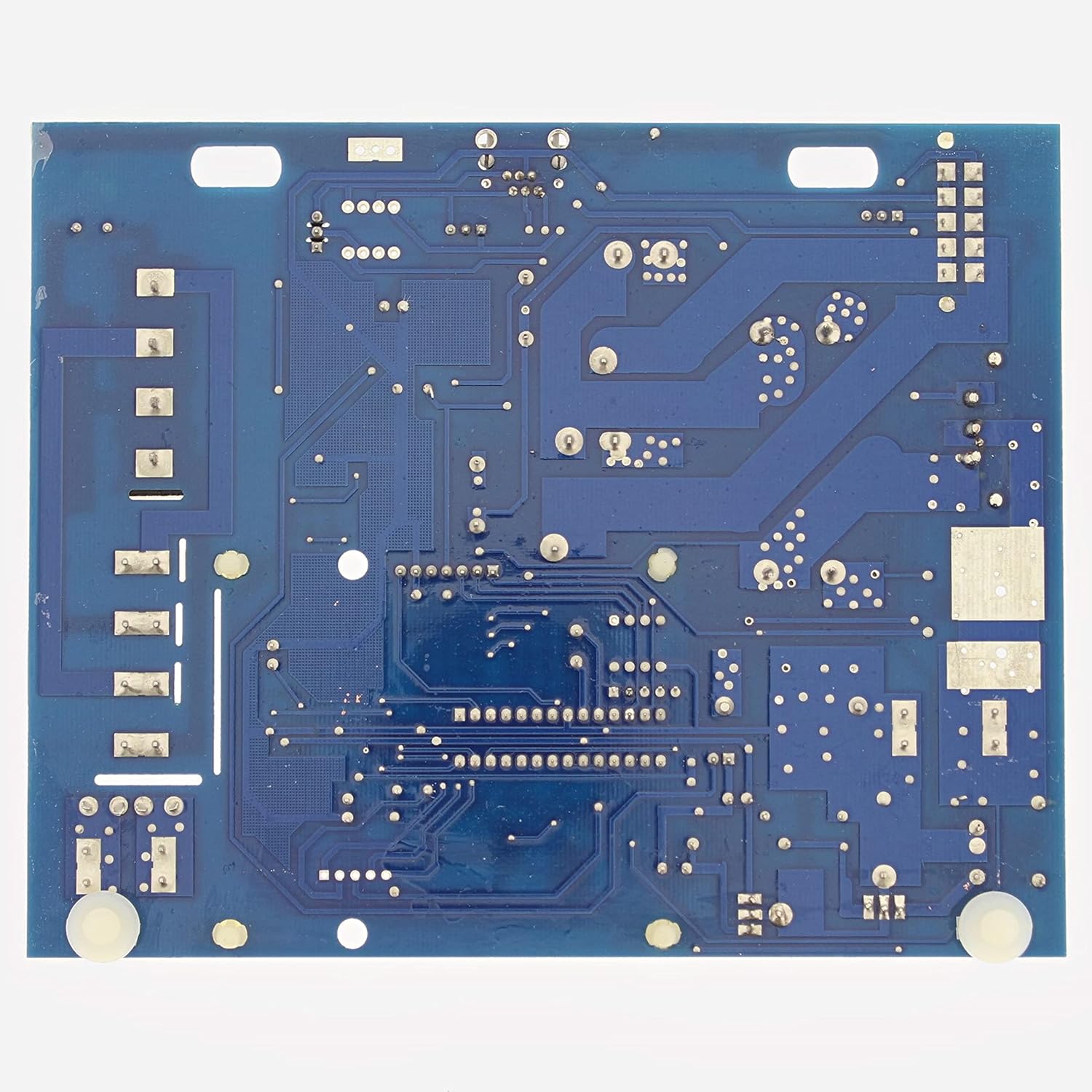

شڪل 3: پوئتي view of the PC board, showing the circuit traces and solder points. This view is useful for understanding the board's layout but not directly for installation.

7. پينل بند ڪريو: Once all connections are verified and the board is securely mounted, close and secure the control panel housing.
8. پاور بحال ڪريو: Turn on the power to the salt system at the circuit breaker.
9. شروعاتي چڪاس: Observe the system for proper power-up and initial operation. Refer to your salt system's main user manual for specific startup procedures and indicator lights.

آپريشن

The Main PC Board functions as the central processing unit of your Pureline Crystal Pure Salt System. Once correctly installed, its operation is seamlessly integrated with the overall salt chlorinator system. It processes sensor inputs (e.g., salt level, water flow), controls the power supply to the salt cell for chlorine generation, and manages system diagnostics and display outputs.

For detailed operational instructions, including setting chlorine output, understanding display indicators, adjusting system parameters, and responding to alerts, please refer to the complete user manual for your specific Pureline Crystal Pure Salt System model. The PC board facilitates these functions but does not have independent user controls.

سار سنڀال

The Pureline Crystal Pure Salt System Main PC Board itself requires minimal direct maintenance. However, ensuring the longevity and proper function of the board involves maintaining the overall salt system environment and taking preventative measures:

• ماحولياتي تحفظ: Keep the control panel housing sealed at all times to protect the board from moisture, dust, insects, and other environmental contaminants.
• سرج تحفظ: Consider installing a dedicated surge protector for your pool equipment to prevent damage to the PC board and other components from electrical surges or lightning strikes.
• وينٽيليشن: Ensure adequate airflow and ventilation around the control panel to prevent overheating of components, especially during hot weather.
• باقاعده سسٽم چيڪ: Periodically inspect all wiring connections within the control panel for looseness, corrosion, or signs of wear. Address any issues promptly.
• پاڻي جي ڪيمسٽري: Maintain proper pool water chemistry, including balanced pH and appropriate salt levels, as this directly impacts the performance and lifespan of the entire salt system, including the PC board.

مشڪلاتون

If your Pureline Crystal Pure Salt System is not functioning correctly after replacing the main PC board, consider the following troubleshooting steps:

• No Power to System:
  • Check the circuit breaker for the pool equipment.
  • Ensure all wire connections to the new PC board are secure and correctly seated according to your installation photos.
• System Error Codes/Indicators:
  • Refer to the error codes or indicators displayed on your salt system's control panel.
  • Consult the main salt system user manual for specific troubleshooting steps related to those codes.
• Incorrect Chlorine Output:
  • Verify that the salt cell is clean and free of scale buildup.
  • Ensure pool water chemistry, especially salt levels, is within the recommended range for your system. The PC board relies on accurate sensor inputs for proper operation.
• وقتي آپريشن:
  • Inspect for any loose connections or signs of moisture inside the control panel.
  • Check for any visible damage to the board or its components.

If issues persist after performing these checks, it is recommended to contact Pureline customer support or a qualified pool technician for further assistance.

وارنٽي ۽ سپورٽ

For information regarding the warranty of your Pureline Crystal Pure Salt System Main PC Board, please refer to the documentation provided at the time of purchase or contact Pureline customer support directly. Warranty terms and conditions may vary.

Pureline and Inyo Pools are committed to empowering DIY homeowners with the knowledge to maintain their swimming pools. For additional how-to guides, troubleshooting tips, and articles, visit the official Pureline or Inyo Pools webسائيٽون.

رابطي جي ڄاڻ: For technical support or inquiries, please refer to the Pureline official webفون نمبر ۽ اي ميل ايڊريس سميت، تازي رابطي جي تفصيلن لاءِ سائيٽ.
