KYOCERA ECOSYS PA4500x مونوڪروم ليزر پرنٽر يوزر مينوئل

تعارف

Welcome to the user manual for your KYOCERA ECOSYS PA4500x Monochrome Laser Printer. This document provides essential information for setting up, operating, maintaining, and troubleshooting your printer to ensure optimal performance and longevity. The ECOSYS PA4500x is designed for efficiency, featuring a long-life main unit (up to 900,000 pages) and an exceptionally low running cost of approximately 0.8 JPY per A4 monochrome page, significantly reducing printing expenses.

1. سيٽ اپ گائيڊ

1.1 پرنٽر کي کولڻ

Carefully remove the printer from its packaging. Ensure all packing materials, tapes, and protective films are removed from the printer body and internal compartments. Keep the packaging for future transportation if needed.

1.2 ٽونر ڪارٽريج انسٽال ڪرڻ

1. پرنٽر جي سامهون ڍڪ کوليو.
2. Gently shake the new toner cartridge horizontally several times to distribute the toner evenly.
3. ٽونر ڪارٽريج کي پرنٽر ۾ داخل ڪريو جيستائين اهو پنهنجي جاءِ تي ڪلڪ نه ڪري.
4. اڳيان ڪپڙا بند ڪريو.

1.3 لوڊ ڪندي پيپر

1. ڪاغذ جي ڪيسٽ ٽري کي ٻاهر ڪڍو.
2. پيپر گائيڊز کي پيپر جي سائيز مطابق ترتيب ڏيو جيڪو توهان لوڊ ڪري رهيا آهيو.
3. ڪاغذ جي اسٽيڪ کي ٽري ۾ لوڊ ڪريو، پڪ ڪريو ته اهو فليٽ آهي ۽ وڌ ۾ وڌ ڀرڻ واري لائن کان هيٺ آهي.
4. پيپر ڪيسٽ ٽري کي نرميءَ سان پرنٽر ۾ واپس دٻايو.

1.4 پاور سان نڻ

Connect the power cord to the printer's power inlet and then to a grounded electrical outlet. Press the power button to turn on the printer.

1.5 ڪمپيوٽر سان ڳن Connectڻ

• USB ڪنيڪشن: Connect one end of a USB cable to the printer's USB port and the other end to your computer's USB port.
• نيٽ ورڪ (LAN) ڪنيڪشن: Connect an Ethernet cable to the printer's LAN port and the other end to your network router or switch.

1.6 ڊرائيور لڳائڻ

Insert the provided driver CD-ROM into your computer's optical drive, or download the latest drivers from the official KYOCERA website. Follow the on-screen instructions to complete the driver installation for your operating system.

2. آپريٽنگ هدايتون

The printer offers versatile connectivity options, allowing users to print from a PC via network, from mobile devices using a dedicated application (KYOCERA Mobile Print), or directly from a USB storage device.

2.1 Basic Printing from a Computer

1. اهو دستاويز يا تصوير کوليو جيڪو توهان پرنٽ ڪرڻ چاهيو ٿا.
2. ايپليڪيشن جي مينيو مان 'پرنٽ' چونڊيو (مثال طور، File > پرنٽ ڪريو).
3. موجود پرنٽرن جي فهرست مان KYOCERA ECOSYS PA4500x چونڊيو.
4. ضرورت مطابق پرنٽ سيٽنگز کي ترتيب ڏيو (مثال طور، ڪاپين جو تعداد، ڪاغذ جي سائيز، پرنٽ جي معيار).
5. 'پرنٽ' تي ڪلڪ ڪريو.

2.2 ڊپلڪس پرنٽنگ

The ECOSYS PA4500x supports automatic duplex (two-sided) printing. To use this feature:

1. In the print dialog box on your computer, navigate to the printer properties or preferences.
2. Look for an option related to 'Two-sided printing' or 'Duplex'.
3. گهربل ڊپلڪس سيٽنگ چونڊيو (مثال طور، ڊگهي ڪنڊ واري بائنڊنگ، مختصر ڪنڊ واري بائنڊنگ).
4. پنھنجي چونڊ جي تصديق ڪريو ۽ پرنٽ سان اڳتي وڌو.

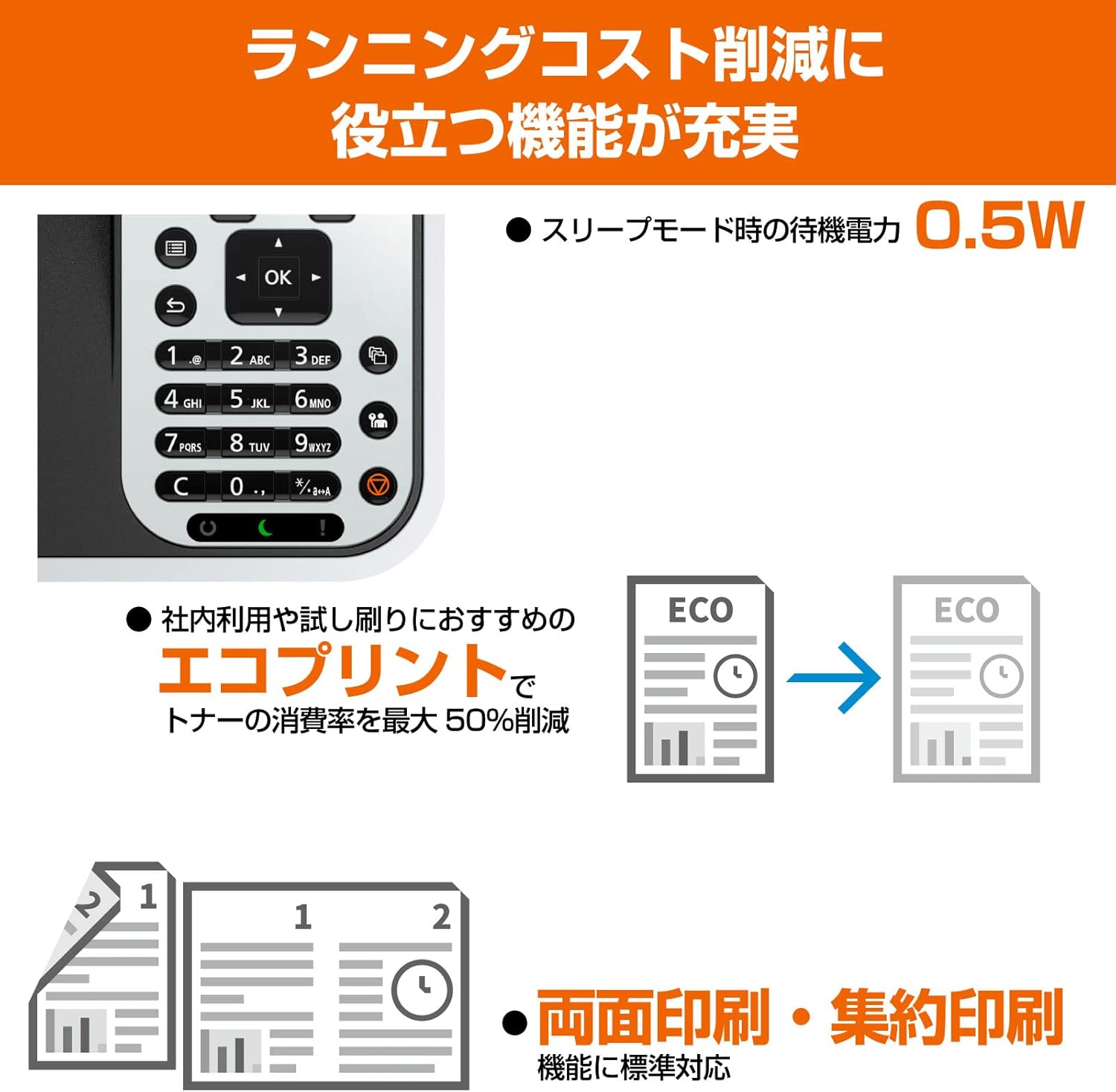

This image highlights key features including the intuitive control panel, the ECO print mode which can reduce toner consumption by up to 50%, and the automatic duplex printing function for efficient paper usage.

2.3 ڪنٽرول پينل استعمال ڪندي

The printer's control panel allows you to manage various settings and functions directly. Use the navigation buttons (up, down, left, right, OK) to browse menus and confirm selections. The display provides status information and prompts for user interaction.

2.4 ECO Print Mode

The ECO print mode is designed to reduce toner consumption, contributing to lower running costs and environmental impact. Activate this mode through the printer's control panel settings or via the printer driver on your computer. This mode can reduce toner usage by up to 50%.

2.5 موبائل پرنٽنگ

Download the KYOCERA Mobile Print application from your device's app store (App Store for iOS, Google Play for Android). Ensure your mobile device is connected to the same network as the printer. Open the app, select your printer, and follow the in-app instructions to print documents or images directly from your mobile device.

2.6 Direct Printing from USB

Insert a USB storage device containing printable files (e.g., PDF, JPEG, TIFF) into the USB host port on the printer. Use the printer's control panel to navigate to the 'Print from USB' option, select the desired file، ۽ پرنٽنگ شروع ڪريو.

3. سار سنڀال

This image illustrates the cost-efficiency of the KYOCERA ECOSYS PA4500x, highlighting that only the toner cartridge needs frequent replacement, leading to a low running cost of approximately 0.8 JPY per A4 page for monochrome prints.

3.1 ٽونر ڪارٽريج کي تبديل ڪرڻ

When the toner level is low or empty, the printer's display will indicate a need for toner replacement. Follow these steps:

1. پرنٽر جي سامهون ڍڪ کوليو.
2. خالي ٽونر ڪارٽريج کي ٻاهر ڪڍيو.
3. Unpack the new toner cartridge and shake it gently to distribute toner.
4. Insert the new toner cartridge firmly until it locks into place.
5. اڳيان ڪپڙا بند ڪريو.
6. Dispose of the empty toner cartridge according to local regulations.

3.2 پرنٽر جي صفائي

• ٻاهران: پرنٽر جي ٻاهرين حصي کي نرم، لِنٽ فري ڪپڙي سان صاف ڪريو dampپاڻي سان ڀريل. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو.
• اندروني: Periodically open the front cover and gently remove any dust or paper debris from accessible areas using a dry, soft cloth or a small vacuum cleaner designed for electronics. Avoid touching the drum unit.

3.3 Checking Printer Status

You can check the printer's status, including toner levels and error messages, directly from the control panel or through the printer driver software on your computer.

3.4 Long-Life Components

The KYOCERA ECOSYS PA4500x is designed with durable, long-life components, such as the amorphous silicon drum unit, which has a lifespan of up to 900,000 pages. This design minimizes the need for frequent part replacements, contributing to the printer's low running costs and reduced environmental impact.

4. مسئلا حل ڪرڻ

This section addresses common issues you might encounter with your printer. For more detailed troubleshooting, refer to the full electronic manual available on the KYOCERA webسائيٽ.

4.1 پيپر جام

1. پرنٽر کي بند ڪريو ۽ پاور ڪنڊ کي ختم ڪريو.
2. Open the covers and trays as indicated by the printer's display or manual.
3. Carefully remove any jammed paper, pulling it gently in the direction of the paper path. Avoid tearing the paper.
4. Close all covers and trays, plug in the power cord, and turn on the printer.

4.2 پرنٽ جي معيار جا مسئلا

• Faint Prints: Check the toner level. If low, replace the toner cartridge.
• داغ يا داغ: Perform a cleaning cycle from the printer's control panel or driver. Ensure the drum unit is not damaged (though it is a long-life component, extreme conditions can affect it).
• غير برابر کثافت: Ensure the toner cartridge is properly installed and shaken before use.

4.3 ڪنيڪٽيويٽي مسئلا

• پرنٽر نه مليو: Check all cable connections (USB or Ethernet). Ensure the printer is powered on. For network connections, verify network settings on both the printer and computer.
• Wireless Printing Issues: If using a wireless adapter (optional, not standard for this model but common for mobile printing), ensure it is correctly installed and configured, and that the printer is connected to the correct Wi-Fi network.

4.4 نقص جا پيغام

Refer to the printer's display for specific error codes or messages. Consult the comprehensive user manual or the KYOCERA support webهر غلطي ڪوڊ لاءِ تفصيلي وضاحتن ۽ حلن لاءِ سائيٽ.

5. مصنوعات جي وضاحت

The KYOCERA ECOSYS PA4500x is designed for compact spaces, with dimensions of 380mm width, 410mm depth, and 285mm height, making it suitable for desktop installation.

This table provides a comparison of various KYOCERA monochrome laser printers, detailing specifications such as dimensions, supported paper sizes, duplex printing, connectivity options (LAN/WLAN/USB), print speed, and running costs per page.

6. وارنٽي ۽ سپورٽ

For information regarding the product warranty, please refer to the warranty card included with your printer or visit the official KYOCERA webسائيٽ. جي website also provides access to comprehensive support resources, including FAQs, driver downloads, and contact information for technical assistance.

وڌيڪ مدد لاءِ، مھرباني ڪري دورو ڪريو KYOCERA official webسائيٽ.
