HOMEPILOT Wall-Mounted Shutter Winder Pure User Manual

1. تعارف

The HOMEPILOT Wall-Mounted Shutter Winder Pure is designed to modernize and automate your belt-driven roller shutters, offering enhanced comfort and convenience. This device is ideal for spaces where traditional in-wall installations are not feasible or desired, providing a simple and effective solution for controlling your roller shutters.

Featuring a minimalist design with two large, intuitive buttons, the Pure model focuses on essential functionality for straightforward operation. It integrates seamlessly into your daily routine by allowing both manual control and programmable automatic functions.

Figure 1: HOMEPILOT Wall-Mounted Shutter Winder Pure, angled view.

2. مصنوعات جي وضاحت

Figure 2: Technical dimensions of the HOMEPILOT Shutter Winder.

3. انسٽاليشن گائيڊ

The HOMEPILOT Shutter Winder Pure is designed for surface mounting and does not require extensive masonry work, making it suitable for both new installations and renovations.

3.1. تياري

• Ensure the roller shutter is fully closed before beginning installation.
• Carefully remove the existing roller shutter belt from its original spring-loaded mechanism. Exercise caution during this step.
• It is recommended to remove the original roller/spring mechanism and cover the hole with a suitable plug (available at hardware stores) to provide a clean mounting surface for the winder's bracket.

3.2. ڊوائيس تي چڙهڻ

1. Step 1: Position and Mark. Hold the winder's mounting bracket against the wall at the desired installation height. Ensure it is level and positioned correctly relative to the roller shutter belt opening. Mark the drilling points for the screws.


   Figure 3: Step 1 of installation - Positioning and marking.

2. Step 2: Secure the Mounting Bracket. Drill holes at the marked points and insert appropriate wall plugs if necessary. Securely fasten the mounting bracket to the wall using the provided screws.


   Figure 4: Step 2 of installation - Securing the bracket.

3. Step 3: Prepare the Belt. Measure the roller shutter belt. It should be approximately 20 cm longer than the distance from the roller shutter opening to the winder's mounting position. Cut the belt to this length and create a small slot or eyelet at the end using scissors.
4. Step 4: Attach the Belt to the Winder. Pass the prepared belt through the slot at the top of the winder device. Hook the eyelet of the belt onto the designated hook on the central gear inside the winder.
5. Step 5: Mount the Winder. Carefully attach the winder unit onto the secured mounting bracket. Ensure it clicks into place firmly.


   Figure 5: Step 3 of installation - Mounting the winder.
6. Step 6: Tension the Belt. Manually operate the winder (or gently pull the belt) to allow the winder to take up some slack and tension the belt.
7. Step 7: Close the Cover. Secure the protective cover over the gear compartment, ensuring it is properly closed and secured with the safety clip.
8. قدم 8: پاور ڳنڍيو. Plug the power cable into the winder and then into a standard European power outlet.


   Figure 6: Step 4 of installation - Connecting power.

For detailed instructions on setting the upper and lower end stops for your roller shutter, please refer to the complete manual available on the HOMEPILOT official website. This crucial step ensures proper operation and prevents damage to your roller shutter.

4. آپريٽنگ هدايتون

The HOMEPILOT Shutter Winder Pure offers both manual and automatic control options for your roller shutters.

4.1. دستي آپريشن

To manually control your roller shutter, simply use the two large buttons located on the front of the device:

• کي دٻايو مٿي تير بٽڻ to raise the roller shutter.
• کي دٻايو هيٺيون تير بٽڻ to lower the roller shutter.

The roller shutter will move as long as the button is pressed, or until it reaches its programmed end stop.

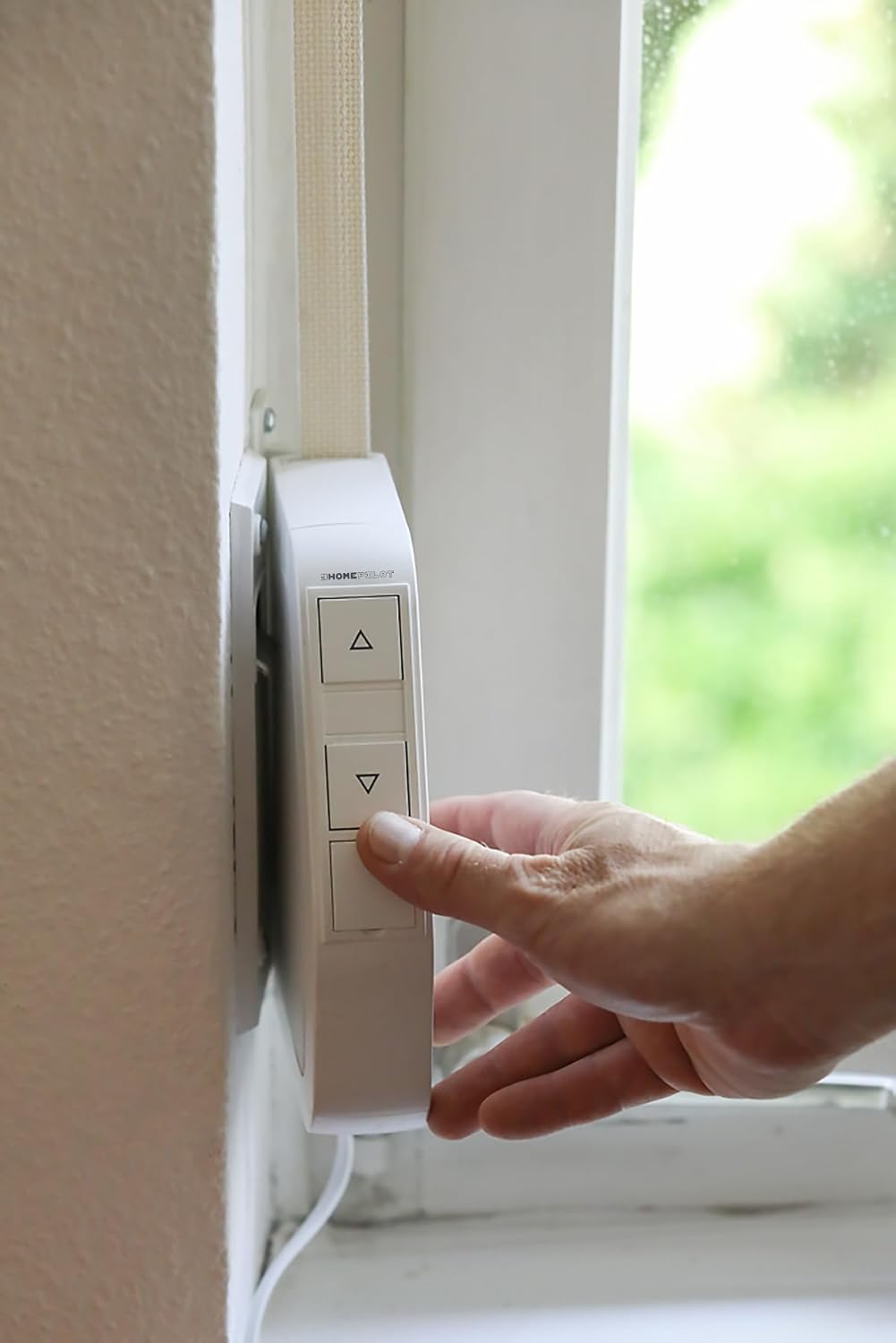

Figure 7: Manual operation using the control buttons.

4.2. Automatic Operation (Programming)

The device can be programmed to automatically open and close your roller shutters at specific times. This feature enhances daily comfort and security.

• The winder can be set to activate automatically every 24 hours.
• You can define specific opening and closing times according to your preferences.
• For detailed instructions on setting up the weekly program and other advanced automatic functions, please consult the full user manual available on the HOMEPILOT webسائيٽ.

5. سار سنڀال

The HOMEPILOT Shutter Winder Pure is designed for durability and requires minimal maintenance.

• صفائي: Regularly wipe the exterior of the device with a soft, dry cloth to remove dust and dirt. Do not use abrasive cleaners or solvents.
• بيلٽ جي چڪاس: Periodically inspect the roller shutter belt for any signs of wear, fraying, or damage. A damaged belt can affect the winder's performance and may require replacement.
• اندروني اجزاء: The internal components of the winder do not require user maintenance. Do not attempt to open the device, as this may void the warranty and pose a safety risk.

6. مسئلا حل ڪرڻ

If you encounter issues with your HOMEPILOT Shutter Winder Pure, consider the following common troubleshooting steps:

• ڊوائيس جواب نه ڏئي رهيو آهي:
  • Check if the power cable is securely plugged into both the device and the wall outlet.
  • Verify that the power outlet is functional by plugging in another appliance.
• Roller Shutter Not Moving or Moving Partially:
  • Ensure the roller shutter belt is properly installed and tensioned within the winder.
  • Check for any obstructions in the path of the roller shutter.
  • The device has a maximum pulling force of 30 kg. Ensure your roller shutter's weight does not exceed this limit.
  • If the end stops are not correctly set, the shutter may not move to its full open or closed position. Refer to the full manual on the HOMEPILOT website for instructions on setting end stops.
• غير معمولي آواز:
  • Slight operational noise is normal. However, if you hear loud grinding or unusual sounds, discontinue use and contact customer support.

For more complex issues or if the problem persists after attempting these steps, please refer to the comprehensive troubleshooting guide on the official HOMEPILOT webسائيٽ يا انهن جي گراهڪ سپورٽ سان رابطو ڪريو.

7. وارنٽي ۽ سپورٽ

For information regarding the product warranty, including terms, conditions, and duration, please refer to the official HOMEPILOT webسائيٽ يا وارنٽي دستاويز جيڪي توهان جي خريداري سان شامل آهن.

For technical support, product inquiries, or assistance with installation and operation, please visit the HOMEPILOT official webسائيٽ تي وڃو يا سڌو سنئون انهن جي ڪسٽمر سروس ڊپارٽمينٽ سان رابطو ڪريو.

HOMEPILOT Official Webسائيٽ: www.homepilot.de (مهرباني ڪري نوٽ ڪريو: Website availability and language may vary.)
