HomePilot Gurtwickler RolloTron Classic Instruction Manual

1. تعارف

This manual provides comprehensive instructions for the installation, operation, and maintenance of your HomePilot Gurtwickler RolloTron Classic. This device is an automatic belt winder designed for controlling roller shutters, offering both manual and automated operation modes. Please read this manual carefully before using the product to ensure safe and efficient operation.

Image 1.1: The HomePilot Gurtwickler RolloTron Classic and its packaging, highlighting key features like 45 kg lifting capacity, 23 mm Maxi belt compatibility, and soft start/stop function.

2. حفاظت جي ڄاڻ

ڊوائيس کي زخم يا نقصان کان بچڻ لاءِ هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:

• Ensure the power supply is disconnected before installation or maintenance. The device operates at 230 وولٽ ۽ 1 Amps.
• Installation should only be performed by qualified personnel or under strict adherence to these instructions.
• ڊوائيس کي نمي يا انتهائي گرمي پد تي ظاهر نه ڪريو.
• Keep children away from the operating roller shutter.
• This product is CE certified, indicating compliance with European safety standards.

3. پيڪيج مواد

پڪ ڪريو ته سڀئي جزا پيڪيج ۾ موجود آهن:

• 1 x HomePilot Gurtwickler RolloTron Classic (Model: 10132345)
• 1 x RolloTron Standard 1300 (included component)
• هدايت نامو (هي دستاويز)

4. تنصيب ۽ سيٽ اپ

The RolloTron Classic is designed for external mount installation. Follow these steps carefully:

1. انسٽاليشن ايريا تيار ڪريو: Ensure the existing belt winder is removed and the wall opening is clear. The device dimensions are 21 x 6.1 x 16.6 cm. Refer to the technical drawing for precise measurements.
2. Insert the Belt: Carefully feed the roller shutter belt into the RolloTron Classic unit. Ensure it is properly seated on the internal winding mechanism.
3. ڊوائيس نصب ڪريو: Position the RolloTron Classic into the wall opening. Secure it firmly using appropriate screws (not included, typically). The plug profile is designed for external mounting.
4. پاور Connectنيو: Once securely mounted, plug the device into a standard 230V power outlet.

Image 4.1: Step-by-step visual guide for installing the RolloTron Classic, showing belt insertion, unit placement, securing, and power connection.

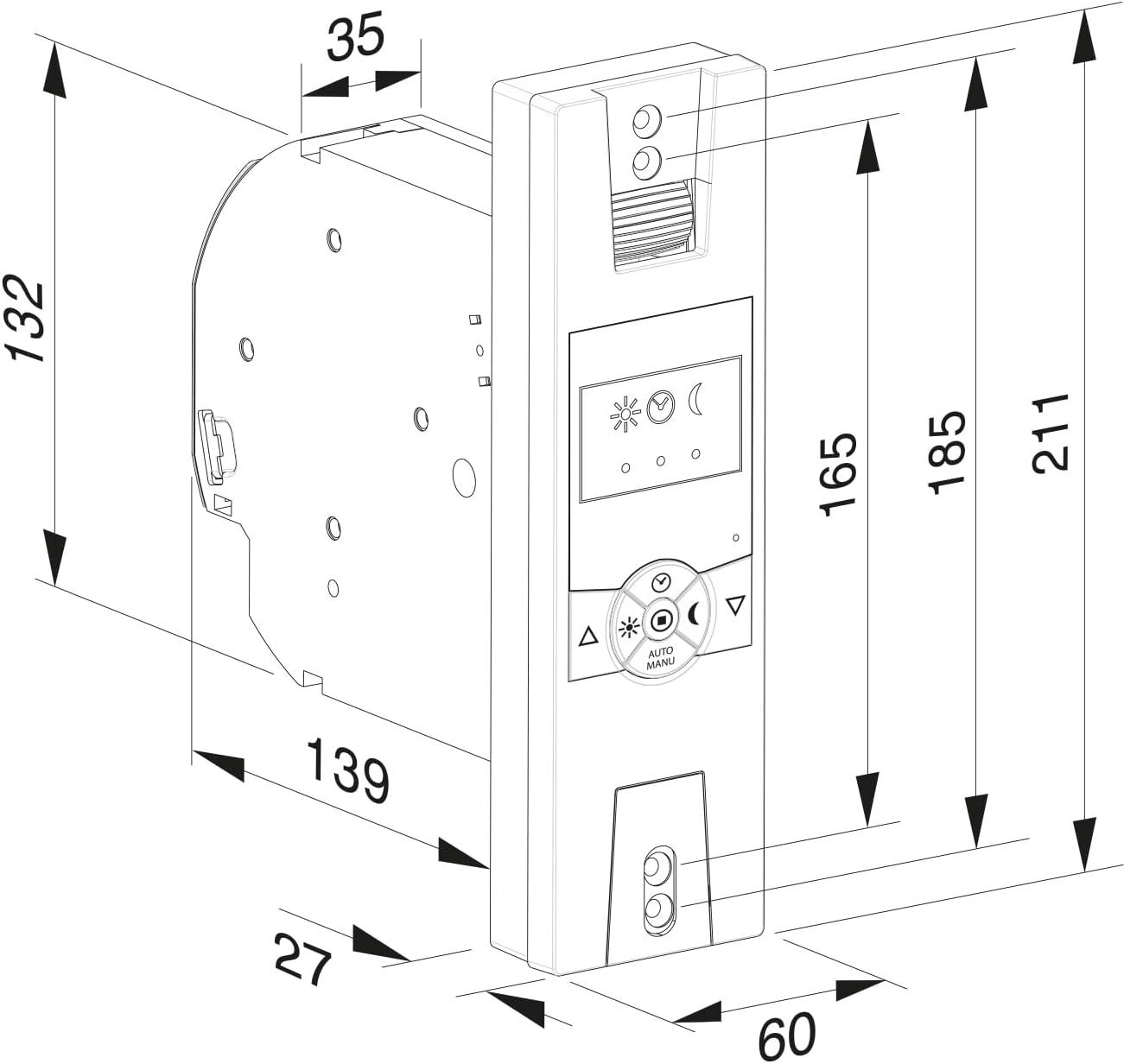

Image 4.2: Detailed technical drawing providing precise dimensions (in millimeters) for the RolloTron Classic, essential for accurate installation planning.

5. آپريٽنگ هدايتون

The RolloTron Classic offers both manual and automatic operation modes. The control panel features intuitive buttons and indicators.

تصوير 5.1: سامهون view of the RolloTron Classic, showing the control panel with buttons for manual operation, mode selection, and status indicators.

5.1 دستي آپريشن

• مٿي بٽڻ (▲): Press to raise the roller shutter.
• هيٺ بٽڻ (▼): Press to lower the roller shutter.
• The device features a "Soft Start/Stop" function for smooth and quiet operation.

5.2 خودڪار آپريشن

The RolloTron Classic supports automatic operation. Use the "AUTO/MANU" button to switch between modes. In automatic mode, the device can operate based on pre-set times or light conditions (if equipped with a light sensor).

• Sun/Moon Icons: These indicators typically represent light sensor status or programmed up/down times.
• Red Dot Indicator: May indicate an error, manual override, or specific mode. Refer to the full manufacturer's manual for detailed programming instructions.

6. سار سنڀال

The HomePilot Gurtwickler RolloTron Classic requires minimal maintenance. Follow these guidelines:

• صفائي: Wipe the surface of the device with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• چڪاس: Periodically check the roller shutter belt for wear and tear. Ensure the belt winder operates smoothly.
• پاڻ ڊوائيس کولڻ يا مرمت ڪرڻ جي ڪوشش نه ڪريو. قابل سروس اهلڪارن سان رجوع ڪريو.

7. مسئلا حل ڪرڻ

If you encounter issues with your RolloTron Classic, try the following steps:

• ڊوائيس جواب نه ڏئي رهيو آهي: Check if the device is properly plugged into the power outlet. Ensure there is power to the outlet.
• Roller Shutter Not Moving: Verify that the belt is correctly installed and not jammed. Check for any obstructions in the roller shutter's path.
• Automatic Function Not Working: Ensure the device is in automatic mode. Re-check your programmed settings (times, light sensitivity).
• If the problem persists, disconnect the power for a few minutes and then reconnect it. If the issue remains unresolved, contact customer support.

8. ٽيڪنيڪل وضاحتون

9. وارنٽي ڄاڻ

Warranty terms and conditions for the HomePilot Gurtwickler RolloTron Classic are provided by the manufacturer, DELTA DORE RADEMACHER GmbH, or your point of purchase. Please retain your proof of purchase for any warranty claims. For detailed warranty information, refer to the documentation included with your product or visit the manufacturer's official webسائيٽ.

10. ڪسٽمر سپورٽ

If you require further assistance, have questions about installation, operation, or troubleshooting that are not covered in this manual, please contact:

• Your retailer or the online store where you purchased the product.
• The manufacturer, DELTA DORE RADEMACHER GmbH, through their official support channels.

Please have your product model number (10132345) and ASIN (B0C5D382ZC) ready when contacting support.
