HOMEPILOT RolloTron Pure Electric Belt Winder User Manual

1. تعارف

Thank you for choosing the HOMEPILOT RolloTron Pure Electric Belt Winder. This device is designed to provide comfortable and automated control for your roller blinds. It allows for both manual operation directly on the unit and extensive automatic functions, enhancing the convenience of your home.

Figure 1: HOMEPILOT RolloTron Pure Electric Belt Winder. This image shows the front of the white belt winder with its large up and down buttons, and the HomePilot logo. A brown cardboard-like background on the left highlights key features such as 45 kg output power and 23 mm belt width.

2. حفاظتي هدايتون

Please read these safety instructions carefully before installation and operation to ensure safe and proper use of the device. Keep this manual for future reference.

• Installation must be performed by a qualified electrician or a person with appropriate technical knowledge, in accordance with local electrical codes and regulations.
• Ensure the power supply is disconnected before beginning any installation or maintenance work.
• ڊوائيس کي نمي، انتهائي گرمي پد، يا سڌي سج جي روشني ۾ نه لڳايو.
• پاڻ ڊوائيس کي کولڻ يا مرمت ڪرڻ جي ڪوشش نه ڪريو. سڀني سروسنگ کي قابل اهلڪارن جي حوالي ڪريو.
• هي ڊوائيس صرف اندروني استعمال لاء ٺهيل آهي.
• ساهه کڻڻ جي خطرن کي روڪڻ لاءِ پيڪنگنگ مواد کي ٻارن جي پهچ کان پري رکو.

3. پيڪيج مواد

پڪ ڪريو ته سڀئي جزا پيڪيج ۾ موجود آهن:

• HOMEPILOT RolloTron Pure Electric Belt Winder (1 unit)
• هدايت نامو (هي دستاويز)
• Mounting Screws (if included, refer to packaging)
• Tape collector (as per specifications)

If any parts are missing or damaged, please contact your retailer or HOMEPILOT customer support.

4. سيٽ اپ ۽ تنصيب

The RolloTron Pure is designed for easy installation in existing roller blind inserts, making it ideal for renovations and home updates. Follow these steps for installation:

1. تياري: Ensure the power supply to the roller blind area is turned off. Remove the old manual belt winder from the wall.
2. Belt Insertion: Carefully feed the roller blind belt into the new RolloTron Pure device. Ensure it is properly seated in the belt guide.
3. چڙهڻ: Position the RolloTron Pure into the wall opening. Secure it firmly using the provided mounting screws. Ensure the device is level and flush with the wall surface.
4. پاور ڪنيڪشن: Connect the power cable of the RolloTron Pure to a suitable power outlet.
5. شروعاتي پروگرامنگ: Once powered, follow the specific instructions in the detailed manual (not included here, but typically provided with the product) to program the upper and lower end points of your roller blind. This is crucial for correct operation.

Figure 2: Installation Process. This image shows a four-step visual guide for installing the RolloTron Pure. Step 1 shows the old belt winder being removed. Step 2 shows the new device being inserted into the wall opening. Step 3 shows the device being pushed fully into place. Step 4 shows the power cable being plugged into a wall socket.

For detailed programming instructions, refer to the comprehensive manual supplied with your product.

5. آپريٽنگ هدايتون

The RolloTron Pure offers both manual and automatic control options:

5.1 دستي آپريشن

• مٿي بٽڻ (▲): Press this button to raise the roller blind. Release to stop.
• هيٺيون بٽڻ (▼): Press this button to lower the roller blind. Release to stop.

5.2 Automatic Functions

The device features extensive automatic functions for convenient control:

• Time-Automatic: Program specific times for the roller blind to open and close daily.
• Astro Function: Utilize the built-in astro function to automatically control the roller blind based on sunrise and sunset times in your location.
• Smart Home Integration (Optional): While the RolloTron Pure can operate independently, it can also be integrated into a broader HomePilot smart home system for advanced automations, including weather or solar sensor integration and fire protection features.

Refer to the full product manual for detailed instructions on setting up and customizing these automatic functions.

6. سار سنڀال

The HOMEPILOT RolloTron Pure is designed for low maintenance. Follow these general guidelines:

• صفائي: Clean the surface of the device with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the unit.
• بيلٽ جي چڪاس: Periodically inspect the roller blind belt for any signs of wear, fraying, or damage. A damaged belt can affect the performance and safety of the device.
• ڪوبه استعمال ڪندڙ-خدمت وارو حصو: The internal components of the device are not user-serviceable. Do not attempt to open the casing.

7. مسئلا حل ڪرڻ

If you encounter issues with your RolloTron Pure, try the following common troubleshooting steps:

If these steps do not resolve the issue, please contact HOMEPILOT customer support for further assistance.

8. ٽيڪنيڪل وضاحتون

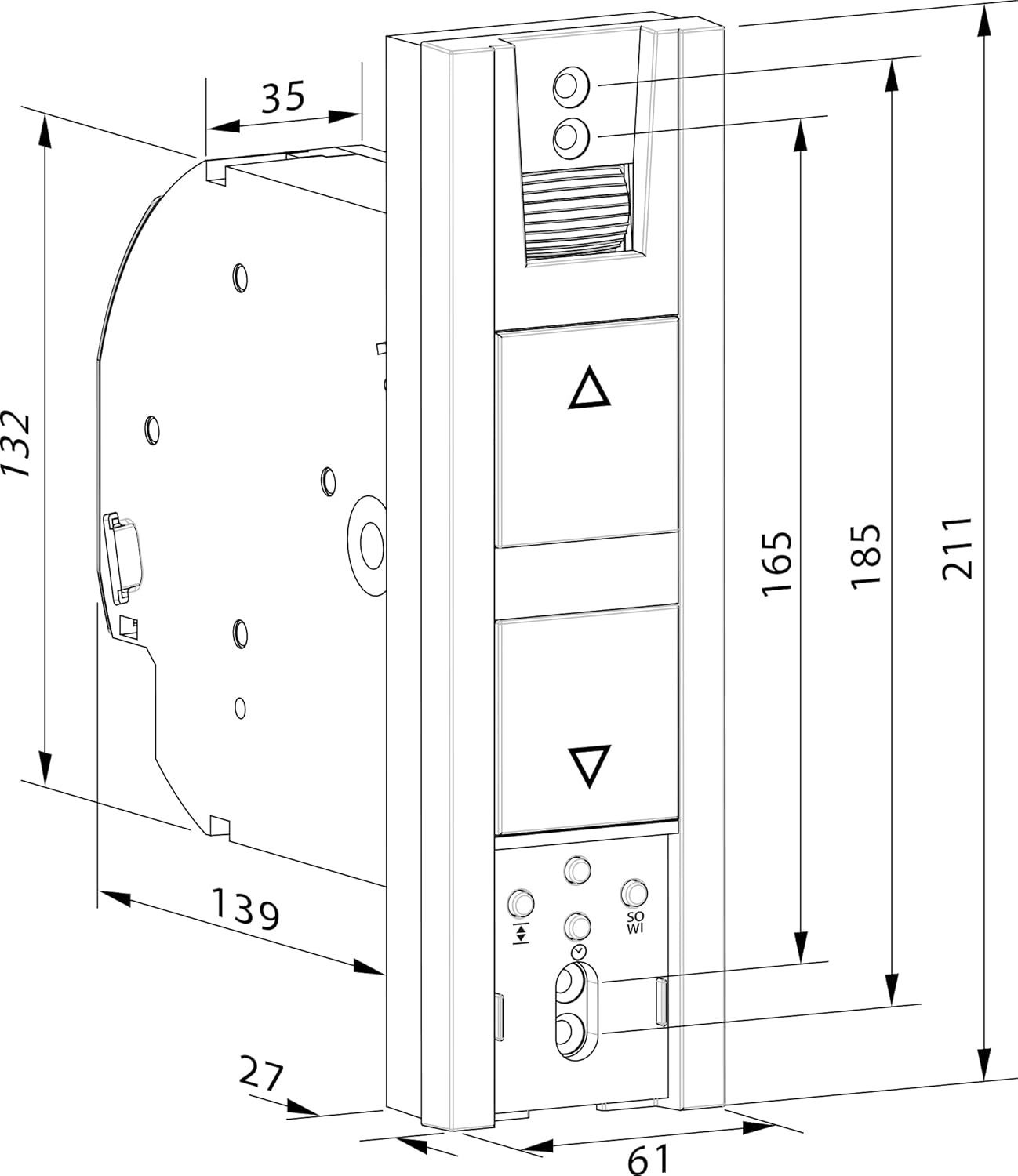

Figure 3: Technical Dimensions. This image displays a detailed line drawing of the RolloTron Pure with various dimensions in millimeters, including height, width, and depth measurements, crucial for installation planning.

9. وارنٽي ۽ سپورٽ

For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official HOMEPILOT website. For technical support, troubleshooting assistance beyond this manual, or spare parts, please contact HOMEPILOT customer service directly.

ٺاهيندڙ: Homepilot

Webسائيٽ: Please refer to the official HOMEPILOT webرابطي جي تفصيل ۽ سپورٽ وسيلن لاءِ سائيٽ.
