سلون ڪمرشل آئس ميڪر SLIM12T هدايت نامو

تعارف

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Silonn Commercial Ice Maker, model SLIM12T. Please read this manual thoroughly before using the appliance and retain it for future reference.

The Silonn SLIM12T is designed to produce up to 150 lbs of ice per day with a 33 lbs storage capacity, suitable for various commercial and home settings.

Image: Silonn Commercial Ice Maker SLIM12T, showcasing its stainless steel exterior and the included accessories: an ice scoop, drain hose, water quick connector, and water hose.

Image: A visual representation of the Silonn ice maker's versatility, showing its application in diverse environments such as coffee shops, food trucks, bars, and outdoor entertaining areas.

اهم خاصيتون

The Silonn SLIM12T Commercial Ice Maker incorporates advanced design and technology for efficient and reliable ice production:

• اعلي ظرفيت: Produces up to 150 lbs of ice in 24 hours with a 33 lbs storage bin.
• تيز برف جي پيداوار: Ice ready in 8-15 minutes per cycle.
• Adjustable Ice Thickness: Customize ice cubes to thin, medium, or thick.
• خودڪار خود صفائي: Simplifies maintenance and ensures hygiene.
• Dual Water Supply Options: Manual fill or direct connection to a water source.
• Intuitive LCD Control Panel: Easy operation with timer and light functions.
• پائيدار تعمير: Made with stainless steel for longevity.

Image: An illustration detailing the four key system upgrades that contribute to the ice maker's efficient ice production and fast cooling, including air cooling, a high-efficiency compressor, multi-fan cooling, and a thickened insulation layer.

اهم حفاظتي ڄاڻ

برف ٺاهيندڙ کي استعمال ڪندي باهه، بجليءَ جي جھٽڪي، يا زخم جي خطري کي گهٽائڻ لاءِ، انهن بنيادي احتياطن تي عمل ڪريو:

• استعمال ڪرڻ کان اڳ سڀ هدايتون پڙهو.
• صرف گرائونڊ ٿيل آئوٽليٽ سان ڳنڍيو.
• Do not immerse the power cord, plug, or the appliance in water or other liquids.
• ٻارن جي نگراني ڪريو جڏهن اوزار استعمال ۾ آهي.
• خراب ٿيل ڪنڊ يا پلگ سان ڪم نه ڪريو.
• ٻاهر استعمال نه ڪريو.
• يونٽ جي چوڌاري مناسب وائيٽليشن کي يقيني بڻائي.
• صرف پيئڻ جو پاڻي استعمال ڪريو.
• صفائي يا خدمت ڪرڻ کان پهريان ان پلگ ان ڪريو.

پيڪيج مواد

پڪ ڪريو ته سڀئي شيون پيڪنگ ۾ موجود آهن:

• Silonn Commercial Ice Maker (SLIM12T)
• برف جو اسڪوپ
• نيڪال جو نلي (6.6 فوٽ)
• Water Quick Connector
• پاڻي جي نلي (9.1 فوٽ)
• هدايت نامو (هي دستاويز)

سيٽ اپ ۽ تنصيب

1. رکڻ

• برف ساز کي لوڻ، مستحڪم سطح تي رکو.
• Ensure adequate clearance (at least 5 inches) around the unit for proper ventilation.
• سڌو سورج جي روشني يا گرمي ذريعن کان بچاء.
• The ambient temperature should be between 10°C (50°F) and 32°C (90°F).

2. Water Supply Connection

The SLIM12T offers two water supply options:

1. هٿ سان پاڻي جو اضافو: Open the top lid and pour potable water directly into the water reservoir. The unit will alert you when water runs low.
2. سڌو پاڻي ڪنيڪشن: For continuous operation, connect the ice maker to a potable water source.
   • Locate the water inlet port at the back of the unit.
   • Attach the provided water hose to the water quick connector, then connect it to your water supply.
   • پڪ ڪريو ته سڀئي ڪنيڪشن محفوظ آهن ته جيئن ليڪ کي روڪي سگهجي.

3. Drain Hose Connection

Connect the provided drain hose to the drain outlet at the back of the unit. Route the drain hose to a suitable drain point, ensuring it has a continuous downward slope for proper water drainage.

تصوير: تفصيلي view of the rear panel connections, illustrating the tap water inlet hose, power cord, and water drain hose. An installation guide for hose connections is also shown.

4. شروعاتي صفائي

Before first use, it is recommended to clean the ice maker. Refer to the "Maintenance" section for detailed cleaning instructions, including how to use the self-cleaning function.

آپريٽنگ هدايتون

ڪنٽرول پينل ختمview

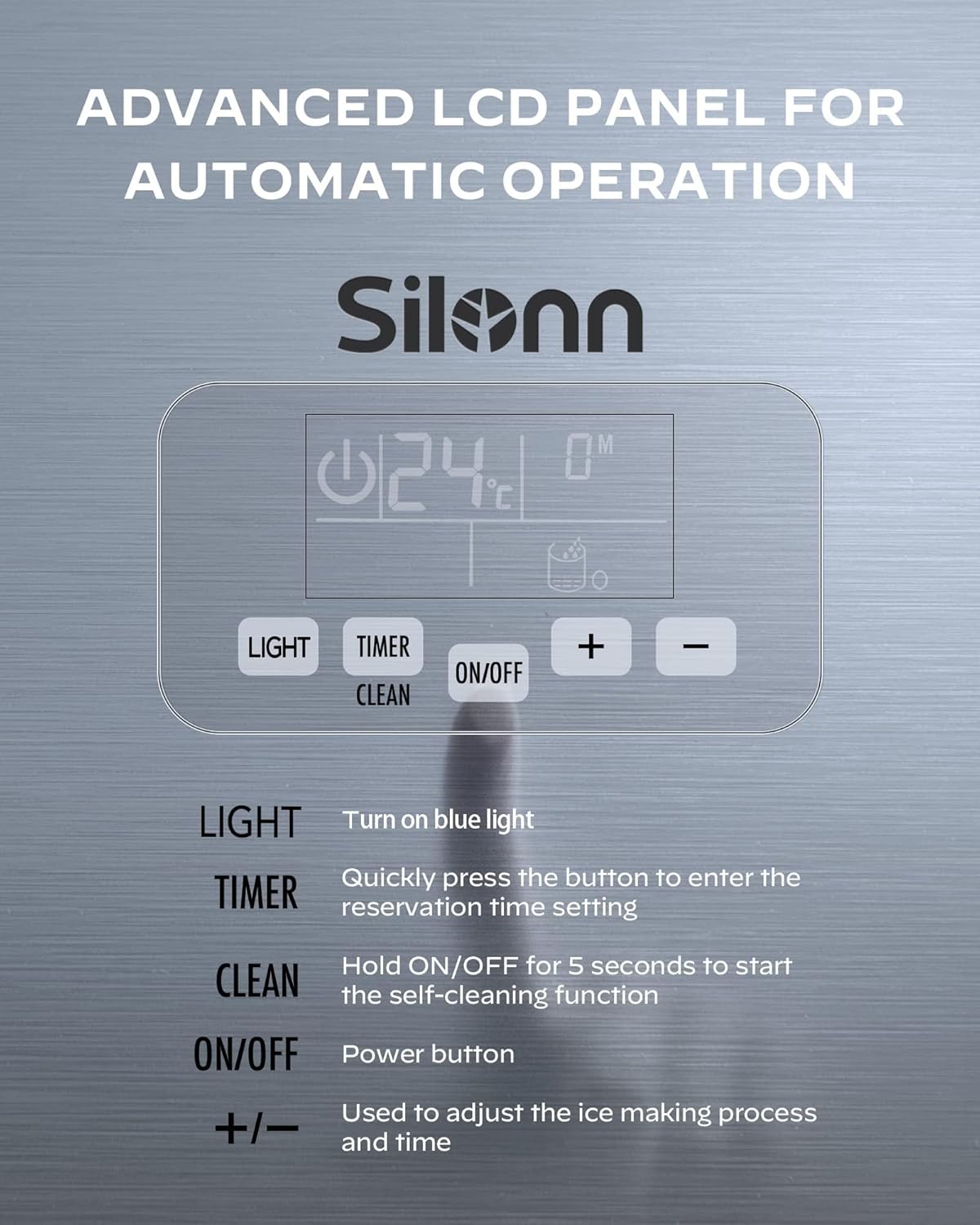

Image: Close-up of the Silonn ice maker's advanced LCD control panel, detailing the functions of the LIGHT, TIMER, ON/OFF (with CLEAN function), and +/- buttons for adjusting settings.

• روشني: Press to turn the internal blue light on or off.
• ٽائمر: Quickly press to enter the reservation time setting mode.
• آن/بند: يونٽ کي طاقت ڏيڻ يا بند ڪرڻ لاءِ دٻايو.
• صاف: Hold the ON/OFF button for 5 seconds to activate the self-cleaning function.
• , Use these buttons to adjust the ice making process duration and time settings (e.g., ice thickness, timer).

برف ٺاهڻ جو عمل

1. Ensure the water supply is connected or the reservoir is filled.
2. کي دٻايو آن/بند button to start the ice making cycle.
3. Adjust ice thickness (thin, medium, or thick) using the +/- buttons if desired. The ice making cycle typically takes 8-15 minutes.
4. The unit will automatically produce ice until the ice bin is full or the water level is low.
5. An alarm will sound if the water runs out, prompting a refill.

Image: Illustration demonstrating the adjustable ice thickness settings (Thin, Medium, Thick) and their corresponding production times, allowing customization for various beverage types.

Image: Infographic highlighting the Silonn ice maker's daily production capacity, indicating it can produce over 7000 ice cubes, sufficient for more than 800 drinks per day.

ٽائمر فنڪشن

The timer function allows you to set a reservation time for the ice maker to start or stop.

1. کي دٻايو ٽائمر بٽڻ
2. استعمال ڪريو +/- buttons to set the desired delay time (e.g., 8 hours, 10 hours).
3. The unit will automatically begin or end operation after the set time.

Image: Visual representation of the 24-hour time reservation feature, demonstrating how users can schedule ice production for specific times during the day or night.

سار سنڀال

خود صفائي فنڪشن

The ice maker is equipped with an automatic self-cleaning function to simplify maintenance.

1. Ensure the unit is connected to a water supply or the reservoir is filled.
2. رکو آن/بند button for 5 seconds. The unit will enter self-cleaning mode.
3. The cleaning cycle will run automatically. Once complete, drain any remaining water.

باقاعده صفائي

• ٻاهران: ٻاھرين کي نرم سان صاف ڪريو، ڊيamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
• برف جو دٻو: Periodically remove the ice bin and wash it with mild soap and water. Rinse thoroughly and dry before replacing.
• پاڻي ذخيرو: If using manual fill, regularly clean the water reservoir to prevent mineral buildup.
• نيڪال: Ensure the drain hose is clear and free of obstructions.

For optimal performance and hygiene, perform regular cleaning and utilize the self-cleaning function as needed.

مشڪلاتون

ڪسٽمر سپورٽ سان رابطو ڪرڻ کان اڳ، مھرباني ڪري ھيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:

وضاحتون

Image: Diagram illustrating the physical dimensions (Width, Depth, Height) and weight of the Silonn ice maker, along with a visual list of included accessories.

وارنٽي ۽ ڪسٽمر سپورٽ

Silonn provides excellent customer care. For warranty information, product support, or assistance with setup and operation, please contact our U.S.-based customer care team. Refer to your purchase documentation or the Silonn webمخصوص رابطي جي تفصيل لاءِ سائيٽ.

Please have your model number (SLIM12T) and purchase date available when contacting support.
