تعارف
This manual provides instructions for the installation, operation, and maintenance of the FRANKE 112.0687.564 Sink Waste and Overflow Kit with Eccentric Control. This kit is designed for specific FRANKE sink models to ensure efficient drainage and overflow protection.
پيداوار ختمview
The FRANKE 112.0687.564 is a complete waste and overflow kit featuring an eccentric control mechanism. This allows for opening and closing the sink drain plug remotely via a rotary knob, eliminating the need to reach into the water.

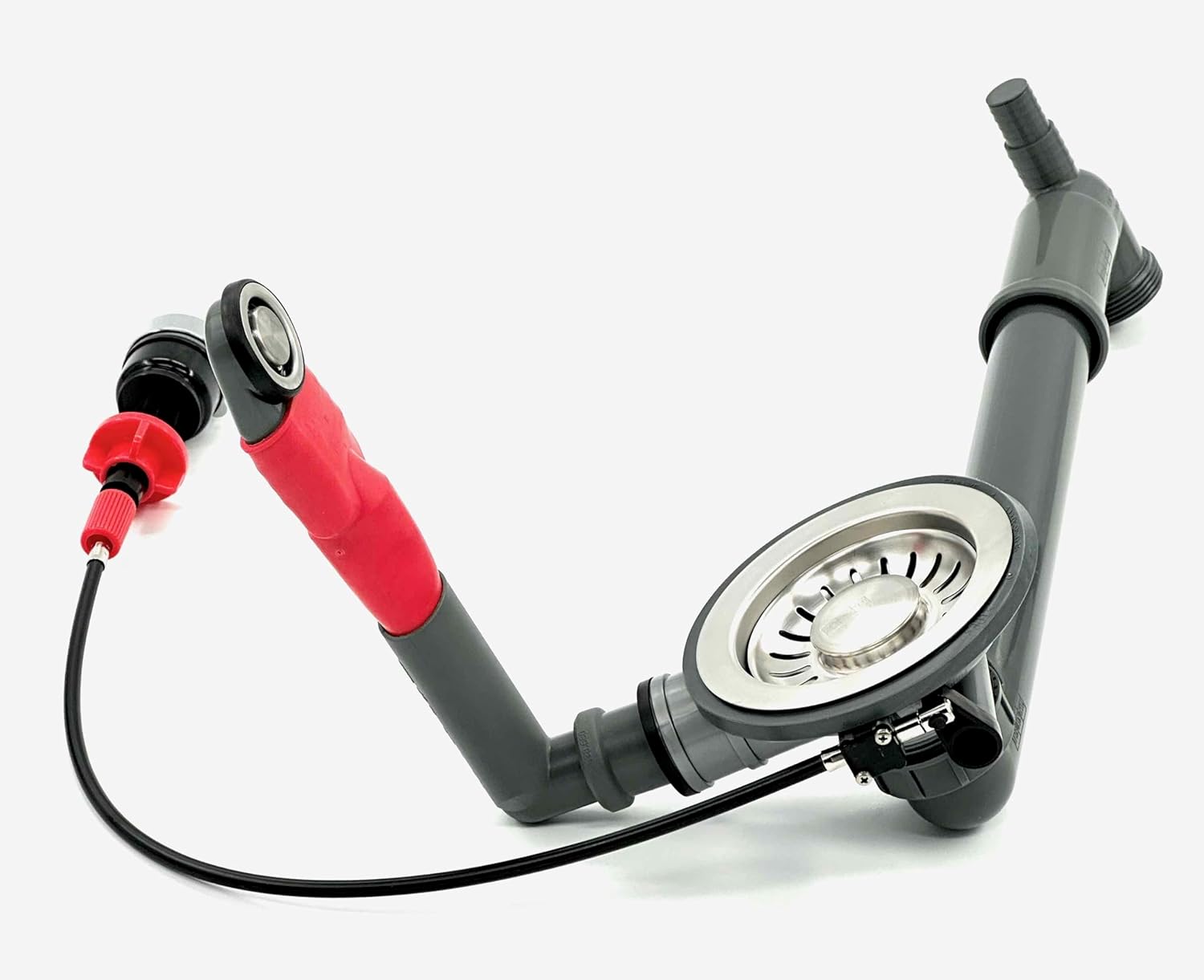

Image 1: Complete FRANKE 112.0687.564 Waste and Overflow Kit components.
This kit is compatible with the following FRANKE sink models:
- BASIS BFG 611 (Fragranite)
- BASIS BFG 611-62 (Fragranite)
- PEBEL PBG 611-97 (Fragranite)
- IMPACT IMG 611-100 G
- MARIS MRG 611
سيٽ اپ ۽ تنصيب
Professional installation is recommended for this product. Ensure all local plumbing codes are followed. Before beginning, gather necessary tools such as a screwdriver, adjustable wrench, sealant, and a bucket.
1. Prepare the Sink Opening
Ensure the sink's drain opening is clean and free from debris. If replacing an existing waste kit, remove all old components and clean the area thoroughly.
2. Install the Drain Basket
- Apply a bead of plumber's putty or silicone sealant around the flange of the drain basket.
- Insert the drain basket into the sink's drain opening from above.
- From underneath the sink, place the rubber gasket, then the friction washer, and finally thread the large nut onto the drain body.
- Tighten the nut securely by hand, then use an adjustable wrench for a final snug turn. Do not overtighten.
تصوير 2: View of the waste kit from a different angle, showing the overflow connection and eccentric control cable.
3. Connect the Overflow
- Attach the overflow pipe to the overflow opening in the sink bowl. Ensure the gasket is properly seated.
- Connect the other end of the overflow pipe to the designated inlet on the main waste body. Secure with the provided nut or clamp.
4. Assemble the Eccentric Control
- Route the eccentric control cable from the drain plug mechanism to the desired location for the rotary knob (usually a pre-drilled hole in the sink or countertop).
- Attach the rotary knob assembly to the cable and secure it in place according to the specific instructions provided with your sink or countertop.
- Ensure the cable moves freely and the drain plug opens and closes smoothly when the knob is operated.
تصوير 3: پاسي view of the waste kit, highlighting the main drain body and overflow connection.
5. Connect to Waste Pipe
Connect the outlet of the waste kit to your household's main waste pipe system. Ensure all connections are watertight using appropriate seals and tightening methods.
6. ليڪ لاءِ ٽيسٽ
Fill the sink with water and then release it. Carefully inspect all connections for any signs of leakage. Tighten connections as necessary.
آپريشن
The FRANKE 112.0687.564 waste kit features an eccentric control for the drain plug.
- ڊرين بند ڪرڻ لاءِ: Rotate the eccentric control knob (usually located on the sink or countertop) to the 'closed' position. This will lower the drain plug, sealing the sink.
- ڊرين کولڻ لاءِ: Rotate the eccentric control knob to the 'open' position. This will lift the drain plug, allowing water to flow out of the sink.
The overflow function operates automatically. If the water level in the sink rises above the overflow opening, excess water will drain through the overflow channel, preventing spillage.
سار سنڀال
Regular maintenance ensures the longevity and proper functioning of your waste and overflow kit.
Cleaning the Drain Basket
Periodically remove any food particles or debris from the drain basket. The basket can usually be lifted out for easy cleaning. Use a soft brush and mild detergent if necessary.
Cleaning the Overflow
The overflow channel can accumulate grime over time. Clean it by pouring a mixture of hot water and mild detergent down the overflow opening. A flexible brush can be used for stubborn blockages.
Eccentric Control Mechanism
If the eccentric control becomes stiff or difficult to operate, check the cable for obstructions or kinks. A small amount of silicone-based lubricant can be applied to moving parts if accessible, but avoid petroleum-based lubricants as they can damage plastic components.
Leak Checks
Occasionally inspect the connections under the sink for any signs of leaks or drips. Address any issues promptly to prevent water damage.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڪنيڪشن مان پاڻي جو رسڻ | Loose connections, damaged gaskets, improper sealant application. | Tighten nuts, replace damaged gaskets, reapply plumber's putty/sealant. |
| Drain plug not sealing properly | Debris under the plug, misaligned plug, worn-out plug seal. | Clean debris, adjust plug alignment, replace plug seal if necessary. |
| Eccentric control knob is stiff or unresponsive | Cable kinked or obstructed, mechanism dirty, lack of lubrication. | Check cable path, clean mechanism, apply silicone lubricant if accessible. |
| سست نيڪال | Blockage in the drain or waste pipe. | Clean the drain basket, clear any blockages in the waste pipe. |
وضاحتون
- برانڊ: فرانڪي
- ماڊل نمبر: 112.0687.564
- حصو نمبر: 112.0687.564
- پيداوار جو قسم: Sink Waste and Overflow Kit with Eccentric Control
- مطابقت: FRANKE BASIS BFG 611, BASIS BFG 611-62, PEBEL PBG 611-97, IMPACT IMG 611-100 G, MARIS MRG 611 sinks.
- Items in Package: 1
- پهرين دستياب تاريخ: سيپٽمبر 1، 2023
وارنٽي ۽ سپورٽ
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official FRANKE webسائيٽ. وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
If you encounter issues that cannot be resolved using the troubleshooting guide, contact FRANKE customer service or a qualified plumbing professional.
