Computherm E280 Wi-Fi Thermostat with Floor Sensor User Manual

تعارف

The COMPUTHERM E280 Wi-Fi Thermostat allows you to control connected heating or cooling devices, such as boilers or air conditioning systems, via your smartphone or tablet over the internet. This thermostat is compatible with any two-wire thermostatic connector and supports both 24V and 230V control circuits. It is particularly useful for managing heating/cooling in homes, apartments, or holiday residences, especially when occupancy schedules are irregular.

Equipped with a connectable floor temperature sensor, the E280 is ideal for controlling underfloor heating systems. It features two potential-free relays that can operate simultaneously, allowing independent control of two devices. This enables the thermostat to manage a pump and a zone valve in addition to the main boiler, facilitating multi-zone heating systems without requiring a separate zone control system.

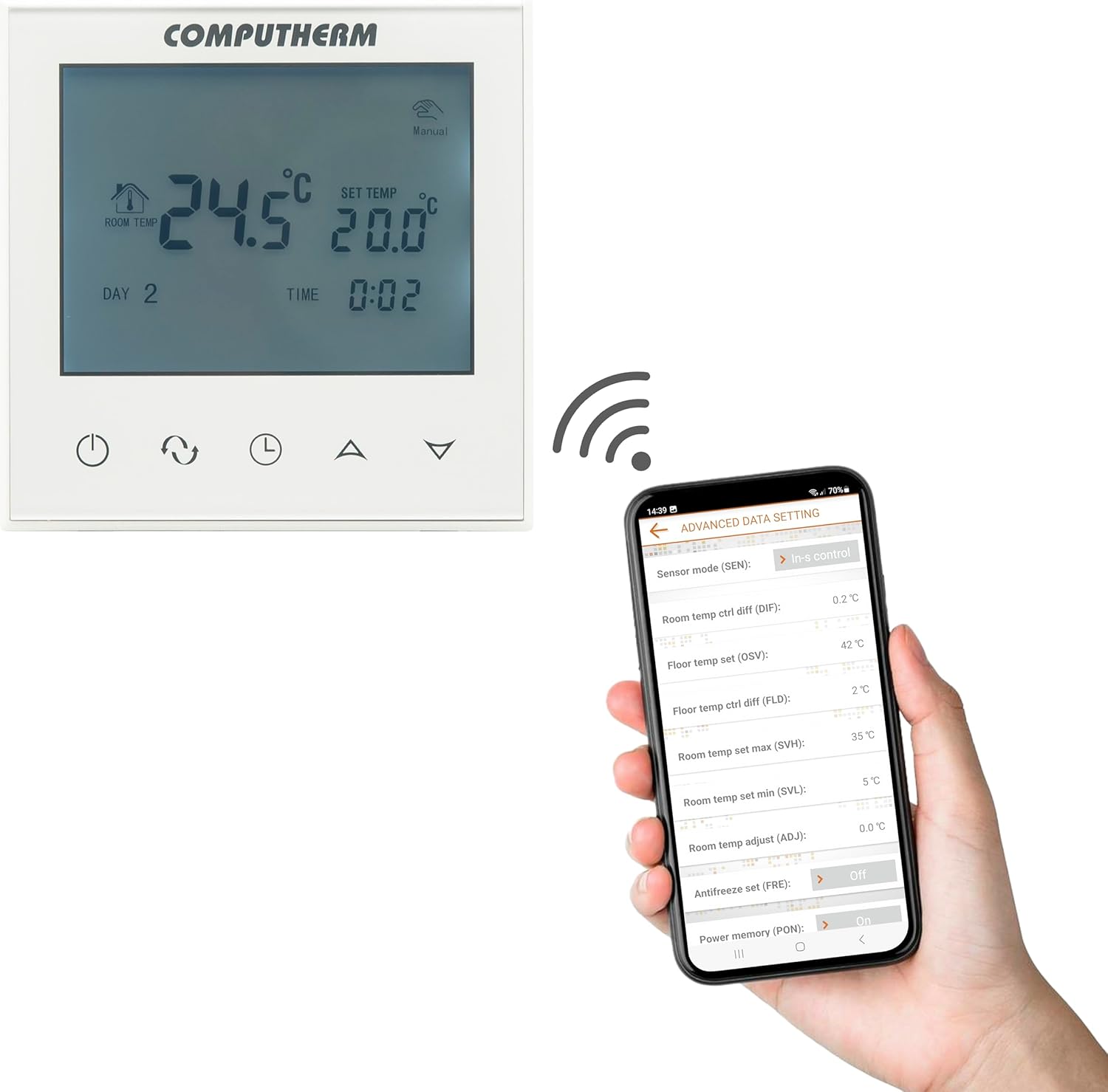

Image: The Computherm E280 Wi-Fi Thermostat displaying room temperature and set temperature, alongside a smartphone showing the thermostat's control application.

پيڪيج مواد

پيڪيج کولڻ تي، مھرباني ڪري تصديق ڪريو ته سڀئي جزا موجود آھن ۽ انھن کي ڪو نقصان نه پھتو آھي.

• Computherm E280 Wi-Fi Thermostat unit
• فرش جو گرمي پد سينسر
• چڙهڻ اسڪرو ۽ وال پلگ
• استعمال ڪندڙ جو دستياب (ھي دستاويز)

Image: The Computherm E280 thermostat, its floor sensor, mounting hardware, and printed user manuals as found in the product packaging.

سيٽ اپ ۽ تنصيب

اهم: Installation should only be performed by a qualified electrician or heating engineer. Ensure the main power supply is disconnected before commencing any wiring.

1. ٿرموسٽٽ لڳائڻ

1. Choose a suitable location on an interior wall, away from direct sunlight, drafts, or heat sources, at approximately 1.5 meters (5 feet) from the floor.
2. Carefully separate the front panel from the backplate of the thermostat.
3. Mark the drilling points on the wall using the backplate as a template.
4. Drill holes, insert wall plugs, and secure the backplate to the wall using the provided screws.

2. وائرنگ ڪنيڪشن

The Computherm E280 features two potential-free relays (K1 and K2) for controlling heating/cooling systems and an optional floor sensor.

تصوير: پوئين پاسي view of the Computherm E280 thermostat, detailing the terminal block for electrical connections, including power input, relay outputs (K1 and K2), and the floor sensor input.

• Power Supply (L, N): Connect the live (L) and neutral (N) wires of your 230V AC power supply.
• Relay K1 (COM, NO, NC): This relay is typically used for controlling the main heating/cooling device (e.g., boiler).
  • COM: Common terminal.
  • نه: Normally Open (connect to this for heating applications where the circuit closes to activate).
  • اين سي: Normally Closed (connect to this for cooling applications where the circuit opens to activate).
• Relay K2 (COM, NO): This relay can be used for an auxiliary device, such as a pump or zone valve.
  • COM: Common terminal.
  • نه: عام طور تي کليل.
• فرش سينسر: Connect the wires from the external floor temperature sensor to the designated terminals.

3. فائنل اسيمبلي

1. Once wiring is complete and secure, carefully reattach the front panel of the thermostat to the backplate.
2. Restore power to the system. The thermostat display should illuminate.

آپريٽنگ هدايتون

The Computherm E280 can be operated directly via its touch buttons or remotely via the dedicated smartphone application.

1. Initial Power-On and Wi-Fi Connection

1. After power-on, the thermostat will display the current room temperature and default settings.
2. Download the "Computherm" or "Smart Life" app from your smartphone's app store (iOS or Android).
3. Follow the in-app instructions to add a new device and connect your E280 thermostat to your 2.4 GHz Wi-Fi network. This typically involves putting the thermostat into pairing mode (refer to the app or thermostat's quick start guide for specific button presses).

2. Basic Thermostat Functions (On-Device)

تصوير: هڪ تفصيلي view of the Computherm E280 thermostat's digital display, showing current room temperature, set temperature, day, and time, along with the touch-sensitive control buttons below the screen.

• پاور بٽڻ (🏻): Press to turn the thermostat on or off.
• موڊ بٽڻ (↻): Cycle through operating modes (e.g., Heating, Cooling, Auto, Manual).
• Set Button (⏱): Access settings or programming menus.
• Up/Down Arrows (▲ / ▼): Adjust temperature setpoints or navigate menu options.

3. Remote Control via Smartphone App

The smartphone app provides comprehensive control and monitoring capabilities:

Image: A smartphone screen displaying the advanced settings interface of the Computherm E280 thermostat app, showing options like sensor mode, temperature differentials, and antifreeze settings.

• درجه حرارت جي ترتيب: Easily change the set temperature from anywhere.
• شيڊيولنگ: Create and modify weekly heating/cooling schedules.
• موڊ جي چونڊ: Switch between heating, cooling, and manual modes.
• ڳوڙهي سيٽنگون: Configure parameters such as temperature calibration, switching sensitivity, floor sensor limits, and antifreeze protection.
• نگراني: View current room and floor temperatures, operating status, and historical data.

سار سنڀال

The Computherm E280 thermostat requires minimal maintenance to ensure optimal performance.

• صفائي: Wipe the thermostat's display and casing with a soft, dry cloth. Avoid using abrasive cleaners, solvents, or chemical sprays, as these can damage the surface or internal components.
• سينسر چيڪ: Periodically ensure that the internal and external (floor) temperature sensors are free from obstructions or debris that could affect accurate readings.
• سافٽ ويئر اپڊيٽ: Keep the smartphone application updated to the latest version to benefit from new features and performance improvements. The thermostat's firmware may also receive updates via the app.

مشڪلاتون

If you encounter issues with your Computherm E280 thermostat, refer to the following common problems and solutions:

If the problem persists, please contact Computherm customer support.

وضاحتون

وارنٽي ۽ سپورٽ

The Computherm E280 Wi-Fi Thermostat comes with a 2 سال وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ پيداوار جي خرابين ۽ خرابين کي ڍڪيندي آهي. وارنٽي دعوائن لاءِ مهرباني ڪري خريداري جو ثبوت رکو.

For technical support, troubleshooting assistance, or warranty inquiries, please contact your retailer or visit the official Computherm webرابطي جي معلومات لاء سائيٽ.
