Welcome to the user manual for your FTX 1:10 Stinger Dodge Challenger Style Brushless RTR RC Drift Car. This manual provides comprehensive instructions for setting up, operating, maintaining, and troubleshooting your vehicle. Please read this manual thoroughly before operating your RC car to ensure safe and efficient use and to maximize its lifespan.

The FTX Stinger is designed for both high-speed street racing and lateral drifting, featuring a robust chassis, powerful brushless system, and adjustable suspension. It comes equipped with both street and drift tires, allowing for versatile driving experiences.

Image: The FTX 1:10 Stinger Dodge Challenger Style Brushless RTR RC Drift Car, showcasing its sleek grey body and aggressive styling.

سيٽ اپ ڪريو

1. شروعاتي چڪاس

Upon unboxing, carefully inspect the vehicle for any signs of damage during transit. Ensure all components listed in the packaging are present.

2. بيٽري لڳائڻ ۽ چارج ڪرڻ

The FTX Stinger comes with a Voltz 2S 2500mAh Lipo battery. Before first use, fully charge the battery using a compatible LiPo charger (not included unless specified). Always follow the charger's instructions and LiPo battery safety guidelines.

1. Locate the battery compartment on the chassis.
2. Securely insert the charged Voltz 2S 2500mAh Lipo battery.
3. Connect the battery to the Electronic Speed Controller (ESC).

3. Transmitter Setup and Binding

Your RC car is Ready-to-Run (RTR), meaning the transmitter and receiver are pre-bound. If re-binding is necessary, refer to the specific instructions provided with your radio system.

4. Pre-Run Checks

• Ensure all screws are tight, especially on suspension components and motor mounts.
• Check that the steering servo operates freely and the wheels turn correctly.
• Verify that the throttle responds smoothly and the motor spins in the correct direction.
• Confirm the battery is fully charged and securely installed.

تصوير: اندروني view of the FTX Stinger chassis, highlighting the placement of the motor, ESC, receiver, and steering servo.

تصوير: هڪ تفصيلي view of the FTX Stinger's brushless motor and Hobbywing 60A ESC, showing the cooling fan and wiring.

آپريٽنگ هدايتون

1. بنيادي ڪنٽرول

• ٿراٽل Pull the trigger on the transmitter to accelerate forward. Push the trigger to brake, then push again for reverse.
• ھلائڻ: Turn the steering wheel on the transmitter left or right to control the direction of the vehicle.

2. ڊرائيونگ جا طريقا

The FTX Stinger is versatile, capable of both high-grip street racing and controlled drifting. It comes with two sets of tires: treaded rubber tires for street racing (25mm front, 30mm rear for stability) and hard plastic drift tires for lateral sliding.

• Street Driving: Use the rubber tires for maximum grip and speed. Practice smooth throttle and steering inputs for optimal control.
• Drift Driving: Switch to the hard plastic tires. Initiate drifts by applying throttle and steering into the turn, then counter-steer to maintain the slide.
• Gyro Stability Control: The vehicle features an optional gyro stability control system. This can assist in maintaining control during high-speed maneuvers or drifts, especially for beginners. Refer to your radio system's manual for adjustment.

3. LED لائيٽ ڪنٽرول

The Stinger is equipped with a multifunction LED light set, including molded front grille and light buckets. These lights can be controlled via the transmitter, enhancing realism and visibility.

تصوير: سامهون view of the FTX Stinger RC car, demonstrating its bright LED headlights and detailed grille design.

Image: Two distinct sets of tires for the FTX Stinger: one with tread for street performance and another smooth set for drifting.

سار سنڀال

Regular maintenance is crucial for the longevity and performance of your FTX Stinger.

1. صفائي

• After each run, especially in dusty or dirty conditions, clean the vehicle using a soft brush or compressed air.
• Avoid using water directly on electronics. If necessary, use a damp cloth and ensure components are completely dry before next use.

2. Component Inspection

• معطلي: Check shock absorbers for leaks and ensure smooth operation. Inspect suspension arms and linkages for cracks or damage.
• ڊرائيو ٽرين: Inspect the drive shafts, differentials, and gears for wear or damage. The sealed gear differentials feature metal gears for maximum durability.
• ٽائر ۽ ڦيٿي: Check for wear, tears, or damage. Ensure wheel nuts are tight.
• اليڪٽرانڪس: Verify all wires are securely connected and free from damage.

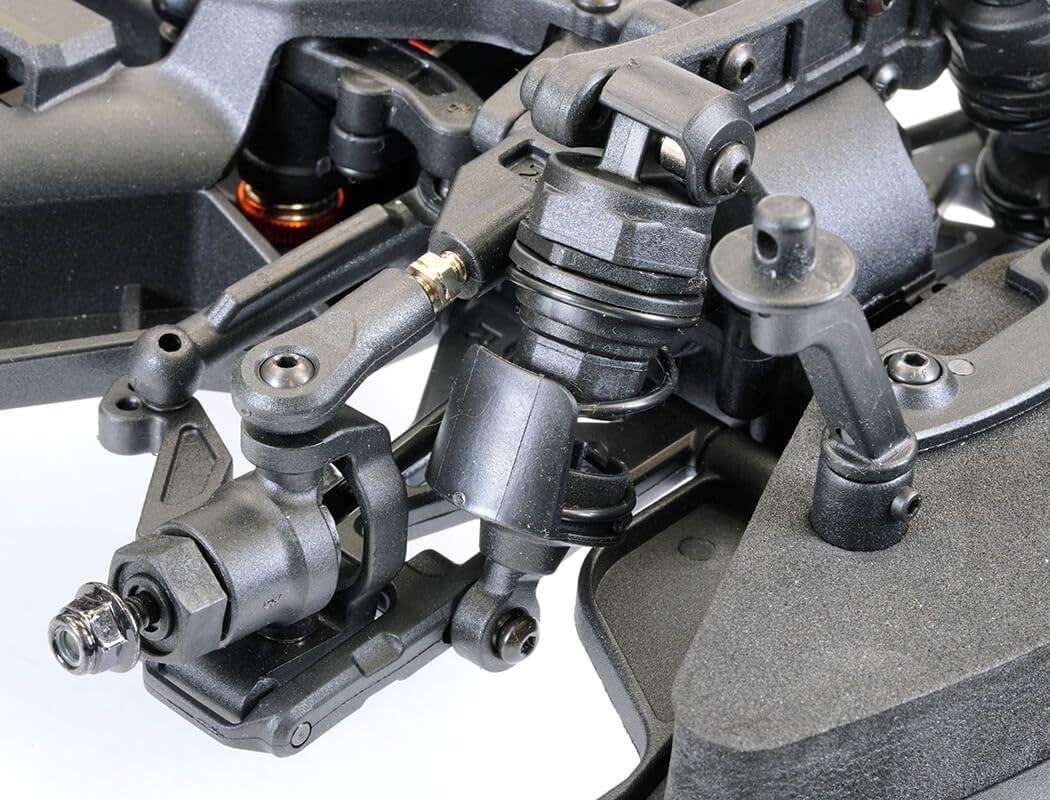

تصوير: ويجهو تصوير view of the FTX Stinger's front suspension, showing the oil-filled shocks and double wishbone setup.

Image: An exploded diagram illustrating the internal components and assembly of the FTX Stinger's sealed gear differentials.

3. لوڻ

Apply appropriate RC-specific lubricants to moving parts such as universal joints and differential gears as needed. Avoid over-lubrication, which can attract dirt.

4. اسٽوريج

When storing the vehicle for extended periods, remove the battery. Store the vehicle in a clean, dry place away from direct sunlight and extreme temperatures.

مشڪلاتون

This section addresses common issues you might encounter with your FTX Stinger.

• طاقت ناهي:
  چيڪ ڪريو: Ensure the battery is fully charged and properly connected. Verify the ESC and receiver are powered on.
• No Steering:
  چيڪ ڪريو: Confirm the steering servo is connected to the receiver and is receiving power. Inspect servo horn and linkages for damage.
• No Throttle:
  چيڪ ڪريو: Ensure the motor wires are securely connected to the ESC. Verify the ESC is properly calibrated with the transmitter.
• Vehicle Runs Slowly:
  چيڪ ڪريو: Battery charge level. Inspect for binding in the drivetrain (e.g., gears, bearings).
• غير معمولي آواز:
  چيڪ ڪريو: Inspect gears (spur, pinion, differential) for stripped teeth or debris. Check bearings for roughness.

If problems persist after performing these checks, consult the manufacturer's support resources or a qualified RC technician.

وضاحتون

وارنٽي ۽ سپورٽ

For warranty information, please refer to the documentation provided with your purchase or contact the retailer from whom you purchased the FTX Stinger. Warranty terms typically cover manufacturing defects for a specified period.

For technical support, spare parts, or further assistance, please contact FTX customer service or your authorized dealer. Keep your proof of purchase handy when seeking support.
