1. تعارف
Thank you for choosing the Sygonix SY-5653638 Solar Wall Light. This product is designed to provide efficient and eco-friendly outdoor illumination with the added convenience of a motion detection sensor. Powered by solar energy, it is ideal for pathways, gardens, patios, and other outdoor areas where additional lighting is desired without the need for complex wiring. Please read this manual thoroughly before installation and use to ensure proper operation and longevity of your device.
2. حفاظتي هدايتون
Observe the following safety instructions to prevent personal injury or damage to the product:
- هي پيداوار صرف ٻاهرين استعمال لاء ٺهيل آهي.
- Do not attempt to open or modify the product. There are no user-serviceable parts inside.
- Keep the product away from extreme temperatures, direct sunlight (except for the solar panel), and excessive moisture.
- Ensure the mounting surface is stable and can support the weight of the light.
- بهترين چارجنگ ڪارڪردگي کي يقيني بڻائڻ لاءِ سولر پينل کي باقاعدي صاف ڪريو.
- گھر جي فضول سان پيداوار کي ختم نه ڪريو. اليڪٽرانڪ فضول جي نيڪال لاءِ مقامي ضابطن تي عمل ڪريو.
- The built-in battery is not replaceable by the user.
3. پيڪيج مواد
Please check the package contents upon unpacking. If any parts are missing or damaged, contact your retailer immediately.
- Sygonix SY-5653638 سولر وال لائيٽ
- Mounting Screws and Wall Plugs (typically included)
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
4. سيٽ اپ ۽ تنصيب
Proper installation is crucial for the optimal performance of your solar light. Choose a location that receives direct sunlight for at least 6-8 hours daily to ensure the battery charges sufficiently.
4.1 جڳھ چونڊڻ
- Select an outdoor location where the solar panel can receive maximum direct sunlight throughout the day, free from shadows cast by trees, buildings, or other obstructions.
- Ensure the light will illuminate the desired area effectively.
4.2 شروعاتي چارجنگ
Before first use, it is recommended to charge the solar light for at least 24 hours in direct sunlight with the switch in the "OFF" position. This ensures the internal battery is fully charged for optimal performance.
4.3 روشني لڳائڻ
- Identify the mounting holes on the back of the light.
- Hold the light against the desired mounting surface and mark the positions for drilling.
- Drill holes at the marked positions. Insert wall plugs if mounting on masonry or concrete.
- Align the light with the drilled holes and secure it using the provided screws. Ensure it is firmly attached.

شڪل 1: پوئتي view of the light, indicating the ON/OFF switch and motion sensor location for mounting reference.

Figure 2: Product dimensions for planning installation space.
5. آپريٽنگ هدايتون
5.1 پاور آن/آف
Locate the ON/OFF switch on the back of the unit (refer to Figure 1). Slide the switch to the "ON" position to activate the light. Slide it to the "OFF" position to deactivate it.
5.2 خودڪار آپريشن
Once activated ("ON" position), the solar wall light will operate automatically:
- During the day, the solar panel will convert sunlight into electricity and charge the internal battery. The light will remain off.
- At dusk, the light will automatically enter standby mode.
- When motion is detected within its sensing range, the light will illuminate at full brightness for a set duration (typically 15-30 seconds).
- After the motion ceases or the set duration expires, the light will turn off or dim, depending on the specific model's programming (this model typically turns off).

شڪل 3: مٿي view highlighting the solar panel for optimal light exposure.

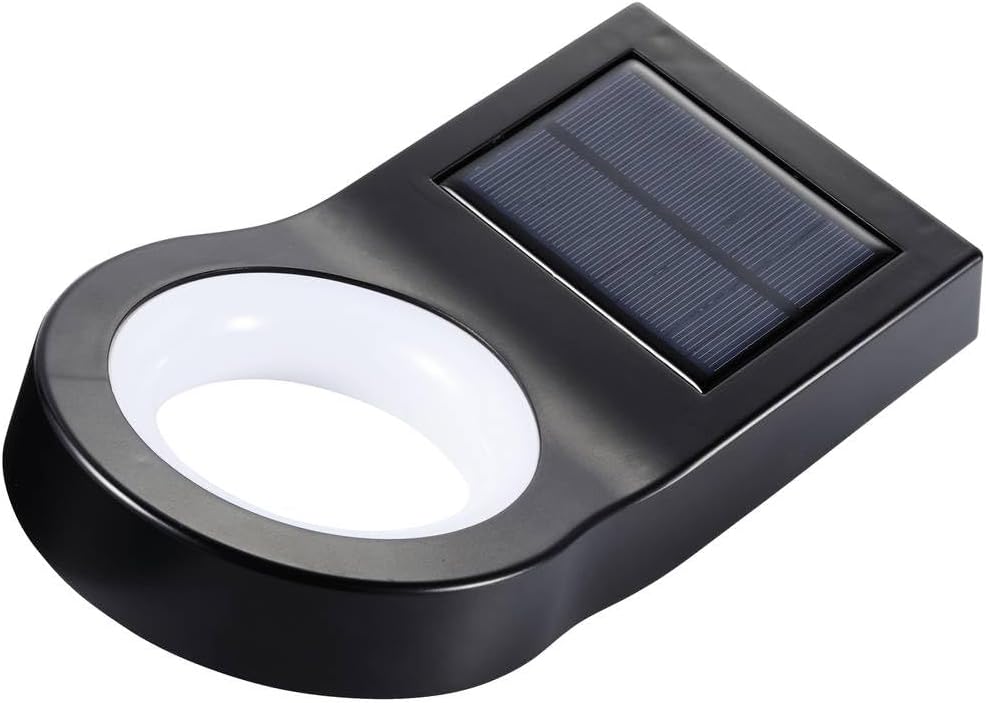

شڪل 4: زاويه view پيداوار جي.
6. سار سنڀال
Regular maintenance ensures the longevity and optimal performance of your solar light.
- سولر پينل جي صفائي: وقتي طور تي سولر پينل کي نرم، ڊي سان صاف ڪريوamp مٽي، مٽي، پنن، يا برف کي هٽائڻ لاءِ ڪپڙو. هڪ صاف پينل سج جي روشني کي وڌ کان وڌ جذب ڪرڻ ۽ بيٽري جي موثر چارجنگ کي يقيني بڻائي ٿو.
- Cleaning the Light Housing: Clean the light housing with a soft, dry or slightly damp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
- Winter Performance: In winter months or periods of low sunlight, the light's performance may be reduced due to less available solar energy for charging.
7. مسئلا حل ڪرڻ
If your solar light is not functioning as expected, try the following steps:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| رات جي وقت روشني نه ايندي آهي. |
|
|
| ڏينهن ۾ روشني جاري رهي ٿي. |
|
|
| Motion sensor is not detecting. |
|
|
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل | SY-5653638 |
| طاقت جو ذريعو | شمسي توانائي |
| روشني جو قسم | SMD LED |
| چڙهڻ جو قسم | Wallھيل وال جبل |
| موشن پڪڙڻ وارو | ها |
| طول و عرض (L x W x H) | Approx. 23 x 13 x 6 cm (as per visual reference) |
| رنگ | ڪارو |
نوٽ: وضاحت بغير اطلاع جي تبديلي سان ٿي سگھي ٿي.
9. وارنٽي ۽ سپورٽ
For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official Sygonix webسائيٽ. ڪنهن به وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
