1. تعارف ۽ اوورview
The Fuzion Digital Pocket Gram Scale FZ-200 Plus is a precision weighing instrument designed for accurate measurements of small items. With a capacity of 200g and 0.01g readability, it is suitable for weighing jewelry, gold, gems, coins, herbs, powders, spices, and kitchen food. Its compact and portable design makes it ideal for various applications.
Figure 1: Fuzion FZ-200 Plus Digital Pocket Gram Scale with its protective tray. The inside of the lid displays key instructions for weighing, taring, and calibration.
2. سيٽ اپ
2.1 بيٽري لڳائڻ
The FZ-200 Plus scale operates on 2 AAA batteries (included). To install or replace batteries:
- اسڪيل جي هيٺئين پاسي بيٽري جي خاني کي ڳوليو.
- بيٽري جي ڪمري واري ڍڪ کي کوليو.
- 2 AAA بيٽريون داخل ڪريو، صحيح پولارٽي (+/-) کي يقيني بڻائي.
- بيٽري جي ڪمري واري ڍڪ کي محفوظ طور تي بند ڪريو.
2.2 شروعاتي جڳهه
For accurate readings, place the scale on a flat, stable, and level surface. Avoid placing it on soft or uneven surfaces, or near vibrating equipment.
3. آپريٽنگ هدايتون
3.1 وزن
هڪ شيء جو وزن ڪرڻ لاء:
- کي دٻايو آن/بند key to turn on the scale. Wait for the display to show "0.00g".
- Gently place the item to be weighed on the center of the stainless steel platform.
- The display will show the weight of the item.
Figure 2: Detailed instructions for weighing, taring, and calibration are conveniently located on the inside of the scale's lid.
3.2 ٽار فنڪشن
The Tare function allows you to subtract the weight of a container or to weigh multiple items consecutively.
- پليٽ فارم تي هڪ خالي ڪنٽينر رک.
- کي دٻايو TARE (T) key. The display will reset to "0.00g".
- اهي شيون جيڪي توهان وزن ڪرڻ چاهيو ٿا ڪنٽينر ۾ شامل ڪريو. ڊسپلي صرف شين جو خالص وزن ڏيکاريندو.

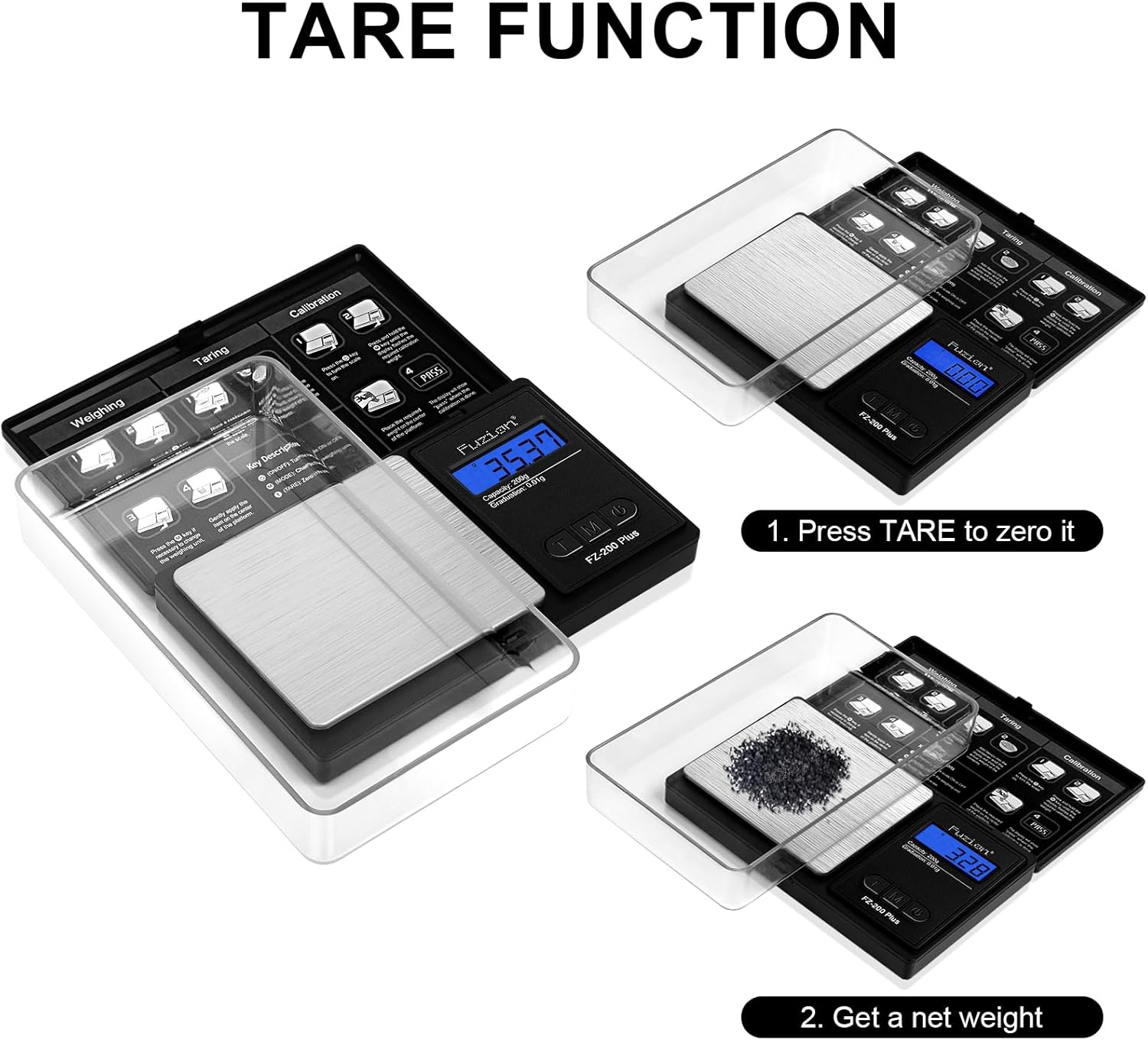

Figure 3: The Tare function allows for easy measurement of contents by zeroing out the weight of the container.
3.3 يونٽ جي تبديلي
The FZ-200 Plus supports 6 units of measurement: Grams (g), Ounces (oz), Grains (gn), Troy Ounces (ozt), Pennyweights (dwt), and Carats (ct).
- جڏهن اسڪيل آن هجي، دٻايو موڊ (م) key to cycle through the available units.
- چونڊيل يونٽ LCD اسڪرين تي ڏيکاريو ويندو.

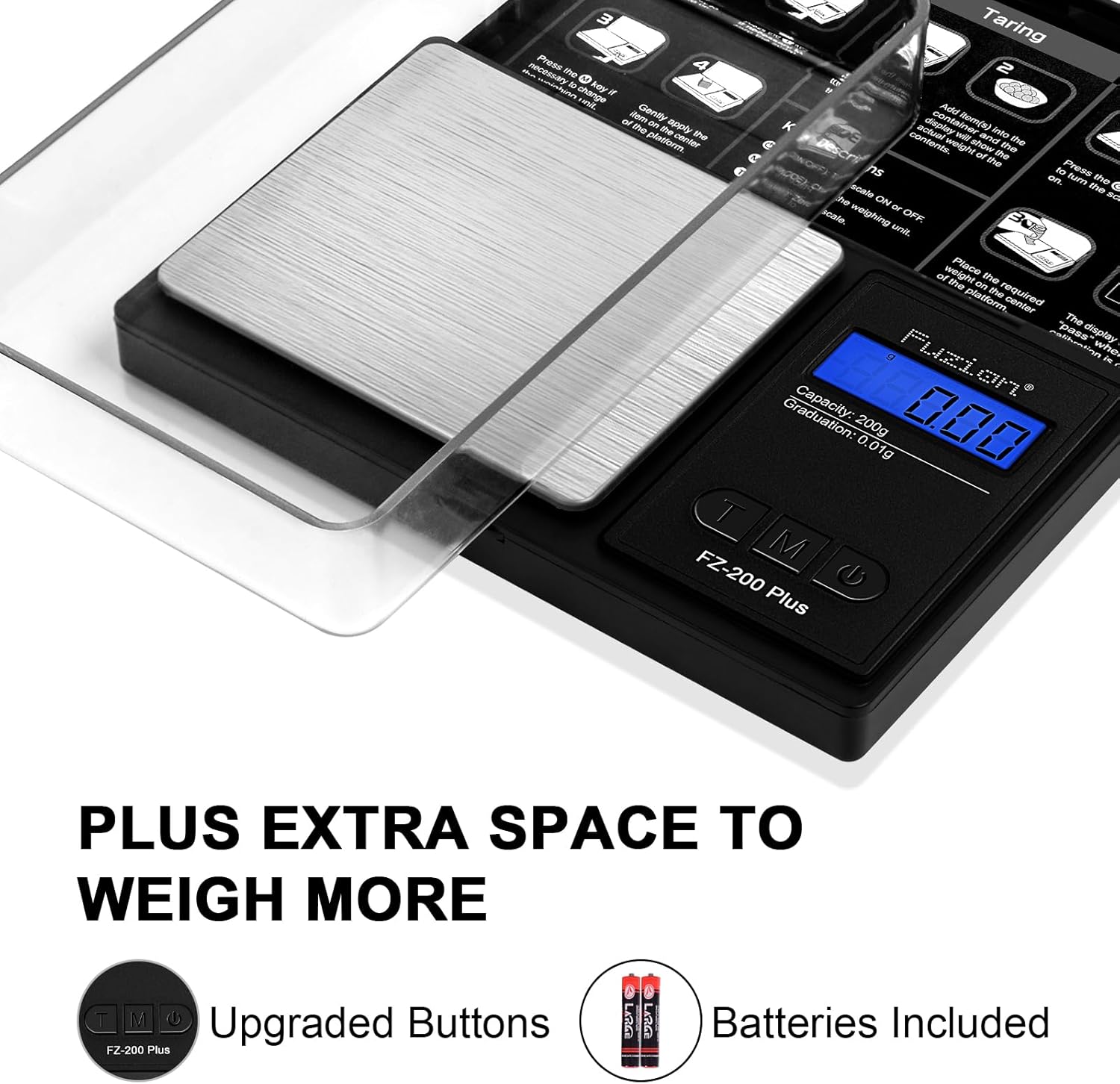

Figure 4: The easy-to-read LCD display shows the selected unit of measurement, which can be changed using the MODE button.
4. حساب ڪتاب
Although the FZ-200 Plus comes pre-calibrated, periodic calibration is recommended to maintain accuracy. A 100g calibration weight is included with some models.
- پيمانو ڦيرايو ON and wait for the display to show "0.00g".
- کي دٻايو ۽ رکو موڊ (م) key until "CAL" appears on the display, then release.
- کي دٻايو موڊ (م) key again. The display will flash the required calibration weight (e.g., "100.00g").
- Place the required calibration weight (e.g., 100g) gently on the center of the platform.
- The display will show "PASS" when the calibration is complete. Remove the weight. The scale is now calibrated and ready for use.
5. سار سنڀال ۽ سنڀال
- صفائي: ماپ کي ٿوري ڊي سان صاف ڪريوamp ڪپڙو. اسڪيل کي پاڻي ۾ نه وجھو يا گھڻائي صاف ڪندڙ استعمال ڪريو.
- اسٽوريج: Store the scale in a clean, dry environment. The included protective tray can be used to cover the platform when not in use.
- بيٽري جي زندگي: The scale features a smart Auto-off function to conserve battery life. Replace batteries when the low battery indicator appears on the display.
- سنڀالڻ: Handle the scale with care. Avoid dropping it or subjecting it to strong impacts, as this can affect its accuracy.
6. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| Display shows "EEEE" or "O_LD" | Overload. Weight exceeds maximum capacity. | فوري طور تي اضافي وزن ختم ڪريو. |
| Display shows "UNST" or unstable readings | Scale is not on a stable surface or is experiencing vibrations. | Place the scale on a flat, stable, and vibration-free surface. |
| غلط پڙھڻ | Needs calibration or low battery. | Perform calibration (Section 4). Replace batteries. |
| اسڪيل نه ٿو ڦري | مئل يا غلط طور تي نصب ٿيل بيٽريون. | بيٽري جي پولارٽي چيڪ ڪريو يا نئين بيٽرين سان تبديل ڪريو. |
7. وضاحتون
| خاصيت | تفصيل |
|---|---|
| برانڊ | فوجن |
| ماڊل | FZ-200 Plus |
| ظرف | 200 گرام |
| پڙهڻ جي درستگي | 0.01 گرام |
| Permissible Error | +/- 0.03 جي |
| ماپ جا يونٽ | Grams (g), Ounces (oz), Grains (gn), Troy Ounces (ozt), Pennyweights (dwt), Carats (ct) |
| ڊسپلي جو قسم | Backlit LCD |
| مواد | Stainless Steel Platform, ABS Body |
| طاقت جو ذريعو | 2 x AAA بيٽريون |
| پيداوار جي ماپ | 5 x 3 x 0.7 انچ |
| شيءِ جو وزن | 6.2 اونس |
| خاص خاصيتون | Tare Function, Auto-off, Pre-calibrated (some models include calibration weight) |

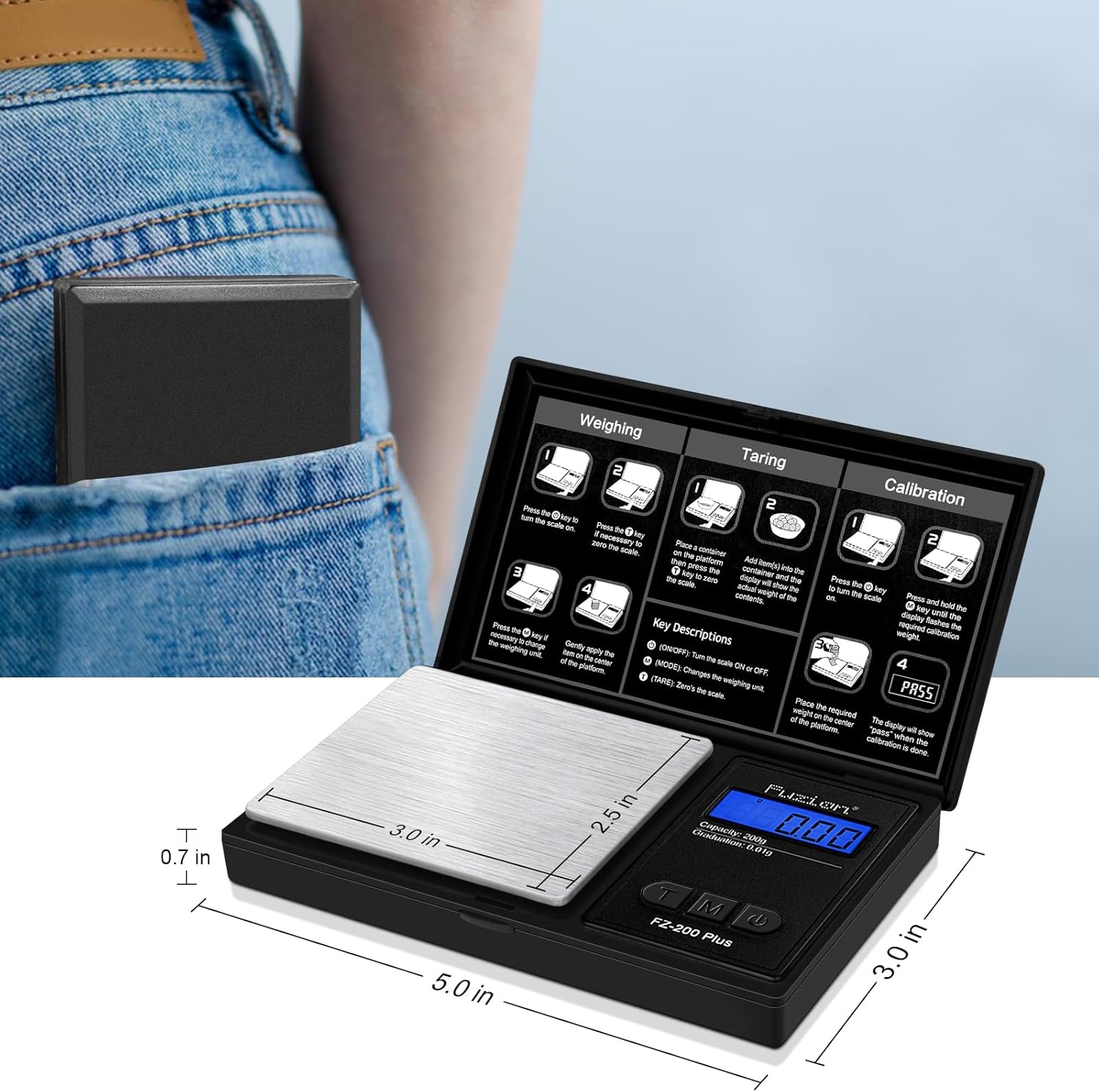

Figure 5: The compact design of the FZ-200 Plus makes it highly portable.
8. وارنٽي ۽ سپورٽ
فيوزن پيش ڪري ٿو هڪ ٻه سال وارنٽي ۽ لائفائمٽ سپورٽ for this gram scale. For any questions or concerns, please contact the Fuzion support team for full-day service.
Figure 6: The Fuzion FZ-200 Plus is backed by a 2-year warranty.
