تعارف
This manual provides detailed instructions for the installation, operation, and maintenance of your BLNAN 13in LED Flush Mount Ceiling Light Fixture. Please read this manual thoroughly before installation and retain it for future reference.

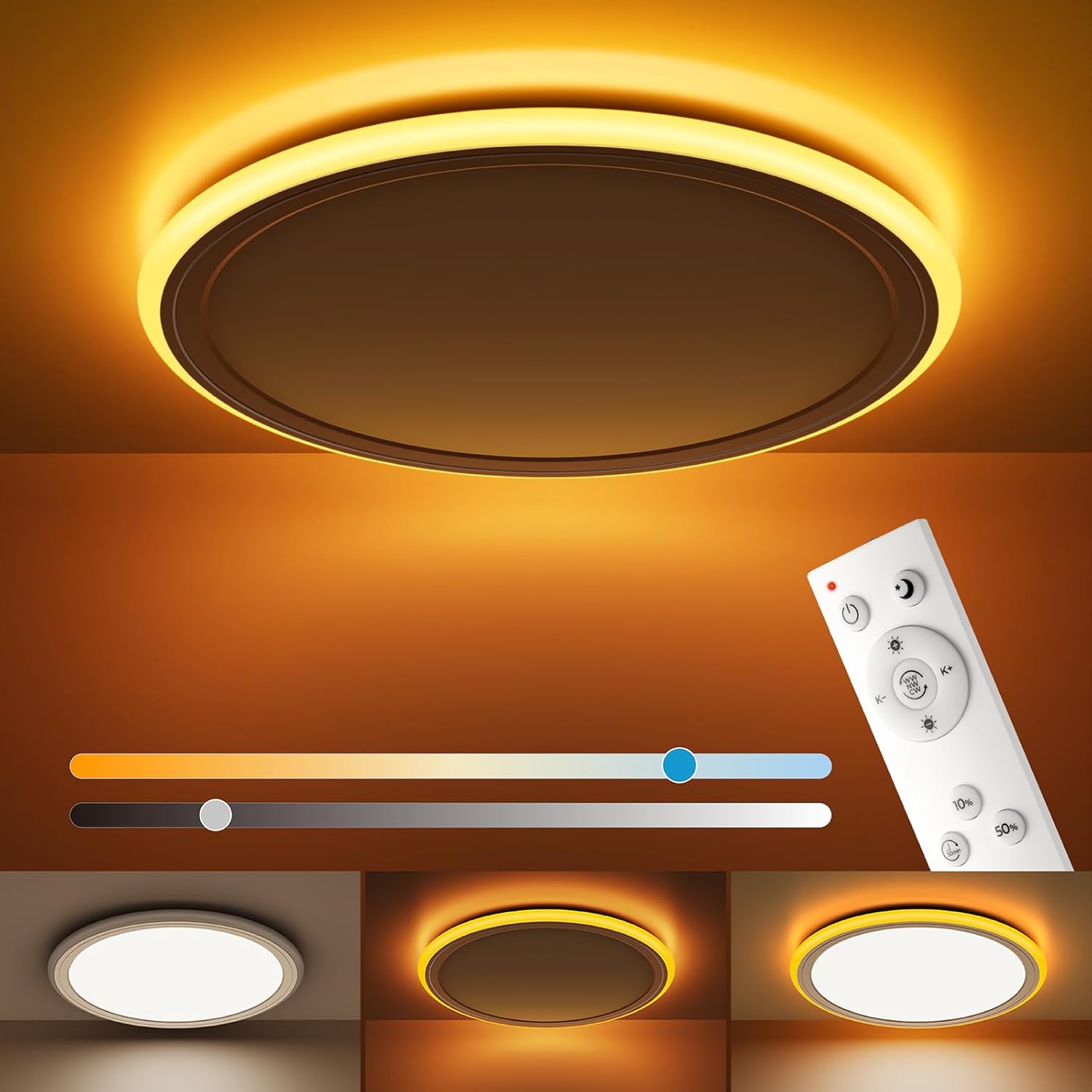

Image: The BLNAN 13in LED Flush Mount Ceiling Light Fixture, showcasing its sleek design, included remote control, and examples of its adjustable brightness and color temperature settings.
حفاظت جي ڄاڻ
- انسٽاليشن شروع ڪرڻ کان اڳ هميشه سرڪٽ بريڪر تي بجلي بند ڪريو.
- جيڪڏهن توهان انسٽاليشن جي عمل جي باري ۾ يقين نه آهيو ته هڪ قابل اليڪٽريشن سان صلاح ڪريو.
- Ensure all electrical connections are secure and comply with local codes.
- Do not use with smart switches or dimmer switches other than the provided remote control.
- هي سامان صرف اندروني استعمال لاء ٺهيل آهي.
پيڪيج مواد
انسٽاليشن کان اڳ پڪ ڪريو ته سڀئي جزا موجود آهن:
- Dimmable Ceiling Light (1)
- هدايت نامو (1)
- ماؤنٽنگ هارڊويئر (اسڪرو، تار نٽ، اينڪر)
- ريموٽ ڪنٽرول (1)
Image: A visual representation of the package contents, including the ceiling light, instruction manual, mounting hardware, and remote control.
پيداوار جون خاصيتون
- 3 روشني جا طريقا: Center light (3000K-6500K), outer ring nightlight (2000K), or both combined.
- Customizable Center Light: Stepless dimming (10% to 100%) and adjustable color temperature (3000K to 6500K) via remote control.
- Night Light 2000K: Dimmable yellow amber light, suitable for low-light needs.
- الٽرا پتلي ڊيزائن: 13-inch diameter, 0.62 inches thick, ideal for low ceilings.
- ميموري فنڪشن: Retains the last light setting if the light is on for more than 1 minute and off for more than 10 seconds.
- 30 Minutes Timer Function: Automatically turns off the light after 30 minutes.
تصوير: هڪ تفصيلي view of the BLNAN ceiling light's ultra-thin profile, highlighting its 13-inch diameter and 0.62-inch thickness, along with icons indicating its hardwired nature, 24W center light, 6W night light, dimmable feature, infrared remote, and energy-saving benefits.
سيٽ اپ ۽ تنصيب
This fixture is designed for hardwired installation. Ensure power is OFF at the circuit breaker before proceeding.
Compatibility with Junction Boxes
The mounting base is suitable for most standard junction boxes, including 2.75" and 5.4" sizes.
Image: An illustration demonstrating the ceiling light's mounting plate and its compatibility with common junction box sizes (2.75" and 5.4"), showing various compatible box types.
تنصيب جا مرحلا
- تياري تيار ڪريو: Rotate and remove the base plate from the ceiling light fixture.
- Fix the Mounting Base: Secure the base plate to your junction box using the provided mounting hardware.
- وائرنگ ڳنڍڻ: Hang the fixture using the wire rope for support. Connect the electrical wires (live, neutral, ground) from the ceiling to the corresponding wires on the fixture using wire nuts.
- فڪسچر لڳايو: Push the ceiling light fixture onto the mounted base plate and rotate it to secure it in place.
Image: A four-step visual guide illustrating the hardwired installation process: 1) Rotating and removing the base plate, 2) Fixing the mounting base, 3) Hanging the wire rope and connecting wires, and 4) Pushing and rotating the lamp ان کي درست ڪرڻ لاءِ.
آپريٽنگ هدايتون
ريموٽ ڪنٽرول افعال
The included remote control allows for full customization of your lighting experience. Ensure AAA batteries (not included) are installed correctly.
Image: A detailed diagram of the remote control, labeling buttons for Center Light ON/OFF, Night Light ON/OFF, Color Temperature adjustment (+/-), Brightness adjustment (+/-), CCT Switch, 30 Mins Delay Off, and preset Brightness levels (10%, 50%).
- پاور بٽڻ: روشني کي آن / بند ڪري ٿو.
- Center Light ON/OFF: Activates or deactivates the main light.
- Night Light ON/OFF: Activates or deactivates the 2000K amber night light.
- Color Temperature (+/-): Adjusts the color temperature of the center light from 3000K (warm white) to 6500K (cool white).
- چمڪ (+/-): Adjusts the brightness of the selected light mode from 10% to 100%.
- سي سي ٽي سوئچ: Cycles through preset color temperatures.
- 10%/50% Buttons: Quickly sets brightness to 10% or 50%.
- 30 Mins Delay Off: Activates a 30-minute timer after which the light will turn off. The light will blink once to confirm activation. Do not press other buttons after activating the timer, as this will deactivate it.
Image: A visual comparison of the three lighting modes: 3000K-6500K center light, 2000K nightlight, and the '2 in 1' mode where both are active, each with corresponding remote control icons.
Image: A scene demonstrating the adjustable color temperatures from 3000K to 6500K, controlled by the remote, showing how the room ambiance changes from warm to cool white light.
Image: A visual representation of the adjustable brightness feature, showing a light intensity slider from 10% to 100%, controlled via the remote control.
وال سوئچ ڪنٽرول
You can partially control the light by quickly flipping your standard wall switch. Rapidly turning the light ON/OFF will cycle through 4000K, 3000K, 6500K, and 2000K settings. Note that this action may affect the memory function.
Image: A four-panel illustration demonstrating how quickly toggling a standard wall switch cycles the light through different color temperatures: 4000K, 3000K, 6500K, and 2000K (night light).
ميموري فنڪشن
The light fixture includes a built-in memory module. If the light remains on for more than 1 minute and is then turned off for more than 10 seconds, it will retain the last used setting when turned on again.
Image: A visual representation of the memory function, showing the light and remote control, indicating that the last used setting (brightness and color temperature) will be recalled when the light is turned on again.
سار سنڀال
- صفائي کان اڳ پڪ ڪريو ته بجلي بند ٿيل آهي.
- Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- ايل اي ڊي لائيٽ جو ذريعو مربوط آهي ۽ استعمال ڪندڙ جي طرفان تبديل نه ٿي سگهي ٿو.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| روشني doesرندي ناهي. | No power, loose wiring, remote batteries dead. | Check circuit breaker. Verify wiring connections. Replace remote batteries. |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي. | Remote batteries dead, remote not pointed at light, obstruction. | Replace remote batteries. Ensure direct line of sight to the light. Remove any obstructions. |
| Light settings not saving (memory function). | Light turned off too quickly, or on for less than 1 minute. | Ensure light is on for at least 1 minute and off for at least 10 seconds for memory function to engage. Avoid rapid wall switch toggling if memory is desired. |
| 30-minute timer deactivates prematurely. | Another button pressed on remote after timer activation. | Do not press any other buttons on the remote after pressing the "30min" timer button. |
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نالو | LS-CL-G3-24W-Dim-YKBK/N (US) |
| برانڊ | BLNAN |
| رنگ | اڇو |
| مواد | پلاسٽڪ |
| پيداوار جي ماپ | 12.99"L x 12.99"W x 0.64"H (13inch Diameter * 0.62inch Height) |
| واتtage | 24 واٽ |
| روشني | 2400 ليمن |
| ڪارڪردگي | 100 lumen per watt |
| هلڪو رنگ / گرمي پد | 2000K Yellow Amber (Night Light), 3000K-6500K (Main Light) |
| جلدtage | 230 وولٽ |
| ڪنٽرول جو طريقو | ريموٽ ڪنٽرول، وال سوئچ |
| انسٽاليشن جو قسم | جبل چشمو |
| طاقت جو ذريعو | تار ٿيل برقي |
| اندروني / ٻاهران استعمال | اندريون |
| بيٽرين جي ضرورت آهي | Yes (AAA for remote, not included) |
ڪسٽمر سپورٽ
If you have any questions or require assistance with your BLNAN ceiling light fixture, please contact customer support. We are committed to helping you with your product inquiries.
