تعارف
The Verbatim Share My Screen 4K USB-C Wireless HDMI Transmitter and Receiver Display Adapter is designed to simplify your presentations, streaming, and gaming experiences by eliminating cable clutter. This device allows you to wirelessly mirror or extend your display in stunning 4K resolution from a USB-C enabled device to a monitor, TV, or projector with a reliable wireless range of up to 30 feet. It also features an integrated USB hub with dual USB-A ports and SD/microSD slots for enhanced connectivity.
پيڪيج مواد
- 1 x Verbatim Share My Screen 4K USB-C Wireless Transmitter
- 1 x Verbatim Share My Screen 4K HDMI Wireless Receiver
- 1 x USB-A to USB-C Power Cable (for Receiver)
- 1 x USB-C to USB-C Cable (for Transmitter, if needed for power)
- استعمال ڪندڙ دستي
Image: The retail packaging for the Verbatim Share My Screen 4K Wireless Display Adapter, showing the transmitter and receiver units.
پيداوار ختمview
ٽرانسميٽر يونٽ
The transmitter unit connects to your source device (e.g., laptop, tablet, smartphone) via its integrated USB-C cable. It features a button for easy pairing and an LED indicator for status. This unit also includes additional ports for expanded functionality.
Image: The Verbatim Share My Screen 4K Wireless Transmitter, highlighting its USB-C connection and an additional USB-A port.
وصول ڪندڙ يونٽ
The receiver unit connects to your display device (e.g., TV, monitor, projector) via its integrated HDMI connector. It requires power, typically supplied via a USB-A port on your display or an external USB power adapter. It also has an LED indicator for connection status.
Image: The Verbatim Share My Screen 4K Wireless Receiver, showing its compact design and HDMI connector.
سيٽ اپ جون هدايتون
1. Connect the Receiver to your Display
- Plug the HDMI connector of the receiver unit into an available HDMI input port on your TV, monitor, or projector.
- Connect the USB-A power cable to the receiver's power input port and the other end to a USB-A port on your display (if available) or a 5V/2A USB power adapter.
- Switch your display's input source to the corresponding HDMI port.
2. Connect the Transmitter to your Source Device
- Plug the USB-C connector of the transmitter unit into a USB-C port on your laptop, tablet, or smartphone.
- Ensure your source device supports video output over USB-C (DisplayPort Alternate Mode).
3. Pairing and Display
- Once both units are powered on and connected, they should automatically attempt to pair. The LED indicators on both units will show their status.
- If pairing does not occur automatically, press the button on the transmitter unit to initiate pairing.
- Your device's screen should now be mirrored or extended to your display.
Video: An official Verbatim video demonstrating the setup and use of the Share My Screen 4K USB-C Wireless Display Adapter, showing how to connect and mirror content.
آپريٽنگ هدايتون
Mirroring and Extending Display
By default, your device's screen will likely mirror to the connected display. To change to an extended display or adjust resolution, access your operating system's display settings (e.g., Windows Display Settings, macOS System Preferences > Displays).
Image: A laptop connected to the wireless display adapter, showcasing a vibrant 4K image mirrored on a larger screen.
Using USB Hub and Card Reader
The transmitter unit includes dual USB-A ports and SD/microSD card slots. These function as a pass-through hub, allowing you to connect additional USB devices (like a mouse, keyboard, or flash drive) or access data from memory cards directly through the transmitter while it's connected to your source device.
Image: The transmitter unit with a USB-A device plugged into its integrated hub, demonstrating its expanded connectivity.
اهم خاصيتون
- 4K Resolution at 30Hz: Enjoy unparalleled clarity for presentations, streaming, and gaming.
- 30-Foot Wireless Range: Reliably mirror your display from a distance without cable clutter.
- ڪمپيڪٽ ۽ پورٽبل ڊيزائن: سفر دوران استعمال لاءِ کڻڻ ۾ آسان.
- User-Friendly Pairing: Quick and secure connection process.
- انٽيگريٽيڊ يو ايس بي هب: Dual USB-A ports and SD/microSD slots for connecting essential devices and memory cards.

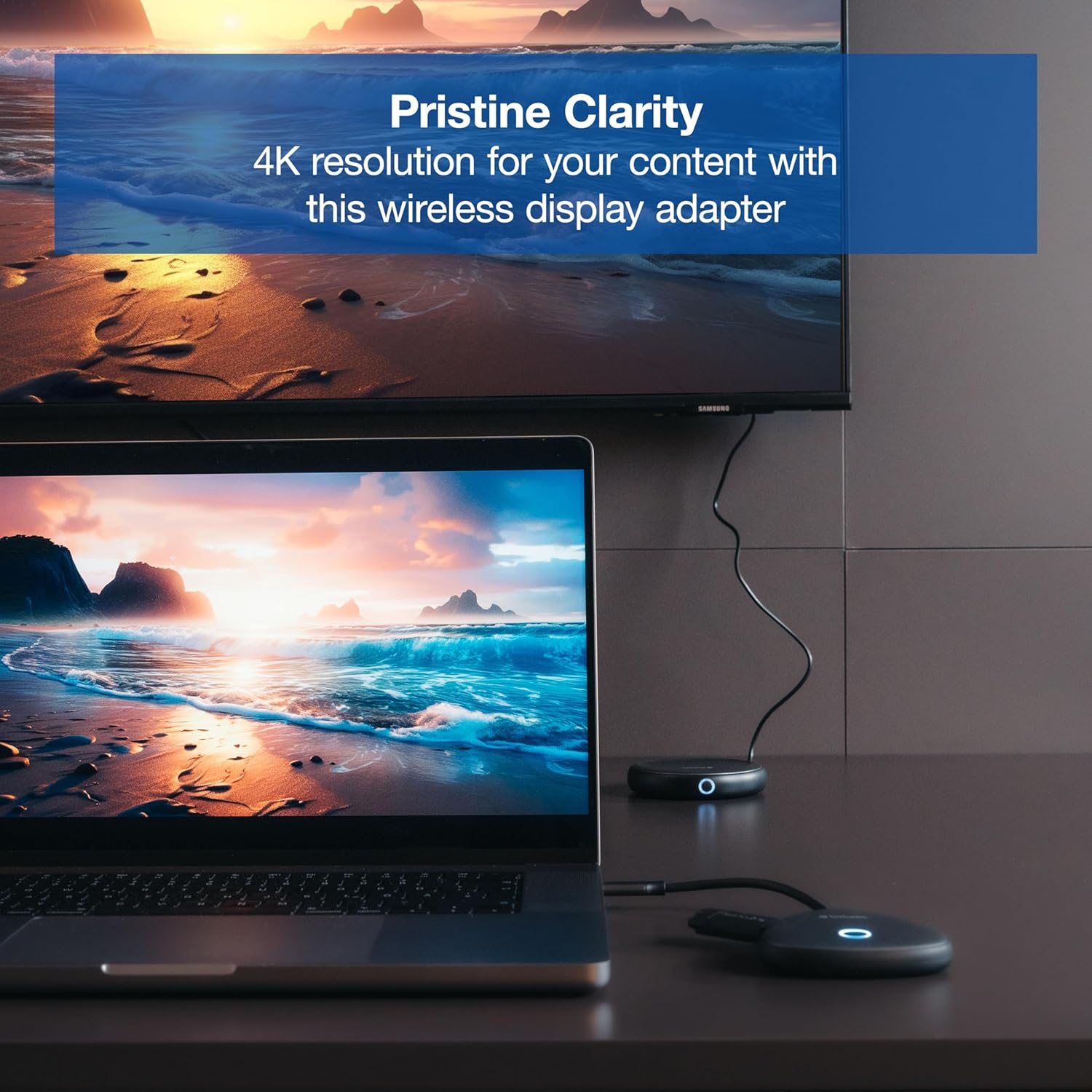

Image: A laptop wirelessly connected to a large TV, both displaying the same vibrant 4K content, illustrating the device's mirroring capability.
مشڪلاتون
- ڪابه ڊسپلي: Ensure both transmitter and receiver are powered on. Check all HDMI and USB-C connections. Verify the display is set to the correct HDMI input.
- دير يا وقفي وقفي سان ڪنيڪشن: Ensure devices are within the 30-foot wireless range and there are no significant obstructions (e.g., thick walls) between them. Minimize interference from other wireless devices.
- ڊوائيس اوور گرم ڪرڻ: It is normal for the device to generate some heat during operation. Ensure adequate ventilation around both units. If overheating persists or causes malfunction, discontinue use and contact support.
- Unable to Pair: Press the pairing button on the transmitter unit. If issues persist, try disconnecting and reconnecting both units.
وضاحتون
| وصف | قدر |
|---|---|
| پيداوار جي ماپ | 3.6 x 3.6 x 1.4 انچ |
| شيءِ جو وزن | 5.3 اونس |
| شيون ماڊل نمبر | 32147 |
| ٺاهيندڙ | لفظي |
| مطابقت رکندڙ ڊوائيسز | USB-C ڊوائيسز |
| پيداوار لاءِ مخصوص استعمال | Monitor, PC |
| ڪنيڪٽر جو قسم | USB قسم A، USB قسم سي |
| رنگ | 4K |
وارنٽي ۽ سپورٽ
The Verbatim Share My Screen 4K USB-C Wireless HDMI Transmitter and Receiver Display Adapter is backed by a 2 سالن جي محدود وارنٽي. For technical support, troubleshooting assistance, or warranty claims, please refer to the contact information provided in your product packaging or visit the official Verbatim webسائيٽ.
