Carisma 88568 1/10 RTR M40S Subaru WRC 2006 Instruction Manual

تعارف

This manual provides essential instructions for the setup, operation, and maintenance of your Carisma 88568 1/10 RTR M40S Subaru WRC 2006 remote-controlled vehicle. Please read this manual thoroughly before operating the vehicle to ensure safe and optimal performance.

Image: Front three-quarter view of the Carisma 88568 Subaru WRC 2006 RC car, showcasing its detailed body and wheels.

حفاظت جي ڄاڻ

• Always operate the vehicle in open areas, away from people, pets, and obstacles.
• Do not operate near public roads or in areas with vehicle traffic.
• ھٿن، وارن ۽ ھلندڙ ڪپڙن کي ھلندڙ حصن کان پري رکو.
• Ensure batteries are charged correctly and handled safely. Refer to battery manufacturer's instructions.
• Never operate the vehicle in wet conditions to prevent damage to electronics.
• 14 سالن کان گهٽ عمر وارن استعمال ڪندڙن لاءِ بالغن جي نگراني جي سفارش ڪئي وئي آهي.

اجزاء ختمview

Your Carisma 88568 is a Ready-To-Run (RTR) vehicle, meaning most components are pre-assembled. Key features include:

• Fully Licensed Subaru WRC 2006 Body
• Authentic MultiSpoke Wheel Set
• MSC-18BL Brushless ESC with XT60 Plug
• 2500KV برش کان سواء موٽر
• FHSS 2.4GHz Radio Technology Transmitter
• Fast & responsive Steering Servo
• Permanent Shaft-Driven 4WD with Tunable Gear Diffs

Required for Operation (Not Included):

• 7.2v NiMh or 7.4v LiPo battery with XT60 connector
• Compatible charger for the chosen battery type
• 4 x AA batteries for the Transmitter

تصوير: تفصيلي سامهون view of the Carisma 88568 RC car, highlighting the body details and front wheels.

سيٽ اپ ڪريو

1. بيٽري لڳائڻ

گاڏي جي بيٽري:

1. Carefully remove the body clips and lift the vehicle body.
2. بيٽري جي ڪمري کي ڳولھيو.
3. Insert a fully charged 7.2v NiMh or 7.4v LiPo battery (with XT60 connector) into the compartment.
4. Connect the battery to the ESC's XT60 connector. Ensure correct polarity.
5. Secure the battery if a strap or tray is provided.
6. Re-attach the vehicle body with the clips.

ٽرانسميٽر بيٽريون:

1. ٽرانسميٽر جي پوئين پاسي بيٽري جو ڍڪ کوليو.
2. Insert 4 new AA batteries, observing the correct polarity (+/-).
3. بيٽري جي ڍڪ کي محفوظ طور تي بند ڪريو.

2. بيٽري چارج ڪرڻ

Always use a compatible charger for your chosen vehicle battery (NiMh or LiPo). Follow the charger manufacturer's instructions carefully. Never leave charging batteries unattended.

3. Binding (If Necessary)

Your RTR vehicle typically comes pre-bound from the factory. If you need to re-bind the transmitter and receiver, refer to the specific instructions provided with your radio system. Generally, this involves powering on the receiver with a bind plug inserted, then powering on the transmitter while holding a bind button.

آپريٽنگ هدايتون

1. Pre-Drive Checks

• Ensure both vehicle and transmitter batteries are fully charged.
• سڀني پيچرن ۽ فاسٽنرز کي تنگي لاءِ چيڪ ڪريو.
• Verify steering and throttle functions are correct and responsive.
• Inspect tires for damage and ensure they are securely mounted.

2. گاڏي شروع ڪرڻ

1. پهرين ٽرانسميٽر کي چالو ڪريو.
2. Then, turn on the vehicle's ESC switch.
3. Wait for the system to initialize (usually indicated by LED lights and/or beeps).

3. بنيادي ڪنٽرول

• اسٽيرنگ ويل: Turn left or right to control the vehicle's direction.
• ٿلهو ٽاريندڙ: Pull to accelerate forward. Push to brake or reverse.

4. ڊرائيونگ جا طريقا

• Start with gentle throttle inputs to get a feel for the vehicle's response.
• Practice steering in wide turns before attempting tighter maneuvers.
• Avoid driving into obstacles at high speed to prevent damage.
• Monitor battery life and stop driving when performance noticeably decreases to avoid over-discharging LiPo batteries.

تصوير: پاسي view of the Carisma 88568 RC car, showing its rally-inspired design and sponsor decals.

سار سنڀال

1. After Each Run

• Turn off the vehicle's ESC, then the transmitter.
• Disconnect and remove the vehicle battery. Allow it to cool before recharging.
• Clean any dirt, dust, or debris from the chassis, suspension, and drivetrain using a soft brush or compressed air.
• Inspect for any loose screws, damaged parts, or worn tires.

2. Periodic Maintenance (Every 5-10 Runs)

• Check gear mesh for proper engagement and wear.
• Inspect suspension components (shocks, arms, linkages) for smooth operation and damage.
• Lubricate moving parts such as universal joints and bearings with appropriate RC-specific lubricants. Avoid over-lubrication.
• پڪ ڪريو ته سڀئي برقي ڪنيڪشن محفوظ آهن ۽ سنکنرن کان آزاد آهن.

3. اسٽوريج

• Store the vehicle in a clean, dry place, away from direct sunlight and extreme temperatures.
• Remove batteries from both the vehicle and transmitter if storing for extended periods.
• For LiPo batteries, store them at a "storage charge" level (typically 3.8V per cell) as recommended by the battery manufacturer.

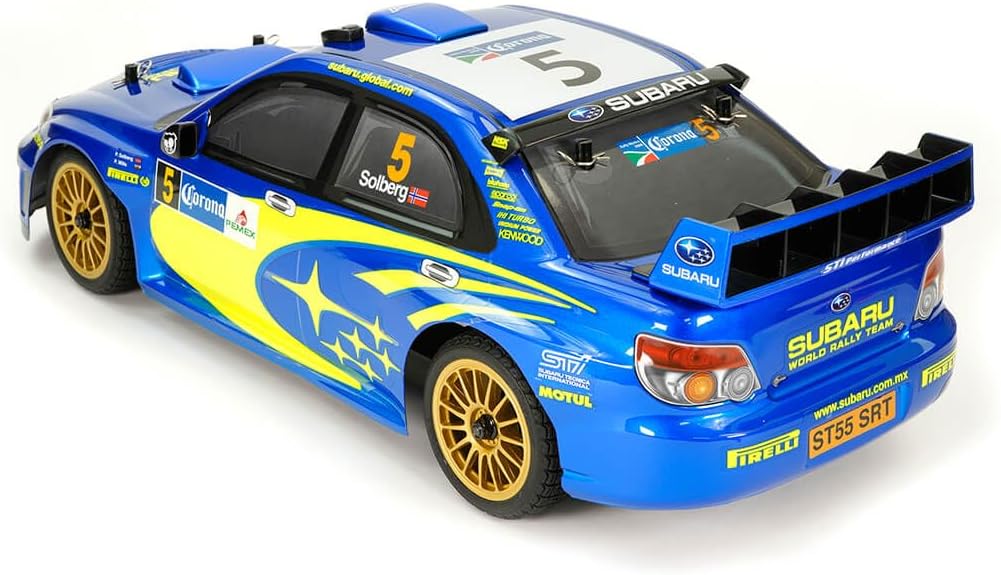

تصوير: پوئين پاسي view of the Carisma 88568 RC car, highlighting the rear wing and exhaust details.

مشڪلاتون

وضاحتون

وارنٽي ۽ سپورٽ

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Carisma webسائيٽ. ڪنهن به وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.

ٺاهيندڙ: ڪريزم
