IK ملٽي ميڊيا اي آر سي اسٽوڊيو روم اصلاح سسٽم يوزر مينوئل

1. تعارف

The IK Multimedia ARC Studio is an advanced room correction system designed to optimize the acoustic performance of your studio or listening environment. This system includes a high-precision measurement microphone, sophisticated ARC 4 software, and a dedicated hardware processor. By analyzing your room's acoustic response, ARC Studio creates a custom correction profile to ensure accurate and balanced audio reproduction, leading to more reliable mixing and mastering decisions.

2. حفاظت جي ڄاڻ

Please read and follow all safety instructions to prevent damage to the device or personal injury.

• ڊوائيس کي پاڻي يا گهڻي نمي جي سامهون نه رکو.
• ڊوائيس کي گرمي ذريعن جي ويجهو يا سڌي سج جي روشني ۾ رکڻ کان پاسو ڪريو.
• يونٽ سان فراهم ڪيل صرف پاور اڊاپٽر استعمال ڪريو.
• Do not attempt to open or service the device yourself. Refer all servicing to qualified personnel.
• اوور گرم ٿيڻ کان بچڻ لاءِ يونٽ جي چوڌاري مناسب وائيٽليشن کي يقيني بڻايو وڃي.
• ٻارن جي پهچ کان پري رکو.

3. پيڪيج مواد

Verify that all items are present in your ARC Studio package:

• ARC Studio Hardware Processor
• ARC Measurement Microphone
• USB ڪيبل
• بجلي جي فراهمي
• ARC 4 Software License (downloadable)
• تڪڙو شروع ھدايت

4. پراڊڪٽ ختمview

The ARC Studio system comprises three main components working in conjunction to achieve precise room correction.

4.1 ARC Studio Hardware Processor

This dedicated hardware unit processes the audio signal, applying the room correction profile in real-time. It features balanced XLR inputs and outputs for seamless integration into your studio setup. The processor operates with 24-bit/96 kHz AD/DA converters for transparent signal integrity.

Image: The ARC Studio hardware processor and measurement microphone.

تصوير: پوئين پاسي view of the ARC Studio processor, highlighting XLR inputs and outputs, USB port, and DC power input.

4.2 ARC Measurement Microphone

The included high-precision omnidirectional measurement microphone is crucial for accurately capturing your room's acoustic characteristics. It connects to your audio interface (not included) during the calibration process.

Image: Close-up of the ARC measurement microphone.

4.3 ARC 4 Software

The ARC 4 software guides you through the room measurement process and generates the correction profiles. It also allows for advanced customization, including target curves and monitor emulations. The software is used to load the generated profiles onto the ARC Studio hardware processor.

Image: ARC 4 software interface shown on a laptop, demonstrating frequency response analysis and correction, with the ARC Studio hardware and microphone in the foreground.

5. سيٽ اپ

5.1 سافٽ ويئر جي انسٽاليشن

1. Register your product on the IK Multimedia website to access the ARC 4 software download.
2. Download and install the ARC 4 software on your computer (Windows or macOS).
3. Follow the on-screen instructions to complete the installation and authorize the software.

5.2 هارڊويئر ڪنيڪشن

The ARC Studio processor should be placed between your audio interface's outputs and your studio monitors. The measurement microphone is connected to your audio interface during calibration.

Image: Connection diagram for the ARC Studio processor in a typical studio setup.

1. Connect the ARC Studio Processor:
   • Connect the outputs of your audio interface to the L ۽ R XLR inputs on the rear of the ARC Studio processor.
   • ڳنڍيو L ۽ R XLR outputs of the ARC Studio processor to the inputs of your studio monitors.
   • Connect the supplied USB cable from the ARC Studio processor to an available USB port on your computer.
   • بجلي جي فراهمي کي ڳنڍيو ڊي سي اين port on the ARC Studio processor and plug it into a power outlet.
2. Connect the Measurement Microphone (for calibration):
   • Connect the ARC Measurement Microphone to an XLR input on your audio interface. Ensure phantom power (+48V) is enabled for the microphone input on your audio interface.

Image: A studio environment showing the ARC Studio processor integrated with a laptop, audio interface, and a microphone on a stand for calibration.

5.3 Room Calibration Process

The calibration process uses the ARC 4 software and the measurement microphone to analyze your room and create a correction profile.

1. Launch the ARC 4 software on your computer.
2. Select your audio interface as the input device for the measurement microphone and ensure the output is routed through the ARC Studio processor.
3. Follow the on-screen instructions in the ARC 4 software to perform the room measurements. This typically involves placing the microphone at various positions around your listening area.
4. The software will generate a room correction profile based on these measurements.
5. هڪ دفعو پروfile is generated, you can save it and upload it to the ARC Studio hardware processor via the USB connection.

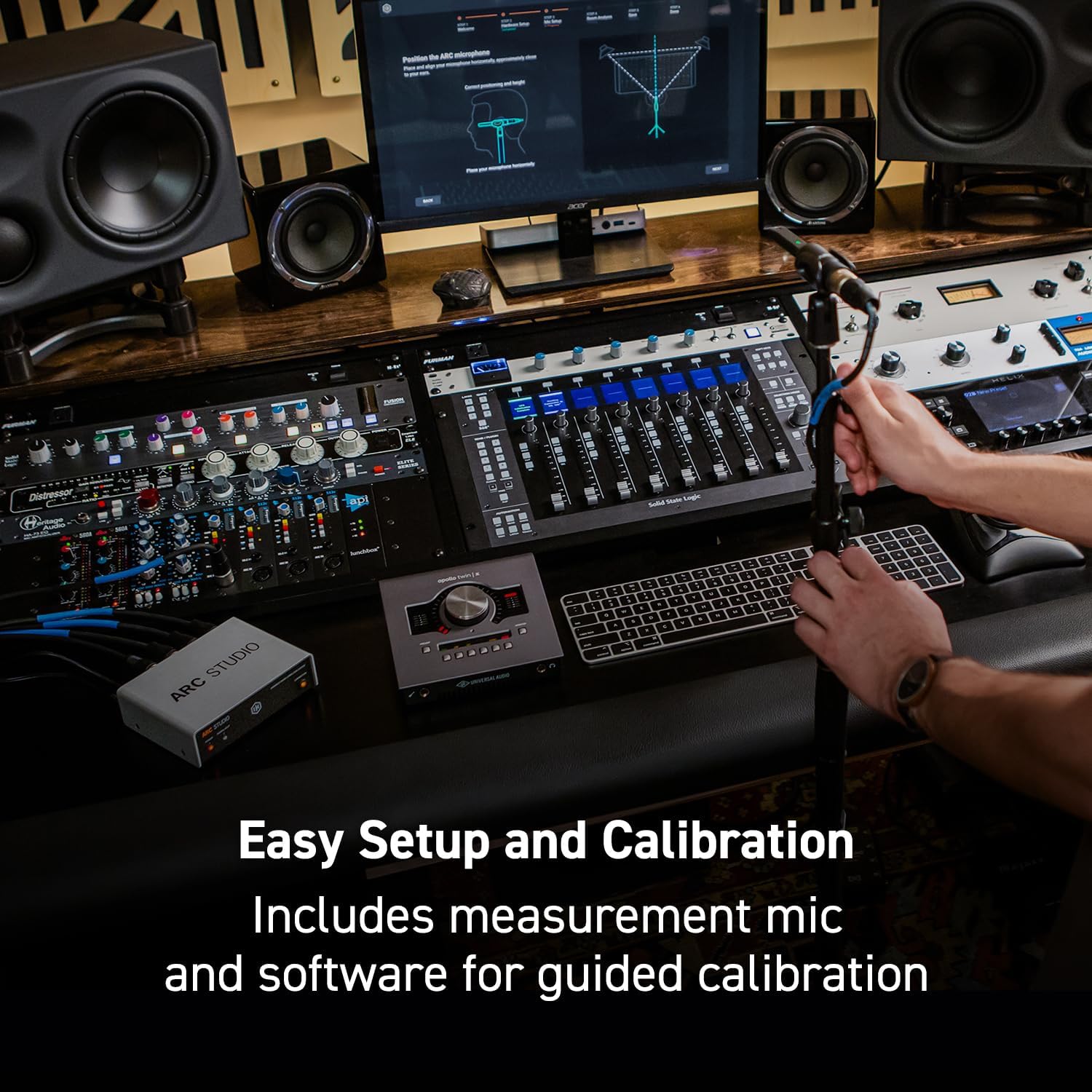

Image: A user positioning the ARC measurement microphone on a stand, preparing for room calibration with the ARC 4 software.

6. Operating the ARC Studio System

6.1 Using the ARC Studio Hardware Processor

Once a correction profile is loaded onto the ARC Studio processor, it operates independently of your computer. The processor applies the correction to all audio passing through it.

• پاور LED: يونٽ جي طاقت جي حيثيت ڏيکاري ٿو.
• سگنل / ڪلپ LED Shows audio signal presence and clipping. Adjust input levels on your audio interface to avoid clipping.
• Correction Button/LED: Toggles the room correction on or off. The LED indicates whether correction is active.

Image: Front panel of the ARC Studio processor, detailing the Power, Signal/Clip, and Correction indicators.

6.2 ARC 4 Software Features

The ARC 4 software provides advanced control and customization options for your room correction profiles.

• Custom EQ Profiles: Tailor the correction to your specific preferences or room characteristics.
• Monitor Emulations: Simulate the sound of various studio monitors and reference systems, allowing you to cross-check your mixes without needing multiple sets of speakers.
• Correction Types: Choose between different correction algorithms (e.g., Natural, Linear) to suit your workflow.

Image: ARC 4 software interface displaying a frequency response graph and controls for system tuning.

Image: ARC 4 software interface with a dropdown menu illustrating various monitor emulation options.

7. سار سنڀال

• صفائي: Use a soft, dry cloth to clean the exterior of the ARC Studio processor and microphone. Do not use liquid cleaners or solvents.
• اسٽوريج: جڏهن گهڻي عرصي تائين استعمال ۾ نه هجي، ته يونٽ کي ٿڌي، سڪل جاءِ تي، سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري رکو.
• سافٽ ويئر اپڊيٽ: Regularly check the IK Multimedia website for ARC 4 software updates to ensure optimal performance and access to new features.

8. مسئلا حل ڪرڻ

9. وضاحتون

10. وارنٽي ۽ سپورٽ

IK Multimedia products are covered by a limited warranty. For detailed warranty information, product registration, and technical support, please visit the official IK Multimedia webسائيٽ:

www.ikmultimedia.com/support

You can also find FAQs, software downloads, and contact information for customer service on their support page.
