GARVEE Automatic Meat Slicer YQR-300C Instruction Manual

1. تعارف

خريد ڪرڻ لاءِ مهربانيasing the GARVEE Automatic Meat Slicer, Model YQR-300C. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before initial use and retain it for future reference.

The GARVEE Automatic Meat Slicer is designed for precision slicing of various food items, including frozen meat, deli meats, vegetables, fruits, and bread. Its robust construction and powerful dual motors ensure consistent performance for both commercial and home environments.

2. اھم حفاظتي ھدايتون

خبردار: Failure to follow these safety instructions may result in serious injury or damage to the appliance.

• Always ensure the slicer is placed on a stable, level, and non-slip surface before operation.
• Keep hands and fingers away from the blade at all times, especially during operation and cleaning.
• Use the food carriage and pusher to hold food items. Never use bare hands to push food towards the blade.
• Ensure all safety guards and covers are correctly installed before operating the slicer.
• Unplug the slicer from the power outlet before cleaning, maintenance, or when not in use.
• موٽر يونٽ کي پاڻي يا ٻين مائع ۾ نه ٻوڙيو. اشتهار سان صاف ڪريو.amp ڪپڙو.
• سلائيسر کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو، يا جيڪڏهن اوزار خراب ٿي ويو آهي يا ڪنهن به طريقي سان خراب ٿي ويو آهي.
• هي اوزار انهن ماڻهن جي استعمال لاءِ نه آهي جن جي جسماني، حسي، يا ذهني صلاحيتون گهٽ آهن، يا تجربي ۽ ڄاڻ جي کوٽ آهي، جيستائين انهن کي انهن جي حفاظت جي ذميوار شخص طرفان اوزار جي استعمال بابت نگراني يا هدايت نه ڏني وئي هجي.
• ٻارن کي نگراني ڪرڻ گهرجي ته يقيني بڻائين ته اهي اوزار سان راند نه ڪن.
• ٺاهيندڙ طرفان سفارش ڪيل صرف لوازمات ۽ منسلڪات استعمال ڪريو.
• Do not attempt to slice bones or other hard, non-food items.
• Wear cut-resistant gloves when handling or cleaning the blade.
• In case of emergency, press the emergency stop button immediately.

3. پيداوار جا حصا

Familiarize yourself with the main parts of your GARVEE Automatic Meat Slicer:

• بليڊ: 12-inch carbon steel blade for precise cutting.
• Food Carriage/Pusher: Holds food securely and pushes it towards the blade.
• Thickness Adjustment Knob: Controls slice thickness from 0 to 14 mm.
• بليڊ گارڊ: Protective cover for the blade.
• Built-in Sharpener: For maintaining blade sharpness.
• ڪنٽرول پينل: Includes ON/OFF switches for blade and meat pusher, and an emergency stop button.
• Anti-Slip Bases: آپريشن دوران استحڪام فراهم ڪريو.
• موٽر يونٽ: Houses the 550W dual motors.

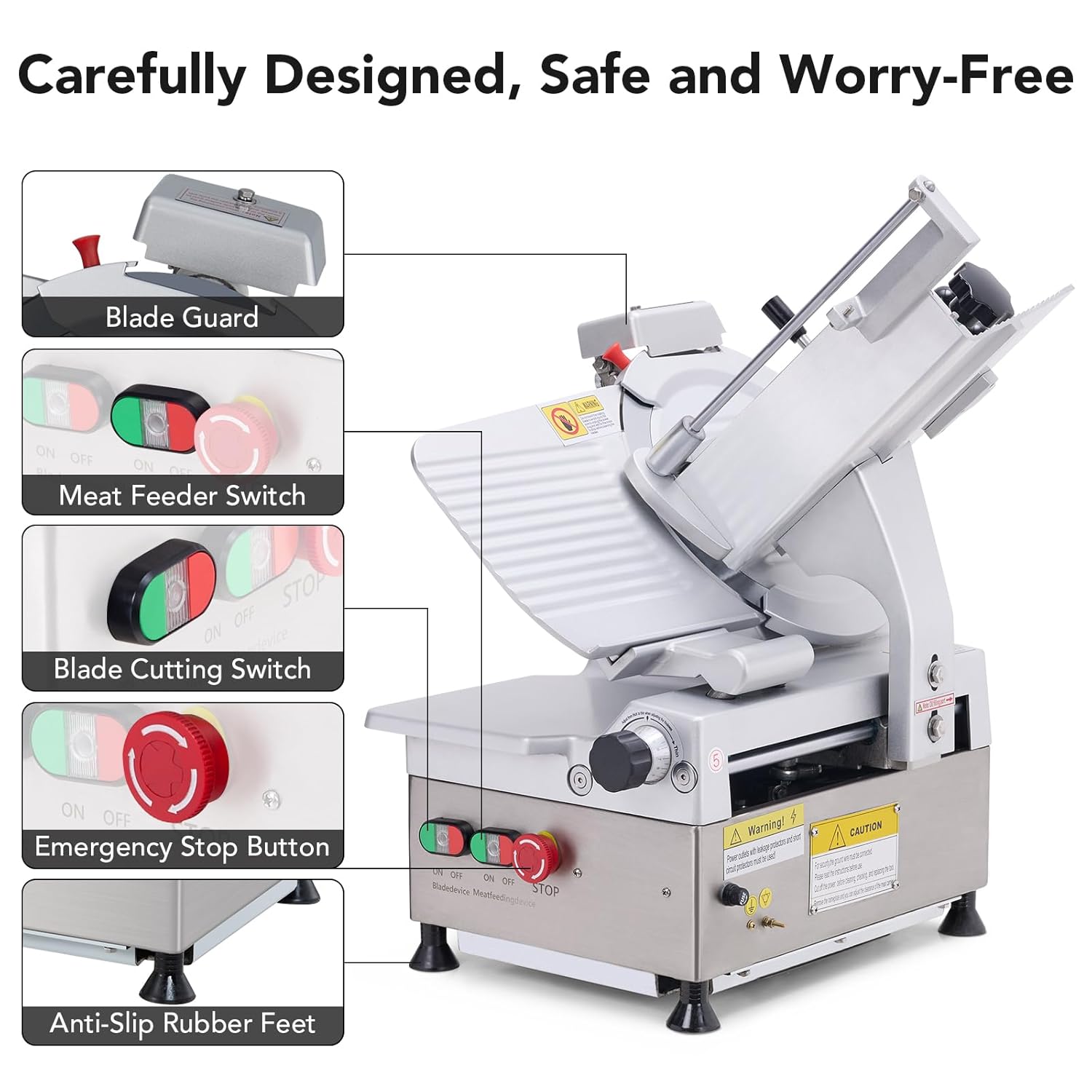

Figure 3.1: Main components of the GARVEE Automatic Meat Slicer.

شڪل 3.2: تفصيلي view of key features such as the 21cm extra wide meat loading board, fixtures board locking knob, thickness adjustment knob, and dual control switch with emergency stop button.

4. سيٽ اپ ۽ اسيمبلي

1. پيڪنگ کولڻ: Carefully remove the slicer from its packaging. Inspect for any damage.
2. لڳائڻ: Place the slicer on a clean, stable, and dry countertop. Ensure the anti-slip bases are firmly gripping the surface.
3. شروعاتي صفائي: Before first use, clean all parts that will come into contact with food. Refer to the "Maintenance and Cleaning" section for detailed instructions.
4. Blade Installation (if necessary): Ensure the 12-inch carbon steel blade is securely installed. The blade guard should be in place.
5. پاور ڪنيڪشن: Plug the slicer into a grounded electrical outlet. Ensure the voltage وضاحتن سان ملندو آهي.

Figure 4.1: The automatic meat feeding device, which should be properly installed before use.

5. آپريٽنگ هدايتون

5.1 Preparing for Slicing

1. کاڌو لوڊ ڪريو: Place the food item (e.g., meat, vegetables) onto the food carriage. Use the food pusher to secure it against the back plate.
2. ٿولهه کي ترتيب ڏيو: Rotate the thickness adjustment knob to select the desired slice thickness (0-14 mm). Turn clockwise for thicker slices, counter-clockwise for thinner slices.

Figure 5.1: The thickness adjustment knob allows precise control over slice thickness from 0 to 14 mm.

5.2 ڪٽڻ جو طريقو

1. پاور آن: Press the green ON button for the blade to start the motor and blade rotation.
2. Engage Food Pusher: Press the green ON button for the meat pusher to activate the automatic feeding mechanism.
3. ٽڪرائڻ: The food carriage will automatically move back and forth, pushing the food against the rotating blade to produce slices.
4. سلائسون گڏ ڪريو: Place a tray or plate beneath the blade to collect the sliced food.
5. ڪٽڻ بند ڪريو: To stop the slicing process, press the red STOP button. For complete power off, press the OFF buttons for both the blade and meat pusher.

Figure 5.2: Control panel with independent blade and meat pusher switches, and the emergency stop button.

5.3 وڊيو مظاهرو

6. سار سنڀال ۽ صفائي

Regular cleaning and maintenance are essential for the longevity and safe operation of your slicer.

6.1 روزاني صفائي

1. ان پلگ ڪڍڻ: Always unplug the slicer from the power outlet before cleaning.
2. کاڌي جي باقيات کي هٽايو: Carefully remove any large food particles from the blade and food carriage.
3. صاف ڪريو: اشتهار استعمال ڪريوamp cloth with mild detergent to wipe down all surfaces of the slicer. Avoid excessive water near electrical components.
4. بلڊ جي صفائي: With extreme caution and wearing cut-resistant gloves, carefully wipe both sides of the blade. Some parts may be removable for thorough cleaning.
5. ڌوئي ۽ سڪي: aوئڻ سان صاف ، ڊيamp cloth and dry all parts thoroughly to prevent rust.

6.2 بليڊ تيز ڪرڻ

The slicer is equipped with a built-in sharpener to maintain blade sharpness.

1. حفاظت کي يقيني بڻايو: Unplug the slicer. Ensure the blade guard is in place.
2. Position Sharpener: Place the built-in sharpener in contact with the edge of the blade as instructed by the mechanism.
3. Activate Sharpening: Turn on the designated sharpening switch (if applicable, refer to specific model instructions) or manually engage the sharpening stones.
4. تيز ڪرڻ: Allow the sharpener to operate for a short period (e.g., 30-60 seconds) to sharpen the blade automatically.
5. صاف بلڊ: After sharpening, clean the blade thoroughly to remove any metal particles.

Figure 6.1: The built-in sharpener allows for convenient and automatic blade sharpening.

7. مسئلا حل ڪرڻ

8. مصنوعات جي وضاحت

• ماڊل: YQR-300C
• برانڊ: گاروي
• طاقت: 550W Dual Motors
• بليڊ مواد: هاء ڪاربان اسٽيل
• بليڊ قطر: 12 انچ (300mm)
• ترتيب ڏيڻ واري ٿولهه: 0 - 14 ملي ميٽر
• پيداوار جي ماپ: 21.5"L x 18.5"W x 26"H (545mm L x 470mm W x 660mm H)
• مواد: ميگنيشيم المونيم مصر
• شيء جو وزن: 132.7 پائونڊ
• آپريشن موڊ: خودڪار
• تجويز ڪيل استعمال: Meat, Vegetable, Fruit, Bread

Figure 8.1: Detailed dimensions and key specifications of the GARVEE Automatic Meat Slicer.

9. وارنٽي ۽ ڪسٽمر سپورٽ

GARVEE products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or contact GARVEE customer support.

If you encounter any issues or have questions about your GARVEE Automatic Meat Slicer, please contact our customer support team. Provide your model number (YQR-300C) and purchase date for faster service.

ڪسٽمر سپورٽ: Refer to your product packaging or the official Garvee webرابطي جي تفصيل لاءِ سائيٽ.

حفاظتي منصوبا: Extended protection plans may be available for purchase. Please check with your retailer for options.
