ڊيوچ اليڪٽرانڪ پاسورڊ سيف ڊپازٽ باڪس يوزر مينوئل

1. تعارف

This manual provides comprehensive instructions for the safe and efficient operation of your Dioche Electronic Password Safe Deposit Box. Please read this manual thoroughly before installation and use to ensure proper functionality and to maximize the security features of your safe. Keep this manual for future reference.

2. حفاظت جي ڄاڻ

• Do not store emergency keys inside the safe. Keep them in a secure, separate location.
• پڪ ڪريو ته سيف هڪ مستحڪم مٿاڇري تي نصب ٿيل آهي يا غير مجاز هٽائڻ کي روڪڻ لاءِ ڀت يا فرش تي محفوظ طور تي نصب ٿيل آهي.
• سيف کي انتهائي گرمي پد يا تيز نمي جي سامهون رکڻ کان پاسو ڪريو.
• Do not attempt to disassemble or modify the safe. This may compromise its security and void the warranty.
• Keep the safe and its components out of reach of children.
• The safe is designed to be fireproof but is not water-resistant. Avoid exposure to water.

3. پيڪيج مواد

مھرباني ڪري پيڪيج جي مواد کي احتياط سان چيڪ ڪريو. جيڪڏھن ڪا به شيءِ غائب يا خراب آھي، ته ڪسٽمر سپورٽ سان رابطو ڪريو.

• Dioche Electronic Password Safe Deposit Box
• ايمرجنسي ڪيز (2)
• Mounting Hardware (bolts, washers)
• Floor Mat/Lining
• استعمال ڪندڙ جو دستياب (ھي دستاويز)
• Batteries (4 x AA, typically included)

Image 3.1: The Dioche Electronic Password Safe Deposit Box shown with its included accessories, including emergency keys, mounting bolts, and batteries.

4. پراڊڪٽ ختمview

The Dioche Electronic Password Safe Deposit Box is constructed from heavy-duty cold-rolled alloy steel, offering robust security for your valuables. It features a dual unlocking mechanism: a digital keypad for password entry and a traditional key for emergency access.

تصوير 4.1: سامهون view of the electronic safe, highlighting its multi-protection password system designed to prevent deciphering attempts.

Image 4.2: Close-up of the safe's digital panel, showing the keypad for code entry and the concealed keyhole for manual unlocking.

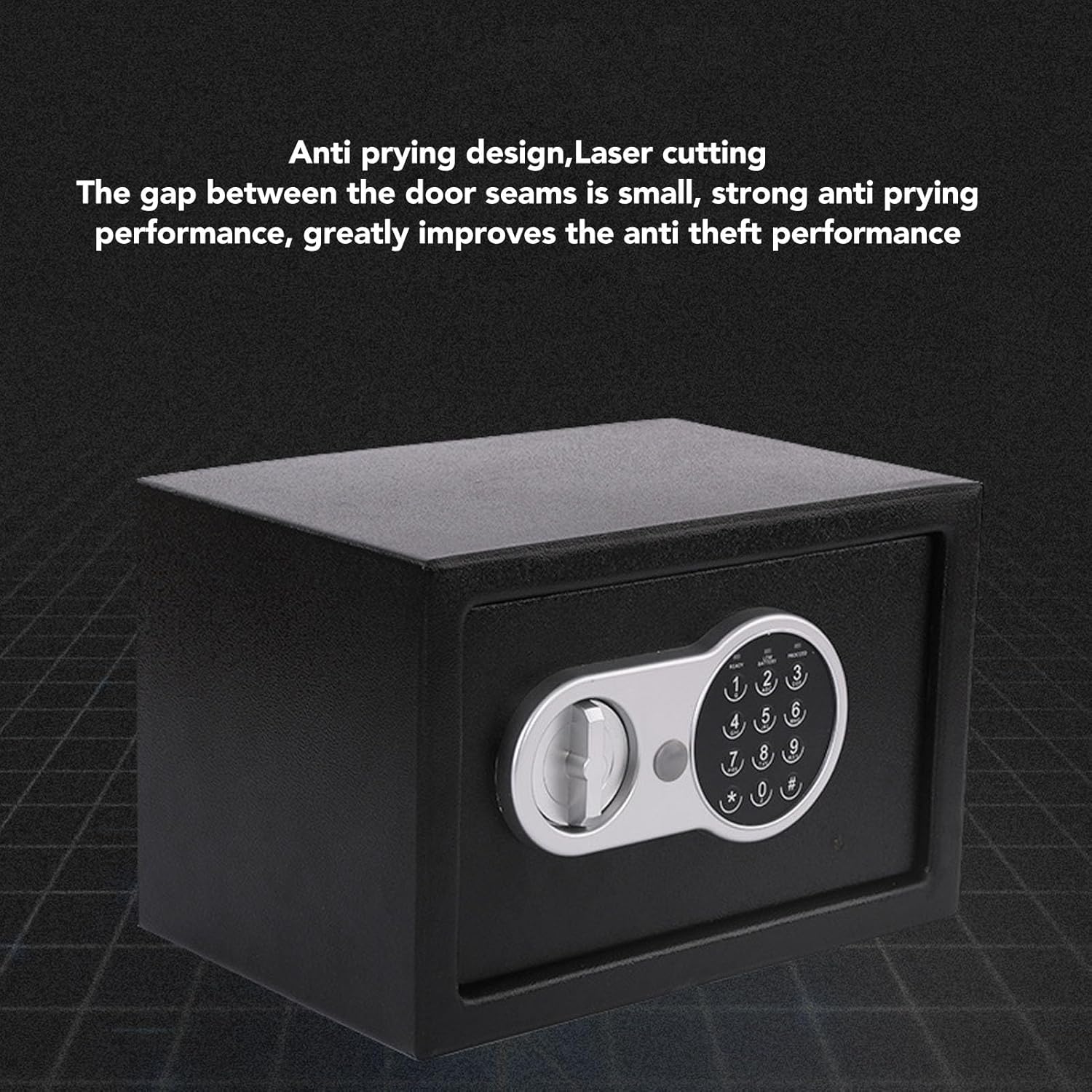

تصوير 4.3: View illustrating the safe's anti-prying design, featuring laser-cut seams that minimize gaps and enhance anti-theft performance.

تصوير 4.4: اندروني view of the safe, demonstrating its multi-layer alloy steel plate construction for high strength and toughness.

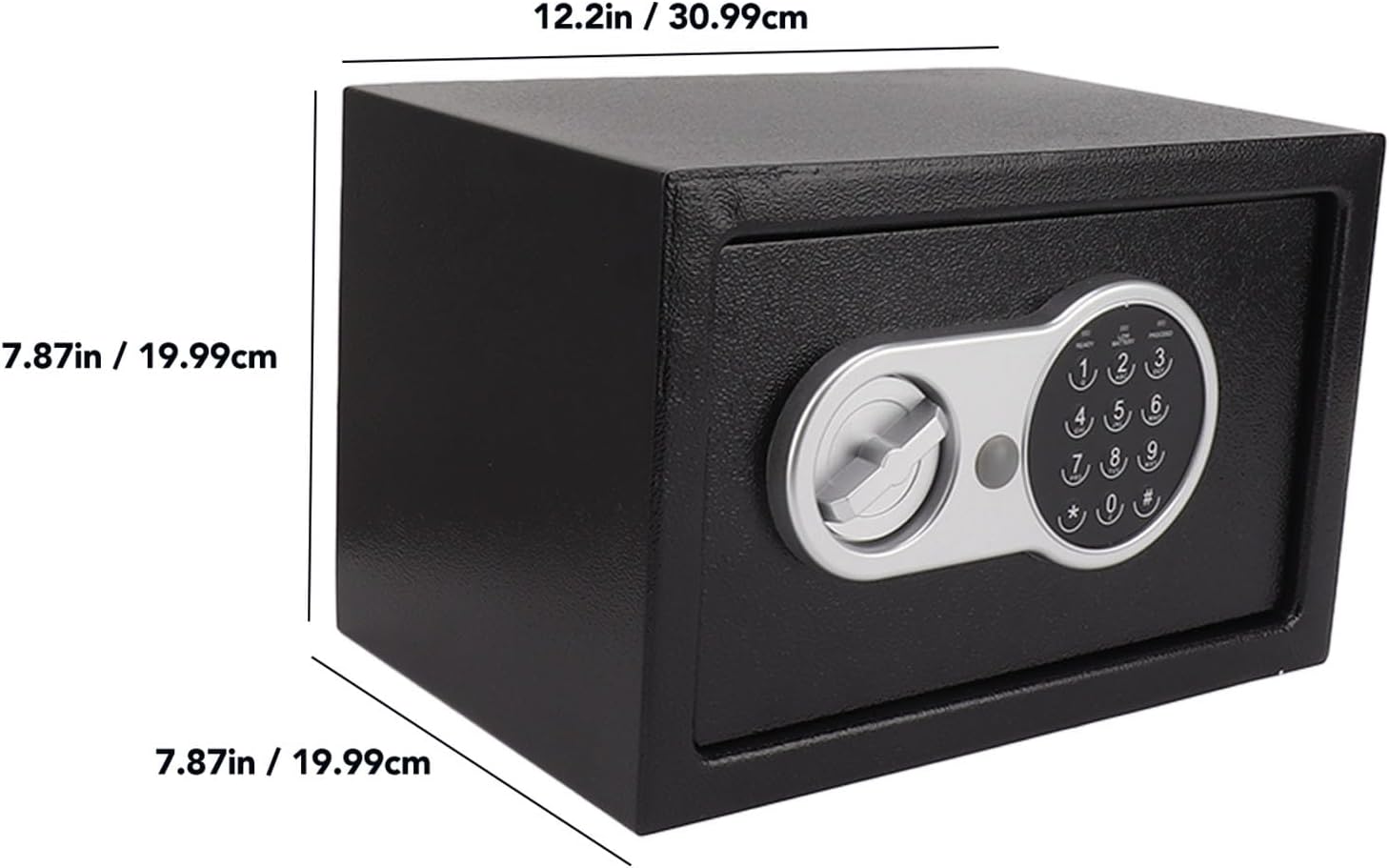

Image 4.5: Diagram showing the external dimensions of the safe: approximately 12.2 inches (30.99 cm) wide, 7.87 inches (19.99 cm) high, and 7.87 inches (19.99 cm) deep.

5. سيٽ اپ

5.1 بيٽري لڳائڻ

1. Locate the battery compartment, usually on the inside of the safe door.
2. Insert 4 AA batteries (included) according to the polarity markings (+/-).
3. بيٽري جي ڪمري واري ڍڪ کي محفوظ طور تي بند ڪريو.
4. The safe will emit a beep, indicating successful battery installation.

5.2 Initial Code Setting

The safe comes with a factory default code (e.g., "159"). It is crucial to change this immediately for security.

1. With the safe door open, press the red reset button located on the inside of the door (often near the hinge). The yellow light on the keypad will illuminate.
2. Enter your desired new password (3-8 digits) on the keypad.
3. Press the "#" button to confirm. The safe will beep twice, and the yellow light will turn off, indicating the new code is set.
4. Test the new code with the door open before closing it. Enter your new code, then turn the knob clockwise to ensure it opens.

اهم: If you forget your password, you will need to use the emergency key to open the safe.

5.3 Mounting the Safe (Optional)

For enhanced security, the safe can be mounted to a floor or wall using the provided hardware.

1. Choose a suitable location. Ensure there are no electrical wires or plumbing in the wall/floor where you plan to drill.
2. Open the safe door and remove the floor mat to expose the pre-drilled mounting holes.
3. Mark the drilling points on the wall or floor through the holes in the safe.
4. Drill pilot holes using an appropriate drill bit for your mounting surface.
5. Position the safe and secure it using the provided expansion bolts and washers. Tighten firmly.

6. سيف کي هلائڻ

6.1 Opening with Digital Code

1. Enter your 3-8 digit personal password on the keypad.
2. Press the "#" button. The green light will illuminate, and the safe will beep.
3. Within 5 seconds, turn the knob clockwise to open the door.
4. If an incorrect code is entered three times, the system will lock for 20 seconds. Further incorrect attempts will increase the lockout time.

6.2 Opening with Emergency Key

The emergency key can be used if you forget your password or if the batteries are depleted.

1. ايمرجنسي ڪي هول کي ڳوليو، جيڪو عام طور تي ڪي پيڊ پينل تي هڪ ننڍڙي ڍڪ جي پويان لڪايو ويندو آهي.
2. ڪپڙا هٽايو.
3. Insert the emergency key and turn it counter-clockwise.
4. While holding the key turned, turn the main knob clockwise to open the safe door.
5. Once open, you can replace the batteries or reset the password as needed.

6.3 سيف کي بند ڪرڻ ۽ بند ڪرڻ

1. محفوظ دروازو بند ڪريو.
2. Turn the knob counter-clockwise until it locks into place. The safe is now secured.

7. سار سنڀال

• بيٽري مٽائڻ: Replace batteries annually or when the "LOW BATTERY" indicator lights up. Always use 4 new AA batteries.
• صفائي: سيف جي ٻاهرين حصي کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. گھڙڻ وارا صاف ڪندڙ يا محلولن کان پاسو ڪريو.
• Keypad Care: Keep the keypad clean and dry. Avoid pressing buttons with excessive force.

8. مسئلا حل ڪرڻ

9. وضاحتون

• برانڊ: ڊيوچ
• ماڊل: اليڪٽرانڪ پاسورڊ محفوظ جمع باڪس
• تالا جو قسم: اليڪٽرانڪ، چاٻي
• رنگ: ڪارو
• مواد: Alloy Steel (Cold Rolled Sheet)
• خاص خصوصيت: فائر پروف
• چڙهڻ جو قسم: فرش تي چڙهڻ، ڀت تي چڙهڻ
• شامل اجزاء: Safe, Keys, Mounting Hardware, Batteries
• پاڻي جي مزاحمت جي سطح: نه پاڻي مزاحمتي
• طول و عرض (تقريبن): 12.2 in (Width) x 7.87 in (Height) x 7.87 in (Depth)

10. وارنٽي ۽ سپورٽ

For warranty information or technical support, please refer to the retailer's policy or contact Dioche customer service directly. Keep your purchase receipt as proof of purchase.

وڌيڪ مدد لاء، دورو ڪريو جي Dioche Store on Amazon.
