CYCPLUS AL2 پورٽيبل ٽائر انفليٽر استعمال ڪندڙ دستياب

پيداوار ختمview

The CYCPLUS AL2 is a high-performance, portable tire inflator designed for quick and efficient inflation. Its compact size, powerful motor, and dual power supply options make it an ideal tool for maintaining optimal tire pressure for various vehicles and inflatable items. The device features an intuitive dual LED display, preset inflation modes, and an automatic shut-off function for precise and safe operation.

اهم خاصيتون:

• تيز افراط زر: Equipped with a powerful motor providing 36L/Min airflow, capable of inflating a small car tire (28-36 PSI) in approximately 60 seconds.
• Dual-Use Power Supply: Operates on a built-in 3*2600mAh battery (7800mAh total capacity) or via a 12V car power cord, ensuring usability even when the battery is low.
• ٻٽي LED ڊسپلي: Clear digital display shows both real-time and preset pressure values with an accuracy of ±1 PSI.
• خودڪار آپريشن: Features 4 preset modes (bicycle, motorcycle, car, ball) and allows custom pressure settings up to 150 PSI. Automatically stops when the target pressure is reached.
• ايمرجنسي ايل اي ڊي لائيٽ: Integrated LED light for illumination during night-time use or emergencies.

Image: The CYCPLUS AL2 Portable Tire Inflator with its digital display.

Image: Close-up of the inflator's dual LED display showing real-time and preset pressure values.

سيٽ اپ ۽ چارج

پيڪيج مواد:

Before first use, please verify all components are present:

• Inflator Unit (AL2)
• ايوا اسٽوريج ڪيس
• قسم-سي چارجنگ ڪيبل
• 12V ڪار پاور ڪيبل
• Air Tube (short)
• Air Tube (long)
• گول جي سُئي
• Presta والو اڊاپٽر
• استعمال ڪندڙ دستي

Image: Diagram showing all items included in the CYCPLUS AL2 package.

شروعاتي چارج:

For optimal performance, fully charge the inflator before its first use. Charging takes approximately 3 hours using the provided Type-C cable and a compatible power adapter (not included). The battery indicator on the display will show charging progress.

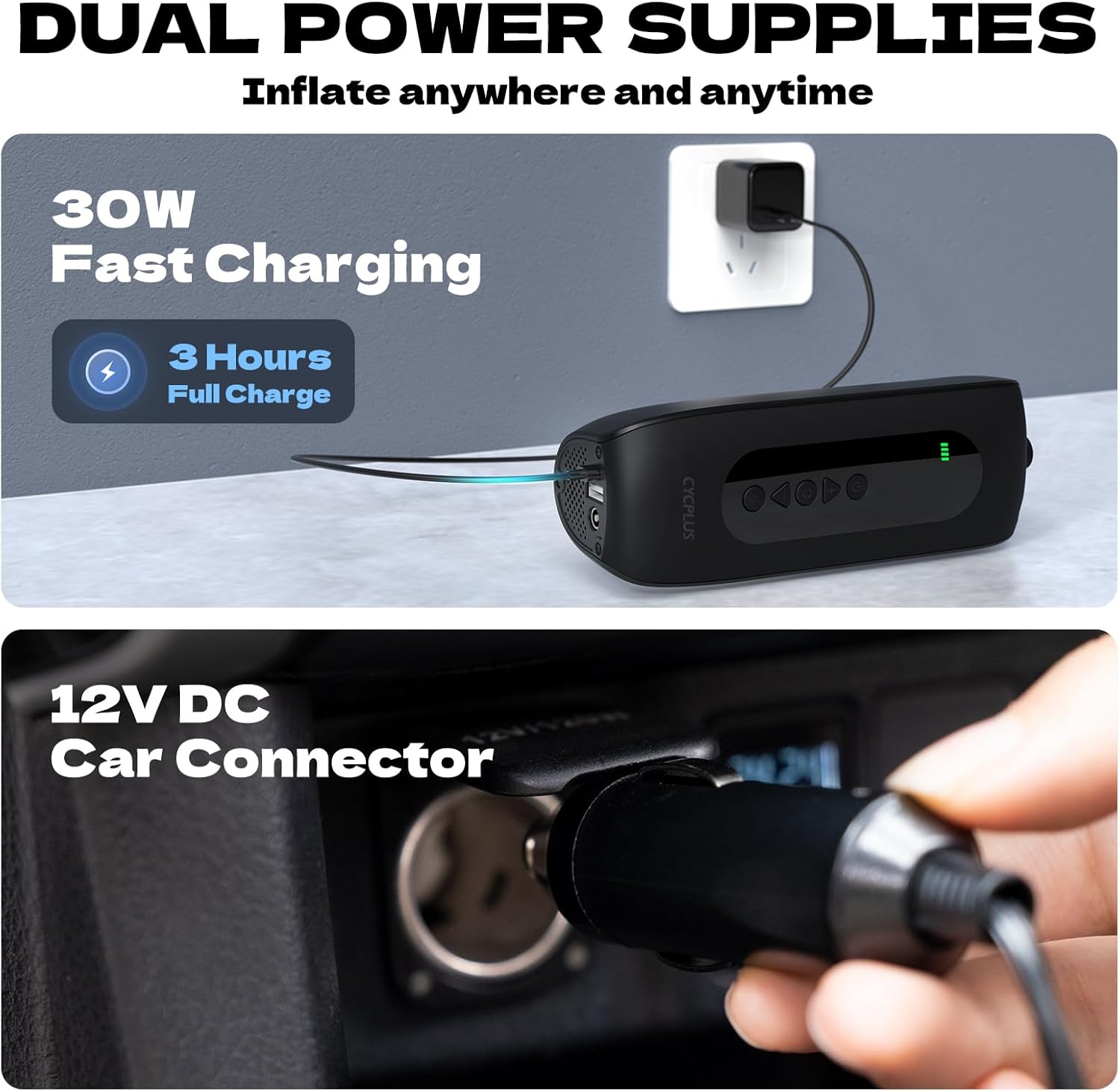

Image: The inflator being charged via USB-C and connected to a 12V car power outlet.

آپريٽنگ هدايتون

Connecting the Air Tube:

1. Select the appropriate air tube (short or long) for your application.
2. Screw one end of the air tube firmly into the inflation port on the top of the inflator.
3. Attach the other end of the air tube to the valve stem of the item you wish to inflate. Ensure a secure connection to prevent air leakage.

Image: The CYCPLUS AL2 inflator connected to a car tire valve.

افراط زر جو عمل:

1. پاور آن: Press the power button to turn on the inflator. The dual LED display will illuminate.
2. موڊ چونڊيو: Use the mode button to cycle through the 4 preset inflation modes: Bicycle, Motorcycle, Car, and Ball. Each mode has a default pressure setting.
3. دٻاءُ کي ترتيب ڏيو (اختياري): If the preset pressure is not suitable, use the '+' and '-' buttons to adjust the target pressure value. The inflator supports pressures up to 150 PSI.
4. مهانگائي جي شروعات: Press the inflation button to begin inflating. The real-time pressure will be displayed and increase as the item inflates.
5. پاڻمرادو بند The inflator will automatically stop once the preset target pressure is reached.
6. ڳنڍڻ: Carefully disconnect the air tube from the valve stem and then from the inflator.

Image: Visual representation of the inflator's application modes for cars, motorcycles, bikes, and balls.

LED لائيٽ استعمال ڪندي:

Press the light button to turn on the integrated LED light. This feature is useful for illuminating the work area in low-light conditions or as an emergency light.

Image: The CYCPLUS AL2 inflator with its LED light activated, illuminating a car tire at night.

Product Introduction Video:

سار سنڀال

• صفائي: انفليٽر جي ٻاهرين حصي کي نرم، سڪل ڪپڙي سان صاف ڪريو. سخت ڪيميڪل يا رگڙيندڙ ڪلينر استعمال نه ڪريو.
• اسٽوريج: Store the inflator and its accessories in the provided EVA case in a cool, dry place, away from direct sunlight and extreme temperatures.
• بيٽري جي سنڀال: To prolong battery life, charge the device at least once every three months if not in regular use. Avoid fully depleting the battery for extended periods.

مشڪلاتون

عام مسئلا ۽ حل:

• انفليٽر آن نٿو ٿئي: Ensure the battery is charged. If using the 12V car cord, ensure it is securely connected and the car's power outlet is functional.
• افراط زر سست آهي يا ڪم نه ڪري رهيو آهي: Check that the air tube is securely connected to both the inflator and the valve stem. Ensure the valve stem is not damaged. Verify the target pressure is set correctly and is within the device's operating range (up to 150 PSI).
• غلط دٻاء پڙهڻ: Ensure the air tube is fully screwed onto the valve stem. If the issue persists, compare the reading with a known accurate pressure gauge.
• بيٽري جلدي ختم ٿئي ٿي: Ensure the device is fully charged before use. Extreme temperatures can affect battery performance. If battery life significantly degrades, contact customer support.
• Device overheats: The inflator may become warm during prolonged use. Allow it to cool down before continuing operation. If it overheats excessively or emits smoke/unusual odors, immediately power off and disconnect, then contact customer support.

وضاحتون

وارنٽي ۽ سپورٽ

وارنٽي ڄاڻ:

The CYCPLUS AL2 Portable Tire Inflator comes with a 1-سال وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ پيداوار جي خرابين ۽ ڪاريگري کي ڍڪيندي آهي. اهو غلط استعمال، حادثن، غير مجاز ترميمن، يا عام لباس ۽ آنسو جي ڪري ٿيندڙ نقصان کي ڍڪيندي ناهي.

ڪسٽمر سپورٽ:

For any questions, technical assistance, or warranty claims, please contact CYCPLUS official after-sales support. Refer to the contact information provided on the product packaging or the official CYCPLUS webسائيٽ.

مھرباني ڪري وارنٽي جي تصديق لاءِ خريداري جو ثبوت رکو.
