This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Ranein Propane Gas Tankless Water Heater. Please read this manual thoroughly before installation or use and retain it for future reference. This appliance is designed to provide instant hot water for residential use, offering a maximum flow rate of 5.3 GPM and a heating capacity of 130,000 BTU.
حفاظت جي ڄاڻ
خبردار: غلط تنصيب، ترتيب، ڦيرڦار، خدمت، يا سار سنڀال ملڪيت کي نقصان، زخم، يا موت جو سبب بڻائيندو. هن سامان کي نصب ڪرڻ يا خدمت ڪرڻ کان پهريان انسٽاليشن، آپريٽنگ، ۽ سار سنڀال جي هدايتن کي چڱي طرح پڙهو.
- Ensure proper ventilation. This is an indoor unit and requires a suitable venting system.
- هن يا ڪنهن ٻئي اوزار جي آس پاس ۾ گئسولين يا ٻيون ٻرندڙ بخارات ۽ مائع ذخيرو يا استعمال نه ڪريو.
- Installation must be performed by a qualified professional in accordance with local codes and regulations.
- In cold weather, if the water heater is not used for a long time, the pressure relief valve needs to be opened to drain the remaining water in the water heater to prevent freezing damage.
- This product is not recommended for use in areas over 2,000 feet in elevation without proper adjustments.
شڪل 1: ختمview of the 2+8 Product Protection System, highlighting various safety mechanisms integrated into the Ranein Tankless Water Heater for enhanced user safety and appliance longevity.
پيداوار ختمview
The Ranein Tankless Water Heater is designed for efficiency and reliability, providing on-demand hot water without the need for a storage tank. Key features include a bottom-mounted fan for improved combustion, an oxygen-free copper heat exchanger for superior thermal conductivity, and a multi-stage burner for precise temperature control.
شڪل 2: سامهون view of the Ranein Tankless Water Heater, showcasing ان جي ڪمپيڪٽ ڊيزائن ۽ مربوط ڊجيٽل ڊسپلي.
Figure 3: Internal components of the water heater, illustrating the design for safer and longer life through oxygen-free copper, closed combustion, and a bottom fan.
اهم اجزاء:
- Bottom Fan: Ensures more complete combustion and stable operation.
- Oxygen-Free Copper Heat Exchanger: Provides excellent thermal conductivity and corrosion resistance.
- 5-ايسtage Burner: Allows for precise flame control and efficient heating.
- Closed Combustion Chamber: Enhances safety and combustion efficiency by isolating the combustion process.
- Touch Panel with LED Display: For easy monitoring and adjustment of settings.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | RH13K-NG |
| طاقت جو ذريعو | پروپين گيس |
| گرمائش جي گنجائش | 130,000 BTU |
| وڌ ۾ وڌ وهڪري جي شرح | 5.3 گيلن في منٽ (GPM) |
| انسٽاليشن جو طريقو | Wall Mounted (Indoor) |
| درجه بندي Voltage | 120 وولٽ (AC) |
| پاڻي جي دٻاء جي حد | 0.025،0.8 ~ XNUMX،XNUMX ايم پي اي |
| گيس پريشر | 2800Pa/2000Pa |
| گرمي پد جي حد | 95°F - 149°F |
| واٽر انليٽ فٽنگ | Standard 1/2" NPT |
| گيس انٽ فٽنگ | Standard 3/4" NPT |
| پيداوار جي ماپ | 23.15"ليٽر x 14.17"ڊبليو x 5.9"ايڇ (53 x 53 x 22.5 سينٽي ميٽر) |
| شيءِ جو وزن | 15.9 ڪلوگرام (35 پائونڊ) |
Figure 4: Detailed dimensions and connection specifications of the water heater.
سيٽ اپ ۽ تنصيب
Installation of the Ranein Tankless Water Heater should only be performed by a licensed professional to ensure compliance with all local and national plumbing and gas codes. This unit is designed for indoor installation.
قبل از انسٽاليشن چيڪ لسٽ:
- Verify that the installation location is indoors, has adequate ventilation, and is protected from freezing temperatures.
- Ensure the wall structure can support the weight of the unit (approx. 15.9 kg).
- Confirm availability of appropriate gas supply (Propane Gas) and water connections (1/2" NPT for water, 3/4" NPT for gas).
- Ensure electrical supply (AC110V/60Hz) is available at the installation site.
- Unpack the unit and inspect for any shipping damage.
Installation Steps (Summary - Professional Installation Required):
- Mount the water heater securely to a suitable wall using appropriate fasteners.
- Connect the cold water inlet and hot water outlet lines. Ensure all connections are watertight.
- Connect the gas supply line to the gas inlet. Perform a leak test on all gas connections.
- Install the required venting system according to manufacturer instructions and local codes.
- اليڪٽرڪ پاور سپلائي کي ڳنڍيو.
- Purge air from the water lines before initial operation.
شڪل 5: مثالample of an indoor installation, emphasizing the compact size and aesthetic integration.
آپريٽنگ هدايتون
Once properly installed and connected, operating your Ranein Tankless Water Heater is straightforward via its intuitive touch panel and LED display.
شروعاتي شروعات:
- Ensure all water and gas valves are open.
- اليڪٽرڪ پاور کي يونٽ ڏانهن ڦيرايو.
- Open a hot water faucet in your home. The unit will detect water flow and automatically ignite to heat the water.
- Allow water to run for a few minutes to ensure all air is purged from the system.
درجه حرارت کي ترتيب ڏيڻ:
Use the touch controls on the LED display to set your desired water temperature. The display will show the current temperature setting. The unit maintains a precise temperature within ±1°F of your setting.
Figure 6: The touch panel and LED display for temperature control and status monitoring.

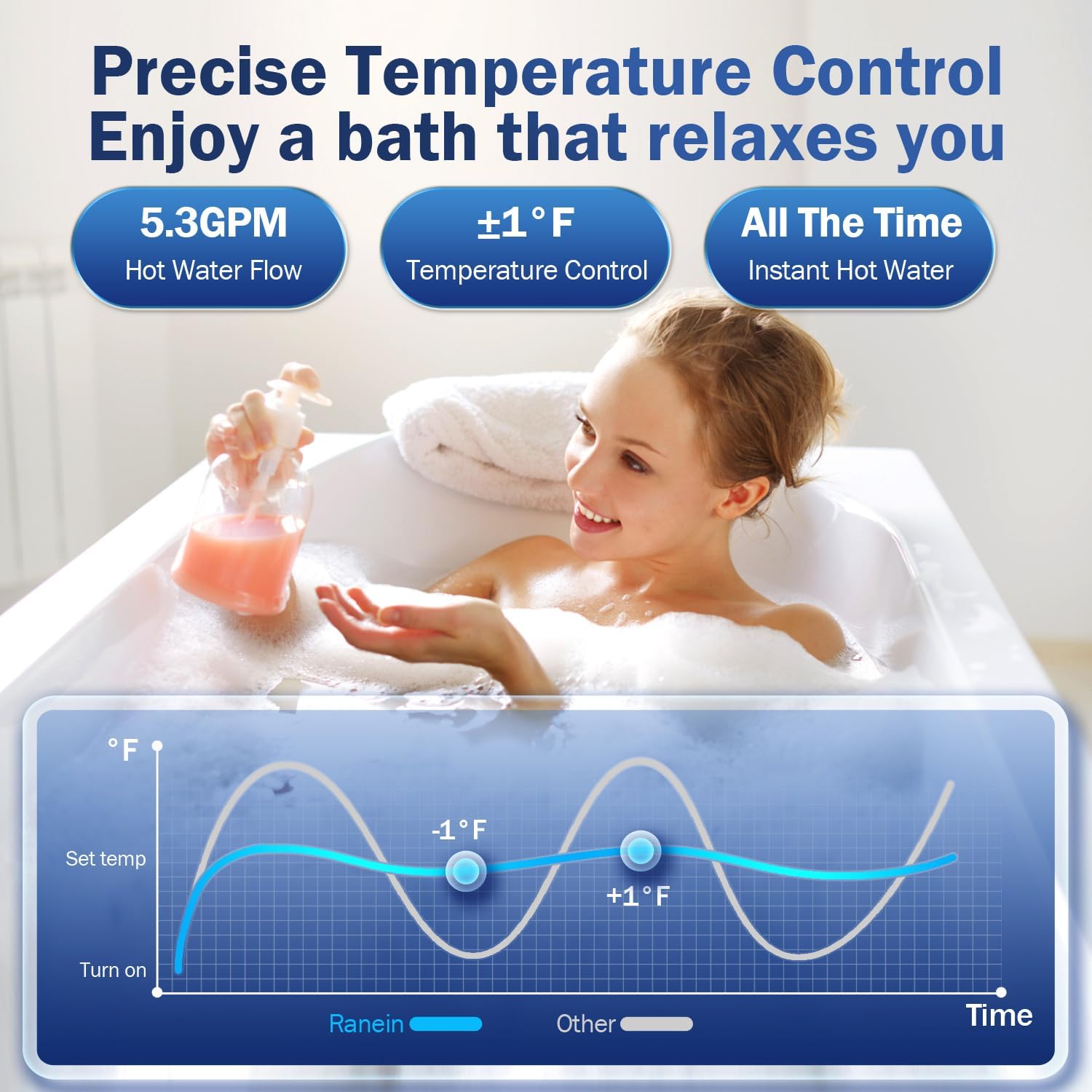

Figure 7: Temperature stability graph, demonstrating the unit's ability to maintain a consistent hot water temperature.
خاموش آپريشن:
The sealed structure of the Ranein water heater is designed to minimize operational noise, ensuring a quiet experience even during ignition and continuous use.
سار سنڀال
Regular maintenance is crucial for the longevity and efficient operation of your tankless water heater. It is recommended to have the unit inspected and serviced by a qualified professional annually.
استعمال ڪندڙ جي سار سنڀال:
- ٻاهرين صفائي: ٻاھرين کي نرم سان صاف ڪريو، ڊيamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
- سياري ڪرڻ (جيڪڏهن قابل اطلاق): If the unit will not be used for an extended period in freezing temperatures, ensure the pressure relief valve is opened to drain all remaining water from the system to prevent freeze damage.
Professional Maintenance (Recommended Annually):
- ڊسڪنگ: Hard water can lead to mineral buildup (scale) in the heat exchanger, reducing efficiency. A professional can descale the unit using a descaling solution.
- Vent System Inspection: Check for any blockages, leaks, or corrosion in the exhaust venting system.
- گئس لائين جو معائنو: Verify gas connections are secure and free of leaks.
- Burner and Ignition System Check: Ensure proper operation and cleanliness of the burner and ignition components.
مشڪلاتون
This section provides solutions to common issues you might encounter. For problems not listed here or if solutions do not resolve the issue, contact a qualified service technician.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| گرم پاڻي ناهي / يونٽ نه ٻاري رهيو آهي | No water flow, gas supply off, power off, or ignition failure. | Ensure hot water faucet is open, check gas valve, verify power supply, or consult a technician for ignition issues. |
| پاڻي ڪافي گرم ناهي | Temperature setting too low, insufficient gas pressure, or scaling in heat exchanger. | Increase temperature setting on display. Check gas supply. Consider professional descaling. |
| يونٽ تيزي سان آن ۽ آف ٿئي ٿو | Insufficient water flow, or flow sensor issue. | Ensure adequate water flow (e.g., open faucet fully). Check for kinks in water lines. |
| نقص ڪوڊ ڏيکاريل آهي | مخصوص سسٽم جي خرابي. | Refer to the full manual (if available) for specific error code meanings, or contact customer support. |
وارنٽي ۽ سپورٽ
رينين مهيا ڪري ٿو هڪ 2 سال وارنٽي for this tankless water heater. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical assistance, or any questions regarding installation and operation, please do not hesitate to contact Ranein customer support. Our team is dedicated to serving you wholeheartedly.
Please have your model number (RH13K-NG) and purchase date available when contacting support.
