Dyeetic D18 Portable Car Jump Starter with Air Compressor User Manual

1. تعارف

This manual provides instructions for the safe and effective use of the Dyeetic D18 Portable Car Jump Starter with Air Compressor. This multi-functional device serves as a car jump starter, tire inflator, portable power bank, and LED emergency light. Please read this manual thoroughly before operation and retain it for future reference.

Image 1.1: The Dyeetic D18 Portable Car Jump Starter with Air Compressor, including jumper cables, air hose, and various nozzles.

2. حفاظت جي ڄاڻ

ڊوائيس ۽ گاڏي کي زخم يا نقصان کان بچڻ لاءِ هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:

• مثبت ۽ منفي ڪل کي اجازت نه ڏيوampهڪ ٻئي کي ڇهڻ لاءِ.
• Do not jump start a vehicle if the device's battery level is below 20%.
• Do not attempt to jump start a vehicle with a severely damaged or frozen battery.
• Ensure proper ventilation when operating the air compressor.
• ڊوائيس کي ٻارن کان پري رکو.
• Store in a cool, dry place away from direct sunlight and high temperatures.
• The device incorporates 10 intelligent safety protections, including reverse charge, reverse polarity, overvoltage, low temperature, high temperature, overcurrent, overcharge, overload, anti-spark, and short circuit protection.

تصوير 2.1: مٿيview 10 مربوط حفاظتي تحفظن مان.

3. پيڪيج مواد

پڪ ڪريو ته سڀئي شيون پيڪيج ۾ موجود آهن:

• Dyeetic D18 Portable Car Jump Starter with Air Compressor (x1)
• Detachable Air Pump Hose (x1)
• Gas Nozzles (x4)
• Extended Smart Jumper Cables with Forced Start Button (x1)
• USB-A to C Charging Cable (x1)
• Portable Solid Carrying Case (x1)
• يوزر مينوئل (x1)

Image 3.1: All items included in the Dyeetic D18 product package.

4. پراڊڪٽ ختمview

The Dyeetic D18 features a robust design with a clear digital display and intuitive controls for its various functions.

اهم اجزاء:

• ڊجيٽل ڊسپلي Shows battery status, error alerts, and inflation pressure.
• ڪنٽرول بٽڻ: For mode selection, unit switching, and inflation adjustments.
• جمپ اسٽارٽ پورٽ: سمارٽ جمپر ڪيبلز کي ڳنڍڻ لاءِ.
• Air Compressor Port: For connecting the air pump hose.
• USB Output Ports (USB1-OUT, USB2-OUT): ٻاهرين ڊوائيسز کي چارج ڪرڻ لاءِ.
• USB-C Input Port (USBC-IN): جمپ اسٽارٽر کي چارج ڪرڻ لاءِ.
• LED ٽارچ: گھڻن طريقن سان ضم ٿيل روشني.

5. سيٽ اپ

5.1 شروعاتي چارجنگ

Before first use, fully charge the Dyeetic D18. Connect the provided USB-A to C cable to the USBC-IN port on the device and a suitable USB power adapter (not included). The digital display will indicate the charging status. A full charge ensures optimal performance and extends battery life.

6. آپريٽنگ هدايتون

6.1 ٽپو شروع ڪندي گاڏي

1. Ensure the jump starter has at least 20% battery charge.
2. Connect the smart jumper cables to the jump start port on the device.
3. ڳاڙهو (مثبت) cl لڳايوamp گاڏي جي بيٽري جي مثبت (+) ٽرمينل ڏانهن.
4. Attach the black (negative) clamp گاڏي جي بيٽري جي منفي (-) ٽرمينل ڏانهن.
5. Wait for the LED indicator on the smart cable to turn solid green, indicating a safe connection. If it flashes or shows red, check connections.
6. پنھنجي گاڏي شروع ڪريو.
7. Once the vehicle starts, remove the jumper cables from the car battery within 30 seconds, then disconnect from the jump starter.

Image 6.1.1: The Dyeetic D18 connected to a car battery for jump starting.

Image 6.1.2: Visual guide for the jump starting process.

6.2 ايئر ڪمپريسر استعمال ڪرڻ

1. Connect the air pump hose to the air compressor port on the device.
2. Attach the other end of the hose to the tire valve or appropriate nozzle for your item (e.g., ball, air cushion).
3. ڊوائيس کي چالو ڪرڻ لاء پاور بٽڻ کي دٻايو.
4. Press the 'M' (Mode) button to select the desired inflation mode (car, motorcycle, bicycle, ball) or manually set the pressure.
5. Use the '+' and '-' buttons to adjust the target pressure. The digital display supports PSI, BAR, and KPA units.
6. Long press the 'Start/Stop' button to begin inflation. The compressor will automatically stop once the preset pressure is reached.
7. نلي کي شيءِ ۽ ڊوائيس کان ڌار ڪريو.

Image 6.2.1: The Dyeetic D18 in use as an air compressor for tire inflation.

Image 6.2.2: Visual guide for the tire inflation process.

Image 6.2.3: The Dyeetic D18's versatility for inflating various items.

6.3 پاور بينڪ طور استعمال ڪرڻ

The Dyeetic D18 can charge electronic devices via its USB output ports.

1. Connect your device's charging cable to one of the USB output ports (USB1-OUT or USB2-OUT) on the jump starter.
2. جمپ اسٽارٽر خودڪار طريقي سان توهان جي ڊوائيس کي چارج ڪرڻ شروع ڪندو.

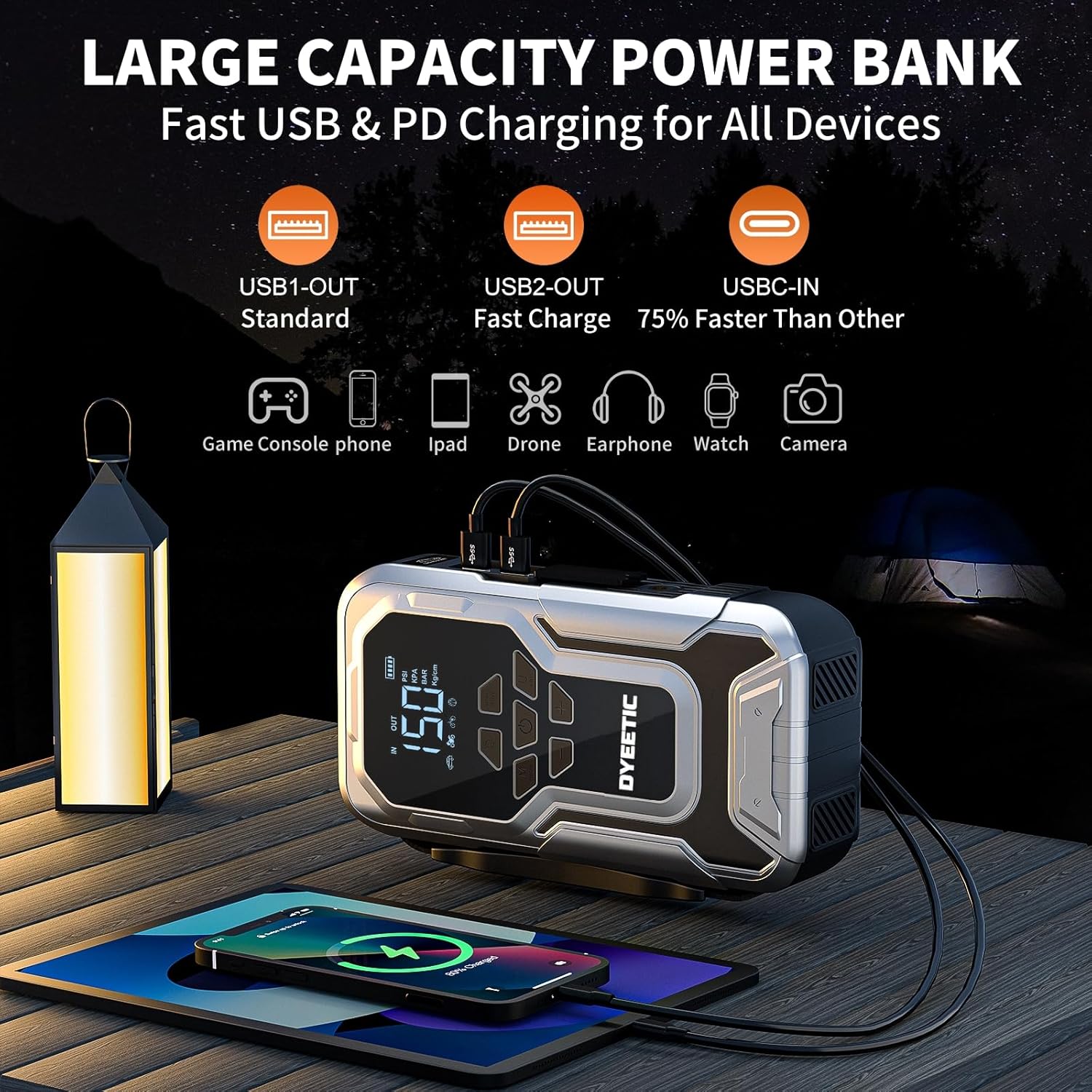

Image 6.3.1: The Dyeetic D18 charging external electronic devices.

6.4 ايل اي ڊي ٽارچ استعمال ڪندي

The integrated LED flashlight provides illumination for various situations.

• Press the flashlight button once for constant illumination (Flashlight mode).
• Press again for Strobe mode.
• Press a third time for SOS signal mode.
• ٽارچ کي بند ڪرڻ لاءِ چوٿون ڀيرو دٻايو.

Image 6.4.1: The Dyeetic D18's 600 lumens LED flashlight with its various modes.

7. سار سنڀال

7.1 اسٽوريج

Store the Dyeetic D18 in its portable carrying case in a cool, dry environment. Avoid extreme temperatures and direct sunlight. Ensure the device is clean and free of debris before storage.

7.2 ري چارج ڪرڻ

For optimal battery health, recharge the device every 3-6 months, even if not in use. This helps maintain the lithium-ion battery's capacity and extends its lifespan. The device can remain on standby for up to 24 months on a full charge.

8. مسئلا حل ڪرڻ

If you encounter issues with your Dyeetic D18, refer to the following common problems and solutions:

• ڊوائيس آن نه آهي: Ensure the device is sufficiently charged. If the battery is completely depleted, it may require a few minutes of charging before it can power on.
• جمپ شروع ناڪامي:
  • Check that the smart jumper cables are securely connected to both the jump starter and the vehicle battery terminals.
  • Verify that the LED indicator on the smart cable shows a solid green light. If not, adjust connections or check for battery issues.
  • Ensure the vehicle battery is not severely damaged or frozen.
  • If the vehicle battery is completely flat, use the 'Forced Start Button' on the smart cable (refer to cable instructions for specific use).
• Air Compressor Not Inflating:
  • Check that the air pump hose is securely connected to both the device and the item being inflated.
  • Ensure the correct nozzle is used and properly sealed.
  • Verify that a target pressure has been set and the 'Start/Stop' button has been long-pressed.
• External Devices Not Charging: Ensure the USB cable is properly connected and the external device is compatible with USB charging.

مسلسل مسئلن لاءِ، ڪسٽمر سپورٽ سان رابطو ڪريو.

9. وضاحتون

10. وارنٽي ۽ سپورٽ

The Dyeetic D18 Portable Car Jump Starter with Air Compressor comes with an extended 3-year warranty. Additionally, lifetime technical support is provided to assist with any product-related inquiries or issues.

For warranty claims or technical assistance, please refer to the contact information provided in your product packaging or visit the official Dyeetic webسائيٽ.
