1. تعارف
Thank you for choosing the Quality Heating Wit Plug Socket Thermostat 3600VA. This device is designed to provide precise temperature control for various applications, ensuring comfort and efficiency. Please read this manual carefully before use to ensure proper operation and to maintain the product's longevity.

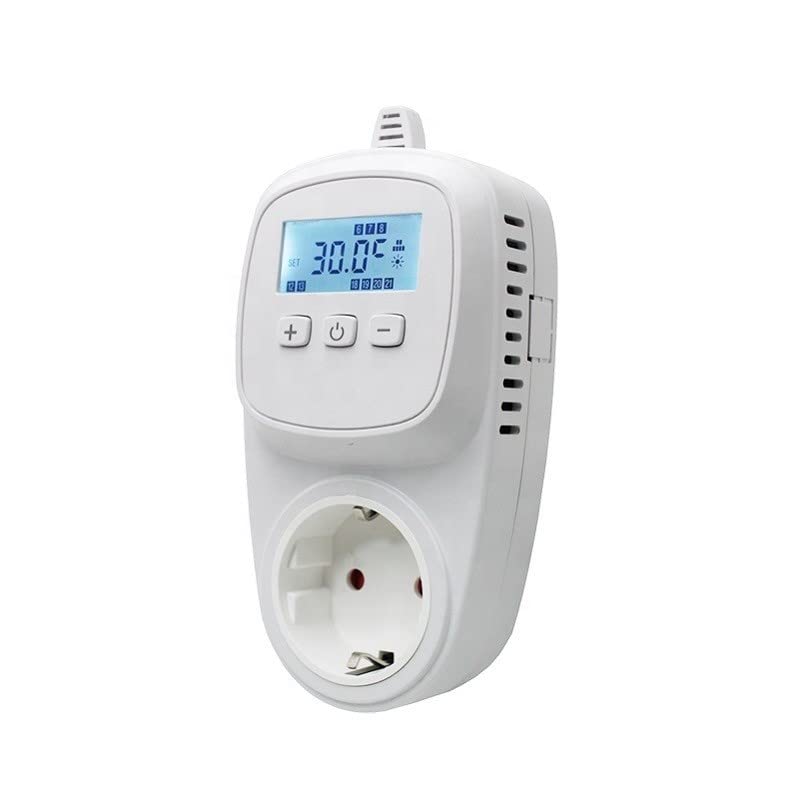

شڪل 1: سامهون view of the Quality Heating Wit Plug Socket Thermostat 3600VA.
2. حفاظت جي ڄاڻ
- Always ensure the thermostat is correctly plugged into a grounded electrical outlet.
- Do not exceed the maximum load capacity of 3600VA.
- ڊوائيس کي پاڻي ۽ تيز نمي واري ماحول کان پري رکو.
- Do not disassemble or attempt to repair the thermostat yourself. Contact qualified personnel for service.
- Ensure the connected appliance is suitable for use with a thermostat.
3. پراڊڪٽ ختمview
The Quality Heating Wit Plug Socket Thermostat 3600VA features a clear display and intuitive controls for easy temperature management.
3.1. جزا
- مکيه يونٽ: The thermostat body with integrated plug and socket.
- LCD ڊسپلي: Shows current temperature, set temperature, and operating modes.
- ڪنٽرول بٽڻ: For setting parameters and navigating menus.
- درجه حرارت سينسر: Integrated for accurate temperature readings.
Figure 2: Close-up of the thermostat's display and control buttons.

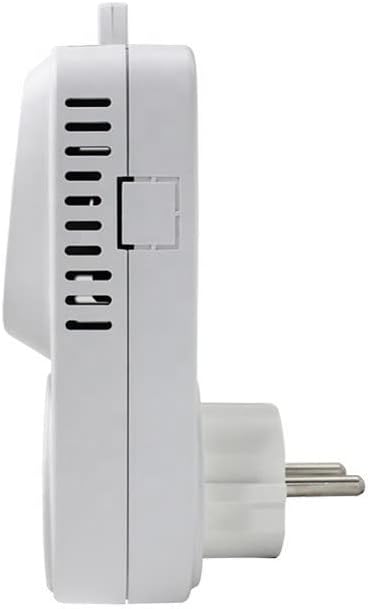

شڪل 3: پاسي view of the thermostat, highlighting its compact design.
4. سيٽ اپ
Setting up your thermostat is quick and easy:
- Plug the thermostat directly into a standard wall socket.
- Plug your heating or cooling appliance into the socket on the front of the thermostat.
- پڪ ڪريو ته سڀئي ڪنيڪشن محفوظ آهن.
Figure 4: Thermostat connected and ready for use.
5. آپريٽنگ هدايتون
This thermostat provides simple and effective temperature control for your appliances. It operates based on a set temperature range to maintain desired conditions.
5.1. Basic Temperature Control (Thermostatic Plug)
The device functions as a thermostatic plug, controlling the power supply to your appliance based on the ambient temperature detected by its sensor.
- مطلوب درجه حرارت کي ترتيب ڏيو: Use the control buttons (e.g., '+' and '-' or 'UP' and 'DOWN') to set your desired temperature. The display will show the current ambient temperature and your set temperature.
- گرمي موڊ: If the measured temperature falls below your set temperature, the thermostat will activate the connected heating appliance. It will turn off once the temperature reaches or exceeds the set point.
- کولنگ موڊ: If the measured temperature rises above your set temperature, the thermostat will activate the connected cooling appliance. It will turn off once the temperature drops to or below the set point.
5.2. Programmable Features (If Applicable)
While the product is listed as 'Programmable Non', some models or related products offer advanced timing and cycle modes. Refer to the specific instructions on your device's display for available programming options.
The following videos demonstrate various programming and control modes that may be available on similar thermostat plugs. Please refer to your device's specific interface for exact button functions and menu navigation.
Video: F01-F04 Modes Réglés (KETOTEK Store)
This video illustrates how to set different operational modes (F01-F04) on a similar thermostat, including cycle timers for ON/OFF periods. This can be useful for understanding basic timer functions.
Video: Prise Thermostat avec Minuterie (Inkbird Tech.)
This video demonstrates the timer functions of a thermostat plug, showing how to set countdowns and cycle times. This is relevant for managing appliance operation over specific durations.
Video: KETOTEK Prise Thermostat Jour/Nuit (KETOTEK Store)
This video explains how to set day and night temperature profiles on a similar thermostat, allowing for different temperature settings at various times of the day.
Video: Réglage du mode de contrôle de température (KETOTEK Store)
This video details the process of adjusting temperature control modes, which is fundamental to using any thermostat effectively.
6. سار سنڀال
- صفائي: ڊوائيس کي نرم، سڪل ڪپڙي سان صاف ڪريو. رگڙيندڙ ڪلينر استعمال نه ڪريو يا ڊوائيس کي پاڻي ۾ نه ٻوڙيو.
- اسٽوريج: If not in use for an extended period, store the thermostat in a cool, dry place.
7. مسئلا حل ڪرڻ
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڊوائيس پاور نه آهي | صحيح طرح سان پلگ ان ٿيل نه آهي؛ پاور ياtagاي؛ ناقص آئوٽليٽ | Check plug connection; Verify power supply; Try a different outlet. |
| Appliance not turning on/off as expected | Incorrect temperature settings; Appliance not working; Thermostat malfunction | Verify set temperature; Check appliance functionality; Reset thermostat. |
| غلط درجه حرارت پڙهڻ | Sensor obstructed or exposed to direct heat/cold source | Ensure sensor is clear and in an area representative of ambient temperature. |
8. وضاحتون
- برانڊ: معيار جي گرمي
- ماڊل نمبر: 222789245
- رنگ: اڇو - 417
- طول و عرض (L x W x H): 39 x 125 x 70 سينٽي
- انداز: Blanc Plug Socket Thermostat 3600VA
- طاقت جي درجه بندي: Up to 3600VA (Voltage ۽ Amperage not explicitly stated, typically 230V/16A for 3600VA)
- ڪنٽرول قسم: Thermostatic
- پروگرام جي صلاحيت: Non-programmable (basic thermostatic control)
9. وارنٽي ۽ سپورٽ
For warranty information or technical support, please contact Quality Heating customer service. Details may be available on the product packaging or the official Quality Heating webسائيٽ.
