VCELINK 8K Short HDMI Extender Cable Instruction Manual

1. پراڊڪٽ ختمview

The VCELINK 8K Short HDMI Extender Cable is designed to extend the length of your existing HDMI cables, providing a convenient solution for insufficient cable reach in various setups. This male-to-female adapter supports high-resolution video and audio transmission, making it ideal for connecting a wide range of devices to your displays.

This image displays two short HDMI extender cables, each featuring a male HDMI connector on one end and a female HDMI port on the other, designed for extending existing HDMI connections.

2. اهم خاصيتون

• HDMI Cable Extension: Extends existing HDMI cables, resolving issues of insufficient cable length. Supports mirroring and extended display modes.
• High-Resolution HDMI 2.1: Supports resolutions up to 7680 x 4320 (8K@60Hz) and 4K@120Hz/144Hz. Compatible with HDCP 2.2/2.3 and dynamic HDR for precise details and sharper images.
• هاء ڊيٽا ٽرانسميشن: Achieves data transmission speeds of up to 48Gbps. Supports VRR (Variable Refresh Rate) and QFT (Quick Frame Transport) functions for a smooth and immersive experience. Backward compatible with HDMI 2.0/1.4.
• Flexible & Safe Design: Double-covered with flexible PVC and nylon braid for resistance against bending, abrasion, and breakage. Ideal for tight spaces like behind wall-mounted TVs.
• پائيدار تعمير: Features an aluminum alloy shell and nylon braided shielding for multiple layers of protection against electromagnetic interference. Gold-plated connectors are corrosion-resistant and durable.

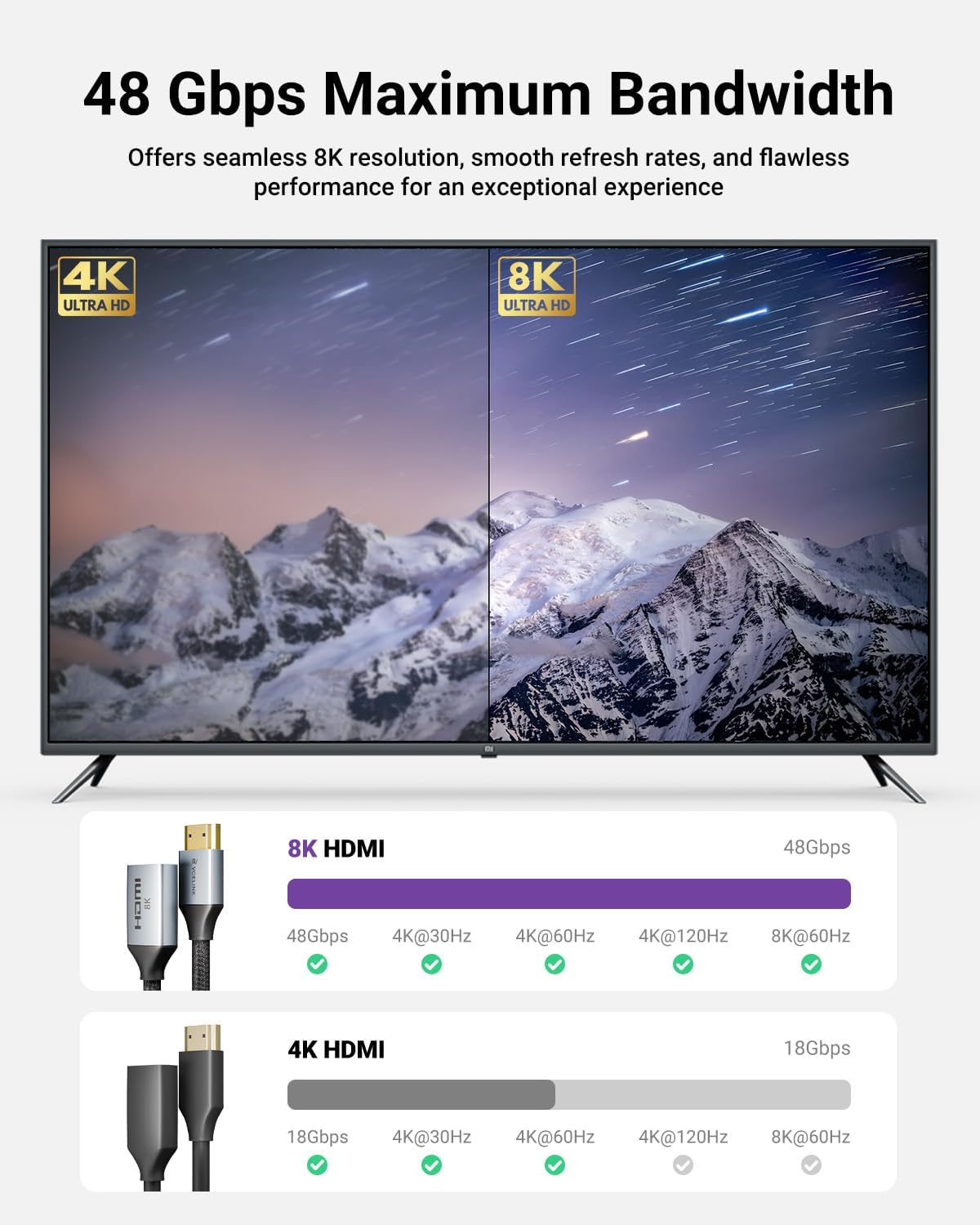

This image illustrates the difference in bandwidth and supported resolutions between 4K and 8K HDMI cables, highlighting the 48Gbps capability of the 8K extender.

This image showcases the design elements contributing to the cable's durability and flexibility, including the aluminum alloy case, gold-plated connectors, and flexible nylon cable.

This diagram details the internal structure of the cable, illustrating its triple shielding layers, including nylon braid, PVC jacket, braid, aluminum foil shields, and copper wire, designed to protect against EMI interference.

3. سيٽ اپ ۽ تنصيب

The VCELINK 8K Short HDMI Extender Cable is designed for simple plug-and-play installation. Follow these steps to set up your connection:

1. Identify the HDMI port on your source device (e.g., TV stick, game console, laptop) and your display device (e.g., HDTV, monitor, projector).
2. Connect the male end of the HDMI extender cable into the HDMI input port of your display device.
3. Connect your existing HDMI cable (from your source device) into the female end of the HDMI extender cable.
4. پڪ ڪريو ته سڀئي ڪنيڪشن محفوظ آهن سگنل جي نقصان کي روڪڻ لاءِ.

This image demonstrates practical applications of the HDMI extension cable, showing its use with an HDTV, a TV stick, and game consoles to provide flexible and convenient connections.

4. آپريٽنگ هدايتون

Once connected, the HDMI extender cable operates passively, transmitting audio and video signals between your devices. No additional software or power is required.

• MirrorMode: Your display will show the same content as your source device.
• وڌايل موڊ: Your display will act as a second screen, extending your desktop space.
• گیمنگ موڊ: Enjoy seamless gaming with high refresh rates and low latency when connected to compatible gaming consoles and displays.

Ensure your source and display devices are configured to output and receive the desired resolution and refresh rate for optimal performance (e.g., 8K@60Hz or 4K@120Hz).

This image depicts a family enjoying high-quality audio and video content, emphasizing the cable's support for 3D, eARC, Dolby Atmos, Dolby Vision, 8K 60Hz, 4K 120Hz, and DTS:X technologies.

5. مطابقت

The VCELINK 8K Short HDMI Extender Cable offers wide compatibility with various devices that feature a standard HDMI connector. It is designed to extend the distance between your source and display, providing greater flexibility for wiring and setup.

مطابقت رکندڙ ان پٽ ڊوائيسز:

• پي سي (پرسنل ڪمپيوٽر)
• PS4, PS5 (PlayStation Consoles)
• Xbox360 (Xbox Console)
• Roku TV Stick, Roku Streaming Player
• Other TV Sticks (e.g., Fire TV Stick)
• Nintendo سوئچ
• ليپ ٽاپ
• بلو رائي پليئر
• Satellite Boxes, Cable TV Boxes
• ڊي وي ڊي پليئر
• Any device that accepts a standard HDMI male connector.

مطابقت رکندڙ آئوٽ پُٽ ڊوائيسز:

• HDTVs (High-Definition Televisions)
• مانيٽر
• پروجيڪٽر
• گهر ٿيٽر سسٽم
• PC Stereo Speakers (for audio output)

This diagram visually represents the broad compatibility of the HDMI extender, listing common input devices such as Xbox, TV Stick, PS4/PS5, Laptop, Switch, Roku Streaming Player, and Blu-ray Player, along with output devices like TV, Monitor, and Projector.

6. وضاحتون

7. سار سنڀال

To ensure the longevity and optimal performance of your HDMI extender cable, follow these simple maintenance guidelines:

• سنڀال سان سنڀال: Avoid excessive bending, twisting, or pulling on the cable, especially near the connectors.
• صاف رکو: Periodically wipe the cable and connectors with a soft, dry cloth to remove dust and debris. Do not use liquid cleaners directly on the connectors.
• صحيح اسٽور: When not in use, store the cable in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid coiling the cable too tightly.
• ڪنيڪٽرن جي حفاظت ڪريو: Keep the gold-plated connectors free from dirt and moisture. If possible, use dust caps when the cable is disconnected.

8. مسئلا حل ڪرڻ

If you encounter issues with your VCELINK 8K Short HDMI Extender Cable, try the following troubleshooting steps:

ڪوبه سگنل يا وقفي وقفي سان سگنل نه:

• ڪنيڪشن چيڪ ڪريو: Ensure both ends of the extender cable and your main HDMI cable are securely plugged into their respective ports.
• Verify Source/Display: Confirm that your source device is powered on and outputting a signal, and your display device is set to the correct HDMI input.
• Test Without Extender: Temporarily connect your source device directly to the display using only your main HDMI cable to rule out issues with the source, display, or main cable.
• ڊوائيس ٻيهر شروع ڪريو: Power cycle both your source and display devices.

Poor Picture/Audio Quality:

• Check Resolution Settings: Ensure your source device's output resolution matches your display's capabilities.
• ڪيبل ڊگھائي: For optimal performance, especially with 8K resolutions, keep the total cable length (main HDMI cable + extender) within recommended limits (typically under 2 meters for HDMI 2.1).
• مداخلت: While the cable is shielded, ensure it is not running parallel to power cables or other sources of strong electromagnetic interference.

9. وارنٽي ۽ سپورٽ

VCELINK stands by the quality of its products. This HDMI extender cable comes with an 18-مهيني وارنٽي خريداري جي تاريخ کان.

If you have any questions, suggestions, or require technical assistance, please do not hesitate to contact our customer support team. We are committed to providing the best experience for all our users.

For support, please refer to the contact information provided with your product packaging or visit the official VCELINK webسائيٽ.
