PEAKMETER PM2128 / PM2128S ڊجيٽل ڪليئرنسamp ملٽي ميٽر هدايتون

1. تعارف

This instruction manual provides essential information for the safe and effective operation of your PEAKMETER PM2128 / PM2128S Digital Clamp Multimeter. Please read this manual thoroughly before use and retain it for future reference. This device is designed for measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, temperature, and performing continuity tests.

1.1 حفاظتي ڄاڻ

Always adhere to basic safety precautions when using this instrument to avoid potential electric shock, injury, or damage to the meter or equipment under test. Pay close attention to all warnings and cautions.

• لاڳو نه ڪريو voltage or current that exceeds the maximum specified limits.
• لائيو سرڪٽس سان ڪم ڪرڻ وقت انتهائي احتياط ڪريو.
• پڪ ڪريو ته ٽيسٽ ليڊز سٺي حالت ۾ آهن ۽ صحيح طرح سان ڳنڍيل آهن.
• Do not operate the meter if it appears damaged or if the case is open.
• Always turn off power to the circuit and discharge all high-voltage capacitors before measuring resistance, continuity, or capacitance.
• جڏهن بيٽري جو گهٽ اشارو ظاهر ٿئي ته صحيح پڙهڻ کي يقيني بڻائڻ لاءِ بيٽريون تبديل ڪريو.

2. پراڊڪٽ ختمview

The PEAKMETER PM2128 / PM2128S is a compact and versatile digital clamp multimeter featuring auto-ranging capabilities and a 6000-count display. It is designed for precise electrical measurements in various applications.

Figure 2.1: PEAKMETER PM2128 Digital Clamp Multimeter with its packaging and carrying case.

2.1 اهم خاصيتون

• خودڪار ۽ دستي رينجنگ: Automatically selects the appropriate measurement range, with an option for manual selection.
• 6000 ڳڻپ ڊسپلي: Provides high-resolution readings.
• صحيح RMS: Accurate measurements for non-sinusoidal waveforms (PM2128S model).
• اوور لوڊ تحفظ: Ensures safety across all measurement ranges.
• خودڪار بند: Conserves battery life by powering off after 10 minutes of inactivity.
• و Vol ۾ و Voltage: Capable of handling up to 1000V DC or 1000V AC between measurement terminal and ground.
• Diverse Measurements: ڊي سي/اي سي وول شامل آهيtage, AC/DC Current, Resistance, Capacitance, Frequency, Temperature, LowZ, and DC uA.
• غير رابطي وارو جلدtagاي (اين سي وي): ڳولي ٿو AC voltage بغير سڌو رابطو.
• Analogue Bar Graph Display: Provides a visual representation of measurement trends.

Figure 2.2: Visual representation of the multimeter's fully functional capabilities.

2.2 اجزاء

ڪل جي مکيه حصن سان پاڻ کي واقف ڪريوamp ملٽي ميٽر:

1. Clamp جبڙو: غير رابطي واري اي سي/ڊي سي ڪرنٽ جي ماپ لاءِ استعمال ڪيو ويندو آهي.
2. روٽري سوئچ: Selects the primary measurement function.
3. LCD ڊسپلي: ماپ جي پڙهائي، يونٽ، ۽ اشارا ڏيکاري ٿو.
4. فنڪشن بٽڻ: (e.g., FUNC, RAN, REL, HOLD, HZ/%) For selecting sub-functions, range, relative measurement, data hold, and frequency/duty cycle.
5. ان پٽ جڪس: For connecting test leads (COM, INPUT).
6. محرڪ: Opens the clamp جبڙو
7. اين سي وي سينسر: Located at the top of the clamp jaw for non-contact voltage سectionاڻڻ.
8. ٽارچ: اونداهي ماحول ۾ روشني فراهم ڪري ٿي.

شڪل 2.3: تفصيلي view of the NCV sensor and flashlight on the clamp ميٽر

3. سيٽ اپ

3.1 بيٽري لڳائڻ

The PEAKMETER PM2128 / PM2128S requires 1 Lithium Polymer battery (included). To install or replace the battery:

1. پڪ ڪريو ته ميٽر بند آهي.
2. ميٽر جي پوئين پاسي بيٽري جي ڪمپارٽمينٽ ڪَوَر کي ڳوليو.
3. ڍڪ کي محفوظ ڪندڙ اسڪرو کي کولڻ لاءِ اسڪرو ڊرايور استعمال ڪريو.
4. Remove the cover and insert the battery, observing correct polarity (+ and -).
5. بيٽري جي coverڪ کي ريپ ڪريو ۽ اسڪرو تنگ ڪيو.

3.2 پاور آن/آف

To power on the meter, rotate the rotary switch from the 'OFF' position to any desired measurement function. To power off, rotate the rotary switch back to the 'OFF' position. The meter also features an automatic shutdown function after approximately 10 minutes of inactivity to conserve battery life.

4. آپريٽنگ هدايتون

This section details how to perform various measurements using your clamp ملٽي ميٽر

4.1 AC/DC Voltage ماپڻ

1. Insert the black test lead into the 'COM' jack and the red test lead into the 'INPUT' jack.
2. Rotate the rotary switch to the 'V~' (AC Voltage) يا 'V=' (ڊي سي واليومtage) position. If the symbol is combined, press the 'FUNC' button to toggle between AC and DC.
3. Connect the test leads in parallel to the circuit or component you wish to measure.
4. جلد پڙهوtagاي قدر LCD ڊسپلي تي.

4.2 AC/DC ڪرنٽ ماپ (Clamp)

احتياط: For current measurement using the clamp, ensure only one conductor passes through the clamp jaw. Measuring multiple conductors will result in an inaccurate reading.

Figure 4.1: Operating the clamp jaw for current measurement.

1. Rotate the rotary switch to the 'A~' (AC Current) or 'A=' (DC Current) position. If the symbol is combined, press the 'FUNC' button to toggle between AC and DC.
2. cl کولڻ لاءِ ٽريگر کي دٻايوamp جبڙو
3. Enclose a single conductor of the circuit with the clamp جبڙو
4. Release the trigger to close the clamp jaw around the conductor.
5. LCD ڊسپلي تي موجوده قدر پڙهو.

4.3 مزاحمت جي ماپ

1. Insert the black test lead into the 'COM' jack and the red test lead into the 'INPUT' jack.
2. Rotate the rotary switch to the 'Ω' (Resistance) position.
3. پڪ ڪريو ته سرڪٽ ڊي-انرجائيز ٿيل آهي ۽ سڀئي ڪيپيسٽرز ڊسچارج ٿيل آهن.
4. ان جي مزاحمت کي ماپڻ لاءِ ٽيسٽ ليڊز کي جزو جي پار ڳنڍيو.
5. LCD ڊسپلي تي مزاحمت جي قيمت پڙهو.

4.4 گنجائش ماپ

1. Insert the black test lead into the 'COM' jack and the red test lead into the 'INPUT' jack.
2. Rotate the rotary switch to the 'F' (Capacitance) position.
3. Ensure the capacitor is fully discharged before connecting the test leads.
4. ڪيپيسيٽر ٽرمينلز تي ٽيسٽ ليڊز کي ڳنڍيو.
5. LCD ڊسپلي تي capacitance قدر پڙهو.

4.5 تعدد جي ماپ

1. Insert the black test lead into the 'COM' jack and the red test lead into the 'INPUT' jack.
2. Rotate the rotary switch to the 'Hz' (Frequency) position.
3. Connect the test leads in parallel to the circuit where you want to measure frequency.
4. LCD ڊسپلي تي تعدد قدر پڙهو.

4.6 حرارت جي ماپ

If your model includes a K-type thermocouple (check package contents), you can measure temperature:

1. Rotate the rotary switch to the 'TEMP' position.
2. Insert the K-type thermocouple into the input jacks, observing polarity.
3. Place the thermocouple probe on or near the object whose temperature you wish to measure.
4. LCD ڊسپلي تي گرمي پد جي قيمت پڙهو.

4.7 لڳاتار ٽيسٽ

1. Insert the black test lead into the 'COM' jack and the red test lead into the 'INPUT' jack.
2. Rotate the rotary switch to the continuity symbol (often shared with resistance or diode test, use 'FUNC' to select).
3. پڪ ڪريو ته سرڪٽ ڊي-انرجائيز ٿيل آهي.
4. ٽيسٽ ليڊز کي جزو يا تار تي ڳنڍيو.
5. جيڪڏهن مزاحمت تقريبن 30Ω کان گهٽ آهي، ته بزر وڄندو، جيڪو تسلسل کي ظاهر ڪندو.

4.8 غير رابطي واري جلدtage (NCV) جي چڪاس

1. Rotate the rotary switch to the 'NCV' position.
2. ڪل جي چوٽي کي منتقل ڪريوamp jaw (where the NCV sensor is located) close to the conductor or outlet.
3. ميٽر AC وول جي موجودگي کي ظاهر ڪندو.tage through audible beeps and/or visual indicators on the display.

4.9 Low Impedance Voltage (LowZ) Measurement

The LowZ function is designed to detect ghost voltages by providing a low impedance input. This helps to drain away stray voltages that can give false readings on standard high-impedance multimeters.

1. Insert the black test lead into the 'COM' jack and the red test lead into the 'INPUT' jack.
2. Rotate the rotary switch to the 'LowZ' position.
3. Connect the test leads in parallel to the circuit.
4. جلد پڙهوtagاي قدر LCD ڊسپلي تي.

4.10 ڊيٽا هولڊ فنڪشن

ڊسپلي تي موجوده ريڊنگ کي منجمد ڪرڻ لاءِ 'HOLD' بٽڻ دٻايو. هولڊ ڇڏڻ ۽ لائيو ماپون ٻيهر شروع ڪرڻ لاءِ ان کي ٻيهر دٻايو.

5. وضاحتون

The following table outlines the technical specifications for the PEAKMETER PM2128 and PM2128S models.

Figure 5.1: Comprehensive specifications for PM2128 and PM2128S.

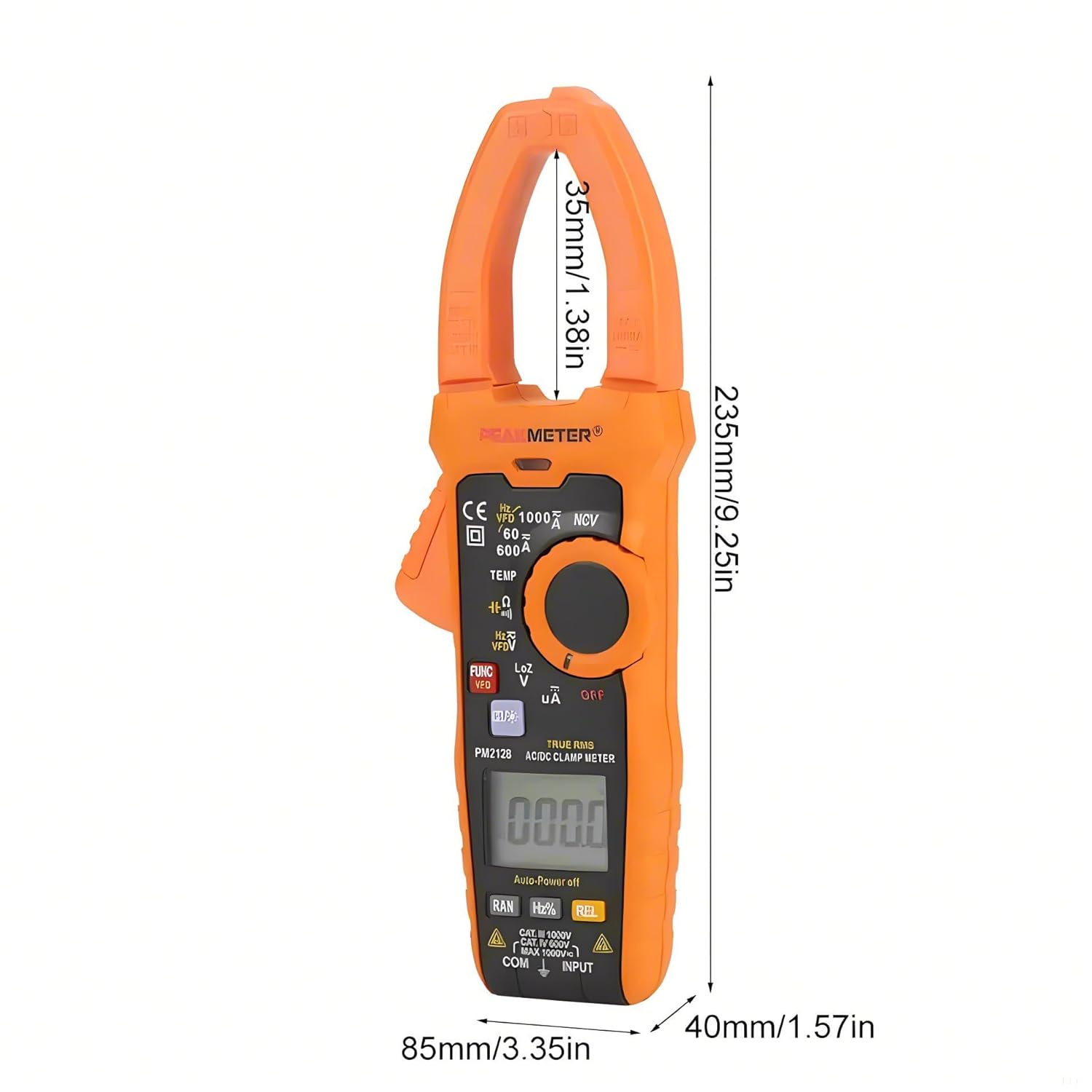

Figure 5.2: Dimensions of the PEAKMETER PM2128.

6. سار سنڀال

6.1 صفائي

To clean the meter, wipe the case with a damp ڪپڙو ۽ هلڪو صابڻ. رگڙيندڙ يا محلول استعمال نه ڪريو. استعمال کان اڳ پڪ ڪريو ته ميٽر مڪمل طور تي سڪي ويو آهي.

6.2 بيٽري مٽائڻ

When the low battery indicator appears on the display, replace the battery promptly to ensure accurate measurements. Refer to Section 3.1 for battery installation instructions.

6.3 اسٽوريج

If the meter is not used for an extended period, remove the battery to prevent leakage and damage. Store the meter in a cool, dry place, away from direct sunlight and extreme temperatures.

7. مسئلا حل ڪرڻ

This section addresses common issues you might encounter with your clamp ملٽي ميٽر

• ڪابه ڊسپلي: Check if the rotary switch is in an 'OFF' position. Ensure the battery is correctly installed and has sufficient charge. Replace the battery if necessary.
• غلط پڙھڻ: Verify that the correct measurement function is selected. Check test lead connections and ensure they are not damaged. Ensure the battery is not low. For current measurements, confirm only one conductor is within the clamp جبڙو
• Meter Shuts Off Automatically: This is a normal function (Auto Power Off) after 10 minutes of inactivity. To disable or reset, refer to the specific instructions in the full product manual if available, or simply turn the rotary switch to 'OFF' and then back to the desired function.
• 'OL' or 'OVER' on Display: Indicates an overload or out-of-range measurement. Select a higher range if available, or ensure the input does not exceed the meter's maximum specifications.

8. وارنٽي ۽ سپورٽ

PEAKMETER products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms, duration, and to obtain technical support or service, please refer to the warranty card included with your product or contact your point of purchase. Please have your model number (PM2128 or PM2128S) and purchase information ready when contacting support.
