TESSAN 200W Car Power Inverter User Manual

1. تعارف

The TESSAN 200W Car Power Inverter is designed to convert your vehicle's 12V DC power into 110V AC power, providing versatile charging options on the go. This device is equipped with 2 AC outlets and 4 USB ports, including PD 30W and QC 18W fast charging capabilities, making it an essential accessory for road trips, camping, and mobile work environments. It supports 12V vehicles and 16V Tesla models produced after November 2021.

Image 1: TESSAN 200W Car Power Inverter with its integrated cigarette lighter plug.

2. حفاظت جي ڄاڻ

This power inverter incorporates a multi-protection system to ensure the safety of your devices and the vehicle's electrical system. Please adhere to the following guidelines:

• و Overيڪ جلدtagاي تحفظ: Prevents damage from excessive input voltage.
• جلد تحتtagاي تحفظ: Safeguards against low input voltage حالتون.
• اوور لوڊ تحفظ: Automatically shuts down if connected devices exceed the 200W limit.
• شارٽ سرڪٽ تحفظ: بجلي جي شارٽس کان بچائيندو آهي.
• گرمي پد تحفظ کان وڌيڪ: A built-in cooling fan and thermal sensors prevent overheating.
• Always ensure the vehicle's engine is running when using high-power devices to avoid draining the car battery.
• Do not expose the inverter to water, moisture, or extreme temperatures.
• ٻارن جي پهچ کان پري رکو.

Image 2: Visual representation of the inverter's comprehensive safety protections.

3. مصنوعات جون خاصيتون

• 6-ان-1 پاور حل: Features 2 standard 110V AC outlets and 4 USB charging ports (1x USB-C PD 30W, 1x USB-A QC 18W, 2x USB-A 2.4A).
• هاء پاور آئوٽ: Delivers up to 200W of continuous power.
• تيز چارج: USB-C port with Power Delivery (PD) 30W and USB-A port with Quick Charge (QC) 3.0 18W for rapid device charging.
• حقيقي وقت Voltagاي ڊسپلي: An LED screen shows the current input voltage from your vehicle.
• انٽيگريٽيڊ کولنگ فين: Automatically activates to dissipate heat and maintain optimal operating temperature.
• ڪمپيڪٽ ۽ پورٽبل ڊيزائن: Measures 5.9 x 3 x 1.38 inches, designed for easy storage and minimal space occupation.

تصوير 3: مٿيview of the inverter's multiple power and charging ports.

تصوير 4: تفصيلي view of the fast-charging USB ports.

Image 5: The inverter features an internal cooling fan for heat dissipation.

4. سيٽ اپ

1. Locate Vehicle DC Power Socket: Identify the 12V DC power socket (cigarette lighter outlet) in your vehicle.
2. Insert Inverter Plug: Firmly insert the inverter's cigarette lighter plug into the vehicle's DC power socket. Ensure a secure connection.
3. پاور آن: Press the power button on the inverter. The LED display will illuminate, showing the current vehicle voltage, and the blue indicator light for the AC outlets will turn on.

Image 6: Connecting the inverter to the vehicle's DC power socket.

5. آپريٽنگ هدايتون

5.1 اي سي آئوٽليٽ استعمال ڪرڻ

• Once the inverter is powered on, plug your 110V AC devices (e.g., laptops, small fans) into the two AC outlets.
• مجموعي واٽ کي يقيني بڻائيtage of connected AC devices does not exceed 200W.

5.2 USB چارجنگ پورٽ استعمال ڪندي

• Connect your USB-powered devices (e.g., smartphones, tablets, digital cameras) to the appropriate USB ports.
• Use the USB-C PD 30W port for devices supporting Power Delivery fast charging.
• Use the USB-A QC 18W port for devices supporting Quick Charge 3.0.
• The two standard USB-A 2.4A ports are suitable for general USB charging.

5.3 LED Real-time Voltage ڊسپلي

• The digital LED display shows the current input voltage from your vehicle's battery.
• Monitor this display to ensure the voltage remains within the safe operating range (11V-17V DC).

Image 7: The LED display shows the real-time vehicle voltage.

6. استعمال جا منظرنامو

The TESSAN 200W Car Power Inverter is ideal for various situations where portable AC and USB power are needed:

• روڊ سفر: Keep laptops, tablets, and phones charged for entertainment or navigation.
• Camping: Power small appliances like portable fans, lights, or charge outdoor gear.
• Mobile Office: Use your laptop and other office electronics directly from your car.
• ايمرجنسي پاور: A reliable power source for essential devices during unexpected outages or travel delays.

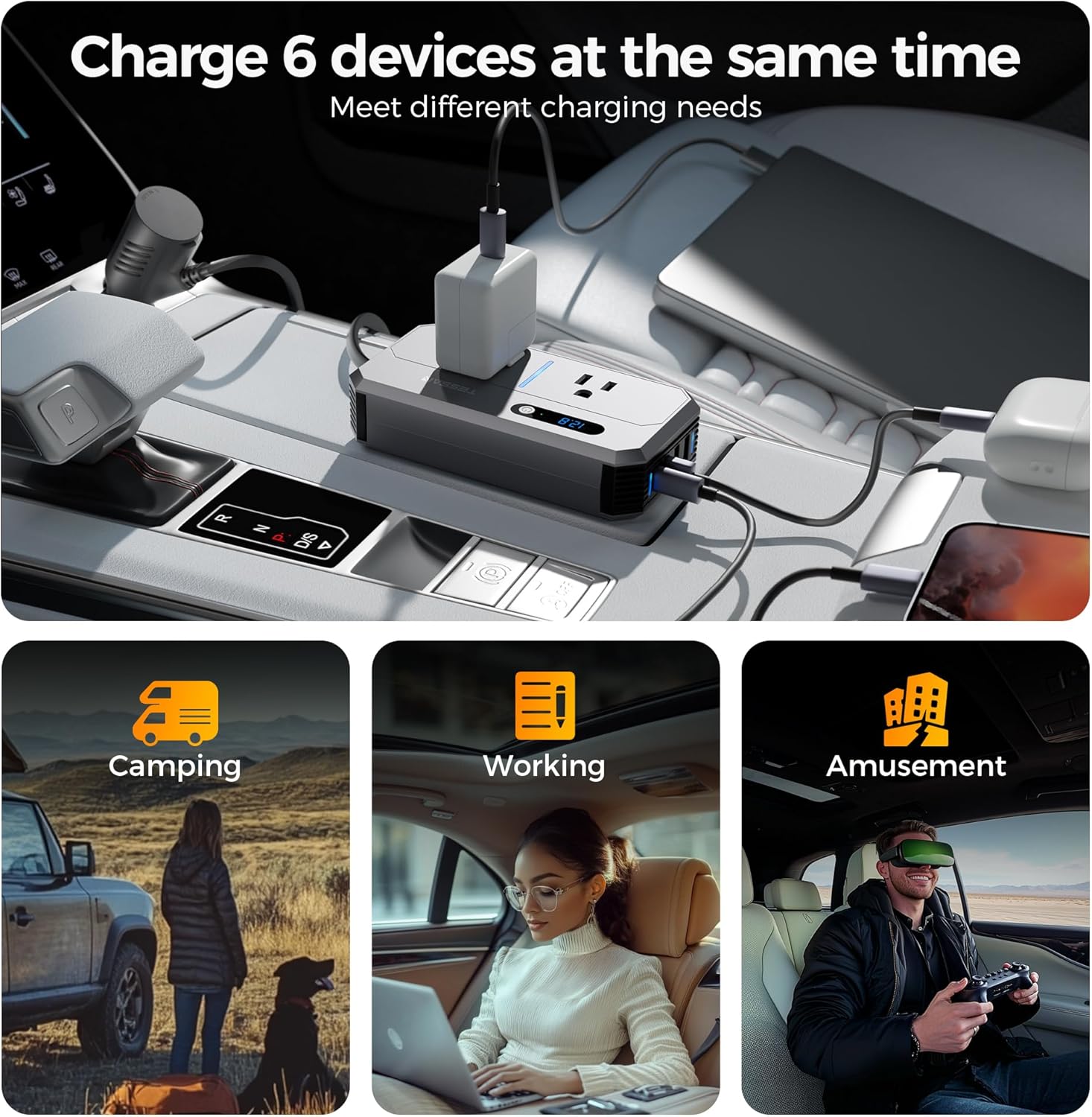

Image 8: The inverter supports charging multiple devices for diverse activities.

7. وضاحتون

Image 9: The compact size of the inverter for easy portability.

8. سار سنڀال

• Keep the inverter clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Ensure proper ventilation around the device, especially around the cooling fan vents, to prevent overheating.
• جڏهن استعمال ۾ نه هجي ته انورٽر کي ٿڌي، سڪل جاءِ تي ذخيرو ڪريو.
• ڊوائيس کي مضبوط اثرن لاءِ ڇڏڻ يا تابع ڪرڻ کان پاسو ڪريو.

9. مسئلا حل ڪرڻ

• Inverter not powering on:
  • Check if the cigarette lighter plug is fully inserted into the vehicle's socket.
  • Ensure the vehicle's engine is running (some vehicles require this for power to the socket).
  • Verify the vehicle's 12V DC power socket is functional.
• Devices not charging/powering:
  • Confirm the inverter is powered on (LED display active).
  • چيڪ ڪريو ته ڪل واٽ آهي يا نهtage of connected devices exceeds 200W. Disconnect some devices if overloaded.
  • Ensure cables are securely connected to both the inverter and the device.
  • For USB charging, ensure your device is compatible with the specific USB port (PD, QC, standard).
• Inverter overheating:
  • Ensure the cooling fan vents are not obstructed.
  • Reduce the load by disconnecting some devices.
  • Allow the inverter to cool down before resuming use.

10. وارنٽي ۽ سپورٽ

For warranty information, technical support, or any product-related inquiries, please refer to the contact details provided on the product packaging or visit the official TESSAN webسائيٽ. وارنٽي جي دعوي لاء توهان جي خريداري جي رسيد رکو.
