LAUNCH Original Adapter for DBSCar VII and SmartLink C VCI Connector User Manual

1. کانview

The LAUNCH Original Adapter is a replacement connector designed to facilitate communication between your LAUNCH diagnostic tool and a vehicle's OBD2 port. This adapter converts a DR15 male connection from your DBSCar VII or SmartLink C VCI Device Cable to a standard OBD2 16-pin male connector. It is constructed from zinc-plated copper to ensure reliable and corrosion-resistant connections.

اهم نوٽ: This product is solely a connector and does not possess any diagnostic functions on its own. It requires a compatible LAUNCH diagnostic device for operation. Please confirm your specific device model before purchase to ensure compatibility.

2. پيداوار جا حصا

پيڪيج ۾ ھيٺ ڏنل شيون شامل آھن:

• 1 x DR15 Male to OBD2 16 Pin Male Replacement Adapter

2.1 اڊاپٽر Views

شڪل 1: اڳيان ۽ پوئين views of the LAUNCH adapter, highlighting both connector types.

شڪل 2: تفصيلي view of the 3-Row DR15 Male Connector.

شڪل 3: تفصيلي view of the OBD2 16-Pin Male Connector.

3. مطابقت

This diagnostic adapter is specifically designed for use with DBSCar VII (DBSCar 7) or SmartLink C Device Cables from LAUNCH. It is compatible with a wide range of LAUNCH X431 diagnostic scanners, including but not limited to:

• CRP919XBT
• CRP919EBT
• CRP919MAX
• PRO3 ACE
• PROS V/V+5.0
• PRO3S+ V5.0
• PRO TT Elite
• PRO Dyno
• X431 V+ HD
• پرو 5
• PAD VII
• PAD V

Ensure your diagnostic device utilizes a DBSCar VII or SmartLink C Device Cable for proper connection with this adapter.

4. سيٽ اپ ۽ ڪنيڪشن

Follow these steps to properly connect the adapter for diagnostic use:

1. Connect to VCI Device: Plug the DR15 male end of the adapter into the corresponding DR15 female port on your LAUNCH DBSCar VII or SmartLink C VCI Device Cable. Ensure a secure and firm connection.
2. گاڏي سان ڳنڍيو: Locate your vehicle's OBD2 diagnostic port (typically found under the dashboard on the driver's side). Plug the OBD2 16-pin male end of the adapter into the vehicle's OBD2 port.
3. ڪنيڪشن جي تصديق ڪريو: Once both ends are connected, ensure all connections are snug. The adapter is now ready to facilitate communication between your diagnostic tool and the vehicle.

4.1 ڪنيڪشن جون شڪلون

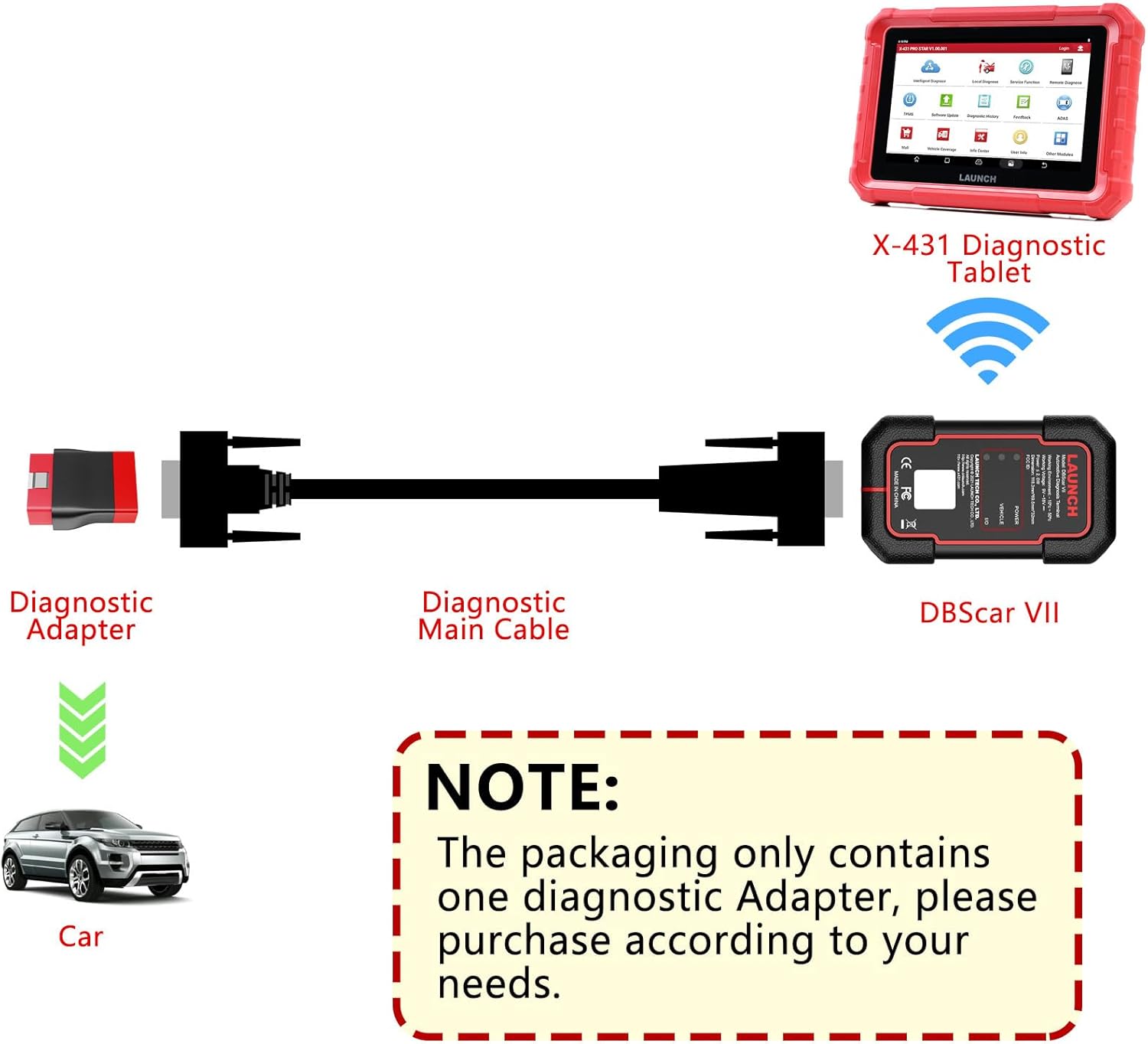

Figure 4: Connection diagram for DBSCar VII with the diagnostic adapter.

Figure 5: Connection diagram for SmartLink C with the diagnostic adapter.

5. آپريٽنگ هدايتون

The LAUNCH Original Adapter serves as a passive connector. Its primary function is to establish a physical link between your LAUNCH diagnostic tool and the vehicle. All diagnostic operations, data reading, and fault code analysis are performed directly through your compatible LAUNCH diagnostic scanner.

Refer to the user manual of your specific LAUNCH diagnostic tool (e.g., X431 CRP919EBT, PRO3 ACE, PAD VII) for detailed instructions on how to perform vehicle diagnostics, access functions, and interpret results.

6. سار سنڀال

To ensure the longevity and optimal performance of your adapter, follow these maintenance guidelines:

• صفائي: Regularly wipe the adapter's exterior with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the zinc-plated copper finish.
• اسٽوريج: Store the adapter in a clean, dry environment away from extreme temperatures, direct sunlight, and moisture. Keep it protected from physical impact to prevent damage to the connectors.
• چڪاس: Periodically inspect the connectors for any signs of wear, corrosion, or damage. Ensure the pins are straight and free from debris. The zinc-plated copper construction is designed to resist corrosion and oxidation, but proper care is still recommended.

7. مسئلا حل ڪرڻ

If you encounter issues while using the adapter, consider the following:

• ڪنيڪشن ناهي: Ensure both the DR15 and OBD2 connections are fully seated and secure. A loose connection can prevent communication.
• غير مطابقت رکندڙ ڊوائيس: Verify that your LAUNCH diagnostic tool uses a DBSCar VII or SmartLink C Device Cable. This adapter is not universally compatible with all LAUNCH products.
• جسماني نقصان: Inspect the adapter for any visible signs of damage to the cable or connectors. If damaged, replace the adapter.
• Adapter Size Mismatch: Some users have reported issues with the adapter not fitting certain DBScan VII cables, describing it as 'too small'. Always confirm your device model and connector type before purchasing to avoid compatibility problems.

For further assistance, refer to the troubleshooting section of your LAUNCH diagnostic tool's manual or contact LAUNCH customer support.

8. وضاحتون

9. وارنٽي ۽ سپورٽ

This LAUNCH Original Adapter comes with a 2 سال وارنٽي خريداري جي تاريخ کان. هي وارنٽي پيداوار جي خرابين کي ڍڪيندي آهي ۽ يقيني بڻائي ٿي ته پيداوار معيار جي معيارن تي پورو لهي.

For any questions, technical assistance, or warranty claims, please feel free to contact LAUNCH customer support. Refer to your product packaging or the official LAUNCH webجديد ترين رابطي جي معلومات لاءِ سائيٽ.
