تعارف
This manual provides detailed instructions for the installation, operation, and maintenance of your BTQILEYOO Q28 Motorcycle Helmet Bluetooth Headset with 1080P Camera. Please read this manual thoroughly before use to ensure proper function and safety.
حفاظت جي ڄاڻ
- Do not submerge the device in water beyond its IP66 rating. While water-resistant, it is not designed for prolonged submersion.
- Use only the recommended charger for optimal performance and to prevent damage to the battery.
- Ensure the device is securely mounted to the helmet before riding.
- Operating the device while riding should be done with caution to avoid distraction. Prioritize road safety.
پيڪيج مواد
مھرباني ڪري تصديق ڪريو ته سڀ شيون پيڪيج ۾ موجود آھن:
- BTQILEYOO Q28 Main Unit
- Helmet Mounting Bracket (Adhesive/Clip)
- Speakers and Microphone Kit
- USB قسم-سي چارجنگ ڪيبل
- 32GB TF Card (Pre-installed or separate)
- استعمال ڪندڙ دستي
سيٽ اپ ۽ تنصيب
1. ڊوائيس کي چارج ڪرڻ
Before first use, fully charge the Q28 unit. Connect the provided USB Type-C cable to the charging port on the device and to a suitable USB power adapter. The charging indicator (red) will illuminate during charging and turn off when fully charged.
Image: The BTQILEYOO Q28 unit connected to a charging cable, illustrating the charging process.
2. TF ڪارڊ داخل ڪرڻ
Locate the TF card slot on the device. Gently insert the provided 32GB TF card (or another compatible card up to 256GB) into the slot until it clicks into place. Ensure the card is inserted correctly to avoid damage.
Image: A close-up of the BTQILEYOO Q28 unit showing a TF card being inserted into its designated slot.
3. Helmet Mounting
Attach the mounting bracket to the side of your helmet using either the adhesive pad or the clip mechanism. Ensure the bracket is firmly secured. Then, slide the Q28 main unit onto the bracket until it locks into place. The camera body can be rotated 360 degrees for optimal recording angle.
Image: The BTQILEYOO Q28 unit mounted on the side of a motorcycle helmet, demonstrating its placement.
4. اسپيڪر ۽ مائڪروفون جي انسٽاليشن
Insert the speakers into the helmet's ear pockets and route the microphone towards your mouth. Connect the speaker/microphone cable to the speaker/marker connector on the Q28 unit. Ensure cables are tucked away neatly to avoid interference or discomfort.
5. بلوٽوٽ جوئر
- With the device off, press and hold the Power/Answer button until the Bluetooth indicator (blue) flashes rapidly, indicating pairing mode.
- پنهنجي موبائيل فون تي، بلوٽوٿ کي فعال ڪريو ۽ موجود ڊوائيسز جي ڳولا ڪريو.
- Select "BTQILEYOO Q28" from the list. Once connected, the blue indicator will flash slowly.
6. WiFi Hotspot and App Connection
The Q28 features a WiFi hotspot for mobile connectivity, allowing real-time preview, playback, and download of videos/photos via a dedicated app.
- Download the companion app (refer to the quick start guide for app name and download instructions).
- Press the Photo/WiFi button on the Q28 to activate the WiFi hotspot.
- On your phone, connect to the Q28's WiFi network (SSID and password typically found in the quick start guide or on the device itself).
- Open the app to access camera functions, view recordings, and manage files.

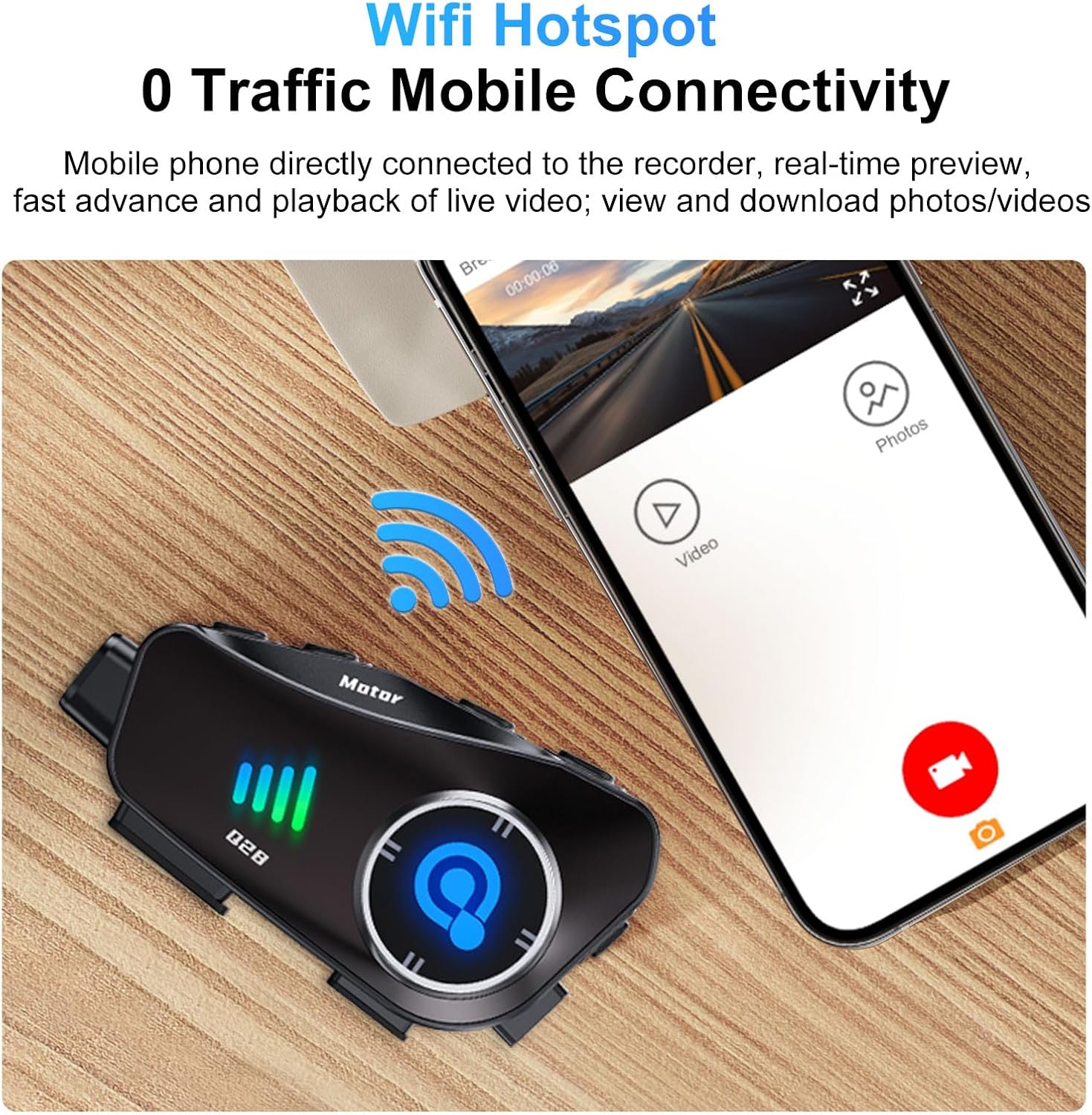

Image: The BTQILEYOO Q28 unit next to a smartphone displaying the companion app interface, indicating WiFi connectivity for media management.
آپريٽنگ هدايتون
Device Controls Overview
Familiarize yourself with the device's buttons:
Image: A diagram illustrating the various function buttons on the BTQILEYOO Q28 unit, with corresponding numbers and descriptions.
- 1. Switch on/off/answer/hang up/play/pause: Multi-function button for power and call/music control.
- 2. Voice assistant key: Activates voice assistant (Siri, Google Assistant).
- 3. Speaker/Marker connector: Port for connecting speakers and microphone.
- 4. بندرگاهه چارج ڪرڻ: چارج ڪرڻ لاءِ USB ٽائپ-سي پورٽ.
- 5. Logger marker: Not explicitly defined, likely for marking specific points in recordings.
- 6. Recorder memory card: TF ڪارڊ سلاٽ.
- 7. Volume +/Next song: حجم وڌائي ٿو يا ايندڙ ٽريڪ ڏانهن ڇڏي ٿو.
- 8. Volume -/Previous song: Decreases volume or goes to previous track.
- 9. Photo/WiFi on or off: Toggles photo mode or WiFi hotspot.
- 10. Recorder on/off button / turn on or stop recording: Controls video recording.
- 11. Logger indicator light (blue) / WiFi on light (green): Status indicators.
- 12. Surveillance camera: The camera lens.
Camera Operation (Video/Photo)
The Q28 features a 1080P 120° ultra-wide-angle lens for recording high-definition video and capturing 2MP images.
- رڪارڊنگ شروع/بند ڪريو: Press the "Recorder on/off button / turn on or stop recording" (10) to start or stop video recording. The logger indicator light (11) will change to indicate recording status.
- فوٽو ڪڍو: Press the "Photo/WiFi on or off" button (9) briefly to take a still photograph.
- ڪئميرا زاويه کي ترتيب ڏيو: The camera body can be rotated 360 degrees to achieve the desired horizontal or vertical shooting angle.
Image: The BTQILEYOO Q28 unit highlighting its 1080P HD camera lens and wide-angle capabilities.
موسيقي پلے بیک
- Once paired with your phone, open your music player.
- Press the Power/Answer button (1) to play or pause music.
- Use Volume +/Next song (7) to increase volume or skip track.
- Use Volume -/Previous song (8) to decrease volume or go to previous track.
ڪال انتظام
- خودڪار جواب: Incoming calls will be automatically answered after 10 seconds.
- Manual Answer/End Call: Briefly press the Power/Answer button (1) to answer or end a call.
- وائس ڪنٽرول: Press the Voice assistant key (2) to activate your phone's voice assistant (Siri, Google Assistant) for hands-free commands.
Image: A motorcycle rider wearing a helmet with the BTQILEYOO Q28, illustrating the automatic call answering feature.
شور جي گھٽتائي
The Q28 incorporates CVC algorithm and DSP hardware for effective noise reduction, ensuring clear audio during calls by minimizing environmental sounds.
سار سنڀال
- صفائي: ڊوائيس کي نرم سان مسح ڪريو، ڊيamp cloth. Avoid using harsh chemicals or abrasive materials. Ensure the camera lens is clean for optimal video quality.
- اسٽوريج: جڏهن استعمال ۾ نه هجي ته ڊوائيس کي ٿڌي، سڪل جاءِ تي رکو. انتهائي گرمي پد کان پاسو ڪريو.
- بيٽري جي سنڀال: بيٽري جي زندگي کي وڌائڻ لاءِ، بيٽري کي بار بار مڪمل طور تي چارج ڪرڻ کان پاسو ڪريو. ڊوائيس کي باقاعدي چارج ڪريو، جيتوڻيڪ مسلسل استعمال ۾ نه هجي.
- پاڻي جي مزاحمت: While IP66 rated, avoid direct high-pressure water jets. Ensure all ports are securely closed before exposure to water.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڊوائيس تي طاقت نه آهي. | گھٽ بيٽري. | مهيا ڪيل USB ٽائيپ-سي ڪيبل استعمال ڪندي ڊوائيس کي مڪمل طور تي چارج ڪريو. |
| Cannot pair with phone via Bluetooth. | Device not in pairing mode; phone's Bluetooth off; interference. | Ensure Q28 is in pairing mode (rapid blue flash). Turn phone's Bluetooth off and on. Move closer to the device. |
| Camera not recording or app connection fails. | TF card issue; WiFi hotspot off; incorrect app connection. | Check TF card insertion. Ensure WiFi hotspot is active (green light). Reconnect phone to Q28's WiFi. Restart app and device. |
| خراب آڊيو معيار يا تمام گهڻو شور. | Microphone placement; environmental factors. | Adjust microphone closer to your mouth. Ensure helmet padding does not obstruct microphone. |
وضاحتون
- ماڊل: سوال28
- ڪئميرا قرارداد: 1080P HD (1920*1080 @ 30FPS)
- لينس زاويه: 120° Ultra-Wide Angle
- فوٽو حل: 2MP (4032*3024)
- بلوٽوت ورزن: 5.3
- شور جي گھٽتائي: سي وي سي الگورٿم + ڊي ايس پي هارڊويئر
- بيٽري جي گنجائش: 1500mAh
- ميوزڪ پلے بیک وقت: 50 ڪلاڪ تائين
- Video Recording Time: 6.5 ڪلاڪ تائين
- اسٽينڊ بائي ٽائيم: 18 مهينن تائين
- چارج پورٽ: USB Type-C (supports fast charging)
- TF ڪارڊ سپورٽ: Up to 256GB (32GB card included)
- پنروڪ درجه بندي: IP66
- مواد: المونيم
- شيء جو وزن: 10.8 اونس
- پيڪيج جي ماپ: 5.24 x 4.06 x 3.03 انچ

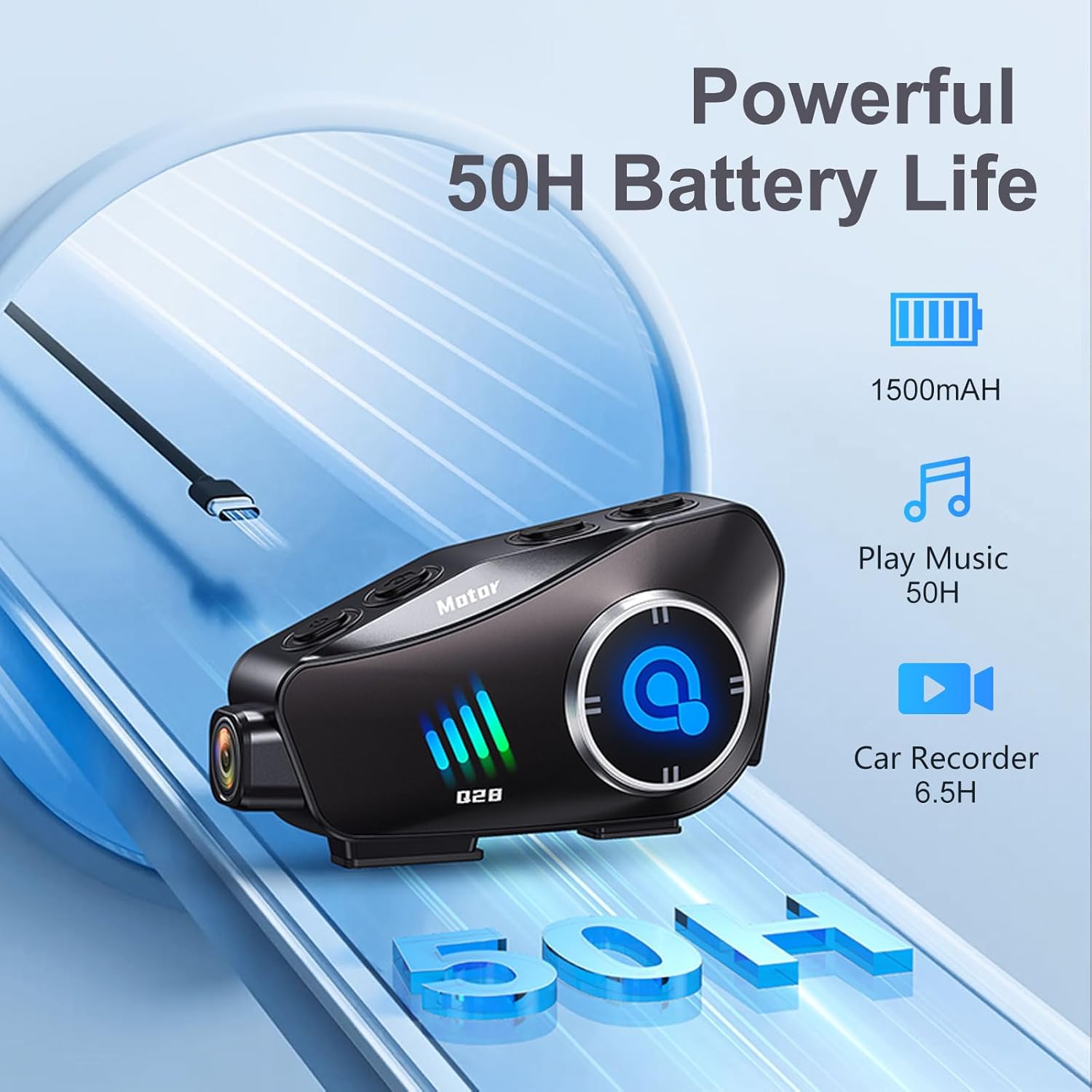

Image: The BTQILEYOO Q28 unit illustrating its powerful 1500mAh battery, offering 50 hours of music playback and 6.5 hours of video recording.
وارنٽي ۽ سپورٽ
For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. For technical support or further assistance, please reach out to BTQILEYOO customer service through their official channels.
