Aigostar 30W LED Floodlight with Motion Sensor User Manual

1. تعارف

Thank you for choosing the Aigostar 30W LED Floodlight with Motion Sensor. This manual provides essential information for the safe installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before use and retain them for future reference. This product is designed for outdoor use, featuring IP65 waterproofing and a highly efficient LED chip for bright, energy-saving illumination.

2. حفاظتي هدايتون

• برقي حفاظت: Installation must be performed by a qualified electrician in accordance with local wiring regulations. Ensure the power supply is disconnected before installation or maintenance.
• گرائونڊنگ: The floodlight must be properly grounded to prevent electric shock.
• جلدtage: بجلي جي فراهمي کي يقيني بڻائيtage پراڊڪٽ ليبل تي بيان ڪيل گهرجن سان ملندو آهي.
• گرمي: Do not cover the floodlight with insulating material. Ensure adequate ventilation around the fixture to prevent overheating.
• روشني جو ذريعو: Do not stare directly into the LED light source when it is illuminated, as this may cause eye damage.
• نقصان: If the cable or housing is damaged, do not use the product. Contact customer support for assistance.
• نيڪال: اليڪٽرانڪ فضلي لاءِ مقامي ضابطن جي مطابق پيداوار کي ذميواري سان ضايع ڪريو.

3. مصنوعات جون خاصيتون

• Motion Sensor with 3 Modes: Features TIME, SENS, and LUX modes for customizable operation.
• Adjustable Detection: Infrared sensor allows sensitivity adjustment from 2 to 8 meters.
• Adjustable Illumination Time: Set the light-on duration from 10 seconds to 10 minutes.
• High Brightness & Energy Efficiency: 30W LED provides 2750 lumens, replacing a 275W incandescent bulb and saving over 85% energy.
• وائڊ بيم اينگل: 120-degree beam for broad illumination.

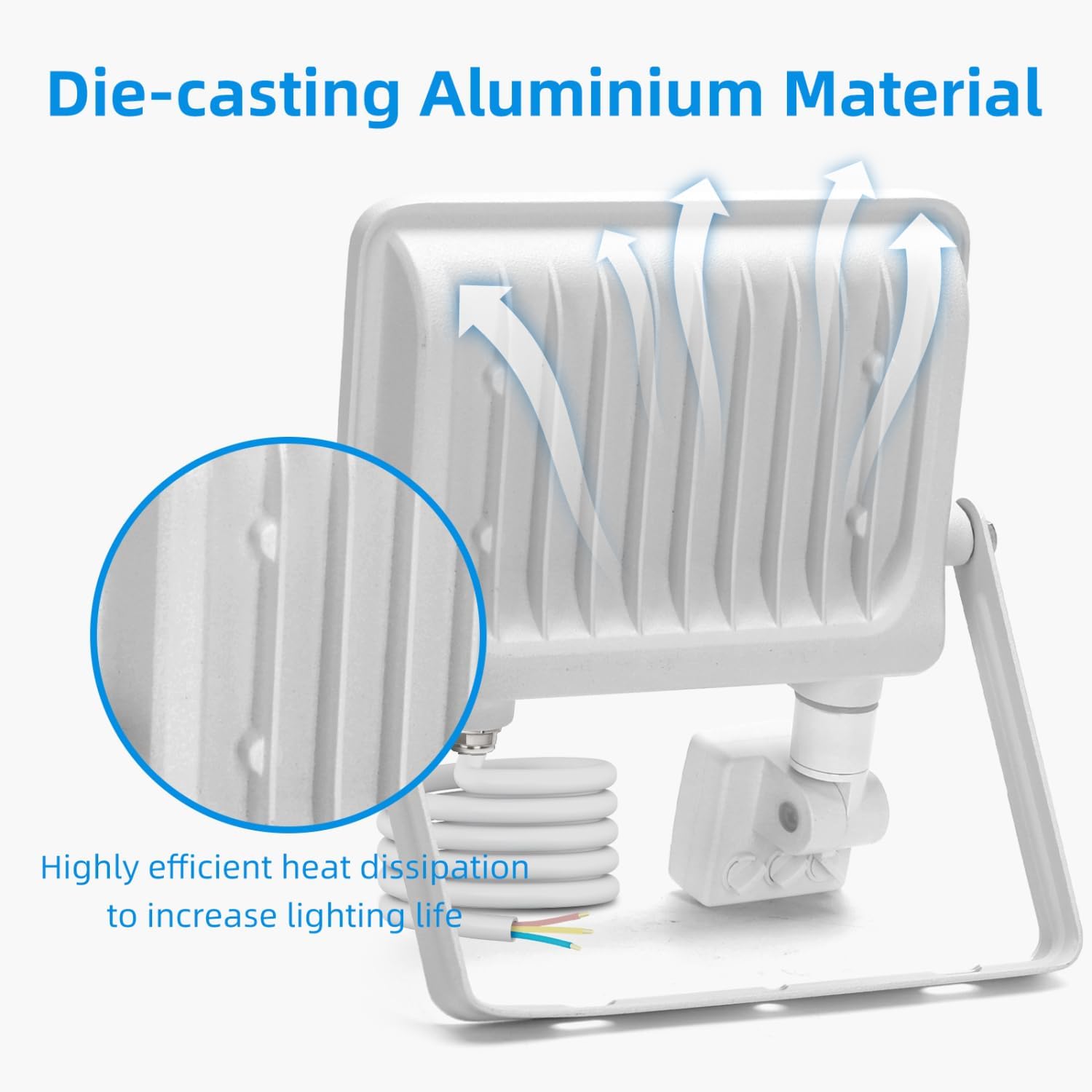

• ترقي يافته گرمي جو خاتمو: Thick fin design on the back ensures efficient cooling and extends LED lifespan to over 25,000 hours.
• IP65 تحفظ: Die-cast aluminum alloy housing with tempered glass provides resistance against heat, corrosion, shock, rain, snow, and sand.
• ورسٽائل تنصيب: Adjustable metal stand allows for ceiling, wall, or floor mounting.

4. پيڪيج مواد

پيڪيج ۾ شامل آهن:

• 2 x Aigostar 30W LED Floodlight with Motion Sensor
• لڳائڻ جا لوازمات (اسڪرو، وال پلگ)
• استعمال ڪندڙ دستي

5. سيٽ اپ ۽ تنصيب

Before installation, ensure the power supply is turned off at the main circuit breaker.

5.1 چڙهڻ وارو هنڌ

Choose a suitable outdoor location for the floodlight. The recommended mounting height for optimal motion detection is between 2 to 2.5 meters. Ensure the sensor has a clear line of sight to the area you wish to cover.

5.2 تنصيب جا طريقا

The adjustable metal stand allows for three primary installation methods:

• ڀت لڳائڻ: Secure the stand to a vertical surface using the provided screws and wall plugs.
• فرش لڳائڻ: Attach the stand to a horizontal surface, such as a patio or deck.
• ڇت تي چڙهڻ: Fasten the stand to an overhead surface, like an eave or porch ceiling.

5.3 برقي ڪنيڪشن

The floodlight comes with a wired electric connection. Connect the wires to your main power supply according to the following color codes:

• ناسي تار: لائيو (L)
• نيري تار: غير جانبدار (N)
• پيلو / سائو تار: زمين (زمين)

Ensure all connections are secure and properly insulated, especially for outdoor use. It is recommended to use a waterproof junction box for connections to maintain the IP65 rating of the overall installation.

6. آپريٽنگ هدايتون

The Aigostar LED Floodlight features a motion sensor with three adjustable settings: SENS, TIME, and LUX. These settings are controlled by rotary knobs located on the sensor unit.

6.1 SENS Setting (Sensitivity)

This knob adjusts the detection distance of the motion sensor.

• Turn the knob towards the "-" symbol for the lowest detection distance (approximately 2 meters).
• Turn the knob towards the "+" symbol for the highest detection distance (approximately 8 meters).

6.2 TIME Setting (Illumination Duration)

This knob controls how long the light remains on after motion is detected.

• Minimum duration: Approximately 10 seconds (±5 seconds).
• Maximum duration: Approximately 10 minutes (±2 minutes).

6.3 LUX Setting (Ambient Light Threshold)

This knob determines the ambient light level at which the sensor will activate the floodlight.

• Turn the knob towards the "Sun" symbol: The floodlight will operate both during the day and night (activates at ambient light levels from 3 LUX to 2000 LUX).
• Turn the knob towards the "Moon" symbol: The floodlight will only operate at night or in low light conditions (activates at ambient light levels below approximately 3 LUX).

7. سار سنڀال

• صفائي: Ensure the power is off before cleaning. Wipe the floodlight and sensor with a soft, damp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
• چڪاس: Periodically check the floodlight for any signs of damage to the housing, cable, or mounting bracket.
• Sensor Clarity: Keep the motion sensor lens clean and free from obstructions (e.g., dirt, leaves, spiderwebs) to ensure optimal performance.
• ڪوبه استعمال ڪندڙ-خدمت وارو حصو: ايل اي ڊي لائيٽ جو ذريعو تبديل نه ٿو ڪري سگهجي. پاڻ فلڊ لائيٽ کي کولڻ يا مرمت ڪرڻ جي ڪوشش نه ڪريو.

8. مسئلا حل ڪرڻ

9. وضاحتون

10. وارنٽي ۽ سپورٽ

Aigostar products are designed and manufactured to the highest quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or visit the official Aigostar webسائيٽ.

ٺاهيندڙ: ايگوسٽار

11. ايپليڪيشن سابقamples

The Aigostar LED Floodlight is suitable for various outdoor lighting applications, including:

• Gardens and backyards
• گيراج ۽ ڪارپورٽس
• Terraces and patios
• Driveways and pathways
• عمارتون ٻاهران
