1. تعارف
This manual provides essential information for the safe and efficient operation, installation, and maintenance of the ABB Robotics IRC5 Rectifier, model 3HAC14549-1/03B. Please read this manual thoroughly before using the product.
2. حفاظت جي ڄاڻ
Always observe local safety regulations and guidelines when installing, operating, or maintaining the rectifier. Only qualified personnel should perform installation and service procedures.
- Ensure power is disconnected before any installation or maintenance work.
- لائيو برقي حصن سان رابطي کان پاسو ڪريو.
- مناسب ذاتي حفاظتي سامان (PPE) استعمال ڪريو.
- Do not operate the unit if it appears damaged.
3. پراڊڪٽ ختمview
The ABB Robotics IRC5 Rectifier 3HAC14549-1/03B is a critical component designed for industrial robotic systems, specifically within the ABB IRC5 controller series. It is responsible for converting AC power to DC power, providing stable and regulated voltage for the robot's control and motor systems.

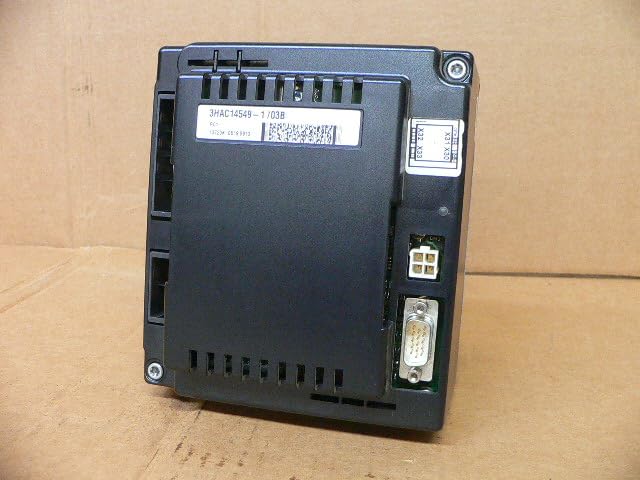

شڪل 3.1: ريڙهه view of the ABB IRC5 Rectifier. This image displays the main body of the rectifier unit, highlighting the product label with the model number "3HAC14549-1/03B" and a barcode. Various electrical connectors are visible, including a D-sub connector (likely for data or control signals) and a multi-pin power connector, indicating its role in power distribution within a robotic system.

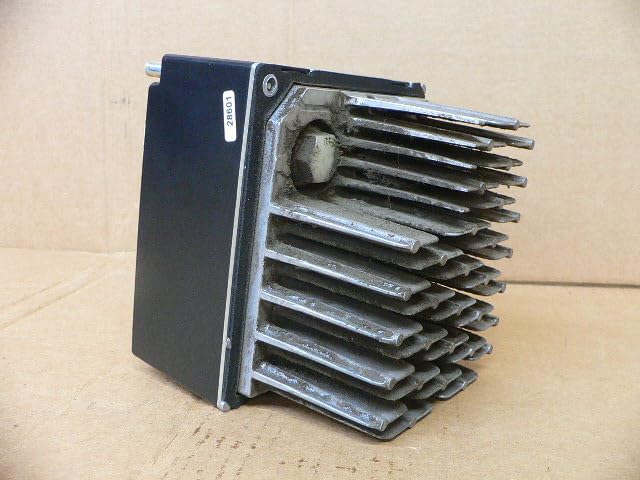

شڪل 3.2: پاسي view of the ABB IRC5 Rectifier. This perspective clearly shows a prominent finned heatsink, which is essential for dissipating heat generated during power conversion. The robust design of the heatsink suggests the unit is designed for continuous operation and efficient thermal management in industrial environments.

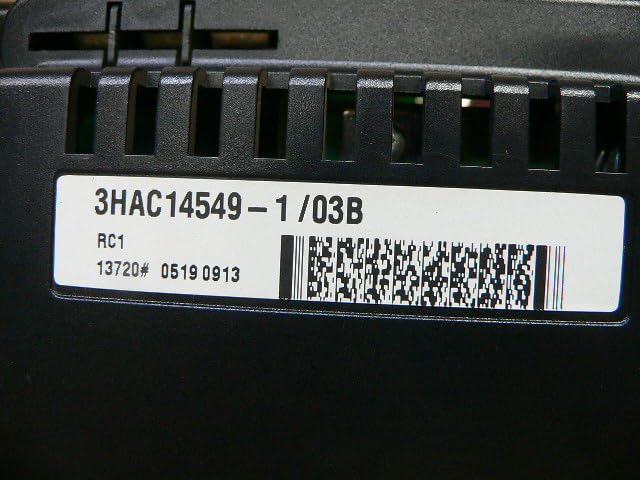

شڪل 3.3: Close-up of the product label. This detailed view highlights the specific model number "3HAC14549-1/03B" and associated manufacturing information, including a barcode and a QR code. This label is crucial for product identification, tracking, and ensuring compatibility with ABB IRC5 robotic systems.
4. سيٽ اپ ۽ تنصيب
The IRC5 Rectifier is designed for integration into an ABB IRC5 controller cabinet. Installation should only be performed by certified technicians.
- پاور ڪنيڪشن: Ensure all power to the IRC5 controller cabinet is completely disconnected and locked out before beginning installation.
- چڙهڻ: Securely mount the rectifier unit within the designated slot or area inside the IRC5 controller cabinet using appropriate fasteners. Ensure proper ventilation around the heatsink.
- برقي ڪنيڪشن: Connect the input power cables to the rectifier's designated terminals. Connect the output DC power cables to the appropriate components within the IRC5 system (e.g., drive units, control modules). Refer to the IRC5 controller wiring diagrams for specific connection points.
- سگنل ڪنيڪشن: Connect any necessary control or feedback signal cables (e.g., to the D-sub connector) as per the system's electrical schematics.
- تصديق: Double-check all connections for tightness and correct polarity. Ensure no loose wires or debris are present.
- پاور بحالي: Once installation is complete and verified, restore power to the IRC5 controller cabinet.
5. آپريٽنگ هدايتون
The IRC5 Rectifier operates as an integral part of the ABB IRC5 controller. Its operation is largely automatic once installed and powered correctly.
- پاور اپ تسلسل: The rectifier will power up automatically with the IRC5 controller. Monitor the controller's diagnostic indicators for any error codes related to power supply.
- عام آپريشن: During normal operation, the rectifier provides stable DC power to the robot's components. No direct user interaction with the rectifier itself is typically required.
- نگراني: System status and power supply health can be monitored through the IRC5 controller's HMI or diagnostic software.
6. سار سنڀال
Regular maintenance ensures the longevity and reliable operation of the rectifier.
- صفائي: Periodically inspect the heatsink and surrounding areas for dust and debris accumulation. Clean with compressed air or a soft brush. Ensure power is off before cleaning.
- ڪنيڪشن چيڪ: Annually, or as part of routine system maintenance, inspect all electrical connections for tightness and signs of corrosion or wear.
- ماحولياتي حالتون: Ensure the operating environment remains within specified temperature and humidity ranges to prevent overheating or condensation.
7. مسئلا حل ڪرڻ
If you encounter issues with the rectifier, consider the following common problems and solutions:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڪابه پاور آئوٽ | Input power disconnected; Internal fault; Blown fuse (if applicable). | Check input power supply and connections. Consult IRC5 controller diagnostics. Contact ABB service if fault persists. |
| گهڻو گرم ٿيڻ | بند ٿيل وينٽيليشن؛ حد کان وڌيڪ ماحول جو گرمي پد؛ اوور لوڊ. | Ensure heatsink is clear of obstructions. Verify cabinet cooling. Reduce load if possible. |
| Unstable Output Voltage | Loose connections; Internal component failure. | Check all output connections. Contact ABB service for diagnosis. |
For complex issues or internal faults, contact ABB technical support or a certified service provider.
8. وضاحتون
- ماڊل: 3HAC14549-1/03B
- پيداوار جي ماپ: 7.09 x 6.3 x 8.27 انچ؛ 4 پائونڊ
- ٺاهيندڙ: اي بي بي
- ASIN: B0DCVYY5PK
- پهريون دستياب: جنوري 15، 2024
9. وارنٽي ۽ سپورٽ
This ABB Robotics IRC5 Rectifier is typically covered by ABB's standard industrial equipment warranty. For specific warranty terms and conditions, please refer to your purchase agreement or contact ABB directly. Technical support and service are available through authorized ABB service centers worldwide.
وڌيڪ مدد لاءِ، سرڪاري ويب سائيٽ تي وڃو ايميزون تي اي بي بي اسٽور or the main ABB webسائيٽ.
