ٽورس هوم لينڊ الٽيميٽ ڊجيٽل ڪارڊ لیس ويڪيوم ڪلينر يوزر مينوئل

1. اھم حفاظتي ھدايتون

Please read this instruction manual carefully before using the appliance and keep it for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Do not immerse the appliance, its cord, or plug in water or any other liquid.
• هي اوزار صرف گهريلو استعمال لاءِ آهي. ان کي ٻاهر يا تجارتي مقصدن لاءِ استعمال نه ڪريو.
• اوزار کي ٻارن ۽ پالتو جانورن جي پهچ کان پري رکو.
• ويڪيوم ڪلينر کي خراب ٿيل ڪنڊ يا پلگ سان نه هلايو.
• Ensure the dust tank and filters are correctly installed before use.
• Do not vacuum liquids, hot ashes, sharp objects, or flammable materials.
• Only use the original charger and battery provided with the appliance.
• پاڻ اوزار جي مرمت يا ترميم ڪرڻ جي ڪوشش نه ڪريو. قابل سروس اهلڪارن سان رابطو ڪريو.

2. پراڊڪٽ ختمview

2.1 اجزاء

The Taurus Homeland Ultimate Digital vacuum cleaner comes with several components designed for versatile cleaning.

Figure 2.1: Main unit, extension tube, motorized brush, and various accessories.

• Main Unit (with Digital Brushless Motor and Dust Tank)
• توسيع ٽيوب
• Motorized Brush Head (with Optic LED)
• ALL ROAD Brush Roller (pre-installed in brush head)
• FUZZY Brush Roller (for delicate surfaces)
• 2-ان-1 ڪروائس اوزار
• گڏيل برش
• ڀت جبل بریکٹ
• پاور اڊاپٽر / چارجر

2.2 اهم خاصيتون

• ڊجيٽل برش لیس موٽر: Powerful 400W motor reaching 90,000 RPM for efficient cleaning.
• هاءِ سکشن پاور: Delivers 21,000 Pa for deep cleaning on various surfaces.
• هٽائڻ واري ليٿيم-آئن بيٽري: 29.6V battery offering up to 55 minutes of autonomy in ECO mode.
• Advanced Triple Filtration System: Cyclonic, HEPA, and Mesh filters capture fine dust and purify air.
• LCD اسڪرين: Displays battery level (25% to 100%) and alerts for filter/brush blockages.
• Optic LED Lighting: Integrated into the motorized brush head for improved visibility in dark areas.
• هلڪو ڊيزائن: Weighs approximately 2 kg for comfortable handling and extended reach.

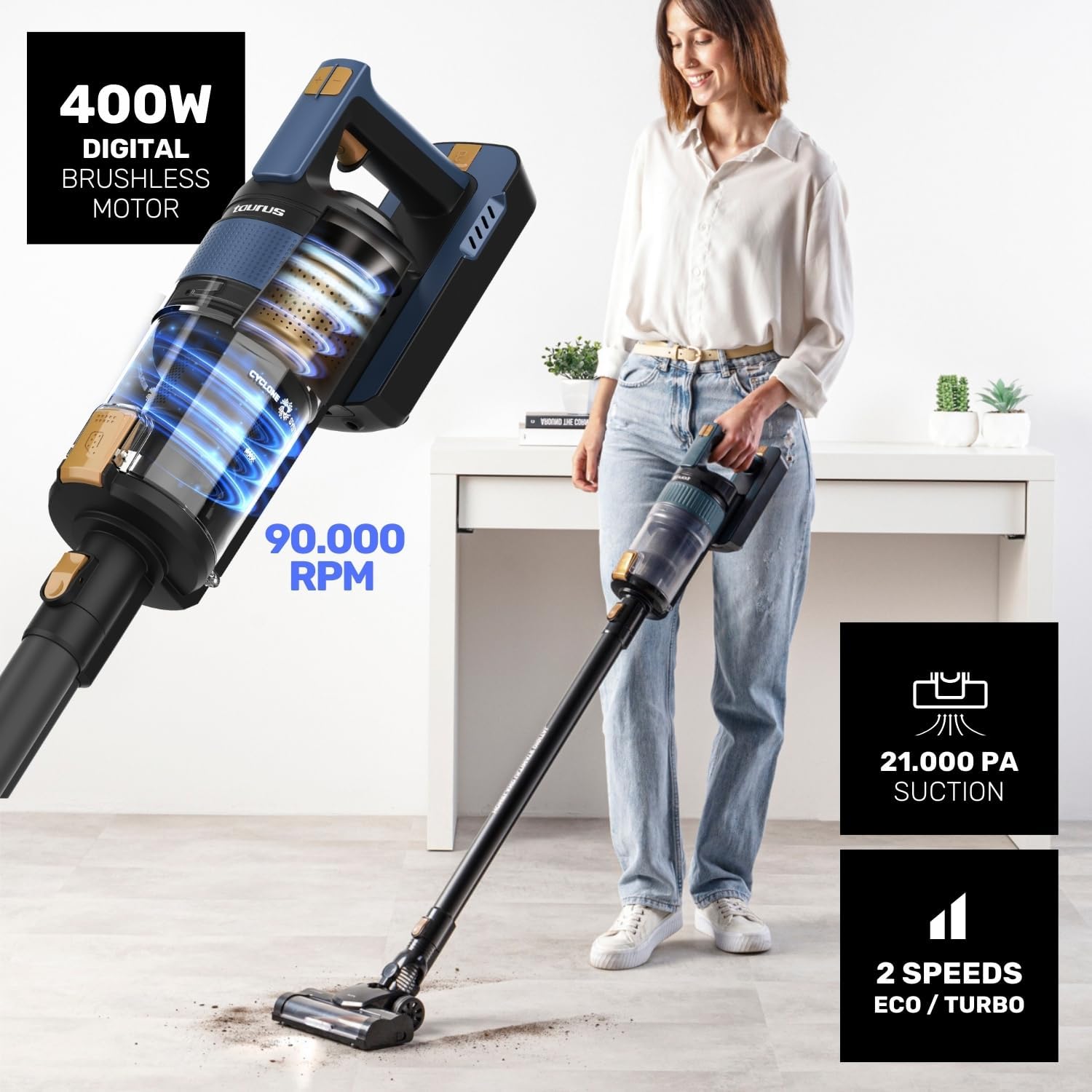

Figure 2.2: Powerful motor and suction capabilities.

Figure 2.3: Lightweight design for easy maneuverability.

3. سيٽ اپ ۽ اسيمبلي

3.1 اسيمبلي

1. ايڪسٽينشن ٽيوب کي مکيه يونٽ ۾ داخل ڪريو جيستائين اهو جاءِ تي ڪلڪ نه ڪري.
2. Attach the motorized brush head to the other end of the extension tube, ensuring it clicks securely.
3. Alternatively, attach accessories like the 2-in-1 crevice tool or combined brush directly to the main unit for handheld use.

Figure 3.1: One Touch System for easy accessory attachment.

3.2 بيٽري کي چارج ڪرڻ

Before first use, fully charge the battery. The battery is removable for convenient charging.

1. Remove the battery from the main unit by pressing the release button.
2. Connect the power adapter to the charging port on the battery.
3. Plug the adapter into a power outlet. The LCD screen will indicate charging status.
4. مڪمل چارج لڳ ڀڳ 4 ڪلاڪ لڳن ٿا.

Figure 3.2: Battery charging and autonomy details.

4. آپريٽنگ هدايتون

4.1 Powering On/Off and Speed Modes

• Press the power button to turn the vacuum cleaner on. It will start in ECO mode.
• Press the mode button to switch between ECO and TURBO modes.
• Press the power button again to turn the appliance off.

4.2 Using the Motorized Brush Head

The motorized brush head is equipped with Optic LED lighting for enhanced visibility.

• ALL ROAD Brush: Suitable for all floor types, including carpets and hard floors.
• FUZZY Brush: Ideal for delicate surfaces like parquet and hardwood floors. To change brush rollers, refer to the maintenance section.

Figure 4.1: ALL ROAD motorized brush in action.

Figure 4.2: Optic LED and interchangeable brush rollers.

4.3 لوازمات استعمال ڪرڻ

• 2-ان-1 ڪريوائس ٽول: تنگ خالن، ڪنڊن، ۽ پهچ ۾ مشڪل علائقن لاءِ بهترين.
• Combined Brush: Suitable for upholstery, curtains, and delicate surfaces.

5. سار سنڀال ۽ صفائي

باقاعده سار سنڀال بهترين ڪارڪردگي کي يقيني بڻائي ٿي ۽ توهان جي ويڪيوم ڪلينر جي عمر وڌائي ٿي.

5.1 ڊسٽ ٽينڪ کي خالي ڪرڻ

The 600 ml dust tank features a hygienic TOUCH & CLEAN emptying system.

1. Hold the main unit over a waste bin.
2. Press the dust tank release button to open the bottom flap and empty the contents.
3. Close the flap securely after emptying.

Figure 5.1: Hygienic dust tank emptying.

5.2 فلٽر صاف ڪرڻ

The Triple Filtration System (Cyclonic, HEPA, and Mesh filters) is washable.

1. Twist and pull to remove the dust tank from the main unit.
2. Separate the cyclonic, HEPA, and mesh filters from the dust tank.
3. Rinse all filter components under running water until clean. Do not use detergents.
4. Allow all parts to air dry completely for at least 24 hours before reassembling.
5. Reassemble the filters and dust tank, then reattach to the main unit.

Figure 5.2: Triple Filtration System components.

Figure 5.3: Washable filters for easy maintenance.

5.3 Cleaning Brush Rollers

Periodically check and clean the brush rollers to remove tangled hair or debris.

1. Turn off the vacuum cleaner and detach the motorized brush head.
2. Locate the brush roller release tab/lock on the side of the brush head.
3. Remove the brush roller and use scissors or a brush to remove any tangled hair or fibers.
4. Reinsert the clean brush roller and secure it in place.

6. مسئلا حل ڪرڻ

جيڪڏهن توهان کي پنهنجي ويڪيوم ڪلينر سان مسئلا درپيش اچن ٿا، ته عام مسئلن ۽ حلن لاءِ هيٺ ڏنل جدول جو حوالو ڏيو.

7. وضاحتون

8. وارنٽي ۽ ڪسٽمر سپورٽ

Taurus products are manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or spare parts, please refer to the warranty card included with your purchase or visit the official Taurus website. You may also contact customer service through the retailer where you purchased the product.

ڪنهن به وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
