1. تعارف
The CYCPLUS Smart Indoor Cycling Fan F1 is designed to enhance your indoor cycling experience by providing powerful, adaptive cooling. Featuring a BLDC motor, multiple speed modes, and smart control options via remote or mobile application, this fan integrates seamlessly with your training setup.
2. پيڪيج مواد
پڪ ڪريو ته هيٺ ڏنل سڀئي شيون توهان جي پيڪيج ۾ شامل آهن:
- Fan Main Unit x 1
- Adjustable Stand x 1
- Raising Base x 1
- Ground Base x 1
- AC Power Cable x 1
- ڊي سي پاور اڊاپٽر x 1
- Washer/L-screw x 1
- M5 اسڪرو x 2
- M5 Spare Screws x 2
- M3 Spare Screws x 2
- اسڪوشي ڊبليو ايڇ 1
- يوزر مينوئل x 1
- ريموٽ ڪنٽرول x 1
- پٽي x 2
- لنيارڊ ايڪس 1
Image: All components included in the CYCPLUS Smart Indoor Cycling Fan F1 package.
3. پراڊڪٽ ختمview
3.1 اهم خاصيتون

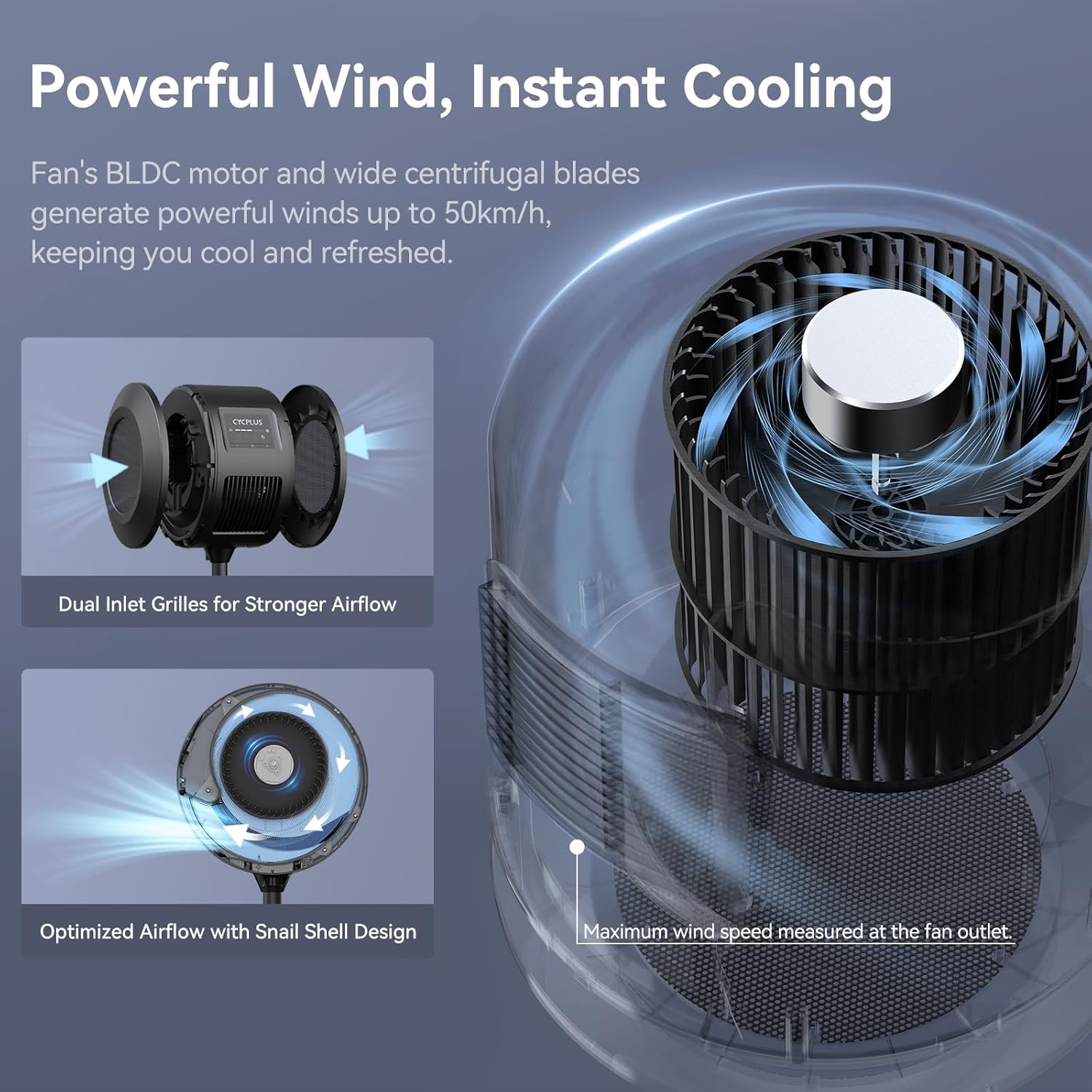

- طاقتور هوا جو وهڪرو: BLDC motor and centrifugal blades generate winds up to 50km/h for effective cooling.
- 5 اسپيڊ موڊس: Adjustable based on ANT+ speed sensor, heart rate monitor, power meter, or smart bike trainer data.
- Dual Base Design: Supports both ground base and adjustable height stand for flexible airflow direction.
- سمارٽ ڪنٽرول: Remote control and CYCPLUS APP for convenient operation and personalized settings.
- گھٽ شور آپريشن: BLDC motor and soft-impact blades ensure quiet workouts.
- Auto Memory: Fan remembers settings and sensors for seamless use.
3.2 اجزاء
The CYCPLUS Smart Indoor Cycling Fan F1 consists of the following main components:
- Fan Main Unit: Houses the motor, blades, and control panel.
- ترتيب ڏيڻ واري اسٽينڊ: Allows for height adjustment and elevated placement.
- Ground Base: Provides stable support for floor placement.
- ريموٽ ڪنٽرول: For wireless adjustment of fan settings.
- پاور اڊاپٽر: Connects the fan to an AC power source.
Image: The CYCPLUS Smart Indoor Cycling Fan F1 on its adjustable stand.
Image: The CYCPLUS Smart Indoor Cycling Fan F1 on its ground base.
4. سيٽ اپ جون هدايتون
4.1 اسيمبلي
The CYCPLUS Smart Indoor Cycling Fan F1 offers two primary assembly configurations: with the adjustable stand or with the ground base.
4.1.1 Adjustable Stand Assembly
- Attach the adjustable stand to the main fan unit using the provided M5 screws and screwdriver. Ensure a secure fit.
- Connect the raising base to the bottom of the adjustable stand.
- Place the assembled fan on a stable, flat surface.
Image: Assembly diagram for the fan with the adjustable stand.
4.1.2 Ground Base Assembly
- Attach the ground base directly to the main fan unit using the provided M5 screws and screwdriver.
- Ensure the fan unit is securely seated in the ground base.
- Place the fan on the floor in your desired training area.
Image: Assembly diagram for the fan with the ground base.
4.2 پاور ڪنيڪشن
- Connect the DC power adapter to the fan's power input port.
- Plug the AC power cable into the DC power adapter.
- Insert the AC power cable into a standard wall outlet.
- The fan will power on and enter standby mode.
4.3 بهترين جڳهه
For optimal cooling performance, position the fan approximately 1 meter (3 feet) from your training position. The dual base design allows for flexible airflow direction, either directly from the front or angled upwards.
Image: Optimal placement of the fan with adjustable stand, showing airflow and height range.
Image: Optimal placement of the fan with ground base, showing airflow and adjustable angle.
5. آپريٽنگ هدايتون
5.1 ڪنٽرول پينل ختمview
The fan unit features a simple button panel for basic operation.
Image: Control panel of the fan.

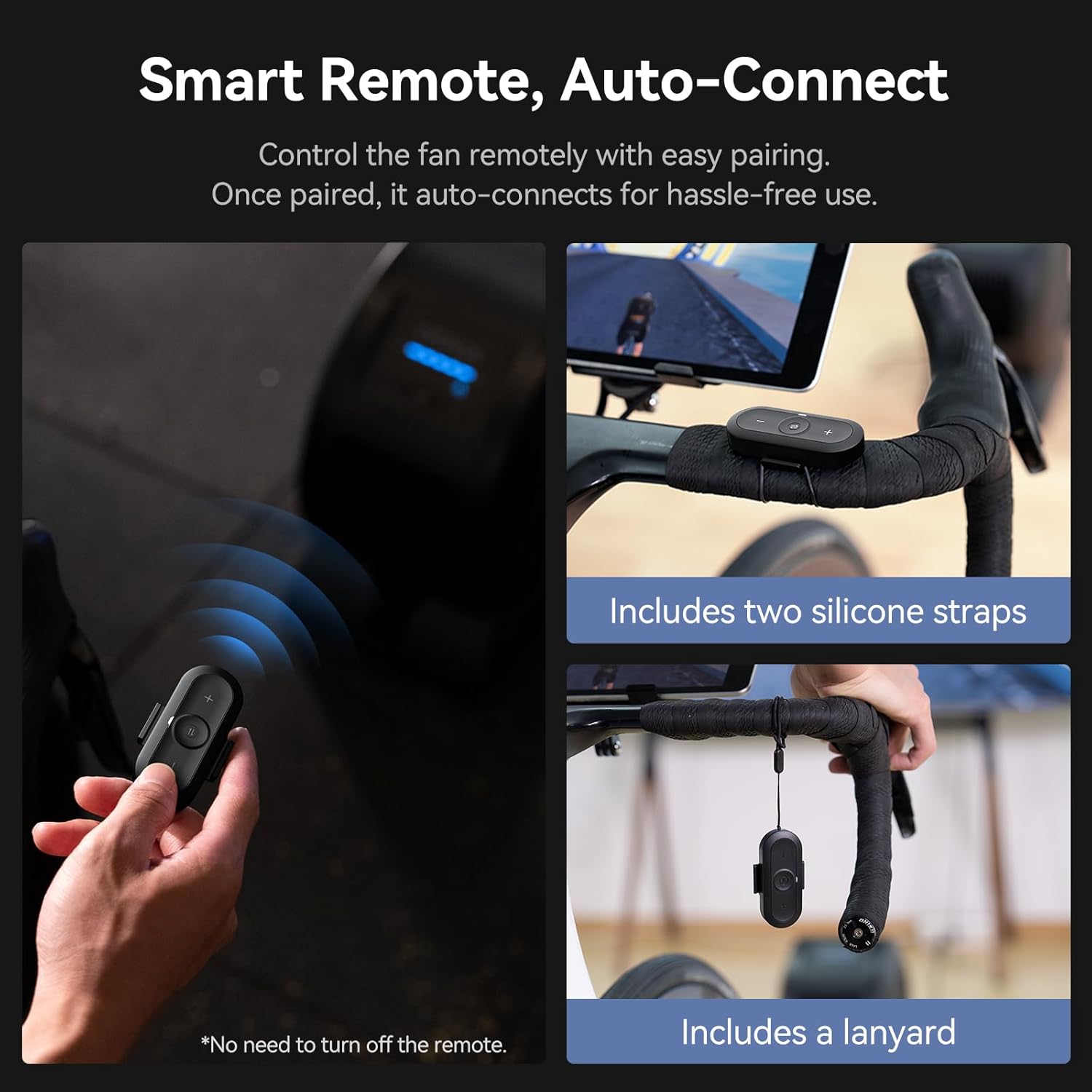

5.2 ريموٽ ڪنٽرول
The included remote control allows for convenient adjustment of fan settings from your training position. Once paired, the remote will auto-connect for future use.
- جوڙڻ: Follow the instructions in the remote control's specific manual for initial pairing.
- افعال: Adjust fan speed, switch between modes, and power on/off.
- چڙهڻ: Use the provided silicone straps or lanyard to attach the remote to your handlebars or wear it for easy access.
Image: Remote control and mounting options.
5.3 CYCPLUS Mobile Application
For advanced control and personalized settings, download and use the CYCPLUS APP.
- Download the CYCPLUS APP from your device's app store.
- Open the app and follow the on-screen instructions to pair with your fan via Bluetooth.
- Within the app, you can fine-tune workout parameters and tailor the fan's operation to your fitness level.
Image: CYCPLUS mobile application interface for fan control.

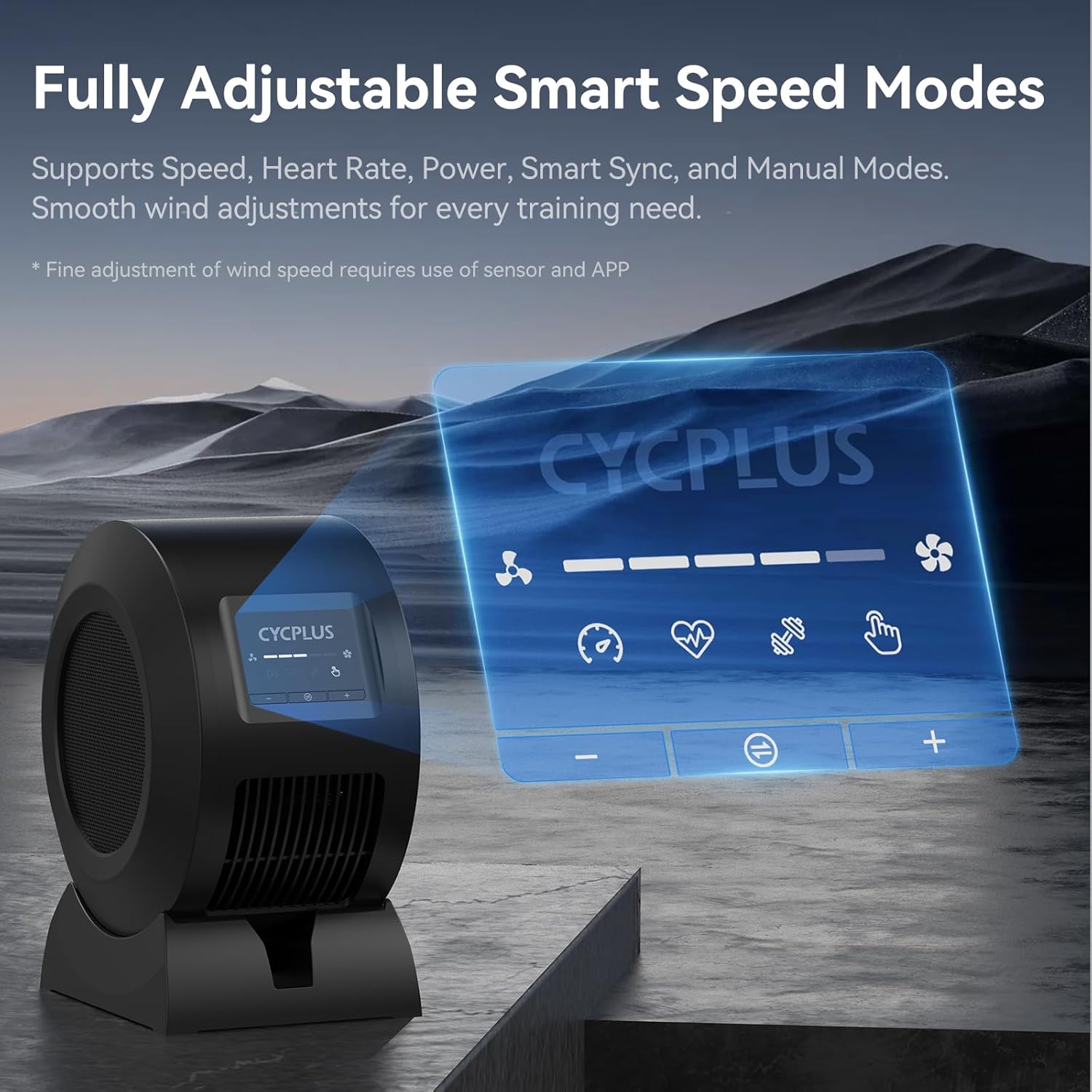

5.4 فين موڊس
The fan supports 5 distinct operating modes:
- اسپيڊ موڊ: Automatically adjusts fan speed based on your cycling speed (requires ANT+ speed sensor).
- دل جي شرح موڊ: Automatically adjusts fan speed based on your heart rate (requires ANT+ heart rate monitor). You can set initial and maximum values.
- پاور موڊ: Automatically adjusts fan speed based on your workout power (requires ANT+ power meter or smart bike trainer). You can set initial and maximum values.
- اسمارڊ موڊ: Connects multiple sensors (speed, heart rate, power) for intelligent, data-driven adjustments.
- دستي موڊ: Allows you to manually adjust the fan speed to your preference using the remote control or app.
تصوير: مٿانview of the 5 fan speed modes.
Image: Detailed explanation of data-driven fan modes.
5.5 Auto Memory Function
The fan is equipped with an auto-memory function that remembers your last used settings and connected sensors. This allows for automatic pairing and eliminates the need for repeated adjustments during subsequent uses.
Image: Illustration of the auto-memory feature in use.
6. سار سنڀال
Regular maintenance ensures the longevity and optimal performance of your CYCPLUS Smart Indoor Cycling Fan F1.
6.1 صفائي
- ٻاهران: پنکڙي جي ٻاهرين مٿاڇري کي نرم، ڊي سان صاف ڪريوamp ڪپڙو. استعمال نه ڪريو abrasive cleaners يا solvents.
- گريل: The front grille is removable for easy cleaning of the fan blades. Gently remove the grille and wipe the blades with a dry or slightly damp ڪپڙو. صفائي ڪرڻ کان اڳ پڪ ڪريو ته پنکڙو بند ٿيل آهي.
Image: Removable grille for cleaning.
6.2 اسٽوريج
جڏهن گهڻي عرصي تائين استعمال ۾ نه هجي، ته پنکڙي کي ٿڌي، سڪل جاءِ تي، سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري رکو.
7. مسئلا حل ڪرڻ
If you encounter issues with your CYCPLUS Smart Indoor Cycling Fan F1, refer to the following common problems and solutions:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| پنکڙو نه ٿو هلي. | بجلي جي فراهمي ناهي. | Check if the power cable is securely plugged into the fan and the wall outlet. Ensure the outlet is functional. |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي. | Remote battery low or not paired. | Replace the LR44 battery in the remote. Re-pair the remote with the fan if necessary. |
| Fan not adjusting speed automatically in smart modes. | Sensors not connected or out of range. | Ensure your ANT+ sensors (speed, HR, power) are active and within range. Check sensor connection status in the CYCPLUS APP. |
| App cannot connect to the fan. | Bluetooth disabled or fan not in pairing mode. | Ensure Bluetooth is enabled on your mobile device. Restart the fan and try connecting again. |
| غير معمولي شور يا وائبريشن. | Obstruction in fan blades or loose components. | Unplug the fan. Carefully check for any obstructions in the blades. Ensure all assembly screws are tightened. If the issue persists, contact customer support. |
If the problem persists after attempting these solutions, please contact CYCPLUS customer support for further assistance.
8. وضاحتون
| خاصيت | تفصيل |
|---|---|
| پيداوار جو نالو | سمارٽ فٽنيس فين |
| ماڊل نالو | F1 |
| برانڊ | CYCPLUS |
| درجه بندي پاور | 68 ڊبليو |
| خالص وزن | 5.5 ڪلوگرام (12.1 پائونڊ) |
| Compatible Input | 100-240V 50/60Hz |
| اڊاپٽر آئوٽ | 36V - 3A (Max) |
| وڌ ۾ وڌ گھمڻ جي رفتار | 1280 RPM |
| وڌ ۾ وڌ ايئر فلو | 670 m³/h |
| وڌ ۾ وڌ ويسٽ اسپيڊ | About 50 km/h |
| Sensor Connection Protocol | ANT+ |
| Mobile Connection Protocol | BLE (بلوٽوت گھٽ توانائي) |
| آپريٽنگ جي درجه حرارت | 0-40°C (32-104°F) |
| Product Dimensions (Ground Base) | 215mm (D) x 268mm (W) x 370mm (H) |
| Product Dimensions (Adjustable Stand) | 440mm (Base Diameter) x 950-1450mm (Adjustable Height) |
| ريموٽ ڪنٽرول بيٽري | 1 LR44 بيٽري (شامل) |
Image: Detailed technical specifications and dimensions.
9. وارنٽي ۽ سپورٽ
CYCPLUS provides a standard warranty for this product. Please refer to the warranty card included in your package or visit the official CYCPLUS webتفصيلي وارنٽي شرطن ۽ ضابطن لاءِ سائيٽ.
For technical support, troubleshooting assistance, or warranty claims, please contact CYCPLUS customer service through their official webسائيٽ يا توهان جي پراڊڪٽ دستاويزن ۾ ڏنل رابطي جي معلومات.
آن لائين وسيلا:
- CYCPLUS Amazon Store
- Official CYCPLUS Website (refer to product packaging for URL)
10. اضافي معلومات
10.1 Hidden Function: Front Wheel Rise
The unused ground base can double as a front wheel rise, enhancing riding comfort by leveling your bike when using a rear wheel trainer.
Image: Ground base used as a front wheel rise.
Note: Suitable for tires with an outer width of less than 32mm.
