Uwant B200 SE Spot Cleaner User Manual

1. تعارف ۽ حفاظت جي ڄاڻ

Thank you for choosing the Uwant B200 SE Spot Cleaner. This manual provides essential instructions for safe operation, maintenance, and troubleshooting. Please read it thoroughly before using the appliance and retain it for future reference.

اهم حفاظتي هدايتون

• صفائي يا سار سنڀال ڪرڻ کان اڳ هميشه بجلي جي فراهمي کان اوزار کي ڌار ڪريو.
• اوزار کي پاڻي يا ٻين مائع ۾ نه وجھو.
• Use only Uwant recommended cleaning solutions. Do not use flammable or combustible liquids.
• وارن، ڍڪيل ڪپڙا، آڱريون ۽ جسم جي سڀني حصن کي کليل ۽ هلندڙ حصن کان پري رکو.
• Do not use the appliance if the power cord or plug is damaged. Contact customer service for repair.
• هي اوزار صرف گهريلو استعمال لاءِ آهي. ٻاهر يا گلي مٿاڇري تي استعمال نه ڪريو.
• ٻارن جي پهچ کان پري رکو.

2. پراڊڪٽ ختمview

The Uwant B200 SE is a powerful and portable spot cleaner designed for deep cleaning of various fabric surfaces such as carpets, sofas, mattresses, and cushions. It features a robust motor and a user-friendly design.

اهم خاصيتون

• هاءِ سکشن پاور: Up to 12000Pa for effective stain and dirt removal.
• گھٽ شور آپريشن: Equipped with a 450W floating magnetic motor, operating at approximately 69dB.
• Hot Water Cleaning: Supports the use of hot water up to 55°C for enhanced cleaning performance on tough stains.
• 2-in-1 Water Tank: Integrated design for clean and dirty water, simplifying the cleaning process.
• هلڪو وزن ۽ پورٽبل: Weighs only 3.5 kg for easy maneuverability and storage.
• Wide Cleaning Brush: Features a 14 cm extra-wide brush for efficient deep cleaning.

اجزاء

Familiarize yourself with the main components of your Uwant B200 SE Spot Cleaner:

Image 2.1: The Uwant B200 SE Spot Cleaner with its hose, cleaning head, and included accessories like cleaning solution and additional brushes.

Image 2.2: Two types of replaceable brush heads. One is a 14cm wide brush for tough stains, and the other is designed for general fabric surfaces.

Image 2.3: Diagram illustrating the 2-in-1 water tank design, showing a 1300ml capacity for dirty water and a 1200ml capacity for clean water.

3. سيٽ اپ

پيڪنگ ڪرڻ

1. احتياط سان پيڪنگنگ مان سڀني اجزاء کي هٽايو.
2. Check for any damage. If any parts are damaged or missing, do not use the appliance and contact customer support.
3. پيڪنگنگ مواد کي ذميواري سان ختم ڪريو.

صاف پاڻي جي ٽانڪي ڀرڻ

1. Detach the clean water tank from the main unit.
2. ٽانڪي ڪيپ کوليو.
3. Fill the tank with clean water. For enhanced cleaning, you may use hot water up to 55°C. Add a small amount of Uwant cleaning solution if desired, following the solution's instructions. Do not overfill.
4. Securely close the tank cap and reattach the tank to the main unit.

Attaching the Cleaning Head

1. Select the appropriate brush head for your cleaning task (e.g., wide brush for carpets, smaller brush for delicate fabrics).
2. Connect the hose to the main unit and the selected cleaning head to the end of the hose, ensuring a secure fit.

4. آپريٽنگ هدايتون

The Uwant B200 SE is designed for effective spot cleaning on various surfaces. Always test a small, inconspicuous area first to ensure colorfastness and prevent damage.

Image 4.1: A woman demonstrating the use of the Uwant B200 SE to clean a stain on a white rug.

Image 4.2: Four panels illustrating the versatility of the Uwant B200 SE, showing it cleaning a carpet, a mattress, a sofa, and a cushion.

General Cleaning Steps

1. علائقو تيار ڪريو: Remove any loose debris or solid particles from the area to be cleaned.
2. پاور آن: Plug the appliance into a suitable power outlet and press the power button.
3. اسپري حل: Hold the cleaning head over the stained area. Press the spray trigger on the handle to dispense cleaning solution onto the stain. Allow the solution to penetrate for a few moments, as recommended by the cleaning solution manufacturer.
4. ڇڪڻ: Gently scrub the stained area with the brush head. For stubborn stains, you may need to apply more pressure or repeat the spraying and scrubbing steps.
5. ڪڍڻ: Tilt the cleaning head slightly and apply downward pressure while slowly pulling it across the wet area. The powerful suction will extract the dirty water and cleaning solution into the dirty water tank. Repeat this step until the water being extracted appears clean and the surface is as dry as possible.
6. ڌوئڻ (اختياري): For best results, you may rinse the area by filling the clean water tank with plain water (no solution) and repeating the spray and extract steps.
7. بجلي بند: هڪ دفعو صفائي مڪمل ٿي وئي آهي، اوزار کي بند ڪريو ۽ ان کي پاور آئوٽ مان انپلگ ڪريو.

مخصوص ايپليڪيشنون

• قالين ۽ قالين: Use the wide brush head. Work in small sections, overlapping passes to ensure thorough cleaning.
• Upholstery (Sofas, Chairs): Use a gentle scrubbing motion. Be careful not to over-wet delicate fabrics.
• گديا: Focus on specific stained areas. Ensure adequate drying time to prevent moisture buildup.
• چوڙا Remove cushion covers if possible and clean them according to their care instructions. For non-removable covers, follow upholstery cleaning guidelines.

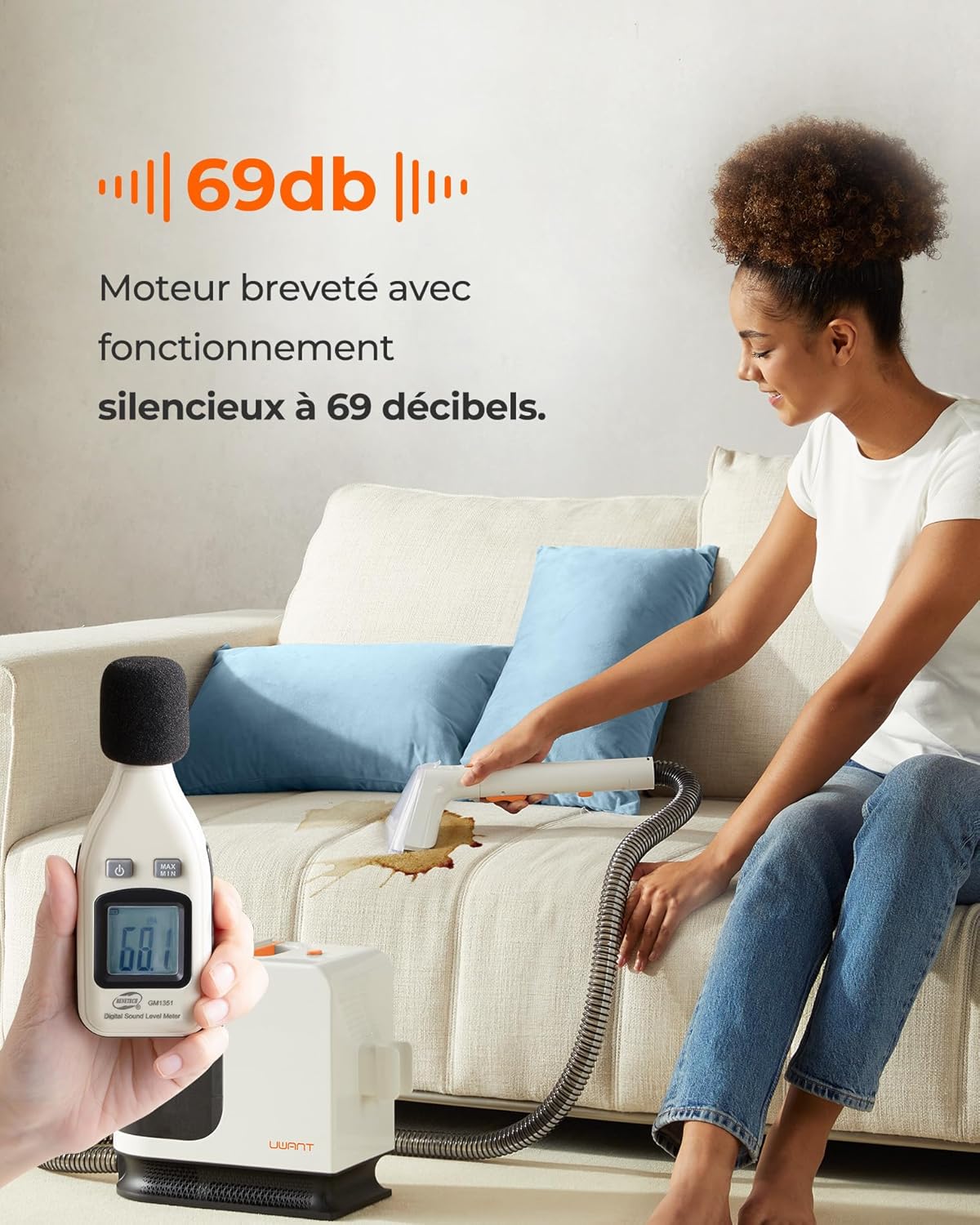

Image 4.3: A woman cleaning a sofa, with an inset showing a sound meter displaying 68.1 dB, highlighting the low-noise operation of the Uwant B200 SE.

Image 4.4: A diagram illustrating the deep cleaning capability, showing the 450W motor generating 12000Pa suction and penetrating up to 6cm into fabric to extract dirt.

5. سار سنڀال

Regular maintenance ensures optimal performance and extends the lifespan of your Uwant B200 SE Spot Cleaner.

هر استعمال کان پوء

1. گندي پاڻي جي ٽانڪي کي خالي ۽ صاف ڪريو: Detach the dirty water tank, empty its contents, and rinse it thoroughly with clean water. Allow it to air dry before reattaching.
2. صاف پاڻي جي ٽانڪي کي ڌوئو: If cleaning solution was used, rinse the clean water tank to prevent residue buildup.
3. Clean Cleaning Head: Remove the cleaning head and rinse it under running water to remove any trapped debris or residue. Ensure the nozzle is clear.
4. يونٽ صاف ڪريو: مکيه يونٽ جي ٻاهرين حصي کي اشتهار سان صاف ڪريوamp ڪپڙو.

ذخيرو

Store the Uwant B200 SE in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure all tanks are empty and dry before storage.

Image 5.1: A woman easily carrying the Uwant B200 SE, demonstrating its portability. Another image shows the compact unit stored neatly on a living room shelf.

6. مسئلا حل ڪرڻ

If you encounter issues with your Uwant B200 SE, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact Uwant customer support.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

For warranty information, please refer to the warranty card included with your product or visit the official Uwant website. If you require technical assistance or have questions not covered in this manual, please contact Uwant customer support through their official channels.
