Link2Home Cord Reel EM-EL-375KX User Manual

1. تعارف

This manual provides instructions for the safe and efficient use of your Link2Home Cord Reel, Model EM-EL-375KX. This device is designed to provide convenient power distribution with its 30 ft. extension cord, multiple outlets, and USB charging ports. Please read this manual thoroughly before operating the product and retain it for future reference.

شڪل 1: Link2Home Cord Reel EM-EL-375KX. This image displays the cord reel unit, highlighting its compact design, the three grounded power outlets, and the two USB ports on the front panel, along with the integrated power switch and circuit breaker reset button.

2. حفاظت جي ڄاڻ

Adherence to the following safety guidelines is crucial to prevent electric shock, fire, or personal injury.

• Do not exceed electrical ratings: The total current draw of all connected devices must not exceed the cord reel's maximum rating. Refer to the "Specifications" section for details.
• اندروني استعمال صرف This cord reel is intended for indoor use in dry locations. Do not expose to moisture or rain.
• Fully uncoil cord: Always uncoil the extension cord completely before use to prevent overheating.
• گرائونڊنگ: Ensure the cord reel is plugged into a properly grounded 3-prong outlet.
• Avoid damage: Do not use if the cord or housing is damaged. Do not attempt to open or modify the unit.
• ٻار ۽ پالتو جانور: ٻارن ۽ پالتو جانورن جي پهچ کان پري رکو.
• سرڪٽ خراب ڪندڙ: The built-in circuit breaker provides overload protection. If it trips, disconnect devices, wait for it to cool, and then press the reset button.

3. مصنوعات جون خاصيتون

The Link2Home Cord Reel EM-EL-375KX offers the following key features:

• 30 ft. 16 AWG SJT Cable: Provides extended reach with durable, thermoplastic insulated hard service cord.
• 3 Grounded 120V Outlets: For connecting multiple electrical devices.
• 2 USB Ports (Type-A/C): Delivers 2.4A fast charging for compatible USB devices.
• تعمير ٿيل سرڪٽ برڪر: Automatically protects connected devices from damage due to current or voltagاي اوور لوڊ.
• ON/OFF Switch with Power Light Indicator: Allows for easy control of power to all outlets and USB ports.
• Tangle-Free Cord Management: Integrated reel design keeps the cord neat and organized.
• ڪمپيڪٽ ۽ پورٽبل ڊيزائن: Features a unique four-handle design for easy transport and storage.
• CSA تصديق ٿيل: حفاظتي معيارن جي تعميل کي يقيني بڻائي ٿو.

شڪل 2: Labeled components of the Link2Home Cord Reel. This image points out the 3 grounded outlets, ON/OFF switch, thermal breaker reset button, and the 2 USB ports, along with the 30 ft. 16 AWG SJT cable and 3-year warranty information.

شڪل 3: Detail of the high-quality SJT cable. This image illustrates the construction of the 16 AWG SJT cable, indicating its thermoplastic insulation and hard service cord designation for durability.

4. سيٽ اپ

1. پيڪ ڪريو: Carefully remove the cord reel from its packaging. Inspect the unit for any signs of damage.
2. لڳائڻ: Position the cord reel on a stable, dry surface, away from water sources or flammable materials.
3. Uncoil the Cord: Grasp the plug end of the extension cord and pull it out from the reel. Ensure the entire length of the cord required for use is uncoiled to prevent heat buildup.
4. پاور سان ڳنڍيو: Plug the cord reel's main plug into a standard, properly grounded 120V AC wall outlet.

5. آپريشن

1. پاور آن / آف: Locate the red ON/OFF switch on the front panel. Press the switch to the 'ON' position (illuminated) to supply power to the outlets and USB ports. Press it to the 'OFF' position to cut power.
2. ڪنيڪشن ڊوائيسز:
   • For AC powered devices, plug them into any of the three grounded 120V outlets.
   • For USB powered devices, connect them to the USB-A or USB-C ports. The USB ports provide 2.4A fast charging.


   شڪل 4: Link2Home Cord Reel in an operational setting. This image shows the cord reel connected to an iron and a smartphone, demonstrating its use for both AC-powered appliances and USB charging.

3. ڪنڊ جو انتظام: The cord reel features an anti-twist cable solution for smooth extension and retraction.


   شڪل 5: Cable management feature of the Link2Home Cord Reel. This image highlights the design that facilitates anti-twist cable extension and retraction, keeping the cord organized.
4. تار کي واپس وٺڻ: When finished, unplug all devices and the main plug from the wall outlet. Use the built-in handle on the side of the reel to manually wind the cord back into the unit. Ensure the cord winds evenly to prevent tangles.

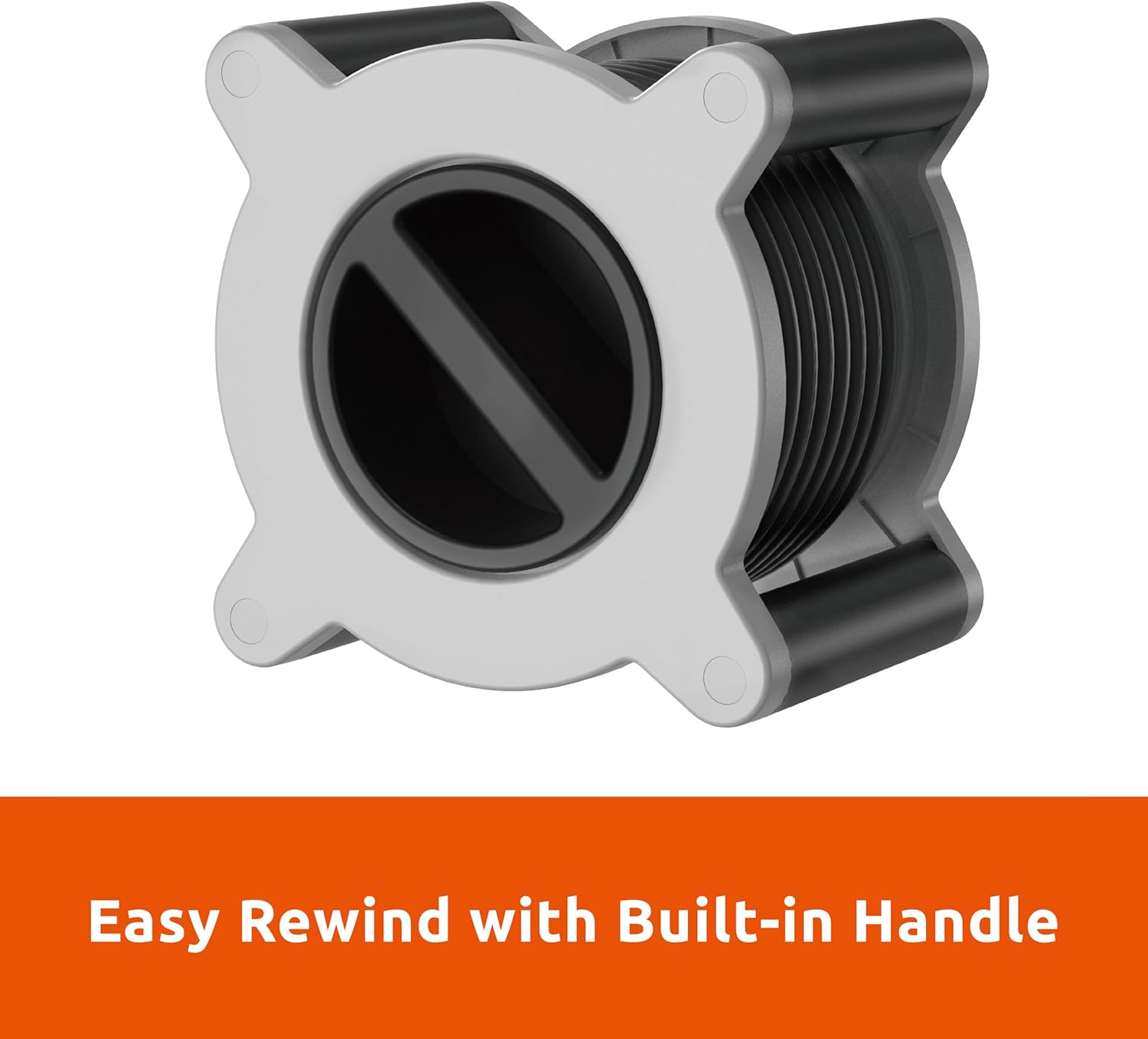

   شڪل 6: Easy rewind mechanism with built-in handle. This image shows the side of the cord reel with the integrated handle designed for manual and easy retraction of the extension cord.

6. سار سنڀال

• صفائي: Disconnect the cord reel from all power sources before cleaning. Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or immerse the unit in water.
• اسٽوريج: Store the cord reel in a cool, dry place when not in use. Ensure the cord is fully retracted and neatly wound. The slim profile آسان اسٽوريج جي اجازت ڏئي ٿو.


  شڪل 7: سليم پروfile of the Link2Home Cord Reel. This image demonstrates the compact side view of the cord reel, highlighting its design for convenient storage in various spaces.
• چڪاس: Periodically inspect the cord and plug for any signs of wear, cuts, or damage. If damage is found, discontinue use and contact customer support.

7. مسئلا حل ڪرڻ

8. وضاحتون

9. وارنٽي ۽ سپورٽ

The Link2Home Cord Reel EM-EL-375KX is covered by a 3 سال وارنٽي خريداري جي تاريخ کان. هي وارنٽي عام استعمال هيٺ مواد ۽ ڪاريگري ۾ خرابين کي ڍڪيندي آهي.

For warranty claims, technical support, or any questions regarding your product, please contact Link2Home customer service. Refer to the product packaging or the official Link2Home webموجوده رابطي جي معلومات لاءِ سائيٽ.
