1. تعارف
This manual provides essential information for the proper installation, operation, and maintenance of your Hertz Mille Legend Series ML-Power-1 D-Class Mono Amplifier and ML 2000.3 8" Subwoofer bundle. Please read this manual thoroughly before attempting installation or operation to ensure optimal performance and safety.
The Hertz Mille Legend Series components are designed to deliver high-fidelity audio performance in automotive environments. This bundle combines a powerful mono amplifier with a high-performance subwoofer to enhance your vehicle's audio system.
2. حفاظت جي ڄاڻ
هميشه هيٺ ڏنل حفاظتي احتياطن تي عمل ڪريو:
- پيشه ورانه تنصيب جي سفارش ڪئي وئي آهي: Installation of car audio components can be complex. It is highly recommended that a qualified professional perform the installation.
- بيٽري ختم ڪريو: Before starting any installation, disconnect the vehicle's negative battery terminal to prevent electrical shorts and damage.
- مناسب وائرنگ: Use appropriate gauge wiring for power, ground, and speaker connections as specified by the manufacturer. Incorrect wiring can lead to overheating, fire, or component failure.
- محفوظ لڳائڻ: Ensure all components are securely mounted to prevent them from becoming projectiles in the event of a sudden stop or collision.
- رڪاوٽ کان بچو: Do not install components where they might obstruct vehicle operation, airbags, or other safety features.
- وينٽيليشن: لاء مناسب وائيٽليشن کي يقيني بڻايو وڃي amplifier to prevent overheating. Do not cover the amplifier's heat sink.
- حجم جي سطح: Prolonged exposure to high volume levels can cause permanent hearing damage. Adjust volume responsibly.
3. پيڪيج مواد
پڪ ڪريو ته سڀئي شيون توهان جي پيڪيج ۾ موجود آهن:
- 1x Hertz Mille Legend Series ML-20003 8 inch (200mm) 700 Watt RMS Subwoofer
- 1x Hertz Mille Legend Series ML-Power-1 D-Class Mono Bass Ampزندگي گذاريندڙ
- استعمال ڪندڙ جو دستياب (ھي دستاويز)
- Mounting hardware (specific to each component, refer to individual component manuals if provided separately)
4. پراڊڪٽ ختمview
4.1 Hertz Mille Legend Series ML-20003 Subwoofer
The ML-20003 subwoofer is engineered for high performance with an Exponential V-cone and pressed-pulp cone for superior rigidity and accurate bass reproduction. Its compact size and anti-resonant aluminum alloy basket facilitate easy installation, particularly in sealed box applications.
تصوير: سامهون view of the Hertz Mille Legend Series ML-20003 8-inch Subwoofer, showcasinان جي مخروطي ۽ چوڌاري.
تصوير: پاسي view of the Hertz Mille Legend Series ML-20003 8-inch Subwoofer, highlighting the robust magnet structure and basket design.
4.2 Hertz Mille Legend Series ML-Power-1 Ampزندگي گذاريندڙ
The ML-Power-1 amplifier features Advanced D-Class Technology, designed for efficient power delivery and pure audio reproduction. Its robust heat sink design ensures stable operation and constant full power output without overheating, even under demanding conditions. The amplifier offers flexible filter combinations and an adjustable slope Lo-Pass filter for precise audio tuning.
تصوير: مٿي view of the Hertz Mille Legend Series ML-Power-1 D-Class Mono Amplifier, showing its sleek design and branding.

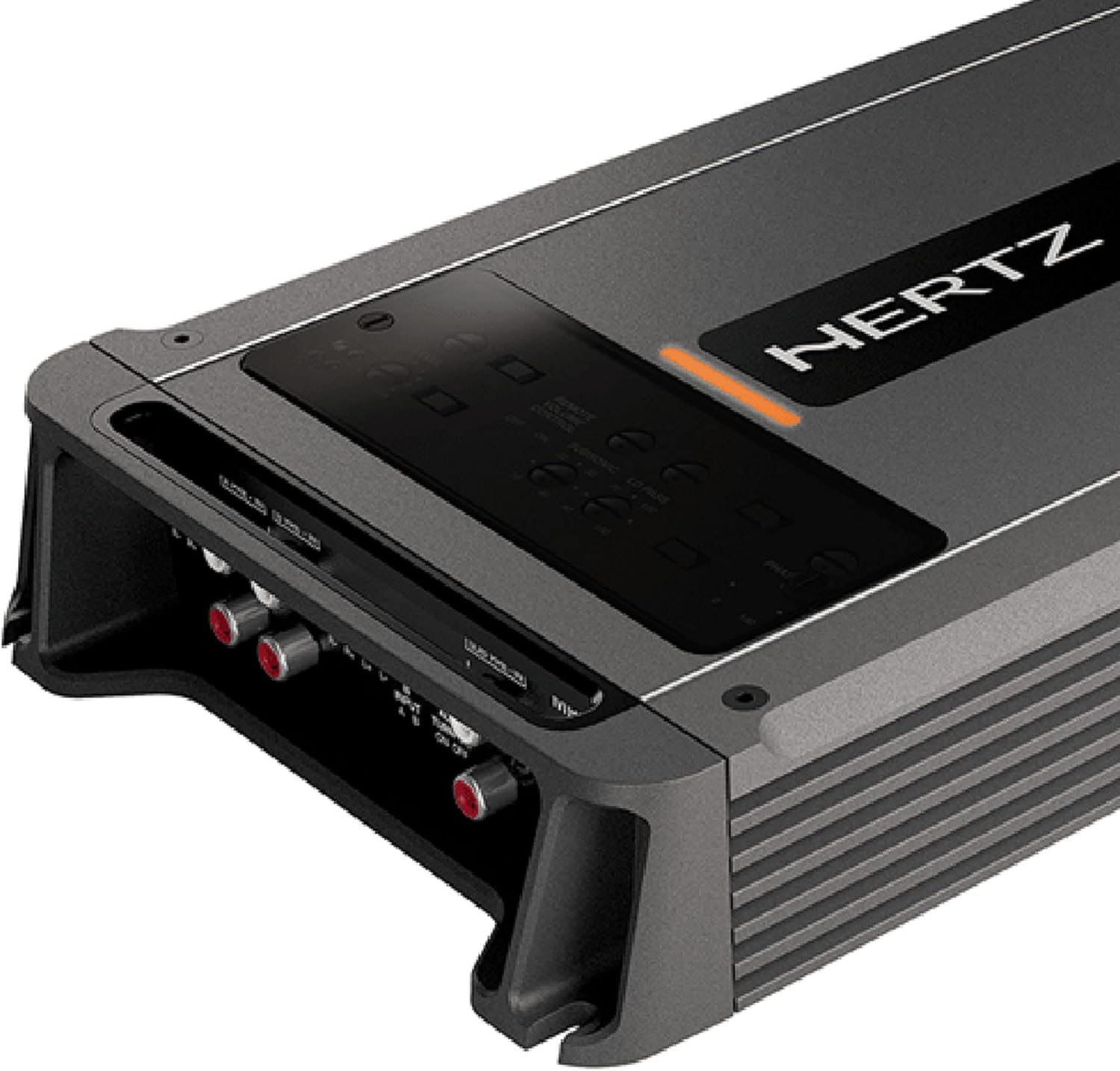

تصوير: ويجهو تصوير view of the input and output terminals on the Hertz Mille Legend Series ML-Power-1 D-Class Mono Ampوierيڪ زنده
5. سيٽ اپ ۽ انسٽاليشن
This section provides general guidelines. Always refer to the detailed wiring diagrams and specific instructions provided with each component for precise installation.
5.1 General Installation Considerations
- طاقت جو ذريعو: ڳنڍيو amplifier directly to the vehicle's battery using a fused power cable of appropriate gauge.
- زميني ڪنيڪشن: Ensure a solid, short ground connection to the vehicle's chassis. The ground point should be free of paint and corrosion.
- ريموٽ ٽرن آن: ڳنڍيو amplifier's remote turn-on terminal to your head unit's remote output.
- سگنل ان پٽ: Use high-quality RCA cables for low-level input from your head unit or a speaker-level input converter if your head unit lacks RCA outputs.
- اسپيڪر وائرنگ: سباروفور کي ڳنيو amplifier's speaker output terminals using appropriate gauge speaker wire.
5.2 ML-20003 Subwoofer Installation
The ML-20003 subwoofer is designed for optimal performance in a sealed enclosure. Consult a car audio professional or specific enclosure design guides for recommended box volumes and dimensions. Ensure the subwoofer is securely mounted within the enclosure and the enclosure is firmly fixed within the vehicle.
5.3 ML-Power-1 Ampوierيڪ تنصيب
جبل amplifier in a location that allows for adequate airflow around its heat sink. Avoid mounting in enclosed spaces without ventilation. Ensure all connections are tight and properly insulated to prevent short circuits.

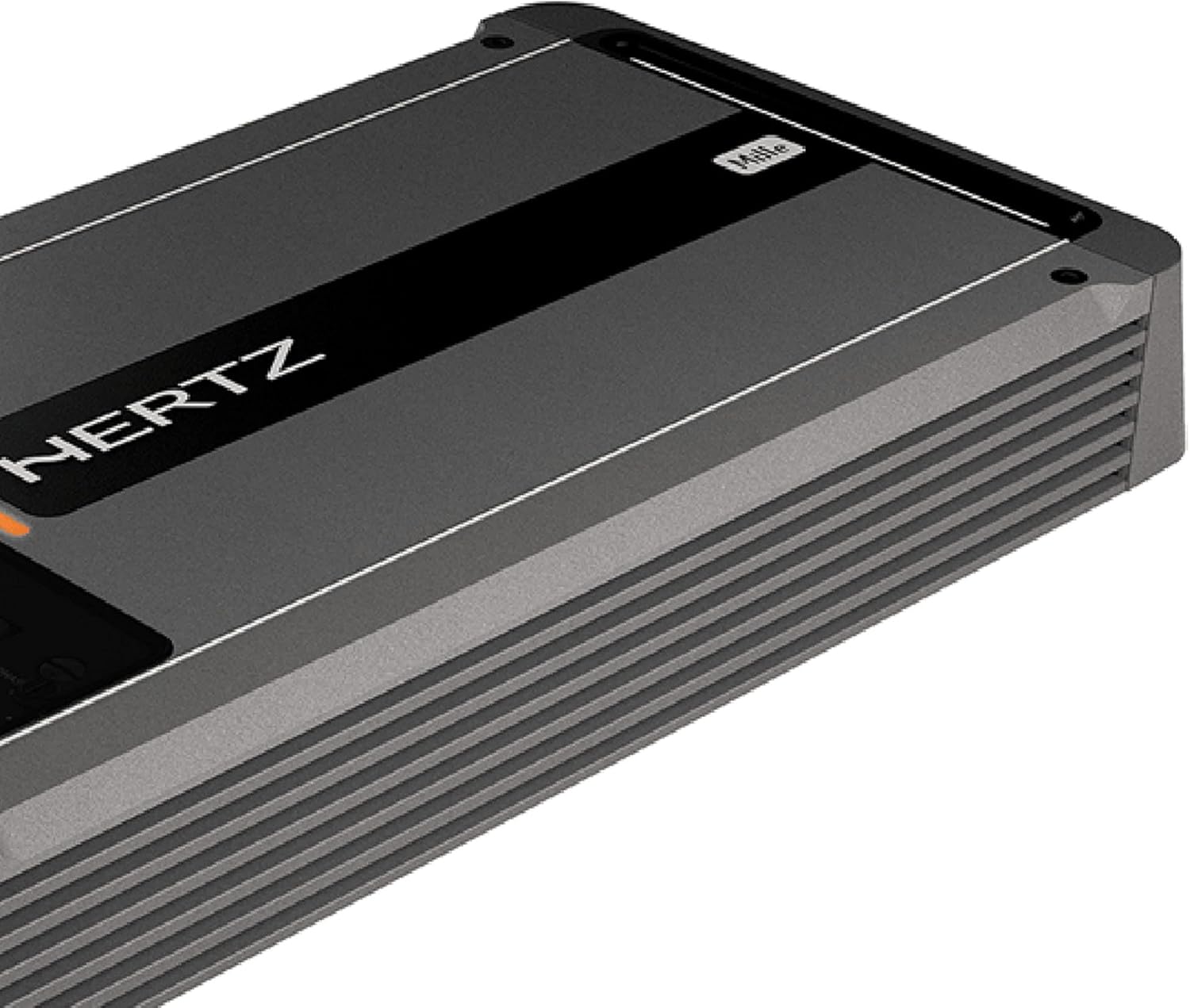

تصوير: پاسي view of the Hertz Mille Legend Series ML-Power-1 D-Class Mono Amplifier, showing the heat sink fins crucial for thermal management.
6. آپريٽنگ هدايتون
Once installed, proper configuration of the amplifier is crucial for optimal sound quality and system longevity.
6.1 شروعاتي پاور اپ
سڀ ڪنيڪشن ٺهڻ ۽ تصديق ٿيڻ کان پوءِ، گاڏي جي منفي بيٽري ٽرمينل کي ٻيهر ڳنڍيو. پنهنجو هيڊ يونٽ آن ڪريو. amplifier should power on, indicated by an LED indicator.
6.2 ايڊجسٽمينٽ حاصل ڪريو
The gain control on the ML-Power-1 amplifier matches the input sensitivity to the output voltage of your head unit. This is not a volume control. Set the head unit volume to about 75% of its maximum. Slowly increase the amplifier's gain until you hear distortion, then back it off slightly. This ensures the amplifier receives a clean signal without clipping.
6.3 ڪراس اوور سيٽنگون
The ML-Power-1 amplifier features an adjustable Lo-Pass filter. This filter allows only frequencies below a set point to pass through to the subwoofer. Typically, a subwoofer's low-pass filter is set between 60 Hz and 100 Hz, depending on your other speakers and personal preference. Experiment with the setting to achieve a seamless blend with your main speakers.
Image: Close-up of the control panel on the Hertz Mille Legend Series ML-Power-1 D-Class Mono Amplifier, showing gain and crossover adjustment knobs.
7. سار سنڀال
These components require minimal maintenance:
- صفائي: جي ٻاهرين سطحن کي صاف ڪرڻ لاءِ نرم، سڪل ڪپڙو استعمال ڪريو amplifier and subwoofer. Do not use harsh chemicals or abrasive cleaners.
- چڪاس: وقتي طور تي سڀني وائرنگ ڪنيڪشنن کي تنگي ۽ سنکنرن جي نشانين لاءِ چيڪ ڪريو.
- وينٽيليشن: کي يقيني بڻايو amplifier's heat sink remains free of dust and debris to maintain proper cooling.
8. مسئلا حل ڪرڻ
جيڪڏهن توهان کي مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلا حل ڪرڻ جي قدمن جو حوالو ڏيو:
- طاقت ناهي: Check the main fuse at the battery, the amplifier's fuse, and all power and ground connections. Verify the remote turn-on wire is receiving 12V when the head unit is on.
- آواز ناهي: Check all RCA and speaker wire connections. Ensure the head unit is sending a signal. Verify ampلفيئر حاصل ڪرڻ جي سيٽنگون.
- مسخ ٿيل آواز: گھٽايو amplifier's gain setting. Check for proper crossover settings. Ensure speaker wires are not shorted.
- Ampلائفائر وڌيڪ گرم ڪرڻ: جي چوڌاري مناسب وينٽيليشن کي يقيني بڻائي amplifier. Check speaker impedance to ensure it matches the ampلفافي جي صلاحيت.
- Subwoofer Not Moving: Check speaker wire connections at both the subwoofer and amplifier. Verify amplifier is receiving power and signal.
If problems persist after performing these checks, contact a qualified car audio technician or Hertz customer support.
9. وضاحتون
9.1 ML-20003 Subwoofer Specifications
| خاصيت | تفصيل |
|---|---|
| ماپ | 200 ملي ميٽر (8 انچ) |
| پاور هينڊلنگ (RMS) | 700W |
| پاور هينڊلنگ (چوٽي) | 1400W |
| رڪاوٽ | 4 ohms |
| تعدد جواب | 30-600 هز |
| حساسيت | 86 ڊي بي ايس ايس ايل |
| مخروطي مواد | Pressed-pulp with Exponential V-cone |
| ٽوڪري | Anti-resonant aluminum alloy |
9.2 ML-Power-1 Ampوierيڪ خاصيتون
| خاصيت | تفصيل |
|---|---|
| Ampوierيڪ ڪلاس | D-Class (Advanced D-Class Technology) |
| Power Output (RMS @ 2 Ohm) | 1000W X 1 |
| پاور سپلائي Voltage | 11-15VDC |
| ٿڪندڙ موجوده | 2A |
| Consumption @ 1Ω | 83.5A |
| THD (1 kHz @ 4Ω) | 0.08% |
| بينڊوڊٿ (-3 ڊي بي) | 18-500 هز |
| S/N تناسب (اي وزني) | 105 ڊي بي |
| Damping Factor (100 Hz @ 4Ω) | 100 |
| Pre-In Sensitivity | 0.2-5V RMS |
| Pre-In Impedance | 15kΩ |
| Speaker-In Sensitivity | 0.8-20V RMS |
| Speaker-In Impedance | 470Ω |
| فلٽر جو قسم | Lo-Pass (Adjustable Slope) |
10. وارنٽي ڄاڻ
هي پراڊڪٽ ڍڪيل آهي a 1-سال ٺاهيندڙ وارنٽي. This warranty typically covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Hertz customer support.
11. سپورٽ ۽ رابطو
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Hertz customer support or visit the official Hertz website. You may also consult with the authorized dealer from whom you purchased this product.
ٺاهيندڙ: هارٽز
ماڊل نمبر: HertzBDL241017-06 (Bundle SKU)
ASIN: B0DKPL6RT5
