تعارف
Thank you for choosing the INIU 30W Dual-Port Fast Charger. This compact and efficient charger is designed to provide rapid and safe charging for a wide range of devices, including smartphones, tablets, smartwatches, and laptops. Featuring both USB-C and USB-A ports, along with advanced GaN technology, it ensures optimal power delivery and protection for your electronics.
دٻي ۾ ڇا آهي
- INIU 30W Wall Charger (x2)
- 60W Fast Charging USB-C Cable (x2)
- يوزر مينوئل (x1)

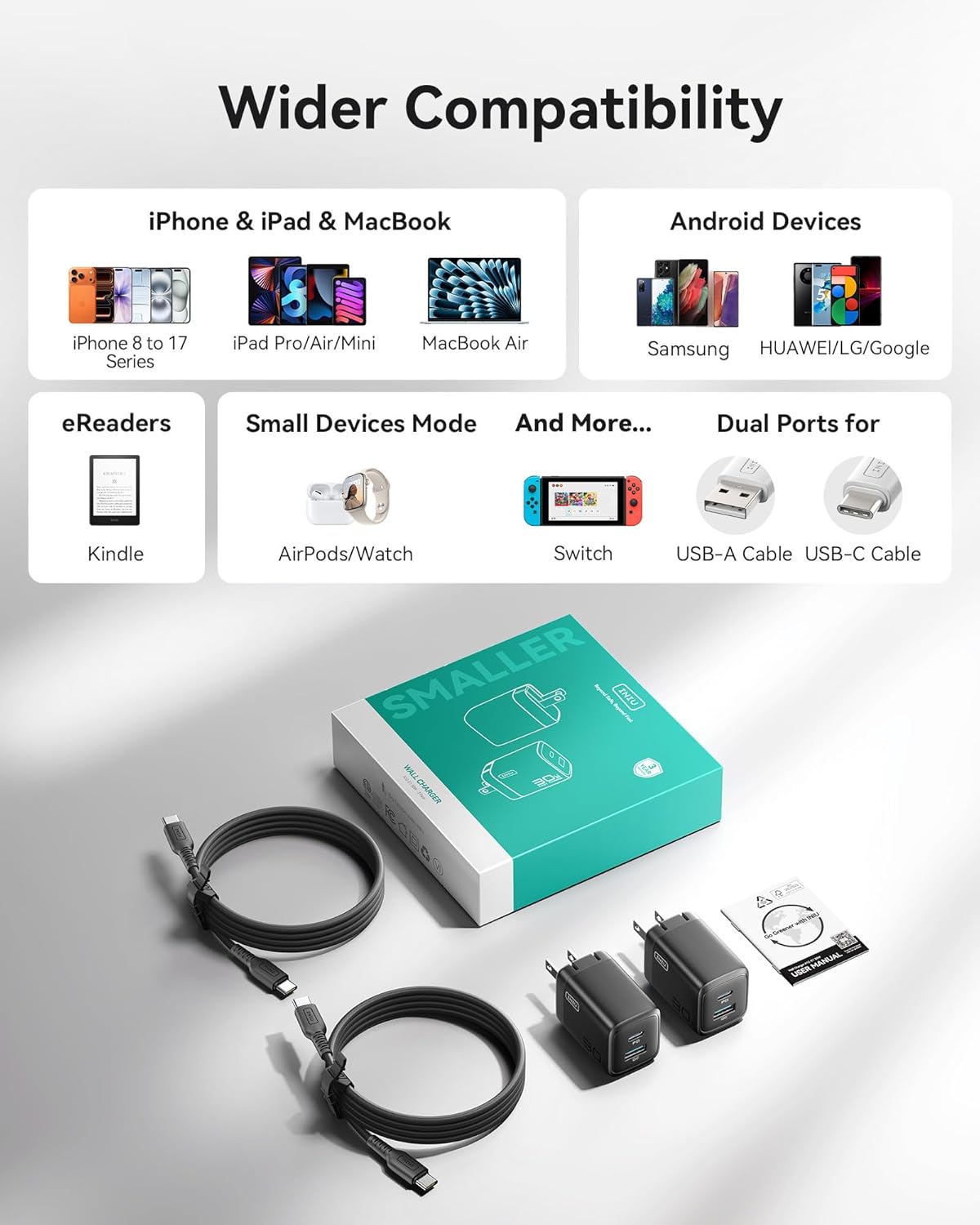

Image: The package contents include two INIU 30W wall chargers and two 60W fast charging USB-C cables, along with a user manual.
سيٽ اپ ڪريو
1. Unfold the Prongs
The INIU 30W charger features a foldable plug design for portability. Gently pull out the prongs until they lock into place, ready for insertion into a wall outlet.
Image: The charger's foldable prongs are shown extended, ready to be plugged into an electrical outlet.
2. Connect to Power Outlet
Insert the charger into a standard wall outlet. The compact design ensures that it does not block adjacent outlets.
Image: The INIU 30W charger is plugged into a power strip, illustrating its small size and how it leaves other outlets accessible.
3. پنهنجي ڊوائيس کي ڳنڍيو
Use the provided 60W USB-C to USB-C cable or your device's compatible charging cable to connect your device to either the USB-C (PD) port or the USB-A (QC) port on the charger.
Image: A smartphone is connected to the INIU 30W charger, illustrating its fast charging capability.
آپريٽنگ هدايتون
سنگل پورٽ چارجنگ
- USB-C (PD) Port: Provides up to 30W of power for fast charging compatible devices like iPhones, iPads, and MacBook Air models.
- USB-A (QC) Port: Provides up to 18W of power for quick charging compatible devices.
Dual Port Charging
When both the USB-C and USB-A ports are used simultaneously, the total output is distributed, with each port providing up to 15W. This allows for convenient charging of two devices at once.
Image: Two devices, an iPad and an iPhone, are connected to the charger's dual ports, demonstrating simultaneous charging.
GaN Technology for Safe Charging
The charger incorporates advanced GaN (Gallium Nitride) technology, which allows for a smaller, more efficient design while ensuring safe charging. This technology helps prevent overcharging, excessive heat generation, and leakage risks, protecting your devices and extending battery life.
Image: The charger's internal GaN technology is highlighted, emphasizing its role in maintaining battery health and preventing overheating.
مطابقت
The INIU 30W charger is widely compatible with a variety of devices:
- ٽيبلٽس: iPad Pro 12.9-inch (1-6th Gen), iPad Pro 11-inch (1-3rd Gen), iPad Air (4th, 5th Gen), iPad mini (5th, 6th Gen), iPad (7th-10th Gen), Samsung Galaxy Tab S8/S9 series, Surface Pro series, Lenovo Yoga Tab series.
- اسمارٽ فونز: iPhone 14/15/16/17 series, Samsung Galaxy S22/S23/S24/S25 series, Galaxy Note series, Galaxy A/M series, Google Pixel 6/7/8/9/10 series, Xiaomi series.
- ٻيا ڊوائيس: MacBook Air M4, Apple Watch Series 3-9, Apple Watch SE, Apple Watch Ultra, AirPods Max/Pro/2/1, DJI Mini 3 Pro, Quest 3s.
Image: A visual representation of the charger's broad compatibility with different brands and types of electronic devices.
سار سنڀال
- Keep the charger and cables clean and dry. Avoid exposure to moisture or extreme temperatures.
- When not in use, fold the prongs for safe storage and to prevent damage.
- Use the included cable management strap to keep the USB-C cables neatly organized and prevent tangling.
- Avoid bending the cables sharply at the connectors to prolong their lifespan.
Image: The included 60W fast-charge cables are shown, highlighting their nylon-braided design for durability.
مشڪلاتون
ڊوائيس نه چارج
- پڪ ڪريو ته چارجر محفوظ طور تي ڪم ڪندڙ پاور آئوٽليٽ ۾ لڳل آهي.
- پڪ ڪريو ته چارجنگ ڪيبل چارجر ۽ توهان جي ڊوائيس ٻنهي سان صحيح طرح سان ڳنڍيل آهي.
- Try using a different port on the charger or a different charging cable to rule out cable or port issues.
- ڪنهن به ملبي يا نقصان لاءِ پنهنجي ڊوائيس جي چارجنگ پورٽ کي چيڪ ڪريو.
سست چارجنگ
- Ensure your device supports fast charging and that you are using a compatible cable (e.g., the included 60W USB-C cable).
- If charging two devices simultaneously, the power output per port will be reduced to 15W. For maximum speed, charge one device at a time using the USB-C (PD) port.
- پنهنجي ڊوائيس تي پس منظر ۾ هلندڙ ڪنهن به بجلي استعمال ڪندڙ ايپليڪيشنن کي بند ڪريو.
Charger Feels Warm
It is normal for the charger to become slightly warm during operation, especially during fast charging. The integrated GaN technology is designed to manage heat efficiently and prevent overheating. If the charger becomes excessively hot or emits smoke/unusual odors, immediately unplug it from the power outlet and discontinue use.
وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | A12-E1 |
| ڪل USB بندرگاهن | 2 (1x USB-C، 1x USB-A) |
| يو ايس بي-سي آئوٽ | 30W تائين (پاور ڊليوري) |
| USB-اي آئوٽ | Up to 18W (Quick Charge) |
| Dual Port Output | 15W per port (max) |
| انٽ واليمtage | 100-240V (Universal) |
| Ampعمر | 5 Amps (و)) |
| طول و عرض | 1.5 x 1.2 x 1.9 انچ |
| شيءِ جو وزن | 4 اونس |
| خاص خاصيتون | Braided Cable, Fast Charging, Lightweight Design, Multi-Device Charging, Short Circuit Protection, Foldable Plug, GaN Technology |
| شامل اجزاء | INIU 30W Wall Charger (x2), 60W Fast Charging USB-C Cable (x2), User Manual |
وارنٽي ۽ سپورٽ
INIU offers an Industry-Leading 3-Year INIU Care warranty for this product. In case of any quality issues within 3 years, a replacement will be provided. Additionally, lifetime technical support is available to assist you with any product-related inquiries.
For warranty claims or technical assistance, please refer to the contact information provided in your product packaging or visit the official INIU webسائيٽ.
