تعارف
This manual provides comprehensive instructions for the installation, operation, and maintenance of your IMILAB EC6 Dual 3K+3K Home Security Camera. Please read this manual thoroughly before using the product to ensure proper functionality and safety.
پيداوار ختمview
The IMILAB EC6 Dual 3K+3K is an advanced outdoor PTZ camera featuring dual lenses for comprehensive surveillance. It offers 3K+3K resolution, 360-degree pan and tilt capabilities, and smart deterrence features. This package includes a 128GB SD card for local storage.
Image: The IMILAB EC6 Dual 3K+3K camera, a white cylindrical device with two distinct camera lenses, is shown alongside a 128GB microSD card. The camera features a mounting bracket at the top.
اهم خاصيتون:
- Dual Angle Surveillance: Simultaneous monitoring from two perspectives.
- 3K+3K Live View ۽ چيٽ: High-resolution live streaming with two-way audio.
- Smart Deterrence: Motion-triggered siren, flash, and custom voice alarms.
- ايپ ڪنيڪشن: Real-time notifications and remote control via the Mi Home app.
- ورسٽائل تنصيب: Supports wall, ceiling, and column mounting.
- لچڪدار فوtagاي اسٽوريج: Includes a 128GB SD card for local storage.
- وائس اسسٽنٽ: Compatibility with popular voice assistant platforms.
- وسيع مطابقت: Works with WiFi 6 and 2.4GHz networks.
Image: An outdoor shot of the IMILAB EC6 camera mounted on a wall at dusk, surrounded by icons representing its key features: Dual Angle Surveillance, 3K+3K Live View & Chat, Smart Deterrence, App Connection, Versatile Installation, Flexible Footage Storage, Voice Assistants, and Broad Compatibility.
سيٽ اپ ڪريو
1. انباڪسنگ ۽ ابتدائي معائنو
- احتياط سان پيڪنگنگ مان سڀني اجزاء کي هٽايو.
- Verify that all items listed in the package contents are present and undamaged.
- Locate the included 128GB microSD card.
Image: A close-up of the IMILAB 128GB microSDXC memory card, displaying its capacity and class ratings.
2. ايپ انسٽاليشن ۽ اڪائونٽ ٺاهڻ
- Download the "Mi Home" or "IMILAB Home" app from your device's app store (iOS App Store or Google Play Store).
- ايپ کوليو ۽ اسڪرين تي ڏنل هدايتن تي عمل ڪريو نئون اڪائونٽ ٺاهڻ لاءِ يا جيڪڏهن توهان وٽ اڳ ۾ ئي اڪائونٽ آهي ته لاگ ان ٿيو.
3. Camera Power-On and Pairing
- مهيا ڪيل پاور اڊاپٽر استعمال ڪندي ڪئميرا کي پاور ماخذ سان ڳنڍيو.
- ڪئميرا جي اشاري جي روشني چمڪڻ جو انتظار ڪريو، جيڪو ظاهر ڪري ٿو ته اهو جوڙڻ لاءِ تيار آهي.
- ايپ ۾، نئين ڊوائيس شامل ڪرڻ لاءِ "+" آئڪن تي ٽيپ ڪريو.
- Select the IMILAB EC6 Dual 3K+3K from the list of available devices.
- Follow the app's instructions to connect the camera to your 2.4GHz Wi-Fi network. Ensure your Wi-Fi signal is strong at the installation location.
4. Installation Location and Mounting
Choose a suitable outdoor location that provides optimal coverage and a stable Wi-Fi connection. The camera is IP65 weather-resistant, suitable for various conditions.
- Mark the drilling points on the wall, ceiling, or column using the mounting template (if provided).
- جيڪڏهن ضروري هجي ته سوراخ ڪريو ۽ ڀت تي پلگ لڳايو.
- اسڪرو استعمال ڪندي ماؤنٽنگ بریکٹ کي مٿاڇري تي محفوظ ڪريو.
- ڪئميرا کي ماؤنٽنگ بریکٹ سان ڳنڍيو، پڪ ڪريو ته اهو مضبوطيءَ سان جاءِ تي بند ٿيل آهي.
- گهربل نگراني واري علائقي کي ڍڪڻ لاءِ ڪئميرا جي زاويه کي ترتيب ڏيو.

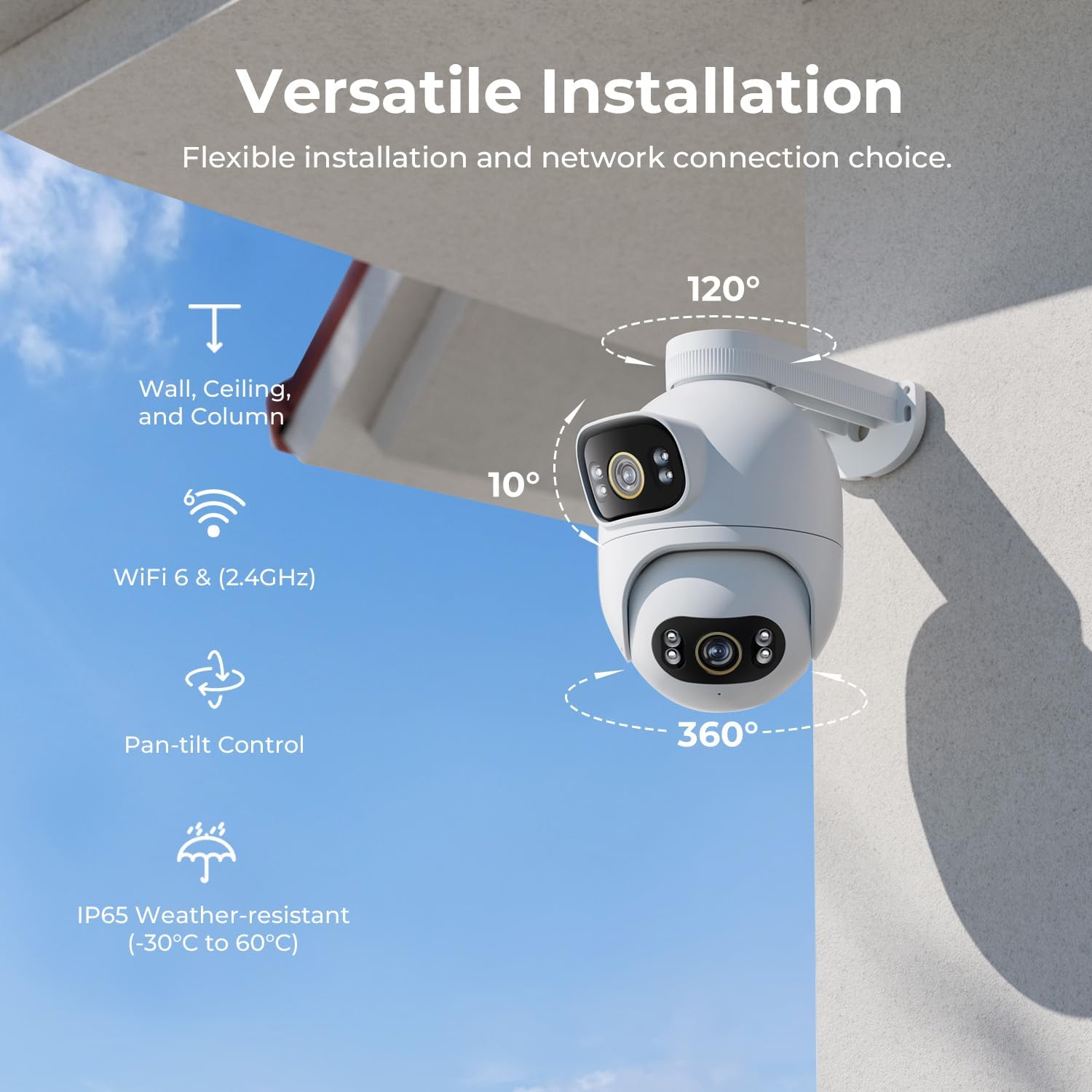

Image: An illustration demonstrating the versatile installation options for the IMILAB EC6 camera, including wall, ceiling, and column mounting. It also highlights Wi-Fi 6 & 2.4GHz compatibility, pan-tilt control, and IP65 weather resistance.
ڪئميرا هلائڻ
1. لائيو View and Dual Angle Monitoring
Open the Mi Home app to access the live feed from your camera. The dual lenses provide two simultaneous views ايپ اندر.
Image: The IMILAB EC6 camera positioned next to a smartphone displaying the Mi Home app interface. The app shows two live video feeds from the camera's dual lenses, labeled "3K+3K", along with surveillance and playback options.
Image: An illustration demonstrating the Dual Angle Surveillance capability of the IMILAB EC6 camera, showing two distinct fields of view from its dual lenses. It highlights the 360-degree pan and 90-degree tilt functionality.
2. پين-ٽلٽ-زوم (PTZ) ڪنٽرول
- جيئري ۾ view, use the on-screen joystick or swipe gestures to remotely control the camera's pan (horizontal) and tilt (vertical) movements.
- The lower lens can rotate to track detected movement, providing up to 360° coverage.
3. ٻه طرفي آڊيو
The camera supports two-way audio communication. Tap the microphone icon in the app to speak through the camera's speaker, and listen to audio from the camera's microphone.
Image: A scene depicting a person receiving a package, with an overlay showing the IMILAB EC6 camera's 3K+3K live view and chat features. Icons indicate 3K+3K Resolution, Two-way Audio, and Smart Color Night Vision capabilities.
4. Smart Deterrence Features
Configure smart deterrence settings in the app to automatically react to detected motion.
- سائرن: Activates an audible alarm upon motion detection.
- فليش: Triggers the camera's spotlight to flash.
- Custom Voice Alarm: Record and play a custom voice message when motion is detected.
Image: A visual representation of the IMILAB EC6's Smart Deterrence features, showing a person attempting to break in, with icons for motion-triggered Siren, Flash, and Custom Voice Alarm.
5. حرڪت جي ڳولا ۽ اطلاع
The camera can detect people and vehicles using AI. Configure motion detection zones and sensitivity settings in the app to receive push notifications for important events.
- Two Motion Zones: Define specific areas for motion detection.
- پش نوٽيفڪيشن: Receive alerts directly on your smartphone.
- ريموٽ ڪنٽرول: Manage camera settings and view footage ڪٿي به.

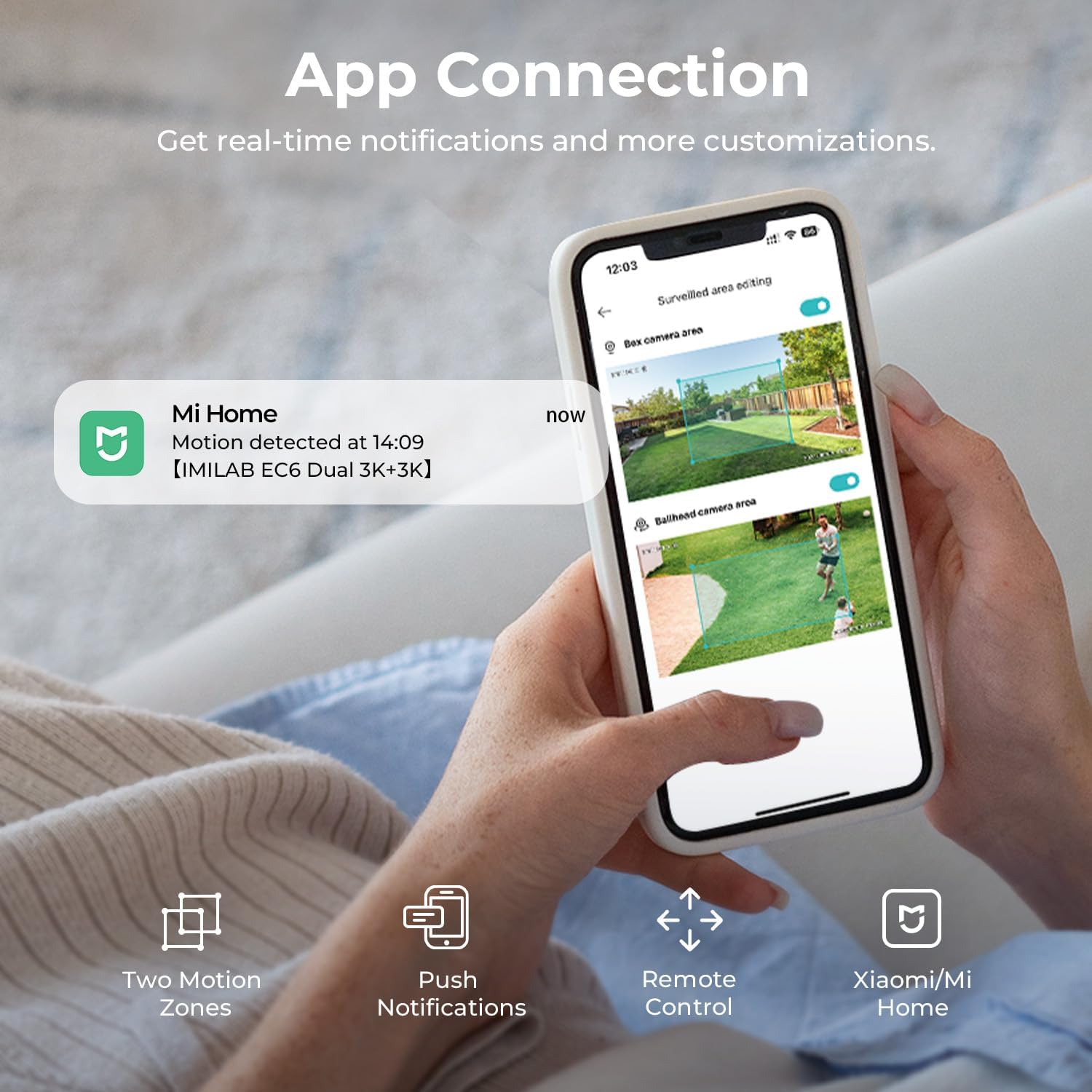

Image: A smartphone displaying the Mi Home app interface, illustrating the app connection features of the IMILAB EC6 camera. It shows options for setting two motion zones, receiving push notifications, remote control, and integration with Xiaomi/Mi Home.
6. Playback and Storage
رڪارڊ ٿيل فوtage is stored on the included 128GB SD card. Access playback through the Mi Home app to review گذريل واقعا.
- Navigate to the "Playback" section in the app.
- Select the date and time to view رڪارڊ ٿيل واقعا.
- فوtage can be downloaded to your device if needed.
سار سنڀال
- صفائي: Regularly wipe the camera lenses and exterior with a soft, damp مٽي ۽ مٽي هٽائڻ لاءِ ڪپڙو. سخت ڪيميڪل يا رگڙيندڙ مواد استعمال نه ڪريو.
- فرم ويئر اپڊيٽس: Check the Mi Home app periodically for firmware updates. Keeping the firmware updated ensures optimal performance and security.
- ايس ڊي ڪارڊ انتظام: The 128GB SD card will automatically overwrite older footage when full. If you experience issues, consider formatting the SD card via the app (this will erase all data).
- پاور سائيڪل: If the camera becomes unresponsive, disconnect it from power for a few seconds and then reconnect it.
مشڪلاتون
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| ڪئميرا آف لائن | بجلي ناهي، وائي فائي ڊسڪنيڪٽ ٿيل آهي، وائي فائي سگنل خراب آهي. | Check power connection. Restart router and camera. Ensure camera is within Wi-Fi range. |
| Cannot pair camera | Incorrect Wi-Fi password, wrong Wi-Fi band (not 2.4GHz), camera not in pairing mode. | Verify Wi-Fi password. Ensure your router is broadcasting a 2.4GHz network. Reset camera to factory settings and try pairing again. |
| غريب وڊيو معيار | Insufficient network bandwidth, dirty lens. | Ensure stable internet connection. Clean camera lenses. |
| ڪابه حرڪت ڳولڻ جي خبر ناهي | Motion detection disabled, incorrect sensitivity, app notifications blocked. | Enable motion detection in app. Adjust sensitivity. Check phone notification settings for the Mi Home app. |
| ايس ڊي ڪارڊ رڪارڊ نه ٿي رهيو آهي | SD card full, corrupted, or not inserted correctly. | Check SD card status in app. Format SD card if necessary (backup data first). Reinsert SD card. |
وضاحتون
- ماڊل: IMILAB EC6 Dual 3K+3K
- قرارداد: Dual 3K+3K
- جو ميدان View: 360° Pan, 90° Tilt (lower lens tracking)
- اسٽوريج: 128GB MicroSD Card (included), Cloud Storage (subscription may be required)
- رابطي: Wi-Fi 6, 2.4GHz Wi-Fi
- موسم جي مزاحمت: IP65 (-30°C to 60°C)
- آڊيو: ٻه طرفي آڊيو
- رات جو خواب: سمارٽ رنگ رات جو خواب
- Deterrence: Siren, Flash, Custom Voice Alarm
- AI خاصيتون: Human and Vehicle Detection, AI Tracking
- ASIN: B0DP27PRZX
- پهريون دستياب: جنوري 8، 2025
وارنٽي ۽ سپورٽ
وارنٽي جي معلومات ۽ ٽيڪنيڪل سپورٽ لاءِ، مھرباني ڪري سرڪاري IMILAB جو حوالو ڏيو. website or contact IMILAB customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
IMILAB Official Webسائيٽ: www.imilab.com
For further assistance, you may also refer to the support section within the Mi Home application.
