1. تعارف
The OEM Electric Paint Mixer EM02 is a versatile and powerful tool designed for mixing paint, plaster, mortar, and other construction materials with precision. Featuring a 1020W high-power motor, adjustable speed settings, and an ergonomic dual-handle design, it ensures smooth and consistent results while reducing manual effort. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your OEM Electric Paint Mixer EM02.
Image: The OEM Electric Paint Mixer EM02, showcasing its robust design and mixing rod.
2. اھم حفاظتي ھدايتون
باهه، بجليءَ جي جھٽڪي، ۽ ذاتي زخمن جي خطري کي گهٽائڻ لاءِ بجليءَ جا سامان استعمال ڪرڻ وقت هميشه بنيادي حفاظتي احتياطن تي عمل ڪريو.
- سڀئي هدايتون پڙهو: Before operating the mixer, read and understand all safety warnings and instructions.
- ڪم واري علائقي جي حفاظت: پنهنجي ڪم واري علائقي کي صاف ۽ روشن رکو. گندو يا اونداهو علائقو حادثن کي دعوت ڏئي ٿو. بجلي جا اوزار ڌماڪيدار ماحول ۾ نه هلايو، جهڙوڪ ٻرندڙ مائع، گئس، يا مٽي جي موجودگي ۾.
- برقي حفاظت: پاور ٽول پلگ کي آئوٽ ليٽ سان ملائڻ گهرجي. ڪڏهن به پلگ کي ڪنهن به طرح تبديل نه ڪريو. ڪنڊ جو غلط استعمال نه ڪريو. ڪڏهن به پاور ٽول کي کڻڻ، ڇڪڻ، يا ان پلگ ڪرڻ لاءِ ڪنڊ استعمال نه ڪريو. ڪنڊ کي گرمي، تيل، تيز ڪنارن، يا حرڪت ڪندڙ حصن کان پري رکو.
- ذاتي حفاظت: Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. Always wear appropriate personal protective equipment, including safety glasses, gloves, and hearing protection.
- اوزار استعمال ۽ سنڀال: پاور ٽول کي زور سان نه لڳايو. پنهنجي ايپليڪيشن لاءِ صحيح پاور ٽول استعمال ڪريو. ڪا به ترتيب ڏيڻ، لوازمات تبديل ڪرڻ، يا پاور ٽولز کي ذخيرو ڪرڻ کان اڳ پاور سورس کان پلگ ڊسڪنيڪٽ ڪريو.
- Specific mixer safety: Ensure the mixing paddle is securely attached before operation. Do not operate the mixer with damaged or bent paddles. Always immerse the paddle fully in the material before starting the mixer to prevent splashing.
3. پيڪيج مواد
پيڪيج کولڻ تي، مھرباني ڪري تصديق ڪريو ته ھيٺ ڏنل سڀ جزا شامل آھن ۽ سٺي حالت ۾ آھن:
- OEM Electric Paint Mixer Unit
- Mixing Rod (Needle) with Blade
- سنڀالڻ
- Carbon Brush (Set)
- استعمال ڪندڙ دستي

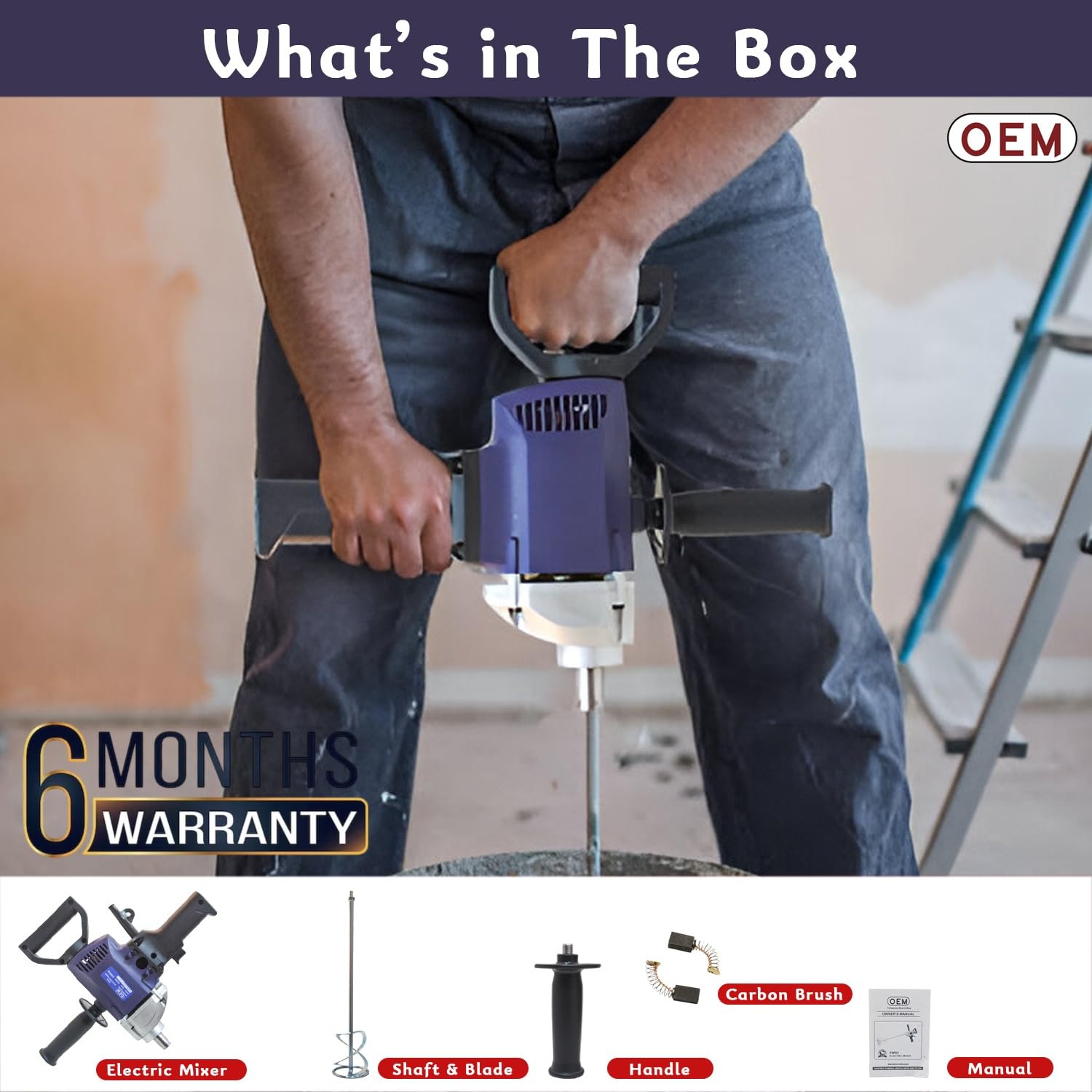

Image: All components included in the OEM Electric Paint Mixer EM02 package, including the mixer, mixing rod, handle, carbon brushes, and user manual.
4. مصنوعات جون خاصيتون
The OEM Electric Paint Mixer EM02 is engineered with features designed for optimal performance and user comfort:
- طاقتور 1020W موٽر: Designed to handle paint, plaster, mortar, and other thick materials with ease.
- Smooth Mixing at 620 RPM: High-speed performance for lump-free, even mixing results.
- Ergonomic Dual-Handle Design: Provides superior grip, comfort, and control during prolonged use.
- ترتيب ڏيڻ واري رفتار سيٽنگون: Customize speed to suit the viscosity of different materials.
- 12MM Mixing Rod Compatibility: Supports standard rods for versatile mixing applications.
- پائيدار تعمير: Built to withstand demanding professional and industrial use.
- 220V ريٽيڊ وولٽtage: Ensures stable and reliable power supply for consistent operation.
Image: Visual representation of the mixer's key features including high power, high speed, double-rod design, and adjustable speed.
5. سيٽ اپ
Before first use, assemble the mixer as follows:
- هٿ سان ڳنڍيو: Securely fasten the ergonomic dual-handle to the main mixer unit using the provided screws or locking mechanism. Ensure it is firm and does not wobble.
- Install the Mixing Rod: Insert the 12mm mixing rod (needle) into the chuck of the mixer. Tighten the chuck firmly to ensure the rod is securely held and will not slip during operation. A wrench may be required for proper tightening.
- پاور ڪنيڪشن: Ensure the mixer's power switch is in the "OFF" position. Plug the power cord into a standard 220V electrical outlet.

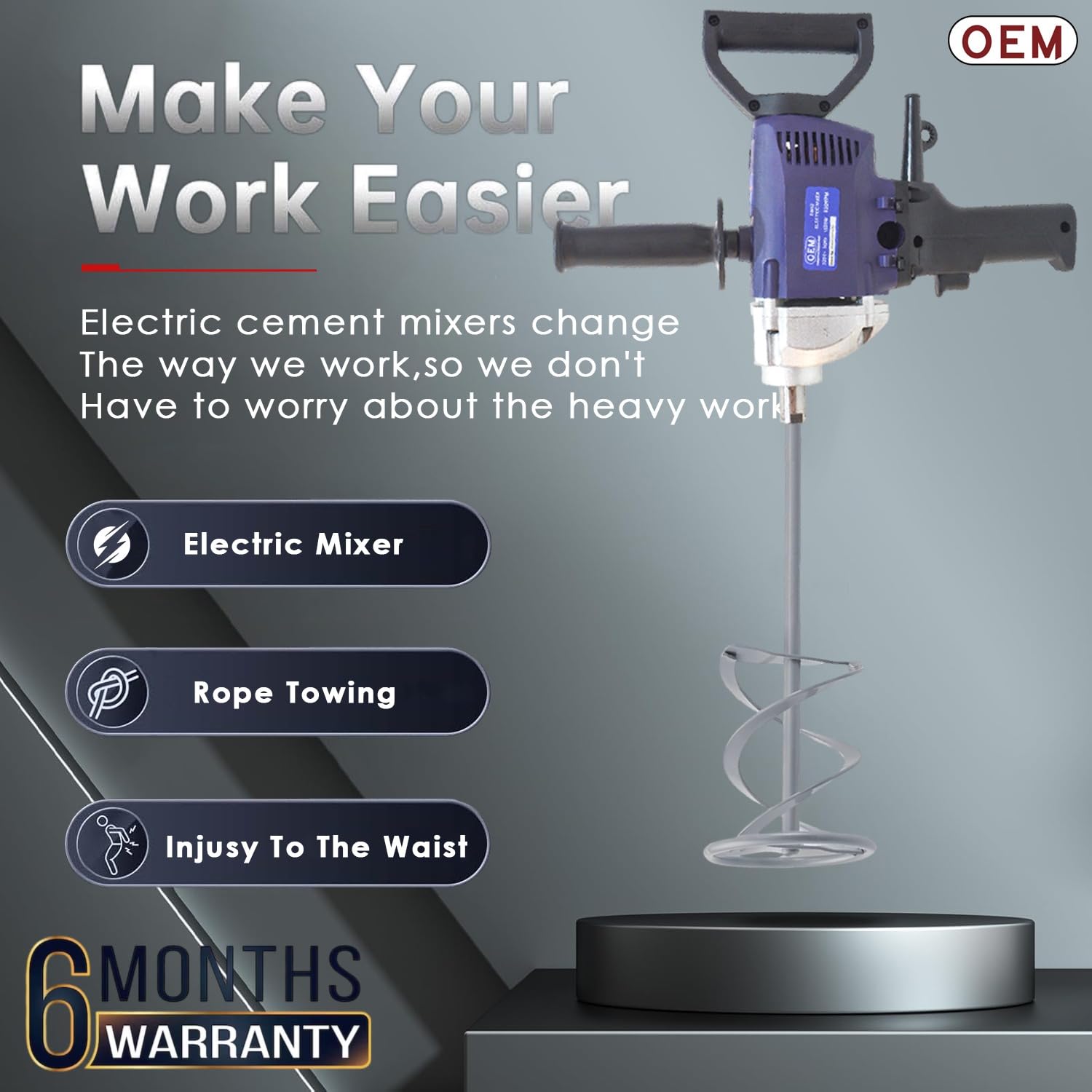

Image: The assembled OEM Electric Paint Mixer EM02, illustrating its readiness for various mixing tasks.
6. آپريٽنگ هدايتون
Follow these steps for effective and safe mixing:
- مواد تيار ڪريو: Place the material to be mixed (paint, plaster, mortar, glue, cement, etc.) in a sturdy mixing bucket or container. Ensure the container is large enough to prevent overflow during mixing.
- Immerse Paddle: Before starting the mixer, fully immerse the mixing paddle into the material. This prevents splashing and ensures a smooth start.
- Start Mixer: Turn on the mixer using the power switch. Begin at a low speed setting, especially for thicker materials or to prevent initial splashing.
- رفتار کي ترتيب ڏيو: Use the adjustable speed settings to achieve the desired consistency. Increase speed gradually as the material begins to mix. The mixer operates at a no-load speed of 620 RPM.
- Mix Thoroughly: Move the mixer slowly through the material, ensuring all parts of the mixture are thoroughly combined. Mix until a uniform consistency is achieved.
- Stop Mixer: Before removing the paddle from the material, turn off the mixer. Wait for the paddle to stop rotating completely.
- Clean Paddle: Immediately clean the mixing paddle after use to prevent material from hardening on it.
Image: Demonstrates the mixer's capability to mix various materials such as putty, paint, glue, and cement, highlighting its versatility.
Image: Illustrates recommended mixing levels for different materials like fodder, paint, glue, mince, putty, and cement, indicating the mixer's broad application.
7. سار سنڀال
Regular maintenance ensures the longevity and optimal performance of your mixer:
- صفائي: After each use, clean the mixing paddle and the exterior of the mixer. Remove any material residue before it hardens. Use a damp cloth for the main unit; do not immerse the mixer in water.
- ڪاربن برش: Periodically check the carbon brushes for wear. Worn brushes can lead to reduced performance or motor failure. Replace them as needed (refer to the "What's in the Box" image for carbon brush identification).
- اسٽوريج: Store the mixer in a dry, clean place, away from direct sunlight and extreme temperatures.
- چڪاس: Regularly inspect the power cord for any damage. If damaged, have it repaired by a qualified technician.
8. مسئلا حل ڪرڻ
عام مسئلن ۽ انهن جي حل لاءِ هن حصي جو حوالو ڏيو:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| مکسر شروع نٿو ٿئي. | بجلي جي فراهمي ناهي؛ بجلي جو سوئچ بند آهي؛ خراب ٿيل تار/پلگ. | Check power outlet; Ensure switch is ON; Inspect cord/plug for damage and replace if necessary. |
| Reduced mixing power. | Worn carbon brushes; Overload; Incorrect speed setting. | Replace carbon brushes; Reduce material quantity; Adjust speed setting. |
| گھڻي واڪ يا شور. | Loose mixing rod; Bent mixing rod; Internal mechanical issue. | Tighten mixing rod; Replace bent rod; Contact support for internal issues. |
| موٽر overheating. | Prolonged use; Overload; Blocked ventilation. | Allow mixer to cool down; Reduce load; Clear ventilation openings. |
9. وضاحتون
| وصف | تفصيل |
|---|---|
| ماڊل نمبر | OEM-mixer (EM02) |
| ان پٽ پاور | 1020W |
| درجه بندي Voltage | 220V |
| تعدد جي شرح | 50Hz |
| نه لوڊ رفتار | 620 RPM |
| Mixing Rod Size Compatibility | 12mm |
| پيداوار جي ماپ (LxWxH) | 20 x 20 x 10 سينٽي |
| شيءِ جو وزن | 4 ڪلو |
| ٺاهيندڙ | B.E Bearings |
| اصل جو ملڪ | انڊيا |
Image: A visual summary of the OEM Electric Paint Mixer EM02's specifications, including model, speed, power, voltage, frequency, and rod size.
10. وارنٽي ۽ سپورٽ
Your OEM Electric Paint Mixer EM02 comes with a 6-مهيني وارنٽي from the date of purchase, covering manufacturing defects and performance issues under normal use. Please retain your purchase receipt as proof of warranty.
ڪسٽمر سپورٽ:
For any questions, technical assistance, or warranty claims, please contact the manufacturer directly:
- ٺاهيندڙ: B.E Bearings
- ائڊريس: 38/29 D Motikunj, Agra, India - 282002
- رابطي جو نمبر: 05622522040
- اي ميل: Oemagra@gmail.com
