ايمرسن SH1501 1500W اليڪٽرڪ اسپيس هيٽر استعمال ڪندڙ دستياب

1. اھم حفاظتي ھدايتون

Please read all instructions carefully before using this heater and retain for future reference. Failure to follow these instructions may result in fire, electric shock, or injury.

• برقي حفاظت: Ensure the heater is plugged into a 120V, 60Hz, 1500-Watt grounded outlet. Do not use with extension cords or power strips.
• لڳائڻ: Always place the heater on a firm, level surface. Keep combustible materials such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 meters) from the front, top, sides, and rear of the heater.
• گهڻي گرمي کان بچاءُ: The heater is equipped with an automatic overheat protection sensor. If the heater overheats, it will automatically shut off. Unplug the heater, allow it to cool for 10 minutes, then plug it back in.
• ترڪيب کان وڌيڪ تحفظ: A smart tip-over switch automatically turns off the heater if it is accidentally tipped over. Place the heater upright on a stable surface to resume operation.
• وينٽيليشن: Do not block air intakes or exhaust openings. Do not use in wet or moist locations like bathrooms.
• نگراني: جڏهن ڪو به اوزار ٻارن يا گهٽ جسماني، حسي، يا ذهني صلاحيتن وارن ماڻهن پاران يا انهن جي ويجهو استعمال ڪيو وڃي ته ويجهي نگراني ضروري آهي.
• سار سنڀال: صاف ڪرڻ يا ڪنهن به سار سنڀال ڪرڻ کان اڳ هميشه هيٽر کي ان پلگ ڪريو.

Image: The Emerson SH1501 heater highlighting its ETL certification, overheat protection, and tip-over protection features, with a dog in the background, indicating safe use around pets.

2. پراڊڪٽ ختمview

The Emerson SH1501 is a portable 1500W electric space heater designed for indoor use. It features PTC ceramic heating technology for fast and even heat distribution, along with multiple heat settings and a fan-only mode for year-round comfort.

اهم خاصيتون:

• پي ٽي سي سيرامڪ گرمائش: موثر ۽ تيز گرمي فراهم ڪري ٿو.
• ٽي گرمي جي سطح: Level-1 (700W), Level-2 (900W), Level-3 (1500W).
• صرف فين موڊ: گرمي کان سواءِ هوا جي گردش لاءِ.
• ترتيب ڏيڻ وارو Thermostat: صحيح درجه حرارت ڪنٽرول لاءِ.
• حفاظتي خاصيتون: Automatic tip-over shut-off and overheat protection.
• پورٽبل ڊيزائن: Compact with a built-in carry handle.

پيداوار جا اجزاء:

1. Heat/Fan Mode Selector Dial
2. Adjustable Thermostat Dial
3. پاور انڊيڪيٽر لائيٽ
4. Front Grill (Heat Outlet)
5. پٺيءَ تي هوا جو انٽ
6. هٿ کڻڻ

تصوير: سامهون view of the Emerson SH1501 Electric Space Heater, showing the control dials and front grill.

تصوير: پاسي view of the Emerson SH1501 Electric Space Heater, showing its compact profile.

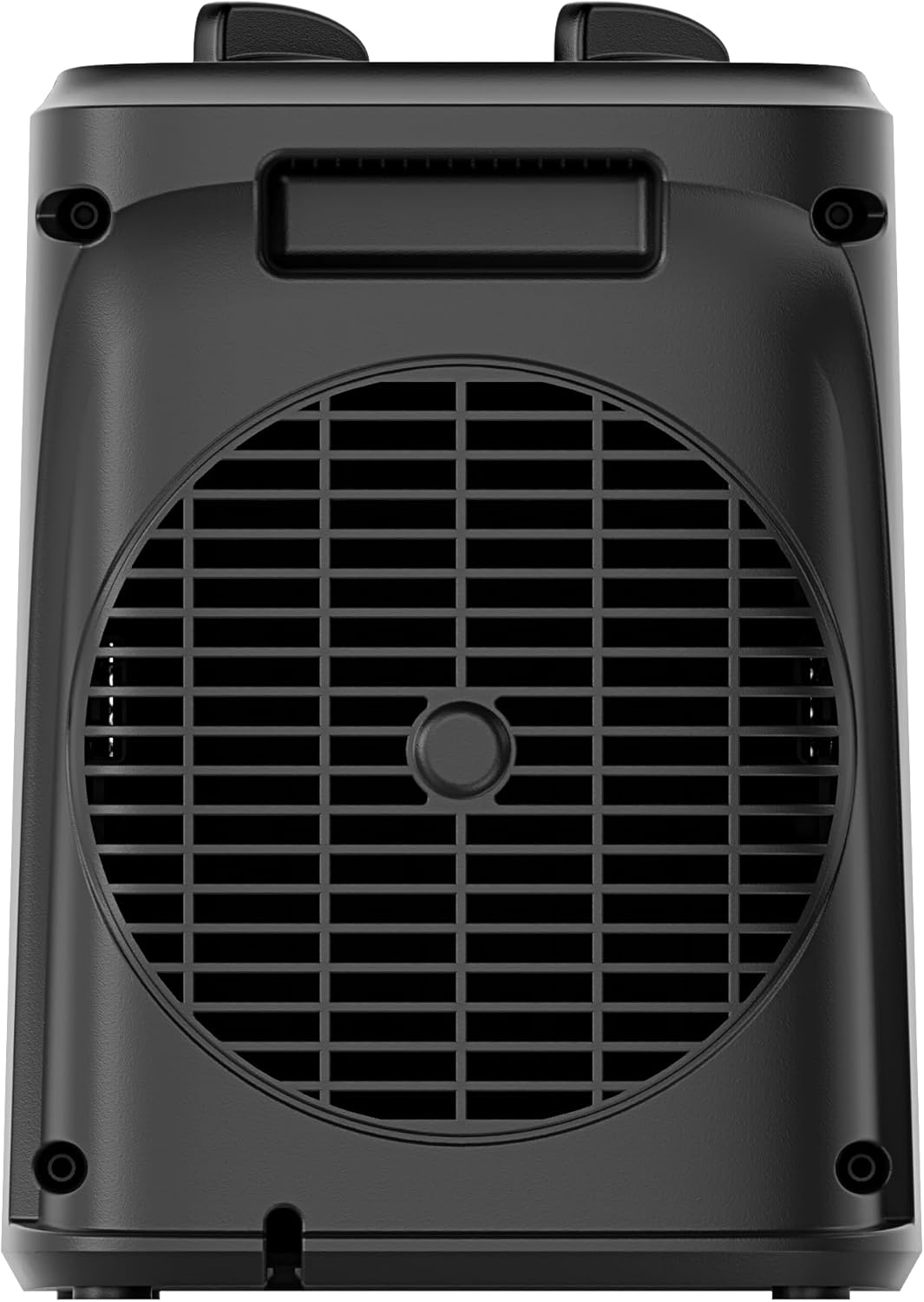

تصوير: پوئتي view of the Emerson SH1501 Electric Space Heater, showing the air intake and power cord.

3. سيٽ اپ ۽ پليسمينٽ

صحيح سيٽ اپ بهترين ڪارڪردگي ۽ حفاظت کي يقيني بڻائي ٿو.

1. پيڪنگ کولڻ: Carefully remove the heater from its packaging. Retain packaging for storage if desired.
2. لڳائڻ: Place the heater on a stable, level, heat-resistant surface. Ensure there is at least 3 feet (0.9 meters) of clear space around the heater from any walls, furniture, or other objects. Do not place it directly under a power outlet.
3. پاور ڪنيڪشن: Plug the heater directly into a standard 120V AC, 60Hz wall outlet. Do not use extension cords, power strips, or surge protectors.

Image: The Emerson SH1501 heater positioned on a nightstand in a bedroom, illustrating suitable placement for localized heating.

4. آپريٽنگ هدايتون

Follow these steps to operate your Emerson SH1501 space heater.

1. پاور آن: Ensure the heater is plugged in. The power indicator light will illuminate.
2. موڊ چونڊيو: Turn the Heat/Fan Mode Selector Dial (typically on the right) to your desired setting:
   • صرف پرستار: گرمي کان سواءِ هوا جي گردش لاءِ.
   • Level-1 (700W): گھٽ گرمي جي سيٽنگ.
   • Level-2 (900W): وچولي گرمي جي سيٽنگ.
   • Level-3 (1500W): اعلي گرمي جي جوڙجڪ.
3. ٿرموسٽٽ سيٽ ڪريو: Turn the Adjustable Thermostat Dial (typically on the left) to the MAX position. Once the room reaches your desired temperature, slowly turn the thermostat dial counter-clockwise until the heater turns off. The heater will now cycle on and off to maintain this temperature.
4. بجلي بند: To turn off the heater, turn the Heat/Fan Mode Selector Dial to the "OFF" position. Unplug the heater from the wall outlet when not in use.

Image: Diagram illustrating the four operating modes of the Emerson SH1501 heater: 700W (Low Heat), 900W (Middle Heat), 1500W (High Heat), and Fan Only.

Image: The Emerson SH1501 heater actively emitting warm air, demonstrating its heating function.

5. مينٽيننس ۽ اسٽوريج

باقاعده سار سنڀال توهان جي هيٽر جي ڊگهي عمر ۽ موثر آپريشن کي يقيني بڻائي ٿي.

صفائي:

• هميشه هيٽر کي ان پلگ ڪريو ۽ صاف ڪرڻ کان اڳ ان کي مڪمل طور تي ٿڌو ٿيڻ ڏيو.
• نرم استعمال ڪريو، ڊيamp هيٽر جي ٻاهرين سطحن کي صاف ڪرڻ لاءِ ڪپڙو. گھڙڻ وارا صاف ڪندڙ يا محلول استعمال نه ڪريو.
• Use a vacuum cleaner with a brush attachment to gently clean dust from the air intake and exhaust grilles.
• ڪڏهن به هيٽر کي پاڻيءَ ۾ نه ٻوڙيو ۽ نه ئي پاڻي کي اندرئين حصي ۾ ٽِپڻ ڏيو.

اسٽوريج:

• جڏهن استعمال ۾ نه هجي، ته هيٽر کي ان جي اصل پيڪنگنگ ۾ ٿڌي، سڪل جاءِ تي ذخيرو ڪريو.
• Avoid storing in areas where it may be exposed to excessive dust or moisture.

6. مسئلو حل ڪرڻ جي ھدايت

If your heater is not operating correctly, consult the following common issues and solutions.

If the problem persists after trying these solutions, please contact Emerson customer support.

7. وضاحتون

Image: The Emerson SH1501 heater with its dimensions clearly marked, showing its compact size.

8. وارنٽي ۽ سپورٽ

For warranty information or technical support, please refer to the warranty card included with your product or visit the official Emerson webسائيٽ. خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.

رابطي جي ڄاڻ: Please refer to the product packaging or the Emerson official webجديد ترين ڪسٽمر سپورٽ رابطي جي تفصيلن لاءِ سائيٽ.
