1. تعارف
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your Fenge Dual Monitor Stand with Drawer. Please read this manual thoroughly before assembly and use to ensure proper function and safety. Keep this manual for future reference.
حفاظت جي ڄاڻ
- اسيمبليءَ کان اڳ پڪ ڪريو ته سڀئي حصا موجود آهن ۽ انهن کي نقصان نه پهتو آهي. جيڪڏهن ڪو به پرزو غائب يا ٽٽل آهي ته استعمال نه ڪريو.
- خرچي کان بچڻ لاءِ يونٽ کي نرم، صاف مٿاڇري تي گڏ ڪريو.
- مواد کي نقصان پهچائڻ کان بچڻ لاءِ اسيمبلي دوران پيچ کي وڌيڪ تنگ نه ڪريو.
- Place the monitor stand on a stable, level surface.
- وڌ ۾ وڌ لوڊ گنجائش 99 پائونڊ (45 ڪلوگرام) کان وڌيڪ نه ڪريو.
- ننڍن حصن کي ٻارن کان پري رکو.
2. پيڪيج مواد
مھرباني ڪري تصديق ڪريو ته ھيٺ ڏنل سڀئي جزا توھان جي پيڪيج ۾ شامل آھن:
| شيءِ | وصف | مقدار |
|---|---|---|
| مٿين شيلف پينل | Main surface for monitors | 1 |
| هيٺيون شيلف پينل | لوئر اسٽوريج شيلف | 1 |
| Side Support Frames | Metal frames for structural support | 2 |
| Middle Support Blocks | Internal wooden blocks for stability | 2 |
| Acrylic Drawers | Semi-transparent storage drawers | 2 |
| ھارڊويئر پيڪ | Screws, dowels, L-wrench, adhesive pads | 1 سيٽ |
3. Setup & Assembly Instructions
The Fenge Dual Monitor Stand is designed for quick and easy assembly. Follow these steps carefully:
اسيمبلي وڊيو گائيڊ
Official Fenge Monitor Stand Assembly Video (Excludes Drawer Section). This video demonstrates the step-by-step process for assembling the main structure of the monitor stand.
قدم قدم اسيمبلي
- پينل تيار ڪريو: Lay out the top and bottom shelf panels (labeled 1# and 2# in the video) on a clean, soft surface. Identify the pre-drilled holes.
- Attach Middle Support Blocks: Secure the two middle support blocks (labeled 3# in the video) to the top shelf panel using the provided screws and dowels. Ensure they are aligned with the pre-drilled holes.
- Connect Top and Bottom Panels: Carefully align the top shelf panel with the bottom shelf panel, ensuring the middle support blocks fit into their designated slots. Secure them using the appropriate screws.
- Install Side Support Frames: Attach the metal side support frames (labeled 5# in the video) to both ends of the assembled panels. Note that one side of the frame is slanted (front) and the other is vertical (back). Do not fully tighten the screws on the slanted side initially.
- سڀني پيچرن کي مضبوط ڪريو: Once all components are in place, tighten all screws securely using the provided L-wrench. Ensure the stand is stable.
- دراز داخل ڪريو: Slide the two semi-transparent acrylic drawers into their designated compartments. The stand features a back panel behind the drawers to prevent them from sliding out easily.
- Apply Adhesive Pads: Attach the adhesive pads to the bottom of the metal feet to prevent scratching your desk surface and provide additional stability.
4. آپريٽنگ هدايتون

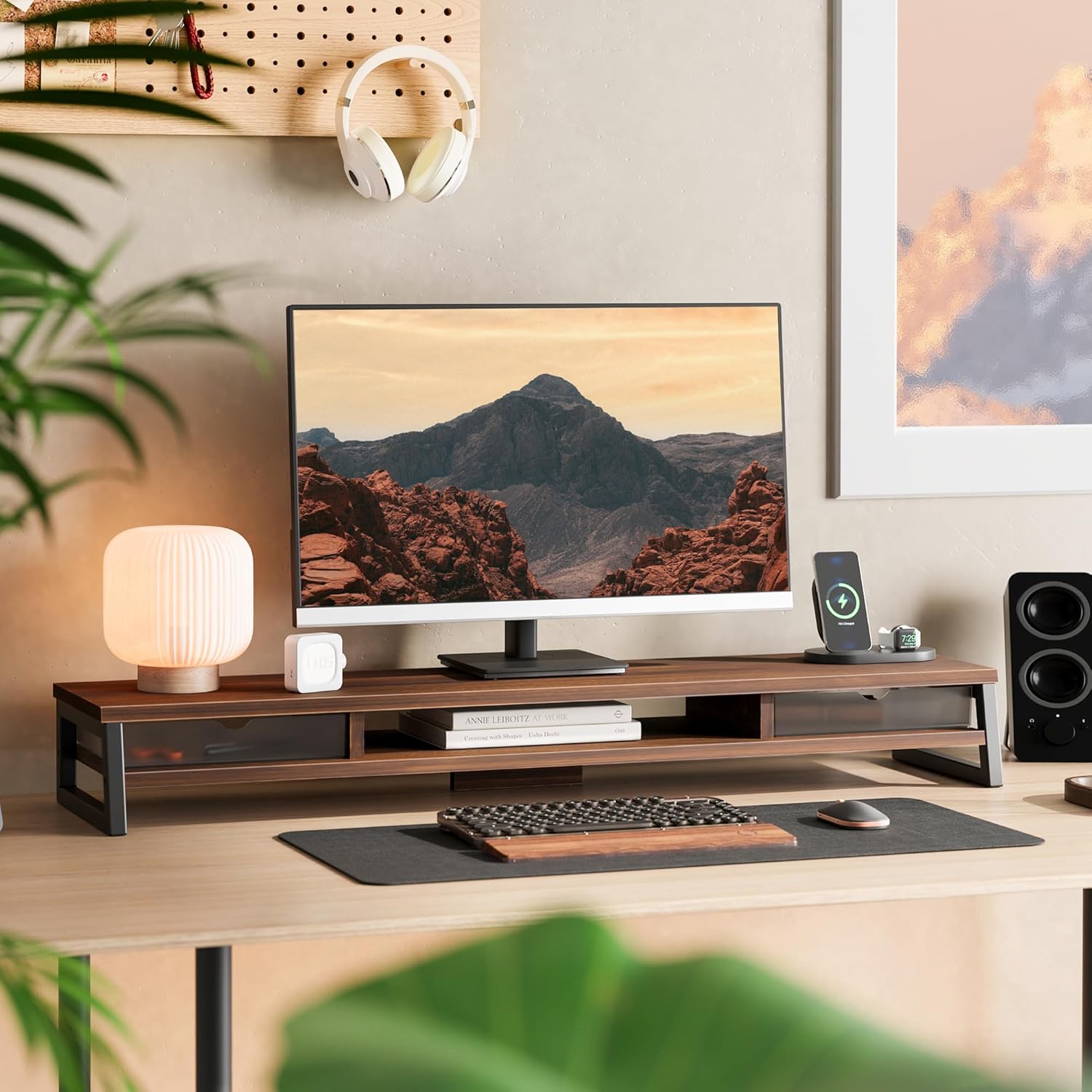

Your Fenge Dual Monitor Stand is designed to enhance your workspace ergonomics and organization.
Ergonomic Benefits
- The stand raises your screen by 5.4 inches, promoting an ergonomically correct viewing height. This helps alleviate neck and eye strain during prolonged use.
اسٽوريج ۽ تنظيم
- ڊبل مانيٽر سپورٽ: The 42.5-inch length accommodates two monitors, providing a unified and elevated display area.
- Integrated Drawers: Utilize the two semi-transparent frosted acrylic drawers for storing small office supplies, pens, or personal items, keeping your desktop clutter-free.
- Under-Shelf Space: The 1.9-inch bottom space is ideal for securely storing keyboards, mice, notebooks, or other office essentials when not in use.
- ڪيبل جو انتظام: An open compartment is integrated to help organize and route cables, maintaining a tidy workspace.
پيداوار ختمview وڊيو
هڪ مختصر ختمview of the Fenge Dual Monitor Stand with Drawer, highlighting its features and benefits in a typical workspace setting.
5. سار سنڀال
To ensure the longevity and appearance of your Fenge Dual Monitor Stand, follow these simple maintenance guidelines:
- صفائي: The high-quality thickened MDF panel surface is waterproof and resistant to scratches and fingerprints. Wipe clean with a soft, damp ڪپڙو. سخت ڪيميائي استعمال ڪرڻ کان پاسو ڪريو يا صاف ڪندڙ صاف ڪندڙ.
- چڪاس: وقت بوقت سڀني پيچرن ۽ ڪنيڪشنن کي چيڪ ڪريو ته جيئن اهي تنگ رهن. جيڪڏهن ضروري هجي ته ٻيهر مضبوط ڪريو.
- وزن جي تقسيم: Distribute weight evenly across the top surface to maintain stability and prevent stress on any single point.
6. مسئلا حل ڪرڻ
If you encounter any issues with your Fenge Dual Monitor Stand, refer to the following common problems and solutions:
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| اسٽينڊ لڏپلاڻ وارو يا غير مستحڪم آهي. | ڍِلو پيچ يا اڻ برابر مٿاڇري. | Ensure all screws are tightened. Place the stand on a flat, level surface. |
| دراز آساني سان نه سلائڊ ڪندا آهن. | Obstruction or improper alignment. | Check for any items blocking the drawer path. Ensure drawers are inserted correctly. |
| اسيمبلي دوران پرزا غائب. | پيڪنگ جي غلطي. | Contact customer support with your purchase details and a list of missing parts. |
| Monitors exceed weight capacity. | Overloading the stand. | Remove excess weight. The maximum load capacity is 99 lbs (45 kg). |
7. وضاحتون
Detailed technical specifications for the Fenge Dual Monitor Stand:
| خاصيت | تفصيل |
|---|---|
| پيداوار جي ماپ (L x W x H) | 42.52 x 10.04 x 5.43 انچ |
| شيءِ جو وزن | 17.18 پائونڊ |
| مواد | Engineered Wood, Iron, Polycarbonate (PC) |
| رنگ | ناسي |
| لوڊ ڪرڻ جي صلاحيت | 99 پائونڊ (45 ڪلوگرام) |
| اسيمبلي گهربل | ها |
| خاص خصوصيت | Drawer, Cable Management |
| ٺاهيندڙ | Fenge |
8. وارنٽي ۽ سپورٽ
Fenge products are manufactured with quality and durability in mind. For specific warranty information, please refer to the warranty card included with your product or visit the official Fenge webسائيٽ.
ڪسٽمر سپورٽ
If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact Fenge customer support. Have your product model and purchase date ready for faster service.
- آن لائن سپورٽ: Visit the Fenge official webاڪثر پڇيا ويندڙ سوالن ۽ رابطي جي اختيارن لاءِ سائيٽ.
- اي ميل سپورٽ: Refer to your product packaging or the Fenge webڪسٽمر سروس اي ميل ايڊريس لاءِ سائيٽ.
