CNBINGO MT-WK Rotary Knob Digital Room Thermostat

تعارف

This manual provides detailed instructions for the installation, operation, and maintenance of your CNBINGO MT-WK Rotary Knob Digital Room Thermostat. Please read this manual thoroughly before installation and use to ensure proper function and safety. This thermostat is designed to regulate the temperature of various heating systems, including electric heating, hot water heating, and water/gas boilers, ensuring a comfortable indoor climate.

Figure 1: CNBINGO MT-WK Rotary Knob Digital Room Thermostat with external sensor.

The CNBINGO MT-WK thermostat is a flush-mounted device featuring a rotary knob for temperature control and an integrated sensor, with an option for an external sensor. It supports a maximum current of 16A and voltage جو 110-230V.

حفاظت جي ڄاڻ

• مقامي اليڪٽريڪل ڪوڊس جي مطابق هڪ قابل اليڪٽريشن طرفان انسٽاليشن ڪرڻ گهرجي.
• ٿرموسٽٽ کي انسٽال ڪرڻ يا سروس ڪرڻ کان اڳ هميشه سرڪٽ بريڪر تي بجلي بند ڪريو.
• Do not expose the thermostat to water or excessive moisture. The device has an IP20 rating, suitable for indoor use.
• پڪ ڪريو ته سڀئي وائرنگ ڪنيڪشن محفوظ ۽ صحيح طرح سان موصل آهن ته جيئن شارٽ سرڪٽ کي روڪي سگهجي.
• The thermostat housing is made of flame-retardant PC material for safety.

پيداوار ختمview

The CNBINGO MT-WK thermostat features a simple and intuitive design for temperature control.

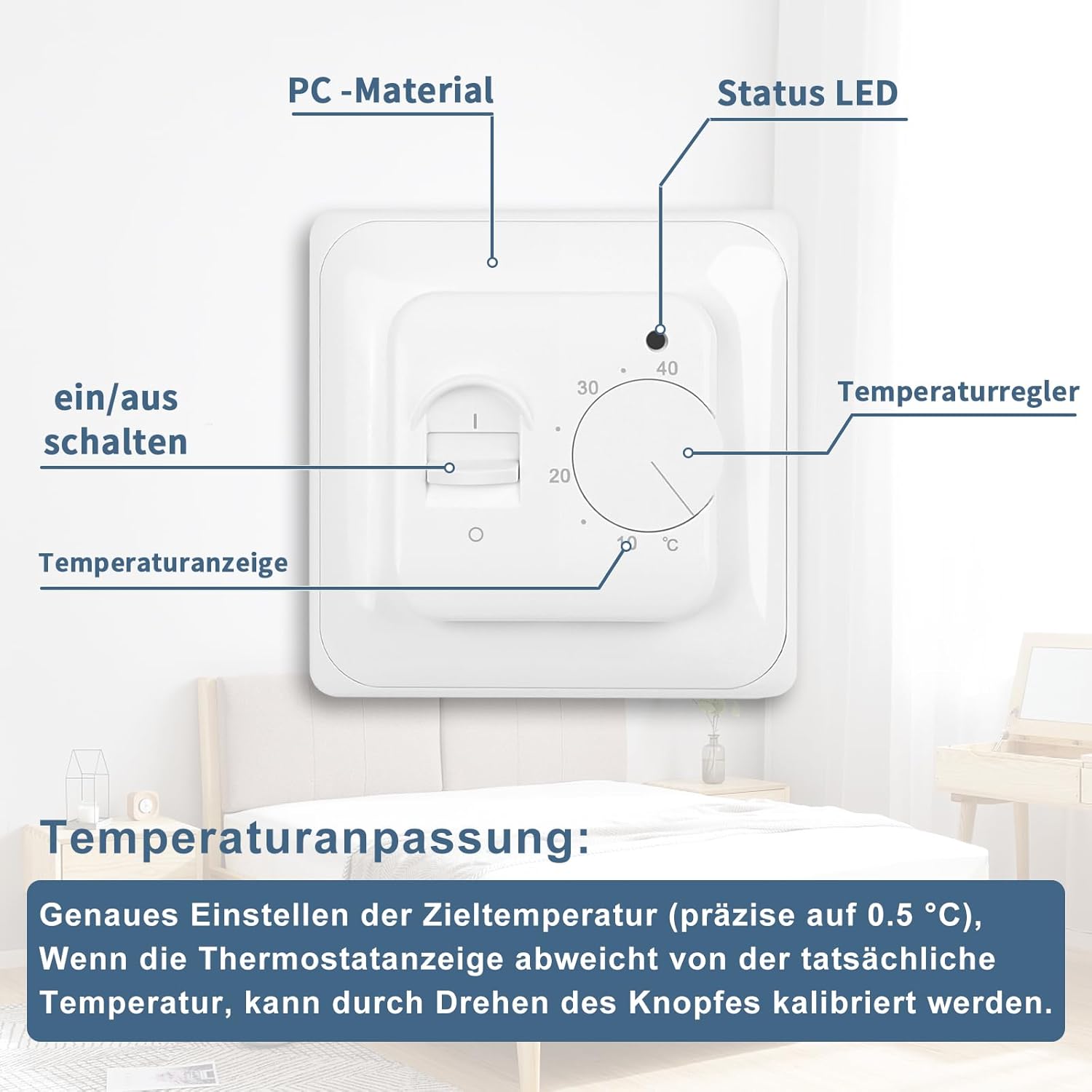

Figure 2: Thermostat Components.

• PC Material: Durable and flame-retardant housing.
• اسٽيٽس LED Indicates heating status (red when active).
• گرمي پد ڪنٽرولر: Rotary knob for setting and calibrating temperature.
• آن/آف سوئچ: Slider switch to power the thermostat on or off.
• درجه حرارت ڊسپلي: Scale around the rotary knob indicating the set temperature.

سيٽ اپ ۽ تنصيب

1. وائرنگ ڊاگرام

Refer to the following diagram for correct wiring connections. This thermostat is compatible with electric heating, hot water heating, and water/gas boiler systems.

Figure 3: Wiring Diagram and Compatible Devices.

• L: Live wire connection.
• N: Neutral wire connection.
• خارجي سينسر: Connect the provided 3-meter external sensor cable if required.

2. Sensor Selection

The thermostat includes both a built-in aluminum sensor and a 3-meter external temperature sensor. You can choose to use one or both depending on your specific needs.

Figure 4: Built-in vs. External Sensor Usage.

• اندروني سينسر: Ideal for smaller rooms where uniform temperature distribution is expected. The sensor is integrated directly into the thermostat unit.
• خارجي سينسر: Recommended for larger rooms or areas where the thermostat's location might not accurately reflect the room's overall temperature. The 3-meter cable allows for flexible placement.

3. چڙهڻ جي گهرج

The thermostat is designed for flush-mounting in a standard wall box.

Figure 5: Product Dimensions and Wall Box Requirements.

• طول و عرض: The thermostat measures 86mm x 86mm x 55mm.
• Wall Box: Mount in a standard wall box with a diameter of 60mm.
• کوٽائي: The depth of the device box should be at least 35mm to accommodate the thermostat.

آپريٽنگ هدايتون

1. پاور آن/آف

Use the slider switch on the thermostat to turn the unit on or off.

2. درجه حرارت جي ترتيب

To set the desired temperature, rotate the central knob. The temperature can be precisely set to 0.5°C increments within a range of 5°C to 40°C.

Figure 6: Temperature Adjustment Knob.

3. درجه حرارت جي حساب سان

If the temperature displayed on the thermostat deviates from the actual room temperature, you can calibrate it by gently turning the rotary knob until it matches the accurate reading from another thermometer.

4. LED اشارو

The thermostat is equipped with an LED indicator light that provides visual feedback on its operational status.

Figure 7: LED Indicator.

• ڳاڙهو لال The LED lights up red when the heating system is actively engaged and providing heat.
• بند ٿيل: The LED is off when the heating system is not active or the thermostat is powered off.

سار سنڀال

The CNBINGO MT-WK thermostat requires minimal maintenance.

• صفائي: Wipe the thermostat's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• چڪاس: Periodically check for any visible damage or loose connections. If any issues are found, consult a qualified electrician.

مشڪلاتون

جيڪڏهن توهان کي پنهنجي ٿرموسٽٽ سان مسئلا درپيش اچن ٿا، ته هيٺ ڏنل عام مسئلن ۽ حلن جو حوالو ڏيو:

• Thermostat تي طاقت نه آهي:
  • Check the main power supply to the thermostat.
  • Ensure the on/off slider switch is in the 'on' position.
  • پڪ ڪريو ته وائرنگ ڪنيڪشن محفوظ آهن.
• Heating not turning on:
  • Ensure the set temperature is higher than the current room temperature.
  • Check if the red LED indicator is lit. If not, the thermostat is not calling for heat.
  • Verify the heating system (boiler, electric heater) is operational.
• غلط درجه حرارت پڙهڻ:
  • Calibrate the thermostat by adjusting the rotary knob to match a known accurate thermometer.
  • Ensure the sensor (internal or external) is not obstructed or exposed to drafts/direct sunlight.

وضاحتون

وارنٽي ۽ سپورٽ

For warranty information or technical support, please contact CNBINGO customer service. Refer to your purchase documentation for specific warranty terms.

ٺاهيندڙ: CNBINGO

ماڊل: MT-WK

For further assistance, please visit the official CNBINGO webسائيٽ تي وڃو يا پنهنجي مقامي ورهائيندڙ سان رابطو ڪريو.
