Thank you for choosing the CooFel 8KW 12V Diesel Air Heater. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your heater. Please read this manual thoroughly before use and retain it for future reference.
اهم حفاظتي هدايتون
انهن حفاظتي هدايتن تي عمل ڪرڻ ۾ ناڪامي باهه، بجلي جو جھٽڪو، سنگين زخمي، يا موت جو سبب بڻجي سگهي ٿي.
- Ensure proper ventilation when operating the heater. Do not operate in enclosed, unventilated spaces.
- The exhaust pipe must always be routed outdoors to prevent carbon monoxide poisoning.
- Use only diesel fuel. Never use gasoline or other volatile fuels.
- ٻرندڙ مواد کي هيٽر ۽ ان جي ايگزاسٽ کان محفوظ فاصلي تي رکو.
- Do not touch hot surfaces of the heater during or immediately after operation.
- پڪ ڪريو ته هيٽر محفوظ طور تي لڳل آهي ته جيئن ٽپڻ کان بچي سگهجي.
- ڪنهن به سار سنڀال يا صفائي ڪرڻ کان اڳ بجلي بند ڪريو.
- هيٽر يا ان جي حصن کي تبديل نه ڪريو. صرف اصل متبادل حصن کي استعمال ڪريو.
- ٻارن ۽ پالتو جانورن کي آپريٽنگ هيٽر کان پري رکو.
پيداوار ختمview
The CooFel 8KW 12V Diesel Air Heater is an all-in-one unit designed for efficient heating. It features an integrated fuel tank, heater, and fuel pump for simplified installation and operation. The internal structure, including the combustion chamber, base, and heat-dissipating scale, is constructed from aluminum for durability and uniform heat dissipation.

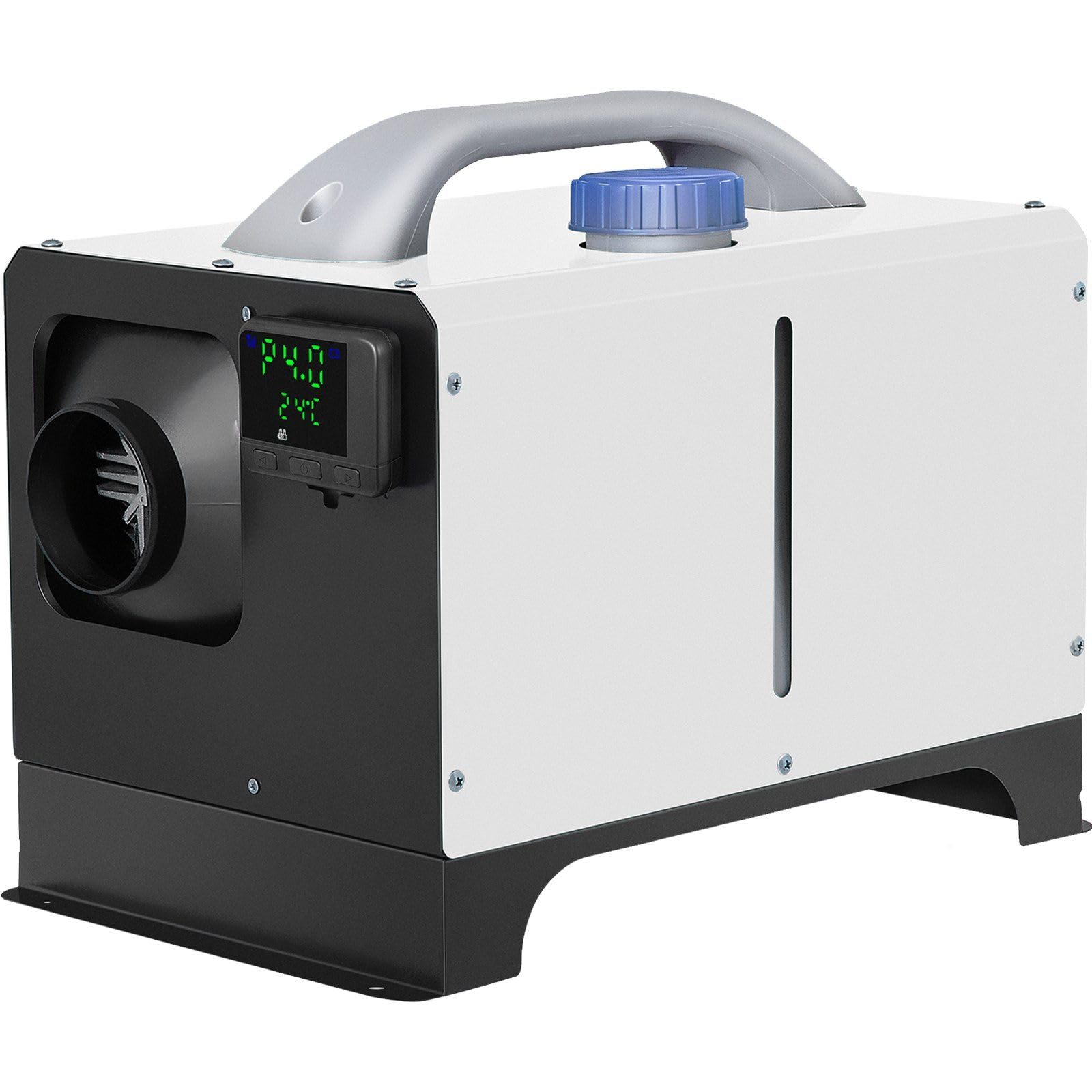

شڪل 1: سامهون view of the CooFel 8KW 12V Diesel Air Heater, showing the air outlet and control panel.
شڪل 2: پاسي view of the heater, highlighting its compact design and integrated fuel tank level indicator.
Figure 3: Diagram illustrating the internal components, including the combustion chamber and heat exchange system.
شامل اجزاء
مڪمل پيڪيج ۾ ھيٺيون شيون شامل آھن:
- 1 x All-in-one Diesel Heater
- 1 x ريموٽ ڪنٽرول
- 1 x سائلنسر
- 1 x وائرنگ جو استعمال
- 1 x ايئر فلٽر
- 1 x انٽيڪ پائپ
- 1 x آئوٽليٽ پائپ
- 1 x نڪرڻ واري پائپ
- 1 x Installation Kit (various fasteners and clamps)
وضاحتون
| خاصيت | تفصيل |
|---|---|
| هيٽر پاور | 8 ڪلوواٽ |
| درجه بندي Voltage | 12V |
| ڪم ڪندڙ درجه حرارت | -40 ° C کان +80 ° C (40 ° F کان 176 ° F) |
| ٻارڻ جو استعمال | 0.1-0.24 ليٽر/ايڇ (0.026-0.063 گيلن/ايڇ) |
| ٻارڻ جو قسم | Diesel Only |
| پيداوار جي ماپ | 46 x 36 x 31 انچ |
| ماڊل نمبر | CooFel-DAI-30 |
| خاص خصوصيت | Adjustable رفتار |
| طاقت جو ذريعو | AC/DC (12V DC for operation) |
| گرمائش جو طريقو | جبري هوا |
سيٽ اپ ۽ تنصيب
The CooFel diesel air heater is designed as an all-in-one unit, simplifying the installation process as the fuel tank, heater, and fuel pump are pre-integrated.
جڳهه تي غور
The heater can be flexibly installed in various locations, provided safety guidelines are followed:
- Passenger Room: Ensure adequate clearance from flammable materials and proper exhaust routing.
- ترڪيب: A common location for vehicle installations, ensuring exhaust is safely directed outside.
- Under the Container: Suitable for larger vehicles or stationary applications, with protection from elements.
شڪل 4: مثالample placement of the heater inside a vehicle, illustrating the direction of warm air output.
انسٽاليشن جا مرحلا (عام)
- جڳھ چونڊيو: Select a stable, flat surface for the heater, ensuring sufficient space for air intake and exhaust.
- Secure Heater: Use the provided installation kit to securely fasten the heater to prevent movement during operation.
- Connect Exhaust Pipe: Attach the exhaust pipe to the heater and route it safely outside the vehicle/enclosure. Ensure no kinks or blockages. The silencer can be installed on the exhaust pipe to reduce noise.
- Connect Intake & Outlet Pipes: Attach the air intake and hot air outlet pipes. Ensure the air filter is installed on the intake pipe.
- برقي ڪنيڪشن: Connect the wiring harness to a 12V power source, ensuring correct polarity and a secure connection. Refer to the wiring diagram in the full manual for detailed instructions.
- ٻارڻ: Fill the integrated fuel tank with clean diesel fuel. Do not overfill.
آپريٽنگ هدايتون
The heater can be controlled via the intelligent LCD monitor or the remote control.
ايل سي ڊي ڪنٽرول پينل
The built-in LCD panel allows for automatic or manual adjustment of the heater's timer and thermostat. The display shows current temperature, target temperature, and operational status.
شڪل 5: بند اپ view of the LCD control panel, displaying temperature and operational settings.
- پاور بٽڻ: دٻايو هيٽر کي آن / آف ڪرڻ لاءِ.
- مٿي/هي Butيون بٽڻ: Adjust the target temperature or navigate menu options.
- مينيو بٽڻ: Access settings such as timer, fan speed, and operating mode.
ريموٽ ڪنٽرول
The remote control provides convenient operation from a distance, allowing you to adjust the temperature or activate the heater before entering your vehicle.
Figure 6: The LCD control panel alongside the remote control unit.
- پاور بٽڻ: هيٽر کي پري کان آن/آف ڪريو.
- درجه حرارت جي ترتيب: Buttons to increase or decrease the desired temperature.
- ٽائمر فنڪشن: Set a timer for automatic startup or shutdown.
شروعاتي شروعاتي
- Ensure the fuel tank is filled with diesel.
- Connect the heater to a 12V power source.
- Press the power button on the LCD panel or remote control.
- The heater will initiate a startup sequence, including fuel priming and ignition. This may take a few minutes.
- Adjust the desired temperature using the Up/Down buttons on the LCD or remote.
سار سنڀال
Regular maintenance ensures the longevity and efficient operation of your diesel air heater.
- صاف ايئر فلٽر: Periodically check and clean the air filter to ensure unrestricted airflow. Replace if damaged.
- Inspect Exhaust System: Regularly check the exhaust pipe for blockages, leaks, or damage. Ensure it remains clear and securely attached.
- ٻارڻ جي نظام جي چڪاس: Inspect fuel lines for leaks or damage. Ensure the fuel filter (if external) is clean.
- عام صفائي: هيٽر جي ٻاهرين حصي کي صاف ۽ مٽي ۽ ملبي کان پاڪ رکو. رگڙيندڙ صاف ڪندڙ استعمال نه ڪريو.
- برقي ڪنيڪشن: Verify all electrical connections are secure and free from corrosion.
مشڪلاتون
هي حصو عام مسئلن کي حل ڪري ٿو جيڪي توهان کي درپيش اچي سگهن ٿا. وڌيڪ پيچيده مسئلن لاءِ، ڪسٽمر سپورٽ سان رابطو ڪريو.
| مسئلو | ممڪن سبب | حل |
|---|---|---|
| هيٽر شروع نٿو ٿئي | بجلي نه هجڻ، گهٽ ايندھن، بند ٿيل ايندھن جي لائن، ايندھن جي نظام ۾ هوا | Check 12V power connection, refill fuel tank, check fuel lines for blockages, prime fuel system. |
| گھٽ گرمي جي پيداوار | Clogged air filter, exhaust blockage, incorrect temperature setting | Clean/replace air filter, check exhaust for obstructions, increase target temperature. |
| گهڻو تماڪ | Poor fuel quality, incorrect fuel-air mixture, carbon buildup | Use clean diesel fuel, ensure proper ventilation, consider professional cleaning if carbon buildup is suspected. |
| غير معمولي شور | Loose components, fan obstruction, worn bearings | Check for loose parts, ensure fan is clear of obstructions. If noise persists, contact support. |
| ريموٽ ڪنٽرول ڪم نه ڪري رهيو آهي | Dead batteries, out of range, interference | Replace remote batteries, move closer to the heater, check for signal interference. |
درخواست
The CooFel 8KW 12V Diesel Air Heater is a versatile heating solution suitable for a wide range of diesel vehicles and applications. It provides independent warm air, helping to maintain comfortable temperatures without relying on the vehicle's engine.
Figure 7: The diesel air heater is suitable for various applications such as motorhomes, trucks, buses, boats, cabins, and warehouses.
عام ايپليڪيشنن ۾ شامل آهن:
- Cabs of cars and trucks
- آر وي ۽ سيampارون
- قافلو
- ٻيڙيون
- Small cabins or workshops
وارنٽي ۽ سپورٽ
For warranty information, please refer to the documentation provided with your purchase or contact the retailer. For technical support, troubleshooting assistance beyond this manual, or to inquire about replacement parts, please contact CooFel customer service through their official channels.
