گرين لائن وائجر ريڊيو يوزر مينوئل

1. تعارف

Thank you for choosing the Green Lion Voyager Radio. This versatile device combines a powerful 5W Bluetooth speaker, a multi-band FM/AM/SW radio tuner, and a convenient 1.2W LED flashlight. Designed for portability and durability, it is an ideal companion for outdoor activities, emergencies, or everyday use. This manual provides detailed instructions to help you get the most out of your Voyager Radio.

Figure 1.1: Green Lion Voyager Radio - Front and Side View

This image displays the Green Lion Voyager Radio from a slightly angled front and side perspective, highlighting its compact design, digital display, speaker grille, and various control buttons.

2. پيڪيج مواد

مھرباني ڪري ھيٺ ڏنل شين لاءِ پيڪيج چيڪ ڪريو:

• Green Lion Voyager Radio
• USB-C چارجنگ ڪيبل
• استعمال ڪندڙ دستي

3. پراڊڪٽ ختمview

Familiarize yourself with the various parts and controls of your Voyager Radio.

3.1 اهم خاصيتون

• FM/AM/SW Radio Tuner with Digital Display
• Bluetooth V5.4 Connectivity
• 5W High-Fidelity Speaker
• 1.2W LED ٽارچ
• قسم-سي چارجنگ پورٽ
• مائڪرو ايس ڊي ڪارڊ پلے بیک
• ائرفون جيڪ
• Lock & Sleep Mode

3.2 ڪنٽرول ۽ بندرگاهون

Refer to the images below for a visual guide to the radio's features.

Figure 3.1: Integrated Flashlight

This image highlights the 1.2W LED flashlight located at the top of the radio, providing reliable illumination.

Figure 3.2: Earphone Jack

The image shows the 3.5mm earphone jack on the side of the radio, allowing for private listening.

Figure 3.3: Micro SD Playback

This graphic illustrates the Micro SD card slot, enabling playback of audio files directly from a memory card.

4. سيٽ اپ

4.1 ڊوائيس چارج ڪرڻ

1. Locate the Type-C charging port on the side of the Voyager Radio.
2. Connect the provided USB-C charging cable to the radio and the other end to a compatible USB power adapter (not included) or a computer's USB port.
3. The charging indicator on the display will show the charging status. A full charge provides approximately 6-7 hours of playtime.

4.2 شروعاتي پاور آن

پاور بٽڻ کي دٻايو ۽ رکو (🏻) for a few seconds until the digital display illuminates.

5. آپريٽنگ هدايتون

5.1 پاور آن/آف

• پاور آن ڪرڻ لاءِ، دٻايو ۽ رکو طاقت بٽڻ
• بجلي کي بند ڪرڻ لاءِ ، دٻايو ۽ رکو طاقت ٻيهر بٽڻ.

5.2 Radio Operation (FM/AM/SW)

1. مٽائڻ جا طريقا: کي دٻايو موڊ/ننڊ button to cycle through FM, AM, SW, Bluetooth, and Micro SD modes.
2. خودڪار اسڪين: ريڊيو موڊ ۾ ، دٻايو اسڪين/کيڏو button to automatically scan and save available stations.
3. دستي ترتيب استعمال ڪريو ٽيوننگ knob يا +/- buttons to fine-tune frequencies.
4. Recalling Stations: استعمال ڪريو MEM/EQ محفوظ ڪيل اسٽيشنن ذريعي سائيڪل هلائڻ لاءِ بٽڻ.

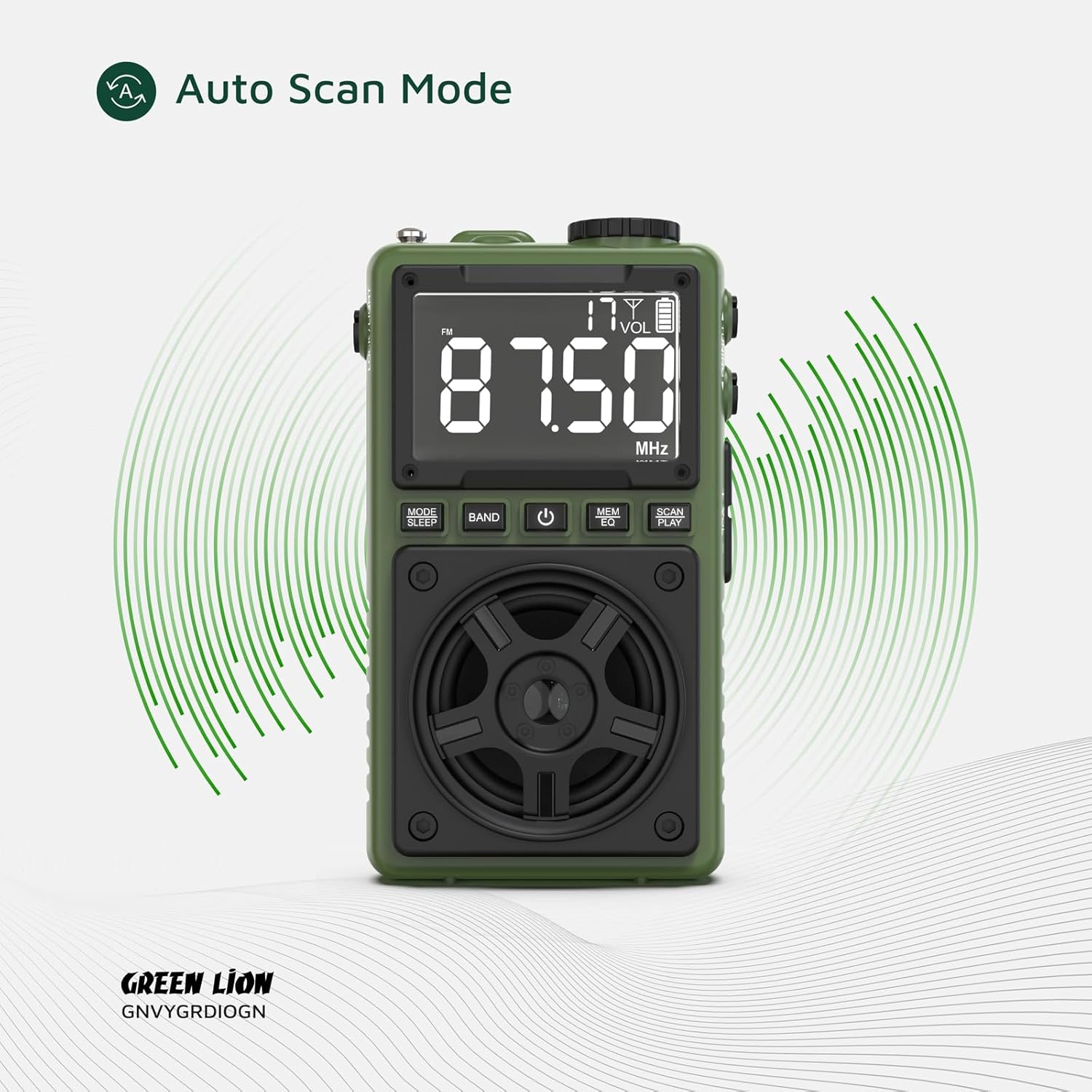

Figure 5.1: Auto Scan Mode

This graphic illustrates the radio's auto scan feature, which automatically finds and saves radio stations for convenience.

Figure 5.2: Multi Radio Bands

The image highlights the radio's capability to receive multiple frequency bands, including FM, AM, and SW.

5.3 Bluetooth Speaker Operation

1. جوڙڻ: Switch the radio to Bluetooth mode. The display will indicate 'BT' and the device will enter pairing mode.
2. On your smartphone or other Bluetooth-enabled device, search for 'Green Lion Voyager' in the Bluetooth settings and select it to pair.
3. Once paired, you can stream audio wirelessly to the Voyager Radio. The Bluetooth range is 8-10 meters.
4. پلے بیک ڪنٽرول: استعمال ڪريو اسڪين/کيڏو button to play/pause, and the +/- حجم ڪنٽرول لاء بٽڻ.

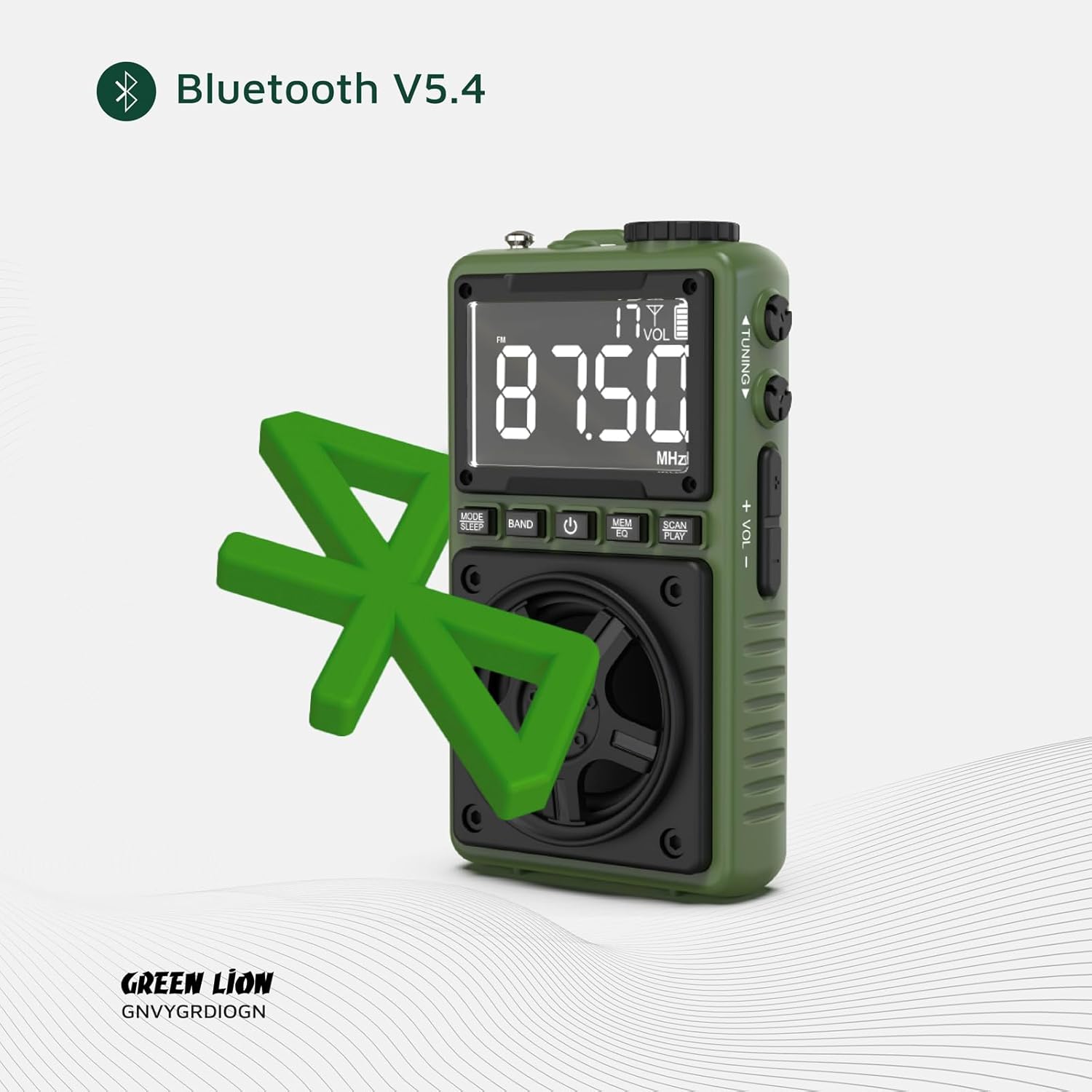

Figure 5.3: Bluetooth V5.4 Connectivity

This image visually represents the radio's advanced Bluetooth V5.4 capability for stable and efficient wireless audio streaming.

5.4 ٽارچ آپريشن

To turn the 1.2W LED flashlight on or off, locate the dedicated لاڪ/لائيٽ switch on the side of the device and slide it to the desired position.

Figure 5.4: Flashlight in Use

The image demonstrates the powerful beam of the integrated flashlight, useful for various situations.

5.5 لاڪ موڊ

To prevent accidental button presses, slide the لاڪ/لائيٽ switch to the 'LOCK' position. This will disable all buttons except the flashlight.

5.6 سمهڻ جو طريقو

کي دٻايو ۽ رکو موڊ/ننڊ button to activate sleep mode. The radio will automatically turn off after a set period (refer to display for timer settings).

6. سار سنڀال

• صفائي: Use a soft, dry cloth to clean the surface of the radio. Do not use abrasive cleaners or solvents.
• اسٽوريج: ڊوائيس کي سڌي سج جي روشني ۽ انتهائي گرمي پد کان پري ٿڌي، سڪل جاءِ تي رکو.
• بيٽري جي سنڀال: بيٽري جي زندگي کي وڌائڻ لاءِ، بيٽري کي بار بار مڪمل طور تي چارج ڪرڻ کان پاسو ڪريو. ڊوائيس کي باقاعدي طور تي چارج ڪريو، جيتوڻيڪ ڊگهي عرصي تائين استعمال ۾ نه هجي.

7. مسئلا حل ڪرڻ

8. وضاحتون

9. وارنٽي ۽ سپورٽ

The Green Lion Voyager Radio comes with a Free 12+12 months warranty. For any inquiries or technical assistance, please contact our customer service.

• ڪسٽمر سروس: 24-hour customer service is available.
• ٽيڪنيڪل سپورٽ: لائف ٽائيم ٽيڪنيڪل سپورٽ فراهم ڪئي وئي آهي.
