VILTROX AF 35mm F1.2 LAB FE Lens Instruction Manual

تعارف

This manual provides detailed instructions for the proper use and maintenance of your VILTROX AF 35mm F1.2 LAB FE lens. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.

دٻي ۾ ڇا آهي

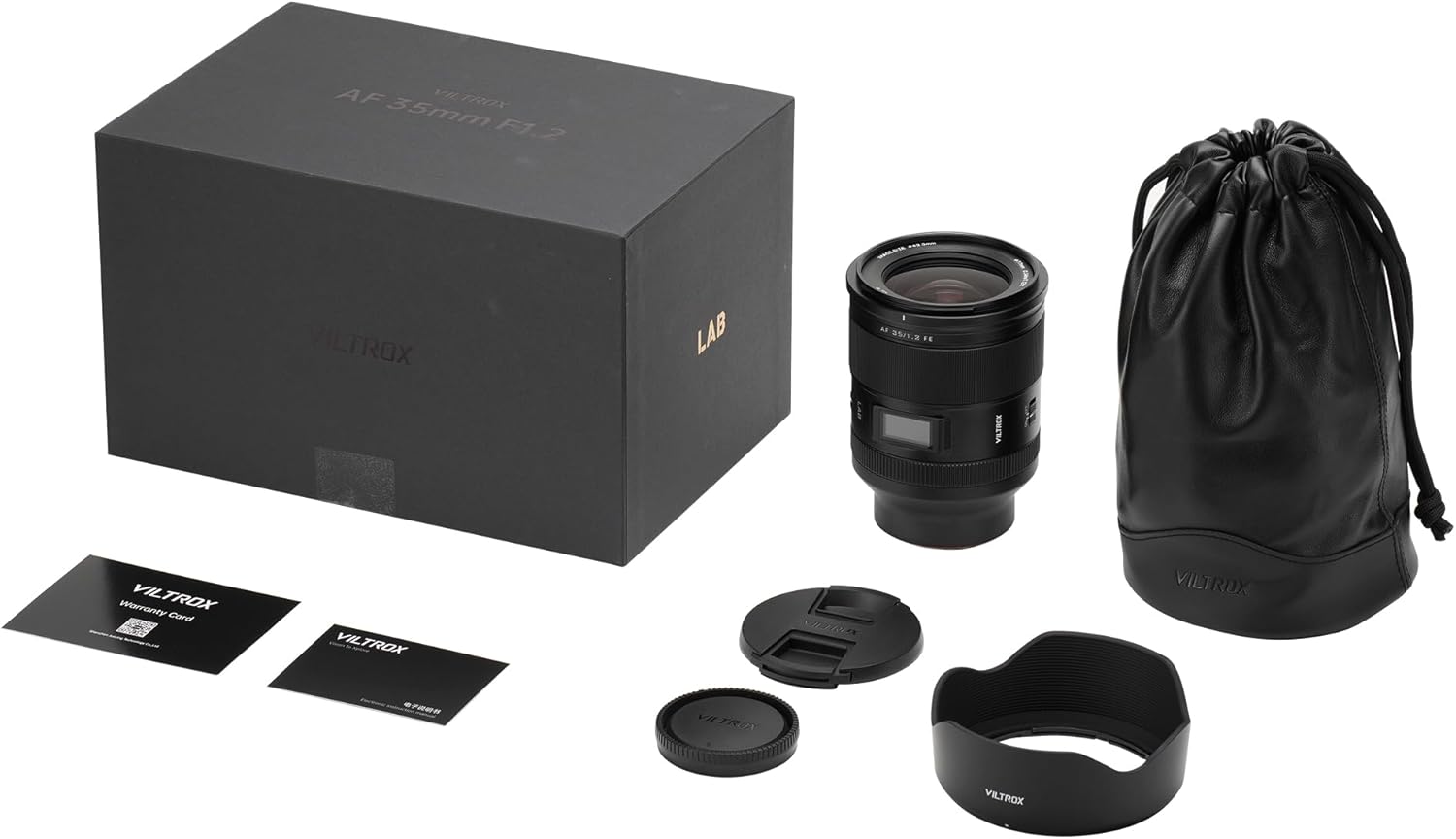

• لينس
• Lens Caps (Front and Rear)
• لينس پنچ
• لينس هيڊ

1. سيٽ اپ

1.1 لينس کي پنهنجي ڪئميرا سان ڳنڍڻ

1. پڪ ڪريو ته توهان جو ڪئميرا بند آهي.
2. لينس مان پوئين لينس ڪيپ ۽ ڪئميرا مان باڊي ڪيپ هٽايو.
3. Align the mounting index (red dot) on the lens with the corresponding index on your camera body.
4. لينس کي ڪئميرا ماؤنٽ ۾ داخل ڪريو ۽ ان کي گھڙيال جي طرف گھمايو جيستائين اهو جاءِ تي ڪلڪ نه ڪري.

Image: The VILTROX AF 35mm F1.2 LAB FE lens securely attached to a Sony E-mount camera body.

1.2 لينس هوڊ کي ڳنڍڻ

The lens hood helps to prevent stray light from entering the lens, reducing flare and ghosting. It also provides some physical protection for the front element.

1. Align the mark on the lens hood with the mark on the front of the lens.
2. Rotate the lens hood clockwise until it locks into place.

Image: The VILTROX AF 35mm F1.2 LAB FE lens with its included lens hood properly installed.

2. لينس هلائڻ

2.1 ايپرچر ڪنٽرول

The lens features an ultra-large f/1.2 aperture, allowing for excellent low-light performance and shallow depth of field. The aperture can be controlled via the camera body or using the dedicated aperture ring on the lens. The aperture ring includes click stops for tactile feedback.

Image: Detail of the lens barrel, highlighting the aperture ring and the integrated LCD screen.

2.2 Autofocus (AF) and Manual Focus (MF)

The lens is equipped with a HyperVCM motor for rapid and smooth autofocus. You can switch between autofocus and manual focus using the AF/MF switch located on the lens barrel.

Image: The AF/MF switch and two customizable function buttons on the lens body.

2.3 Customizable Fn Buttons

Two customizable Fn (Function) buttons are provided on the lens barrel. These buttons can be assigned various functions through your camera's menu, such as focus hold, depth-of-field preview, or other camera settings.

2.4 Focus Range Limiter

A focus range limiter switch is integrated into the lens. This feature allows you to restrict the autofocus range, which can improve focusing speed and accuracy when shooting subjects within a specific distance range.

2.5 LCD اسڪرين

The integrated LCD screen displays key information such as focus distance and aperture settings, providing quick visual confirmation of your current lens parameters.

Image: The LCD screen on the lens showing focus distance and aperture information.

2.6 Optical Performance

The lens features an advanced optical design with 15 elements in 10 groups, including 5 ultra-low dispersion elements, 3 high-refractive index elements, and 2 large-diameter aspherical elements. This construction ensures high image quality, sharpness, and reduced aberrations.

تصوير: ڌماڪو ٿيو view diagram illustrating the complex optical elements within the lens.

2.7 Close-Up Photography

With a minimum focusing distance of 0.34m and a magnification ratio of 0.17x, this lens is capable of delivering excellent image quality for close-up subjects.

3. سار سنڀال

3.1 لينس صاف ڪرڻ

To clean the lens, use a soft, lint-free cloth. For stubborn smudges, use a lens cleaning solution specifically designed for optical surfaces. Avoid touching the lens elements directly with your fingers.

3.2 اسٽوريج

When not in use, store the lens with both front and rear caps attached in a dry, cool place, away from direct sunlight and extreme temperatures. Using the provided lens pouch offers additional protection.

3.3 پائيداري

The lens body is constructed from a magnesium-aluminum alloy, providing a lightweight yet robust design with high impact resistance. It also features advanced dust and splash protection, ensuring reliable performance in various environmental conditions.

4. مسئلا حل ڪرڻ

4.1 Lens Elements Clunking Sound

It is normal for the lens elements to make some clunking sounds when the lens is not powered up. This is due to the linear motors with magnetic fields, which allow the lenses to move freely in the absence of current. This does not indicate a malfunction.

4.2 Focus and Sharpness Issues

If you experience issues with focus accuracy or image sharpness, ensure the lens is securely mounted to the camera body. Verify that the AF/MF switch is set correctly for your intended use. For optimal performance, ensure your camera's firmware and the lens firmware are up to date. If problems persist, consult VILTROX customer support.

4.3 Aperture Ring Operation

The aperture ring provides direct control over the aperture. If you prefer to control the aperture solely through the camera body, ensure the aperture ring is set to its 'A' (Auto) position, if available, or the widest aperture setting, and then adjust via the camera's command dial. Be aware of the tactile feedback of the click stops to prevent accidental changes.

5. وضاحتون

6. وارنٽي ۽ سپورٽ

VILTROX products are covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, service, or inquiries, please visit the official VILTROX webسائيٽ يا انهن جي ڪسٽمر سروس کاتي سان رابطو ڪريو.
