SUNCREAT Heavy Duty Wooden Swing Frame Instruction Manual

1. تعارف

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your SUNCREAT Heavy Duty Wooden Swing Frame. Designed for outdoor use, this stable and durable frame supports various swing chairs, offering a relaxing experience for adults and children. Please read this manual thoroughly before assembly and use to ensure safe and correct operation.

2. حفاظت جي ڄاڻ

خبردار: انهن حفاظتي هدايتن تي عمل ڪرڻ ۾ ناڪامي جي نتيجي ۾ سخت زخمي يا ملڪيت کي نقصان ٿي سگهي ٿو.

• هر استعمال کان اڳ پڪ ڪريو ته سڀئي حصا محفوظ طور تي مضبوط آهن. باقاعدي طور تي بولٽ ۽ ڪنيڪشن کي تنگي لاءِ چيڪ ڪريو.
• وڌ ۾ وڌ وزن جي گنجائش 800 پائونڊ (تقريبن 363 ڪلوگرام) کان وڌيڪ نه ڪريو.
• Install the swing frame on a level, stable surface. Uneven ground can compromise stability.
• Maintain a safe distance around the swing frame, free from obstacles, walls, or other structures.
• Adult supervision is required for children using the swing frame.
• Do not modify the swing frame structure or use non-original parts, as this may void the warranty and create safety hazards.
• Inspect the wood for cracks, splinters, or damage before each use. Discontinue use if significant damage is found.
• Protect the swing frame from extreme weather conditions to prolong its lifespan.

3. پيڪيج مواد

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, contact SUNCREAT customer support.

• Wooden Beams (various lengths and shapes for frame construction)
• Reinforced Wooden Boards (for triangular support)
• Zinc-plated Steel Hardware (bolts, nuts, washers, steel hooks)
• Assembly Tools (e.g., Allen wrench, spanner - may be included or required separately)
• ھدايت وارو دستور

تصوير: تفصيلي view of key components including steel hooks, screws, solid wood, and reinforced wooden boards.

4. سيٽ اپ ۽ اسيمبلي جون هدايتون

اسيمبليءَ لاءِ عام طور تي ٻن بالغن جي ضرورت هوندي آهي. مھرباني ڪري انھن قدمن تي احتياط سان عمل ڪريو.

1. علائقو تيار ڪريو: Choose a level, clear outdoor space for assembly. Ensure sufficient clearance around the frame for safe swinging.
2. انپيڪ اجزاء: Carefully remove all parts from the packaging and lay them out. Identify each part using the provided parts list (if applicable).
3. Assemble Base Supports: Attach the reinforced wooden boards to the main vertical posts to form the triangular base supports on both sides. Secure with bolts, nuts, and washers, ensuring they are finger-tight for now.
4. Connect Top Beam: Lift and connect the horizontal top beam to the two assembled side supports. Ensure the pre-drilled holes align. Secure with the provided hardware.
5. Install Steel Hooks: Attach the steel hooks to the underside of the top beam where the swing will hang. Ensure they are securely fastened.
6. سڀني هارڊويئر کي سخت ڪريو: Once the frame is fully assembled and standing, systematically tighten all bolts and nuts using the appropriate tools. Do not overtighten, but ensure all connections are firm and secure.
7. آخري معائنو: Double-check all connections and ensure the frame is stable and level before hanging any swing or applying weight.

Image: Structural diagram highlighting reinforced wooden boards and solid wood construction for stability.

Image: Assembled swing frame ready for a swing bench.

5. آپريٽنگ هدايتون

The SUNCREAT swing frame is designed to accommodate various types of swing chairs, including porch swings, hammock chairs, and other hanging seating options.

• Hanging a Swing: Use the integrated steel hooks on the top beam to securely attach your chosen swing chair. Ensure the swing's chains or ropes are compatible with the hooks and are properly secured.
• وزن جي گنجائش: Do not exceed the maximum weight capacity of 800 lbs (363 kg). Distribute weight evenly when multiple users are on the swing.
• محفوظ استعمال: Swing gently and avoid excessive force or twisting motions that could strain the frame or connections.
• ماحولياتي خيالات: While designed for outdoor use, prolonged exposure to harsh weather (heavy rain, snow, extreme sun) can affect the wood. Consider covering the frame during adverse conditions.

Image: Swing frame in use with a wooden swing bench.

Image: The swing frame is compatible with various swing chair types.

6. سار سنڀال

Regular maintenance will extend the life and preserve the appearance of your swing frame.

• صفائي: Wipe down the wooden frame with a damp cloth and mild soap as needed. Avoid harsh chemicals or abrasive cleaners that could damage the varnish finish.
• هارڊويئر چيڪ: Periodically inspect all bolts, nuts, and connections for tightness. Tighten any loose hardware to maintain stability.
• ڪاٺ جي حفاظت: The frame features a varnish finish for outdoor service. To further protect the wood from weathering and UV damage, consider applying a wood sealant or protector annually, especially if exposed to harsh elements.
• اسٽوريج: During prolonged periods of non-use or severe weather, consider covering the swing frame or disassembling and storing it in a dry, protected area.

7. مسئلا حل ڪرڻ

8. وضاحتون

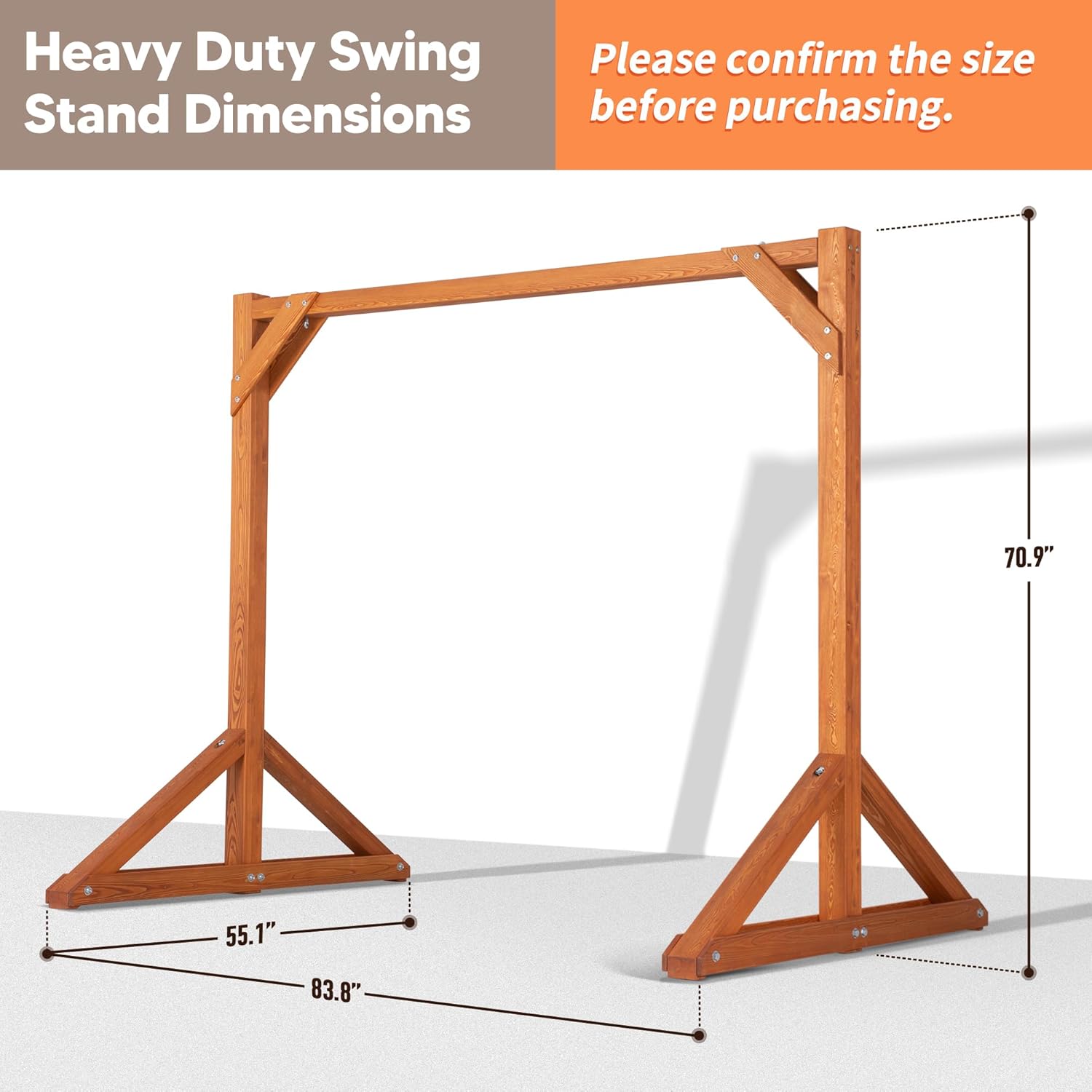

Image: Detailed dimensions of the swing frame.

9. وارنٽي ڄاڻ

For specific warranty details regarding your SUNCREAT Heavy Duty Wooden Swing Frame, please refer to the warranty card included with your product or contact SUNCREAT customer support directly. Keep your proof of purchase for warranty claims.

10. ڪسٽمر سپورٽ

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact SUNCREAT customer support.

برانڊ: سنڪريٽ

آن لائن سپورٽ: Visit the official SUNCREAT store on Amazon for more information and contact options: سنڪريٽ اسٽور

11. پراڊڪٽ وڊيوز

No official product videos with "Seller" as creator type were found in the provided data to embed. Please refer to the product page for any available video content.
