1. تعارف
This manual provides instructions for the safe and efficient use of your Energizer Power Bank XP27000PD. This high-capacity portable charger is designed to provide power for a wide range of electronic devices, including laptops, tablets, and smartphones, with advanced charging technologies.
2. پراڊڪٽ ختمview
The Energizer Power Bank XP27000PD features a robust design with multiple charging ports and an informative digital display.
اهم خاصيتون:
- 27,000mAh اعليٰ گنجائش: Provides extended power for multiple devices.
- 140W USB-C پاور ڊليوري: Supports fast charging for compatible laptops, smartphones, and tablets.
- 30W Smart USB-A Output: Enables rapid charging for smartphones.
- Triple Outputs: Allows simultaneous charging of up to three devices.
- Smart Digital LCD Display: Shows real-time battery status, input/output wattage، ۽ درجه حرارت.
- پاور سيف مئنيجمينٽ: Integrated protection against short circuit, overcurrent, overcharge, and overdischarge.
اجزاء جي سڃاڻپ:
تصوير: Energizer Power Bank XP27000PD with its USB-C and USB-A ports clearly visible. The device is black with a digital display on top.
- • USB-C 1 (ان پٽ/آئوٽ پٽ): Primary Power Delivery port.
- • USB-C 2 (ان پٽ/آئوٽ پٽ): Secondary Power Delivery port.
- • USB-A (آئوٽ پٽ): Standard USB output port.
- • پاور چيڪ بٽڻ: Activates the LCD display.
- • LCD اسڪرين: Displays charging information.

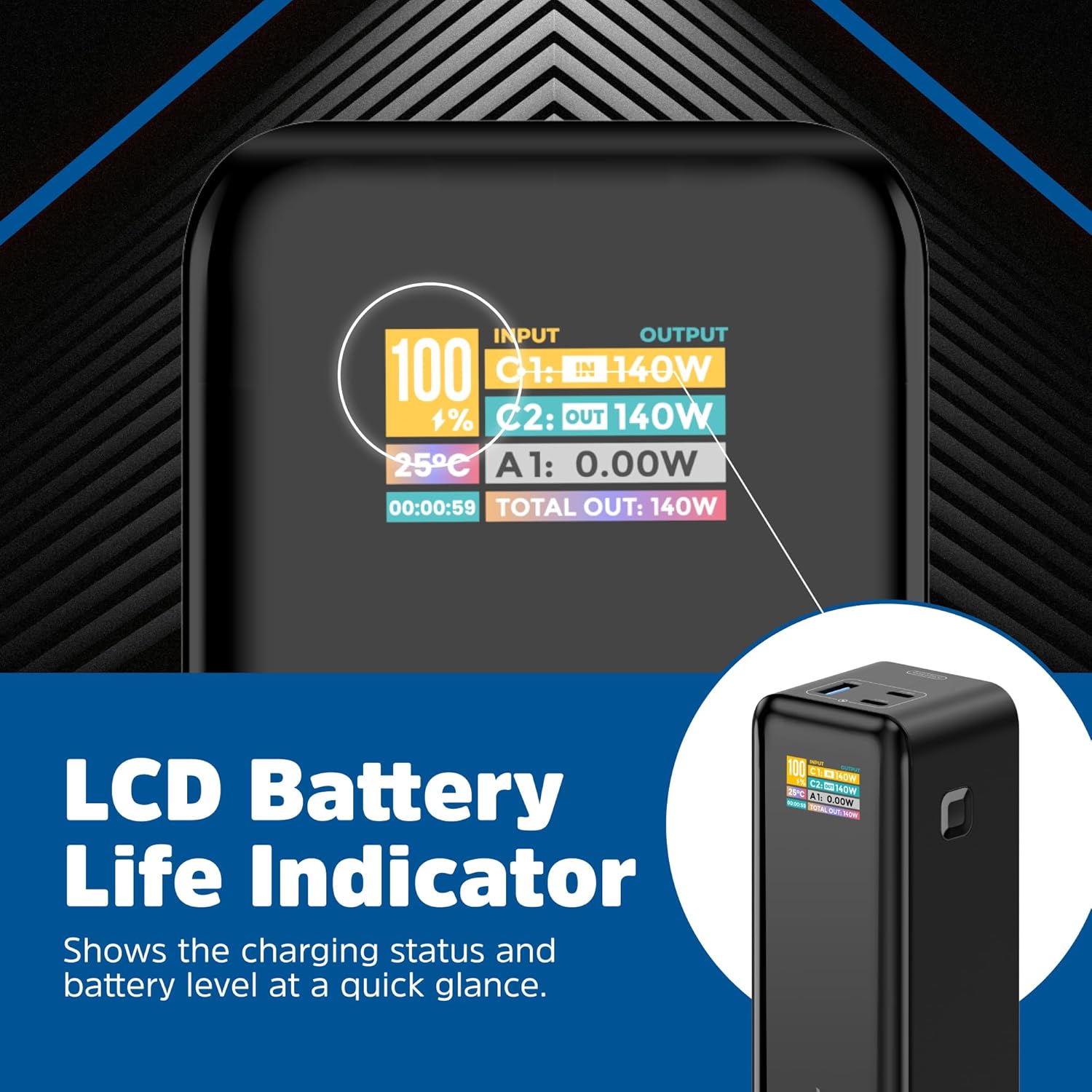

تصوير: هڪ تفصيلي view of the power bank's LCD screen, showing "INPUT 100%", "C1: IN 140W", "C2: OUT 140W", "25°C", "A1: 0.00W", and "TOTAL OUT: 140W". This display provides real-time charging and discharging information.
پيداوار وڊيو:
وڊيو: هڪ سرڪاري پراڊڪٽ وڊيو شوasing the key specifications and features of the Energizer Power Bank XP27000PD, including its high capacity, fast charging capabilities, and port layout.
3. سيٽ اپ: پاور بينڪ کي چارج ڪرڻ
Before initial use, fully charge your Energizer Power Bank. Use a compatible USB-C Power Delivery wall charger (not included) for optimal charging speed.
- Connect a USB-C cable to either of the power bank's USB-C input/output ports (USB-C 1 or USB-C 2).
- Connect the other end of the USB-C cable to a compatible USB-C Power Delivery wall charger.
- The LCD display will illuminate, showing the input wattage and the current battery percentage.
- جڏهن ڊسپلي 100٪ ڏيکاري ٿي ته چارجنگ مڪمل ٿي ويندي آهي.
نوٽ: Charging time varies depending on the power output of your wall charger. For fastest charging, use a 140W PD compatible charger.
4. آپريٽنگ: توهان جي ڊوائيسز کي چارج ڪرڻ
The power bank can charge up to three devices simultaneously using its USB-C and USB-A ports.
Charging with USB-C Power Delivery:
- Connect a USB-C to USB-C cable to one of the power bank's USB-C ports (USB-C 1 or USB-C 2).
- Connect the other end of the cable to your compatible laptop, tablet, or smartphone.
- The LCD display will show the output wattage for the connected device.
تصوير: The Energizer Power Bank XP27000PD is shown connected to a laptop via a USB-C cable, demonstrating its capability to charge high-power devices.
Charging with USB-A:
- Connect a USB-A cable to the power bank's USB-A output port.
- Connect the other end of the cable to your smartphone or other compatible device.
- The LCD display will show the output wattage for the connected device.
تصوير: A smartphone is connected to the Energizer Power Bank XP27000PD using a USB-A cable, illustrating the 30W Smart USB-A fast charging feature.
هڪ ئي وقت چارج ڪرڻ:
You can charge multiple devices at once. The power bank intelligently distributes power across the connected ports. The LCD display will show the total output wattage.
تصوير: The Energizer Power Bank XP27000PD is depicted charging a laptop, a tablet, and a smartphone simultaneously, highlighting its triple output capability.
5. سار سنڀال
- پاور بينڪ کي سڪل ۽ نمي کان پري رکو.
- ڊوائيس کي انتهائي گرمي پد (گرم يا ٿڌو) جي سامهون آڻڻ کان پاسو ڪريو.
- پاور بينڪ کي نرم، سڪل ڪپڙي سان صاف ڪريو. سخت ڪيميڪل يا رگڙيندڙ مواد استعمال نه ڪريو.
- Store the power bank with approximately 50-75% charge if not used for extended periods to prolong battery life. Recharge every 3-6 months.
- پاور بئنڪ کي ڌار ڪرڻ، مرمت ڪرڻ يا تبديل ڪرڻ جي ڪوشش نه ڪريو.
6. مسئلا حل ڪرڻ
- پاور بينڪ چارج نه ٿي رهيو آهي:
- • Ensure the charging cable is securely connected to both the power bank and the wall charger.
- • Verify that the wall charger is functioning correctly and is compatible with USB-C Power Delivery.
- • Try a different USB-C cable or wall charger.
- ڊوائيسز چارج نه ٿي رهيون آهن يا سست چارج ٿي رهيون آهن:
- • Check if the power bank has sufficient charge. Press the power check button to view the battery level on the LCD.
- • Ensure the charging cable is securely connected to both the power bank and your device.
- • Use a high-quality cable that supports fast charging for optimal performance.
- • Some devices may require specific charging protocols; ensure compatibility.
- LCD display is inaccurate or inconsistent:
- • The power bank's battery management system recalibrates over time. Fully discharge and then fully recharge the power bank periodically to help recalibrate the display.
- • Environmental factors like extreme temperatures can affect battery performance and readings.
7. وضاحتون
| خاصيت | تفصيل |
|---|---|
| ماڊل نمبر | XP27000PD |
| بيٽري جي گنجائش | 27000 مليamp ڪلاڪ (mAh) |
| USB-C Output (PD) | 140W تائين |
| USB-اي آئوٽ | 30W تائين |
| ان پٽ (USB-C) | 140W تائين |
| پيداوار جي ماپ | 6.13 x 2.19 x 2.09 انچ |
| شيءِ جو وزن | 1.42 پائونڊ |
| بيٽري جو قسم | ليتيم پوليمر |
| خاص خاصيتون | Digital Display, Fast Charging |
8. حفاظت جي ڄاڻ
- پاور بينڪ کي باهه يا سخت گرمي جي سامهون نه رکو.
- پاور بينڪ کي پاڻي يا ٻين مائعات ۾ نه ٻوڙيو.
- پاور بئنڪ کي مضبوط اثرن لاءِ ڇڏڻ يا تابع ڪرڻ کان پاسو ڪريو.
- ٻارن جي پهچ کان پري رکو.
- If the power bank shows signs of swelling, leakage, or unusual heat, discontinue use immediately and dispose of it properly.
- Use only original or certified compatible charging cables and adapters.
- This device contains a lithium polymer battery. Follow local regulations for disposal.
9. وارنٽي ۽ سپورٽ
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Energizer webسائيٽ. وارنٽي دعوائن لاءِ خريداري جو ثبوت رکو.
Official Energizer Webسائيٽ: www.energizer.com
