Aigostar 70W Outdoor Solar LED Light with Remote Control (Model B1020146H-212326) - Instruction Manual

1. تعارف

Thank you for choosing the Aigostar 70W Outdoor Solar LED Light. This product is designed to provide efficient and versatile lighting for various indoor and outdoor environments, utilizing solar energy to eliminate electricity costs. This manual will guide you through the installation, operation, and maintenance of your new solar LED light system.

2. دٻي ۾ ڇا آهي

مھرباني ڪري پنھنجي پيڪيج جي مواد کي چيڪ ڪريو ته جيئن پڪ ڪري سگھجي ته سڀئي شيون موجود آھن ۽ انھن کي ڪو نقصان نه پھتو آھي:

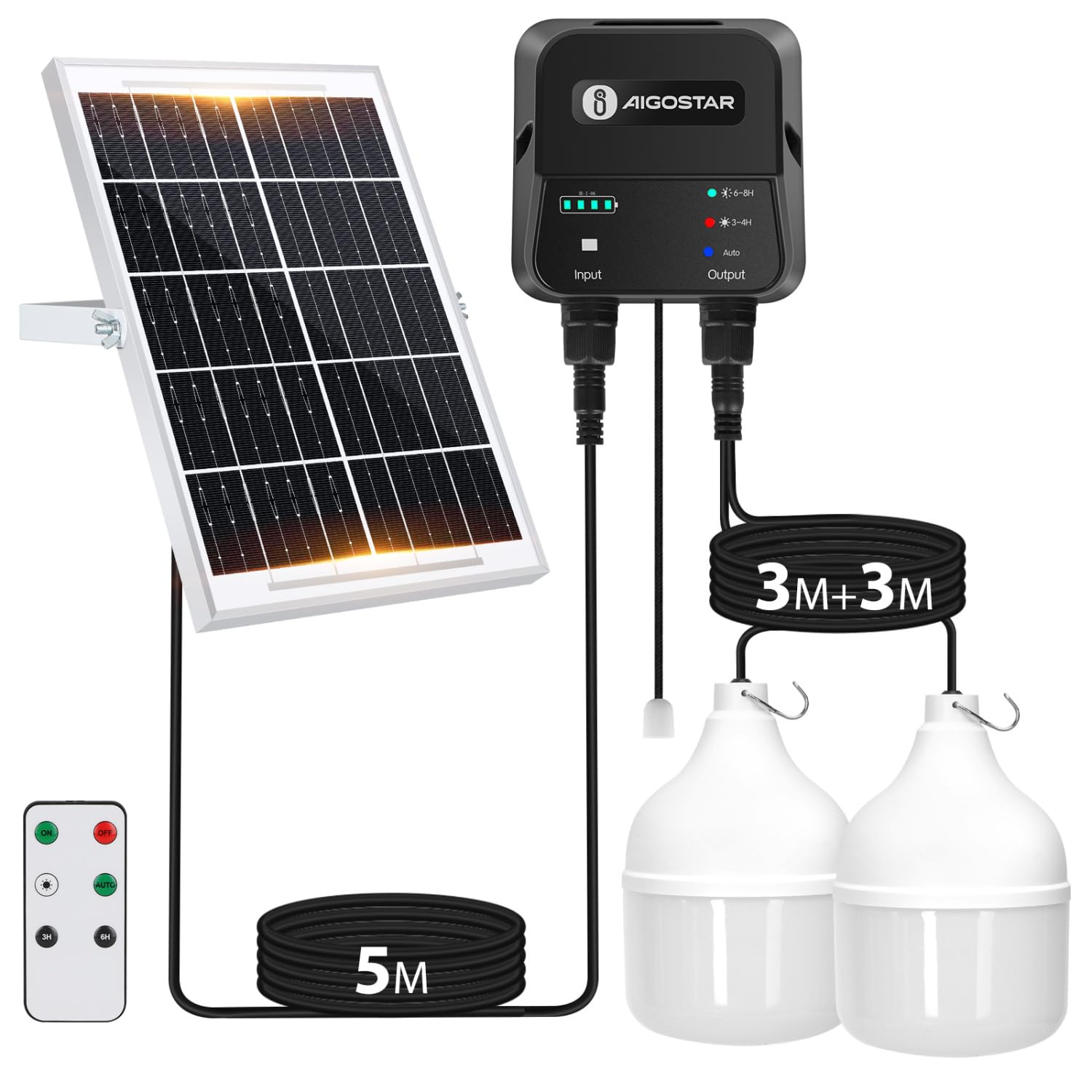

• شمسي پينل
• LED Bulbs (x2)
• Energy Storage Box with Manual Pull Switch
• ريموٽ ڪنٽرول
• Connection Cables (5m for panel, 3m+3m for bulbs)
• Mounting Accessories (screws, anchors, hooks)
• ھدايت وارو دستور

3. پراڊڪٽ ختمview

The Aigostar 70W Outdoor Solar LED Light system is designed for energy efficiency and durability, suitable for a wide range of applications.

اهم خاصيتون:

• Zero Electricity Bill: High-efficiency monocrystalline silicon photovoltaic panels (up to 25% conversion efficiency) and a 6000mAh large-capacity battery ensure continuous operation for up to 14 hours after 4-6 hours of solar charging.
• پائيدار ۽ موسم کان بچاءُ: IP65 protection rating ensures resistance to cold (-10℃) and heat (50℃), making it suitable for various indoor and outdoor environments like gardens, balconies, garages, and tool rooms.
• Multifunctional Energy Storage Box: Features a manual pull switch design, allowing flexible on/off control and intuitive operation without complex settings.
• اعلي روشني: 70W power, 700LM brightness, and 6500K cool white light with a 120° beam angle. Includes 11 meters of cable for flexible placement.
• Remote Control with Timer: Control the light with the included remote, offering timer functions, high brightness mode, and automatic mode with an 8-meter range.

4. سيٽ اپ ۽ تنصيب

Follow these steps for proper installation of your Aigostar Solar LED Light:

1. شمسي پينل تي چڙهڻ: Choose a location that receives direct sunlight for 4-6 hours daily. Use the provided screws and anchors to securely mount the solar panel. Adjust its angle to maximize sun exposure.
2. Hang the LED Bulbs: The bulbs feature integrated hooks for flexible installation. Hang them in your desired indoor or outdoor area.
3. Mount the Energy Storage Box: Secure the energy storage box to a wall or suitable surface using the provided mounting accessories. Ensure it is within reach for manual operation and remote control signal.
4. ڪيبل ڳنڍيو: Connect the solar panel cable to the "Input" port on the energy storage box. Connect the LED bulb cables to the "Output" ports on the energy storage box. Ensure connections are secure.
5. شروعاتي چارج Before first use, it is recommended to charge the solar panel for 24 hours to ensure the battery is fully charged.

تنصيب جا طريقا:

• Ensure the solar panel is not obstructed by shade from trees or buildings.
• Clean the solar panel regularly with a soft, damp cloth (at least once a year) to avoid low output due to dust collection.
• The total cable length is 11 meters (5m for panel, 3m+3m for lights), allowing for flexible placement.

5. آپريٽنگ هدايتون

Your Aigostar Solar LED Light can be operated using the manual pull switch on the energy storage box or the included remote control.

5.1. Manual Pull Switch Operation (Energy Storage Box)

The energy storage box features a manual pull switch for basic control. Pulling the switch continuously within 2 seconds cycles through different modes:

• Pull Once: 65% Brightness. Discharges gradually and turns off after approximately 8.5 hours. The green indicator light stays on.
• Pull Twice: 100% Brightness. Discharges gradually and turns off after approximately 4.5 hours. The red indicator light stays on.
• Pull Three Times: 65% Brightness, automatically turns on at night. Discharges gradually and turns off after approximately 14 hours. The blue indicator light stays on.
• Pull Four Times: Turns off the bulb. All indicator lights are off.

5.2. ريموٽ ڪنٽرول آپريشن

The remote control provides more advanced functions. Point the remote directly towards the energy storage box for optimal performance (up to 8 meters range).

• کولڻ: Force opening at 65% brightness. Discharges gradually and turns off after 8.5 hours.
• بند ڪريو روشني بند ڪري ٿو.
• روشني جي ترتيب: Use the sun icon button to cycle through brightness levels (100% brightness discharges in 4.5 hours).
• اوٽو: Automatic mode at 65% brightness. Discharges gradually and turns off after 14 hours, or automatically turns off during the day and on at night.
• ٽائمر افعال:
  • 3 ايڇ: Sets a 3-hour timer at 65% brightness. Discharges gradually and turns off after 3 hours.
  • 6 ايڇ: Sets a 6-hour timer at 50% brightness. Discharges gradually and turns off after 6 hours.

5.3. چارجنگ ۽ بيٽري جي زندگي

The solar panel charges the 6000mAh battery in the energy storage box. Under sufficient sunlight, a full charge takes 4-6 hours, providing up to 14 hours of continuous light depending on the selected brightness mode.

5.4. استعمال جا منظرنامو

This versatile solar light is suitable for various applications:

• باغيچا ۽ باغات
• Balconies and Porches
• Garages and Tool Rooms
• Stables, Sheepfolds, Chicken Coops
• Camping and Fishing

5.5. سرڪاري پراڊڪٽ وڊيوز

Watch these official videos for more information on the Aigostar Solar LED Light:

6. سار سنڀال

To ensure the longevity and optimal performance of your Aigostar Solar LED Light, follow these maintenance guidelines:

• سولر پينل کي صاف ڪريو: باقاعدي طور تي سولر پينل کي نرم، ڊي سان صاف ڪريوamp مٽي، مٽي ۽ ملبہ هٽائڻ لاءِ ڪپڙو. هڪ صاف پينل سج جي روشني جي وڌ ۾ وڌ جذب ۽ چارجنگ جي ڪارڪردگي کي يقيني بڻائي ٿو.
• ڪيبل ۽ ڪنيڪشن جو معائنو ڪريو: Periodically check all cables and connections for any signs of wear, damage, or loose fittings. Ensure they are securely connected and free from obstructions.
• بيٽري جي سنڀال: While the battery is designed for long life, avoid prolonged periods of complete discharge. If storing the unit for an extended time, ensure the battery is fully charged before storage and recharge it every few months.
• اسٽوريج: If the product is not in use for a long period, store it in a cool, dry place away from direct sunlight.

7. وضاحتون

8. وارنٽي ۽ سپورٽ

For warranty information and customer support, please refer to the contact details provided on the product packaging or visit the official Aigostar webسائيٽ. ڪنهن به وارنٽي دعوائن لاءِ خريداري جي ثبوت طور پنهنجي خريداري جي رسيد رکو.

Return Policy: 30 days refund/replacement (as per Amazon.es buybox winner information).
